CNC Knife Cutting Machine Manufacturer
AR System Type

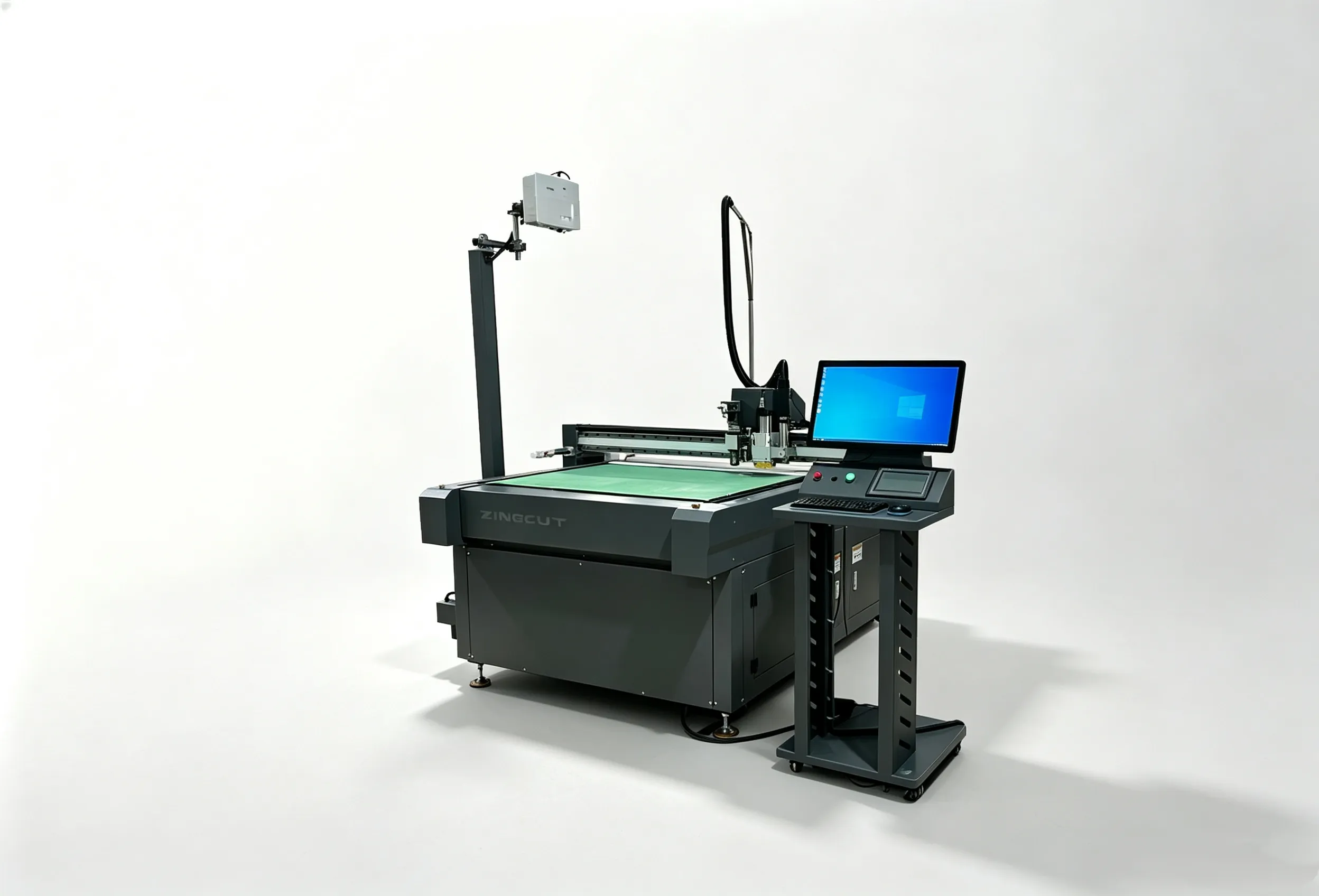

ZINGCUT AR System Table CNC cutters are suitable for all kinds of sheet-shaped and roll materials.
CNC Cutting Machine
AR System Type

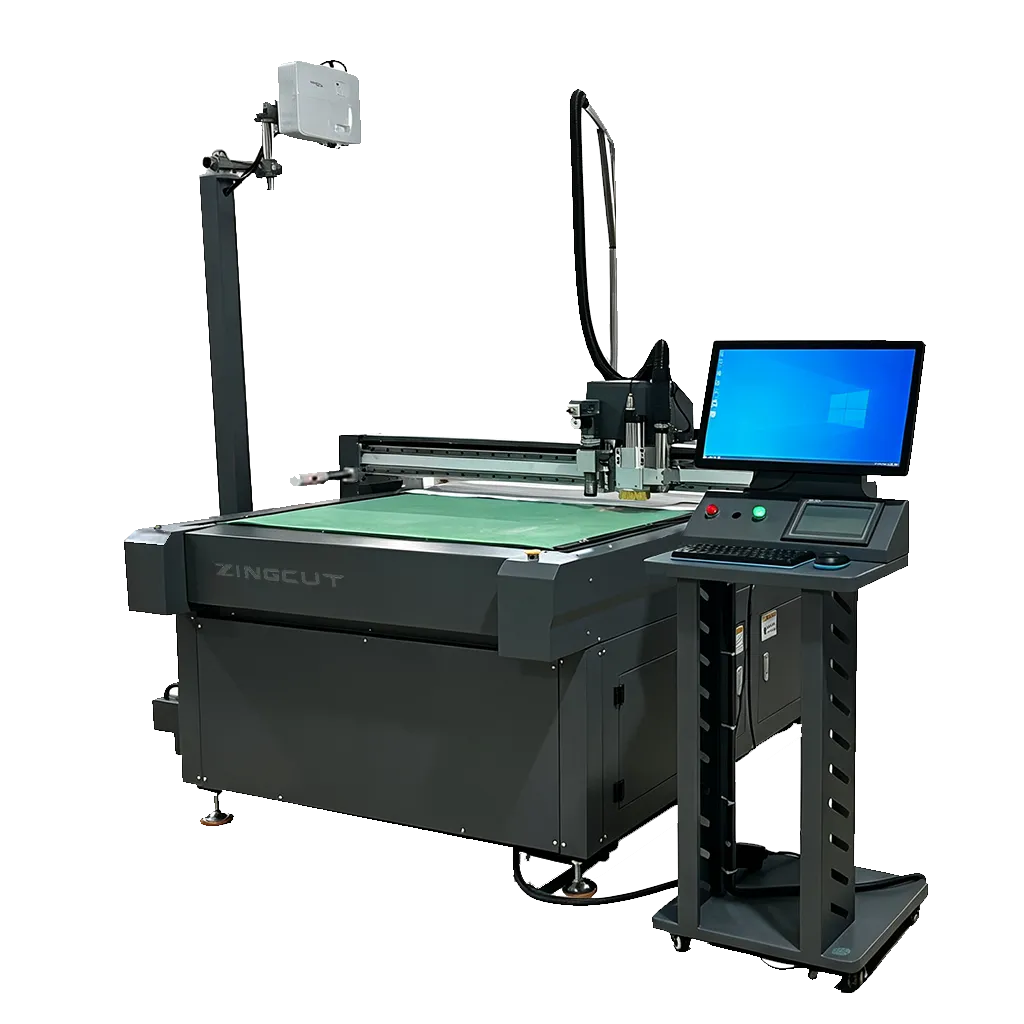

Looking for a CNC cutter equipped with intelligent visual positioning? Our AR System Table CNC Cutting Machine brings visual recognition technology to digital cutting, upgrading your cutting accuracy and efficiency.
- Auto visual positioning, no manual marking needed
- Minimize measuring errors for improved cutting accuracy
- Fast camera calibration to shorten setup time
- Intuitive visual operation with low learning cost
Intelligent Systems
ZINGCUT is equipped with a full set of independent intelligent software systems that run the whole digital cutting workflow from file import to finished cutting. These professional modules are specially developed for flexible material processing, bringing automation and intelligence to your production line.
From visual positioning and automatic nesting to precise toolpath calculation, our intelligent systems reduce manual operation errors, save raw material costs and greatly improve overall cutting efficiency for small-batch sampling and mass manufacturing alike.
Vision Recognition System
- Fast automatic positioning
- High cutting accuracy
- Easy edge tracing for irregular materials

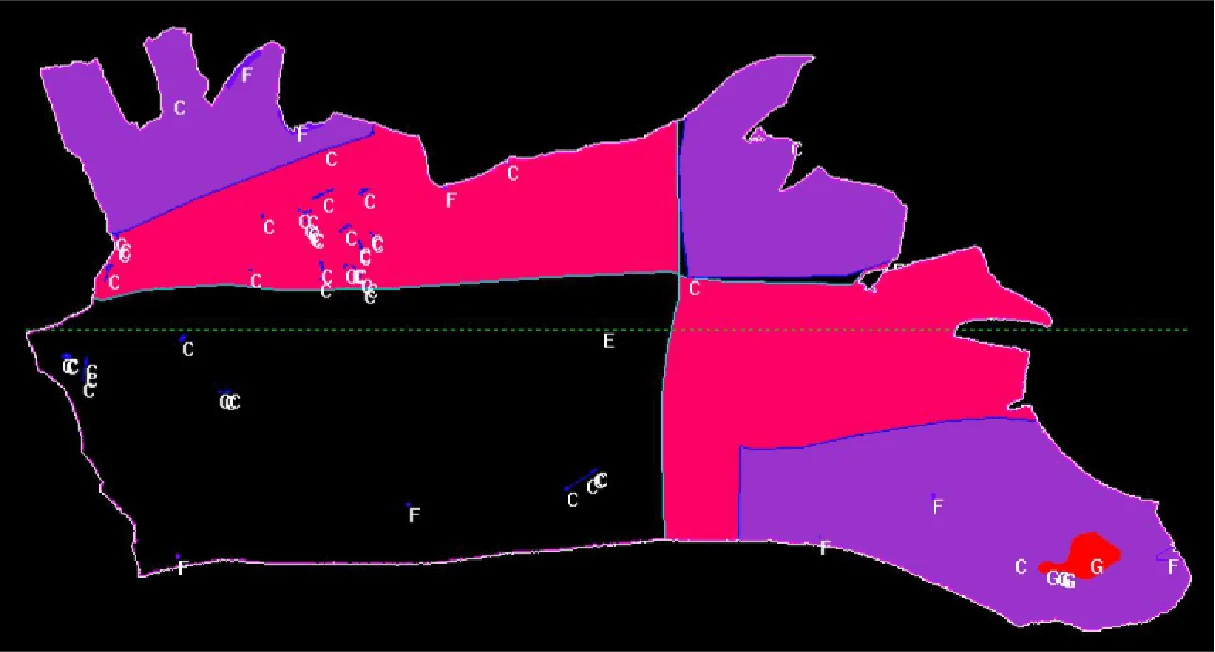

Projection Positioning System
- Real-time projection preview, intuitive and visual operation
- High-precision overall positioning for large materials Effectively avoid material waste and improve utilization
- Suitable for various irregular and flexible materials
CCD Recognition System
- Precise automatic contour positioning
- High cutting repeat accuracy
- Auto identify irregular raw materials
Based on your actual production scenarios, you can add or upgrade modules including projector positioning, multi‑function cutting heads and other accessories. Maximize machine performance to handle printed fabrics, packaging and graphic‑mark materials without purchasing a brand‑new unit.。
Enhance your cutting workflow with flexible upgradable configuration options for the AR‑system cutting machine.
Parts
Upgradable Configuration Options

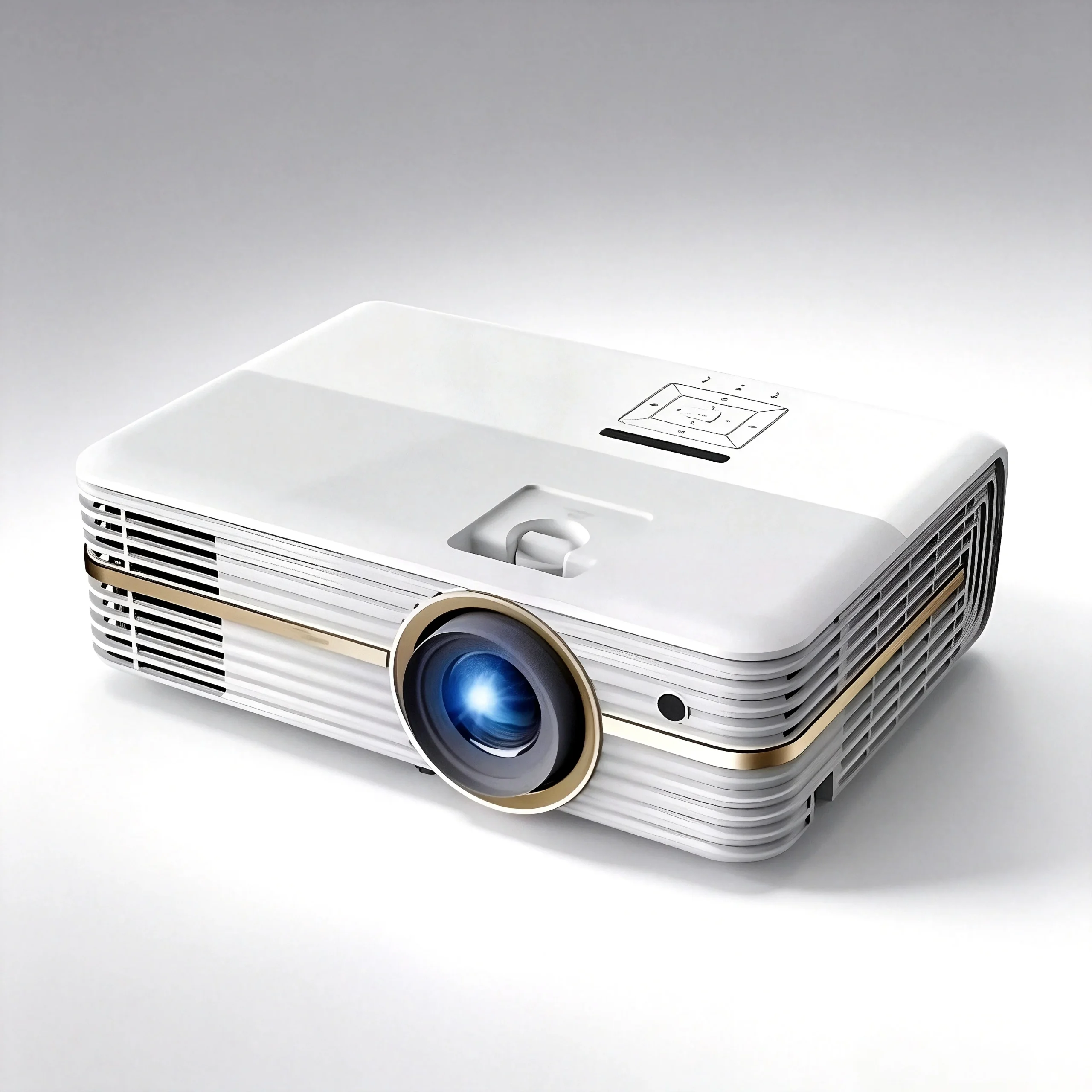

Projection Positioning
The projection positioning system uses a high-precision projector to locate mark points for our CNC cutting machines, enabling fast visual alignment without manual tracing.
- Fast large-area projection scanning for quick mark detection
- Clear projected outlines for easy material layout reference
- Reduces manual marking work and improves positioning efficiency
- Perfectly coordinated with cutting software for accurate cutting
Sample Display
Application
ZINGCUT CNC cutting machine is your ideal choice. If you have any questions, feel free to contact us anytime.
Our CNC cutting machine delivers fast cutting speed and exceptional precision. All finished samples feature complete, sharp and smooth cuts with neat edges, no burrs, no cracks or material deformation, presenting perfect cutting effect.

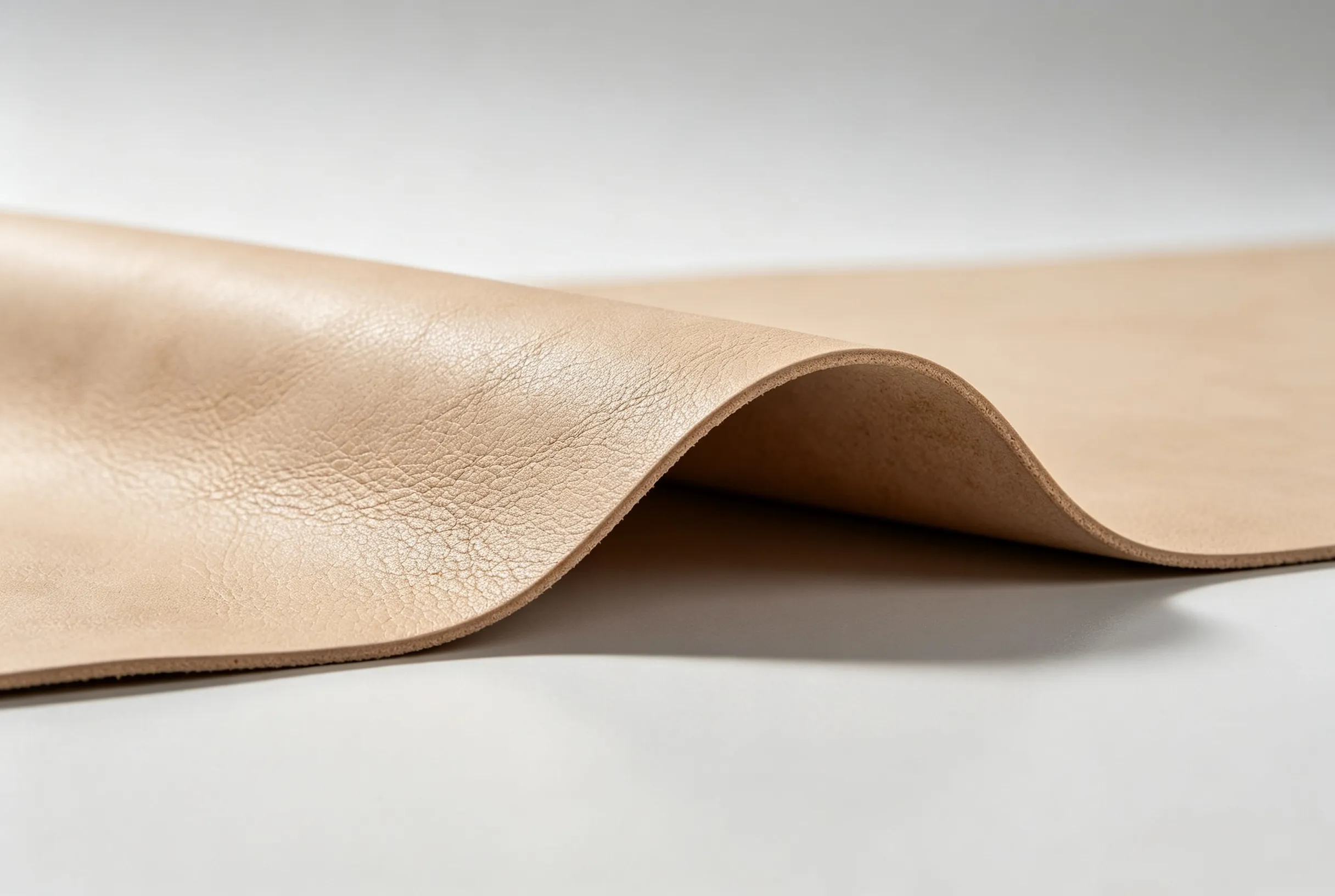

Genuine Leather
Premium raw material for making high-grade handbags, wallets and leather accessories.
Soft texture with high material value, durable and wear‑resistant, improves product grade and comfort.
Vision camera identifies and marks leather defects, intelligently optimizes nesting layout
Good toughness, not easy to deform, suitable for long-term use products.

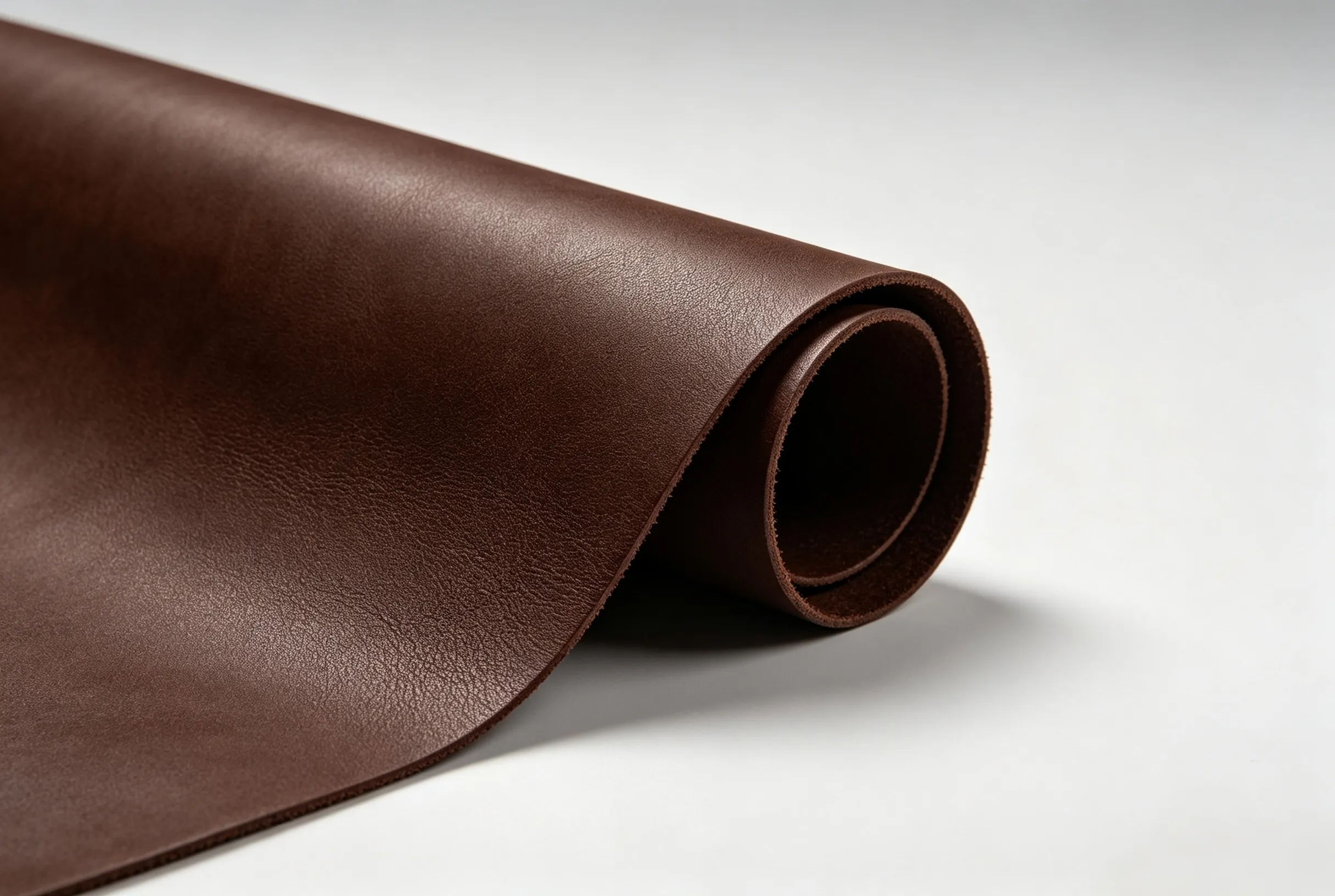

PU Leather
Cost-effective substitute for genuine leather, widely used in daily leather bags and fashion bags.
Soft touch, rich colors and diverse surface textures for various styles.
Burr‑free high‑precision cutting, accurately restores embossed & printed custom patterns
Stable material, easy cutting and processing, suitable for mass production.

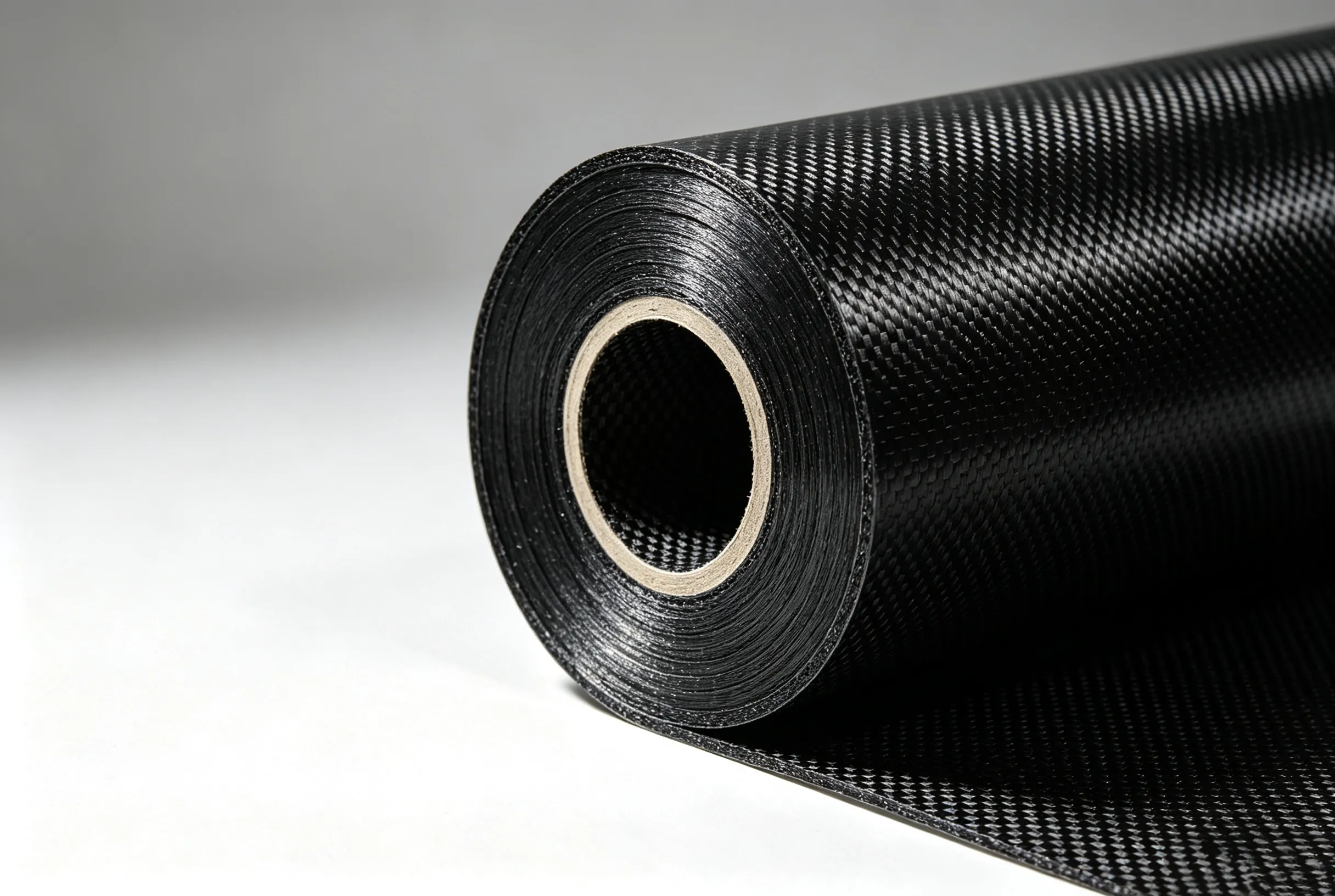

Carton Fiber Prepreg
High‑strength lightweight composite material for aerospace, automotive parts and sporting‑goods components.
Roll‑format material adapts to continuous‑feed mass‑production workflows.
Conveyor table enables automatic continuous roll‑feeding, reduces frequent manual material loading.
High‑precision cutting guarantees consistent dimensional accuracy of each prepreg cut piece.
Canvas
Premium raw material for apparel cutting, ideal for garment fabrics and textiles.
Wear-resistant and reusable, effectively protects the cutting blade.
Precise contour cutting produces clean, burr-free fabric edges.
Consistent cutting performance for mass apparel pattern production.
How does it work
Cutting Video
- Projects cutting paths visually for workers to place materials easily
- Eliminates manual drawing lines to save pre-cut preparation time
- Works well together with CCD visual recognition for higher accuracy
- Reduces material waste caused by wrong manual positioning
Cooperating with image recognition cameras and control software, the AR system solves the positioning difficulty of extra-large sheets and irregular printed patterns, greatly optimizing the whole cutting workflow.
Our AR projection positioning system is an optional intelligent upgrade for ZINGCUT CNC cutting machines. It projects cutting outlines directly onto raw materials to replace manual marking and positioning.
Every detail determines cutting performance. ZINGCUT digital cutting machines adopt well‑thought‑out mechanical design from frame structure to vacuum layout. Core‑optimized hardware delivers high rigidity, reliable safety protection and stable material fixation, minimizing vibration during operation and supporting long‑hours continuous industrial‑grade production.
Machine Design
Integrated Body Design
Adopts an integrated one-piece frame structure, featuring high overall rigidity and stable operation. It effectively reduces vibration during cutting and ensures long-term processing accuracy.

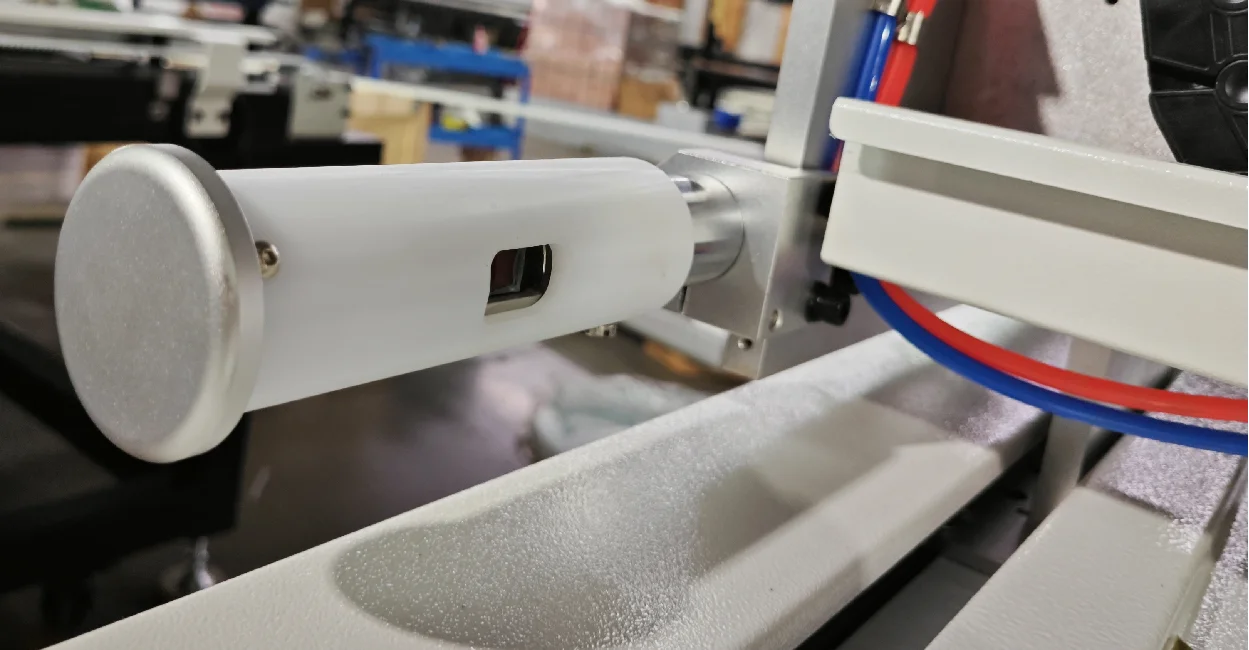

Safety Induction Switch
Equipped with a safety induction switch for real-time monitoring and instant emergency stop, the machine features a hidden enclosed transmission structure to avoid dust buildup, prevent accidental contact, ensure operator safety and reduce maintenance costs.

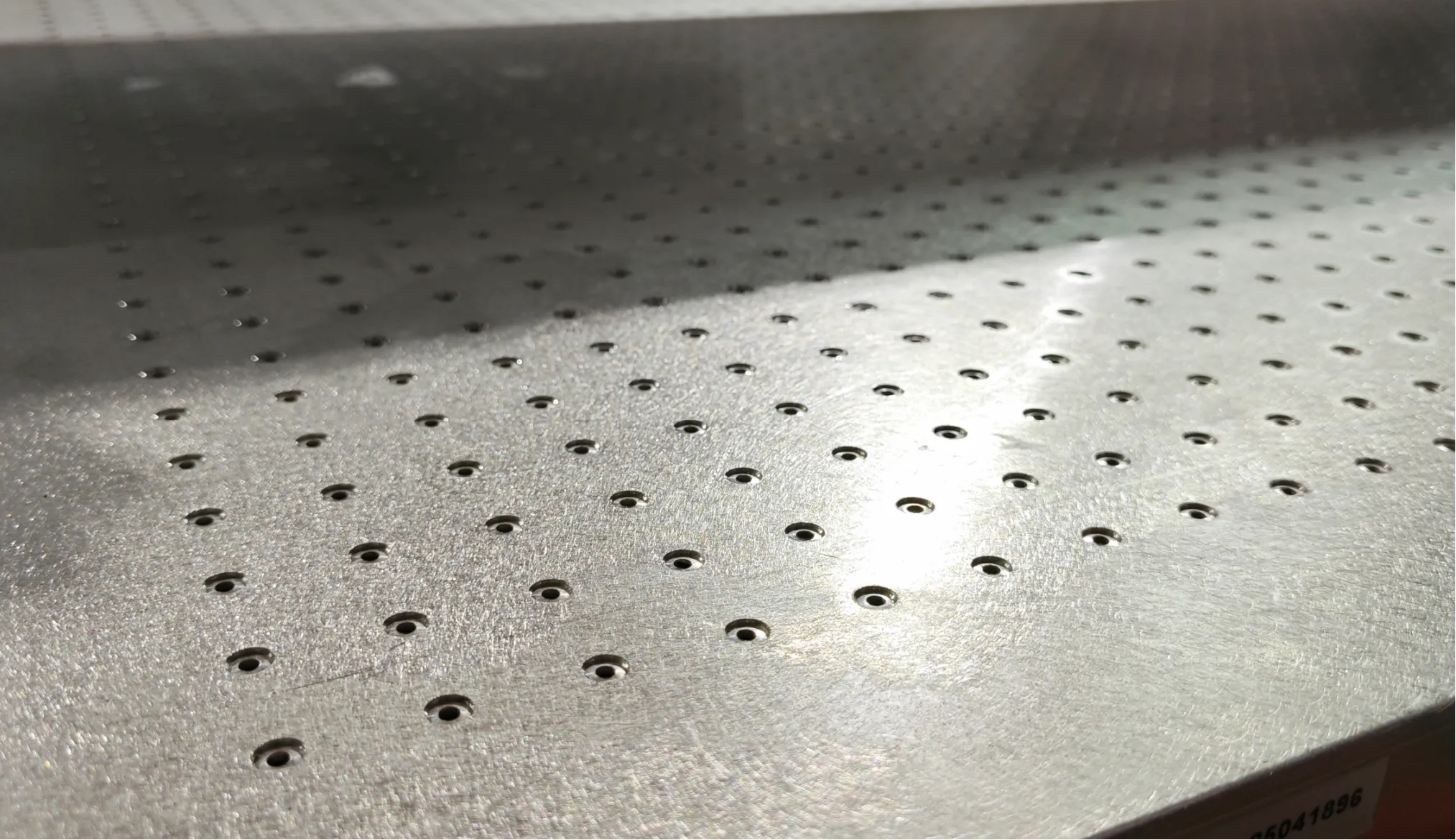

Vacuum Suction System
Comes with an integrated vacuum suction function, which firmly and steadily fixes various materials during cutting. It prevents material shifting and ensures precise and consistent cutting results.

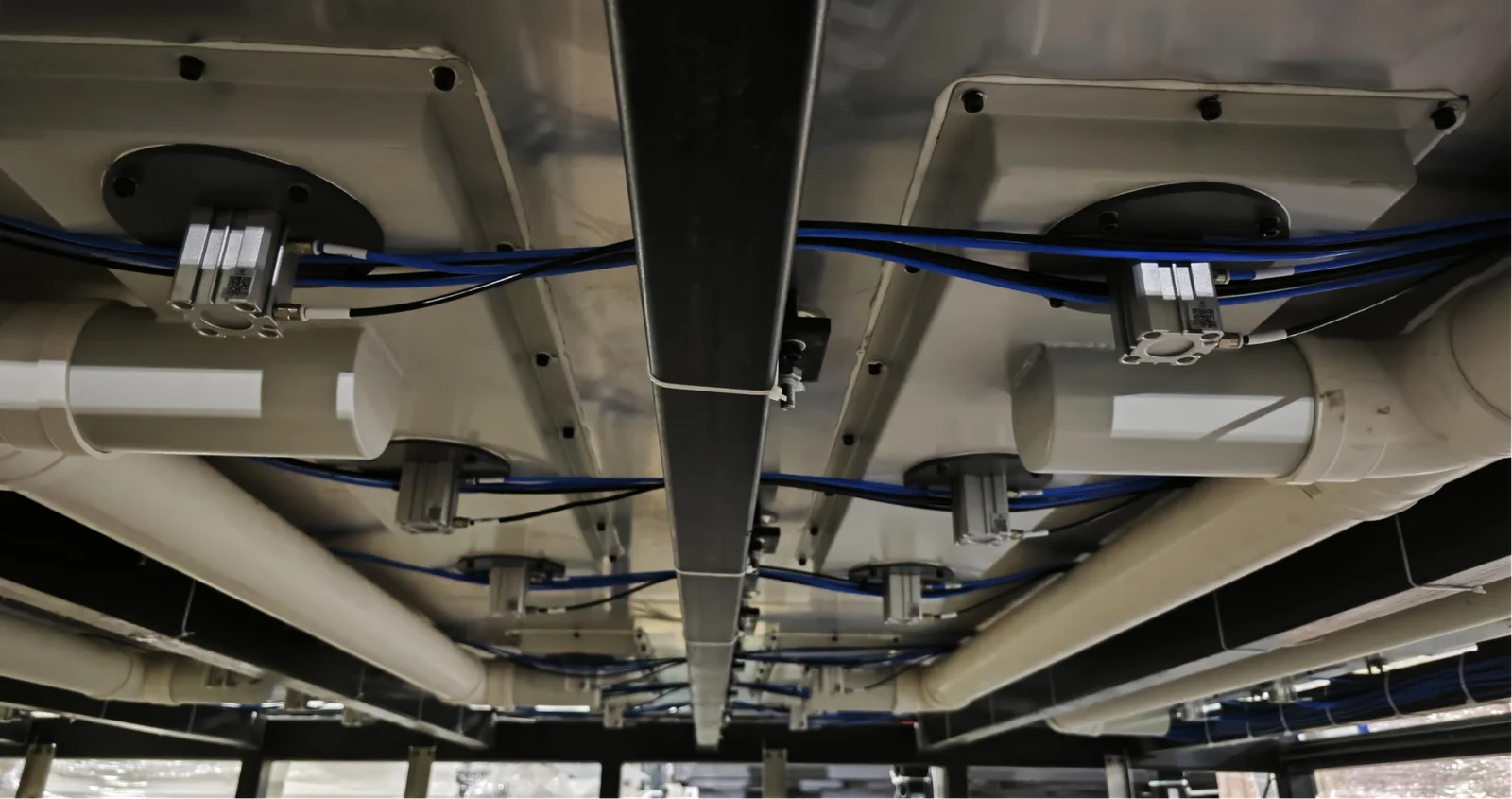

Optimized Vacuum Layout
Features a professional vacuum pipe routing design that greatly enhances fan working efficiency. It delivers stronger and more even suction force for stable material fixation.
Review the core‑specifications of ZINGCUT digital cutting machines. Multiple standard sizes are available, and custom configurations are supported to match your production‑area, tooling and platform requirements.
Technical Parameters
| Model | ZC-1007 | ZC-1510 | ZC-1813 | ZC-2516 | ACCEPTING CUSTOMIZATION |
|---|---|---|---|---|---|
| Effective Working Area | 1000*700 mm | 1500*1000 mm | 1800*1300 mm | 2600*1600 mm | |
| Air Pump Power | 5.5KW | 5.5KW | 7.5KW | 9KW | |
| Machine Power | 2KW | ||||
| Cutting Accuracy | ±0.2mm | ||||
| Repeat Accuracy | ≤0.1mm | ||||
| Type of Work Platform | Static Table，Conveyor Table，Dual Station，AR Syestem | ||||
| Multi-Head Optional | Double head optional efficiency doubled, double gantry optional, double head mutual shift optional, length can be customized | ||||
| Multi-Function Tool | Vibrating knife full cutting, high power active round knife, semi-cutting cutting, full cutting cutting, camera positioning cutting, edge finding cutting, acrylic milling cutter, cursor positioning, line marking, indentation knife, V-groove knife, etc. | ||||
| Safety Devices | Safety Proximity Sensor | ||||
| Cutting Speed | 0-1800mm/s | ||||
| Transmission Port | Network port | ||||
| File Formats | PDX/PLT | ||||
| Material Fixing Method | Vacuum partition adsorption | ||||
| Transmission Mechanism | Taiwan linear guide, synchronous belt drive | ||||
| Drive Motor | Panasonic digital servo motor | ||||
| Working Voltage/Frequency (Machine | AC220V±10%, 50Hz | ||||
| Working Voltage/Frequency (Air Pump | AC380V±10%, 50Hz | ||||
| Operation & Control | Multilingual LCD touch screen / Computer | ||||
| Operating Environment | Temperature: -10℃~50℃; Relative Humidity: 20%~80% | ||||
This guide walks you through the AR positioning system step by step, from initial installation, parameter setup to daily operation. It helps you quickly master the system and achieve accurate material alignment for your cutting jobs.
How to Use AR System

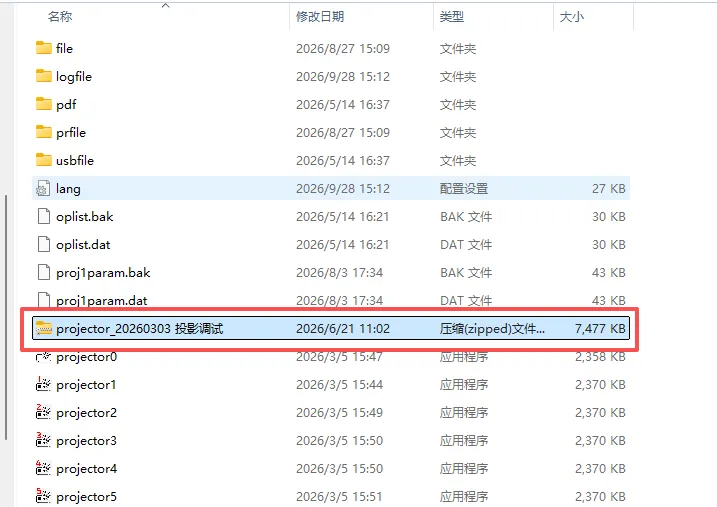

01.Install Projection Software

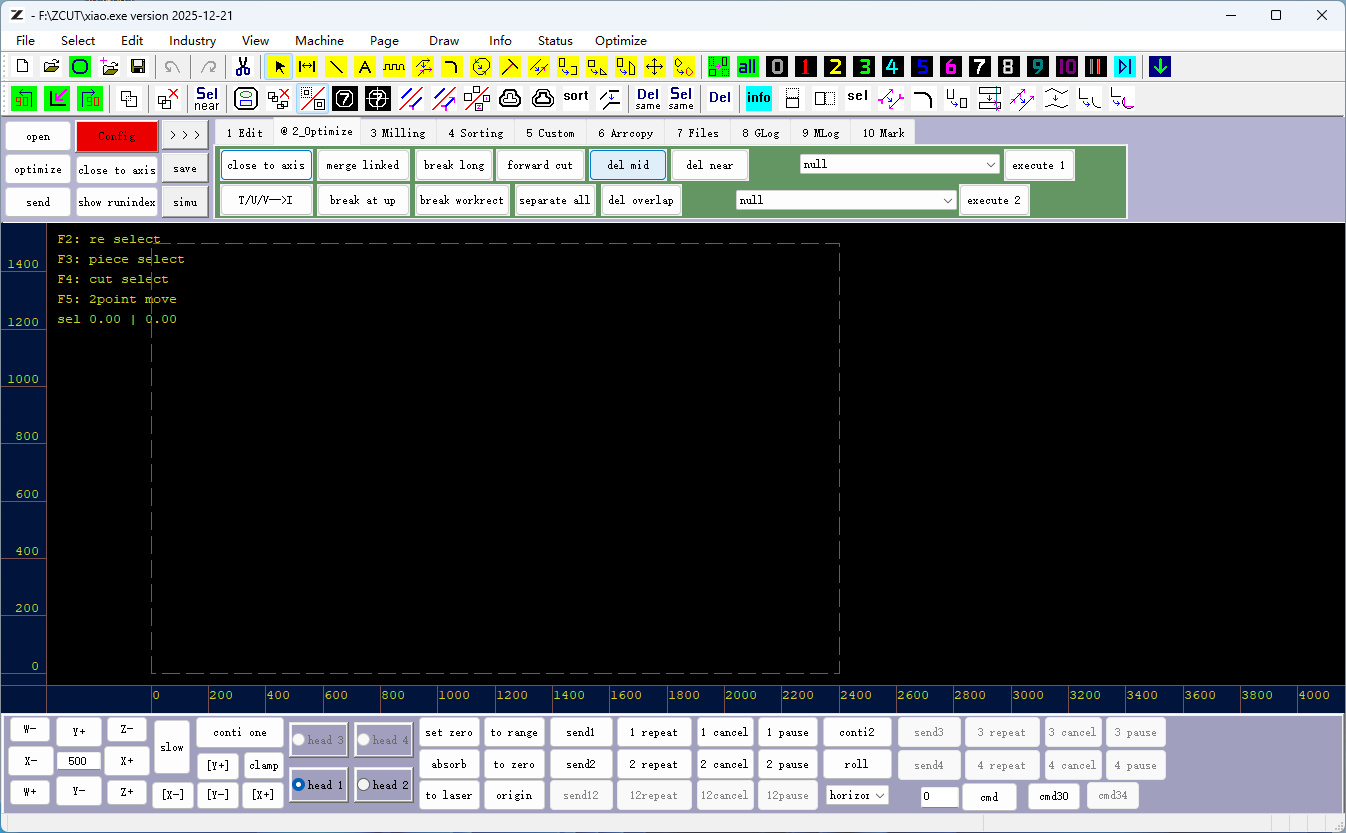

02.Open Cutting Software

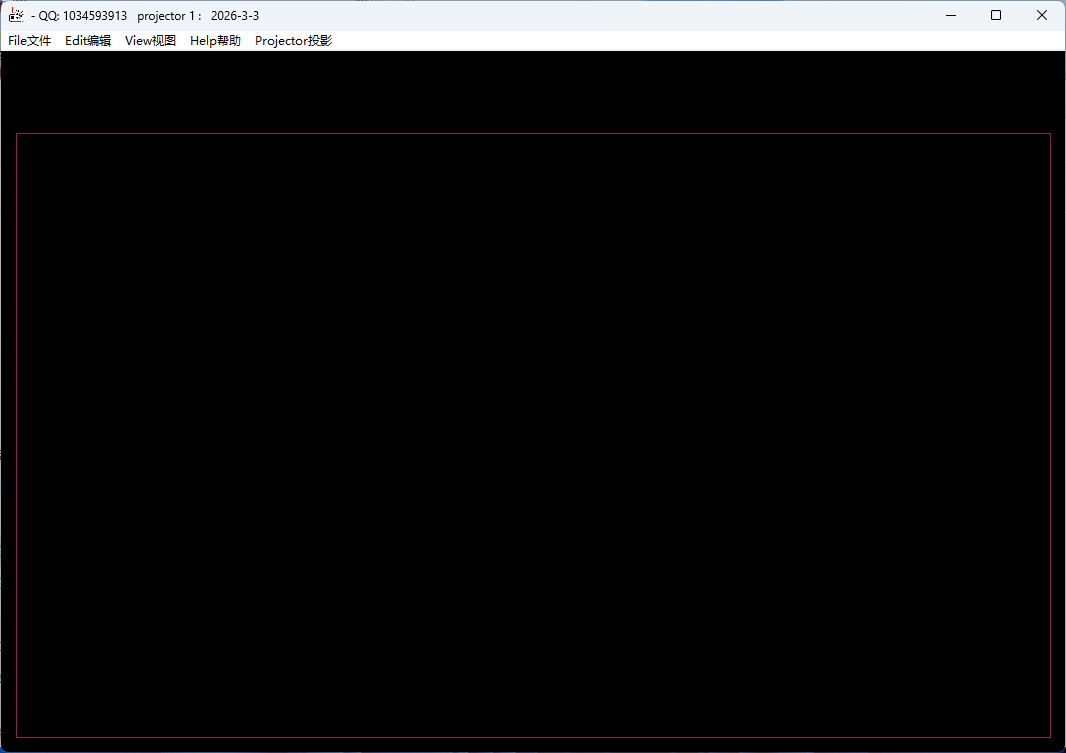

03.Open Projector Software
04.Calibration
05.Import File

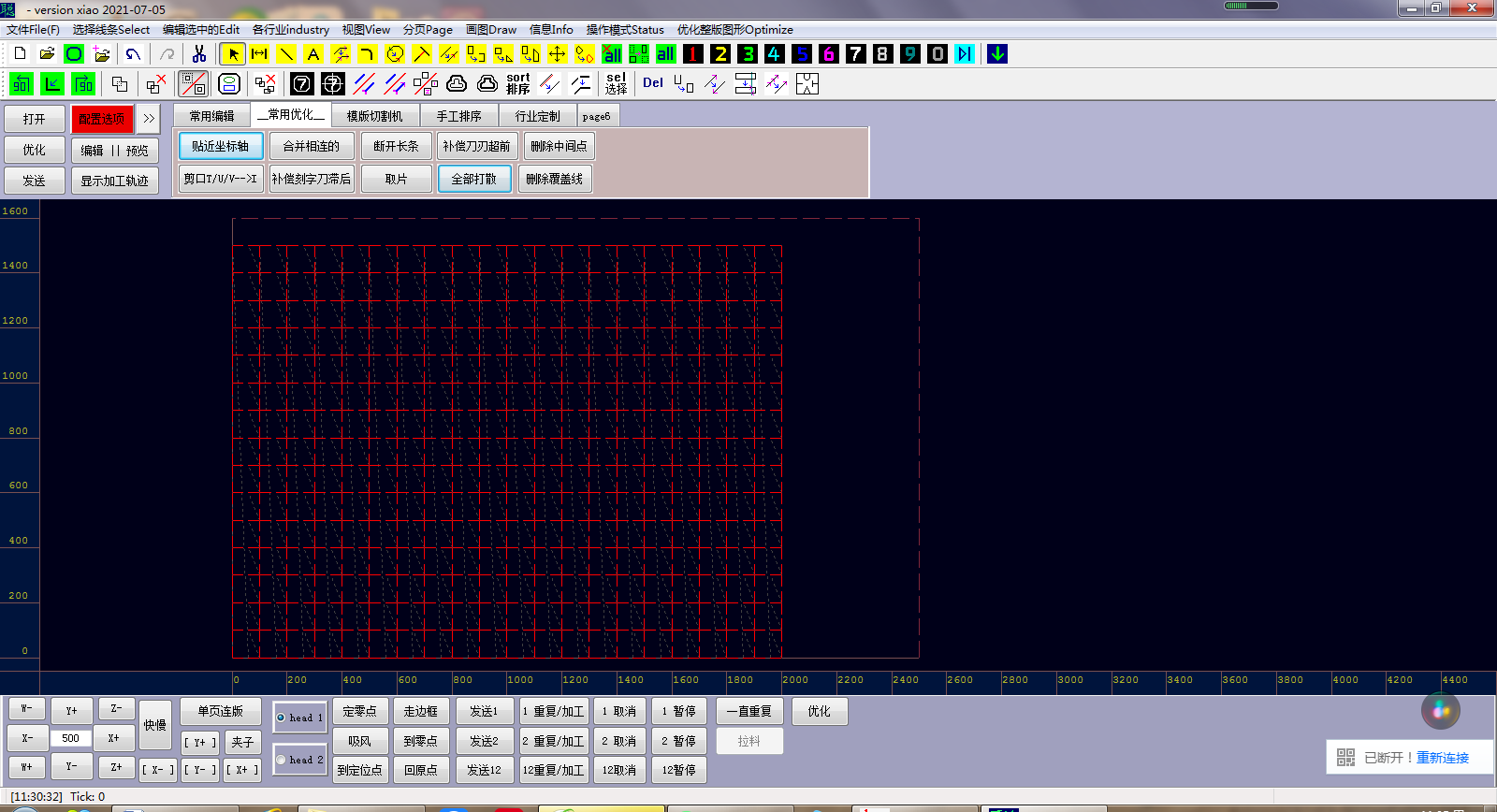

06.AR System

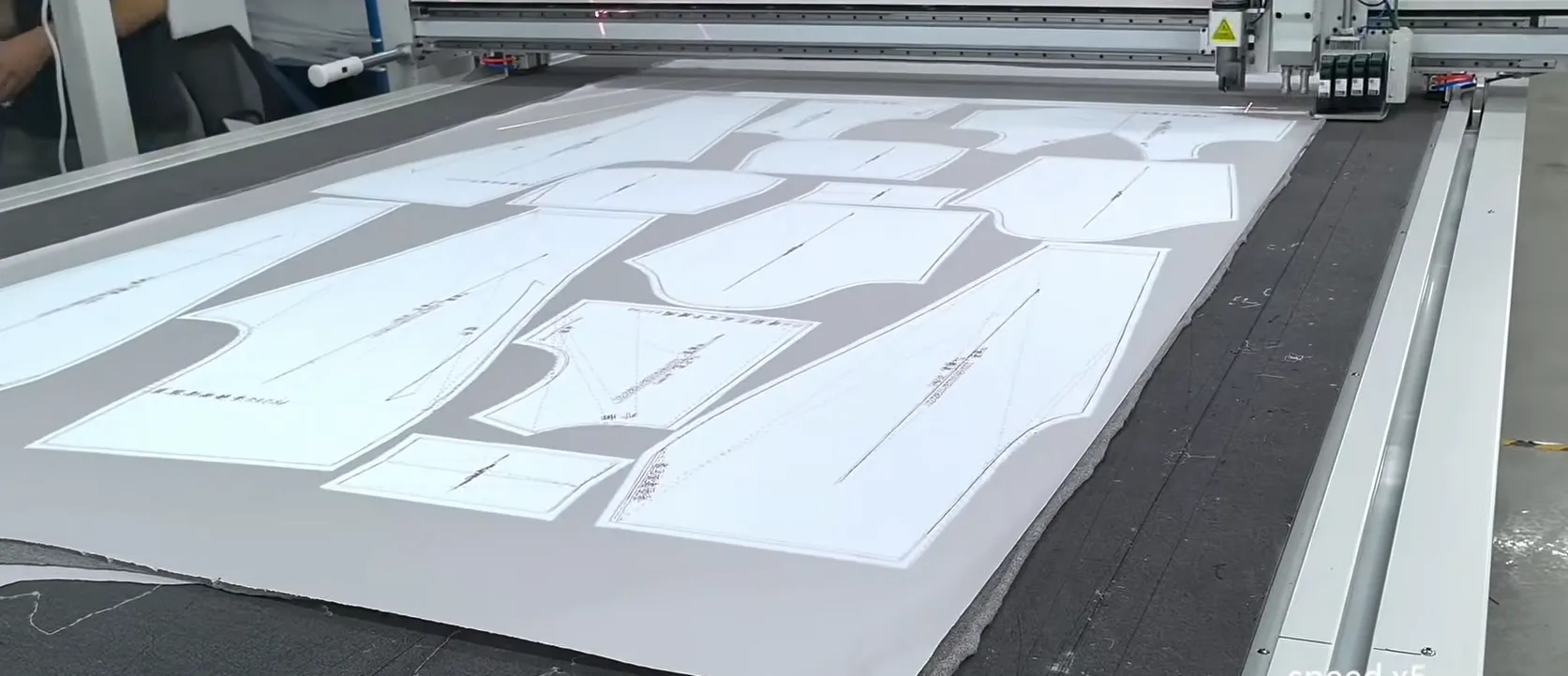

07.Position Confirmation
08.Cutting

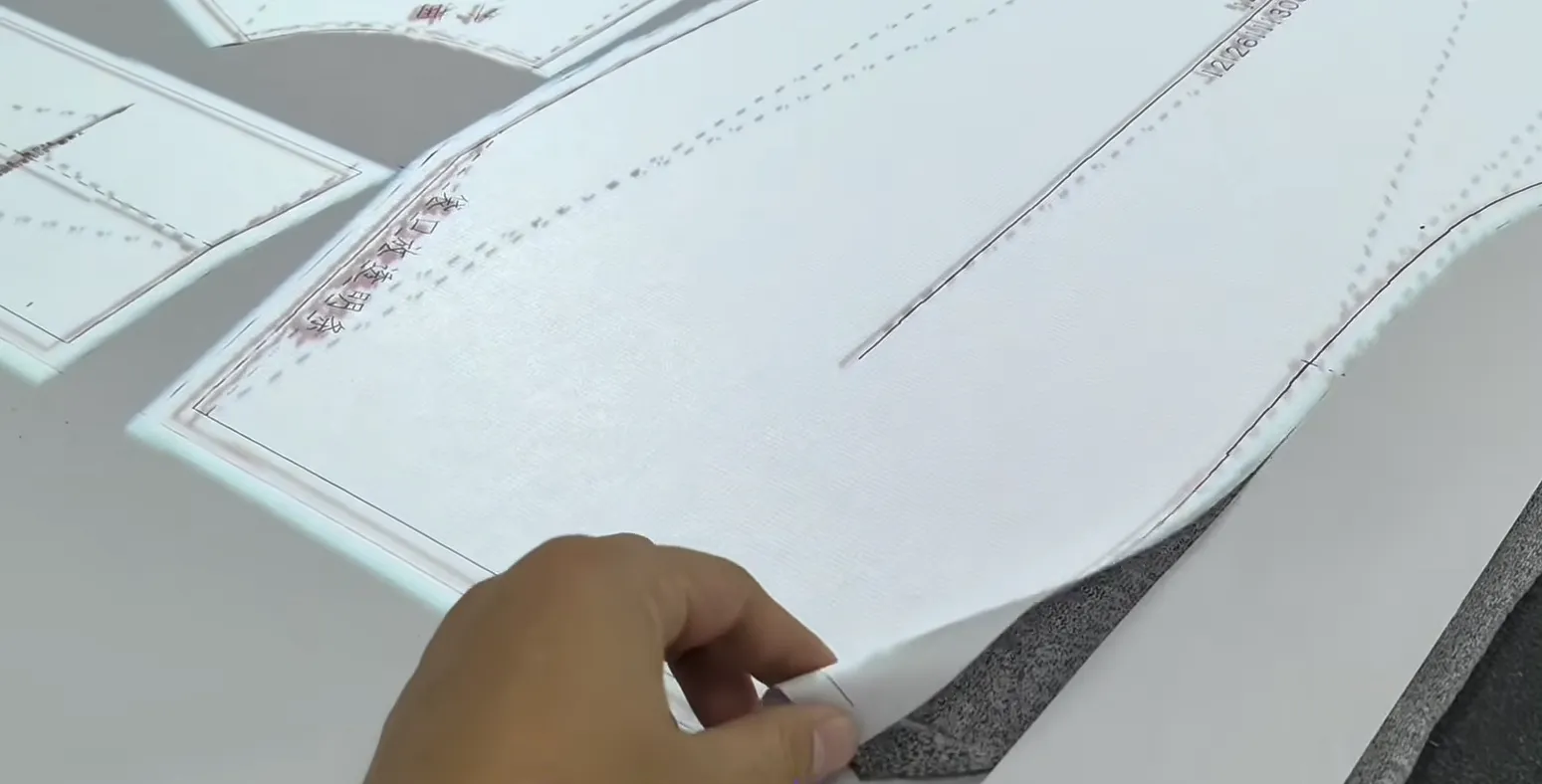

09.Collection
ZINGCUT cutting machine series includes static table, conveyor table, dual and triple table models. Meet diverse cutting demands for flexible materials across various industries.
Product
ZINGCUT Machine Series

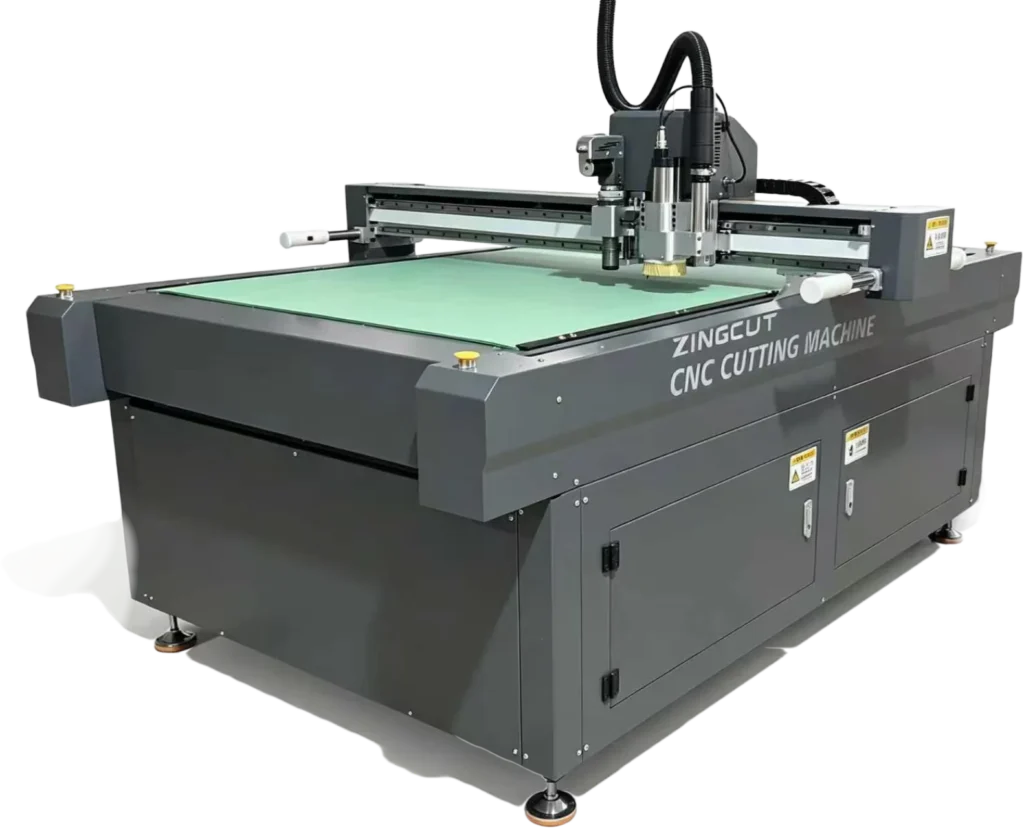

Static Table
The static table cutting machine delivers precise cutting for sheet materials, widely used in packaging and advertising industries.

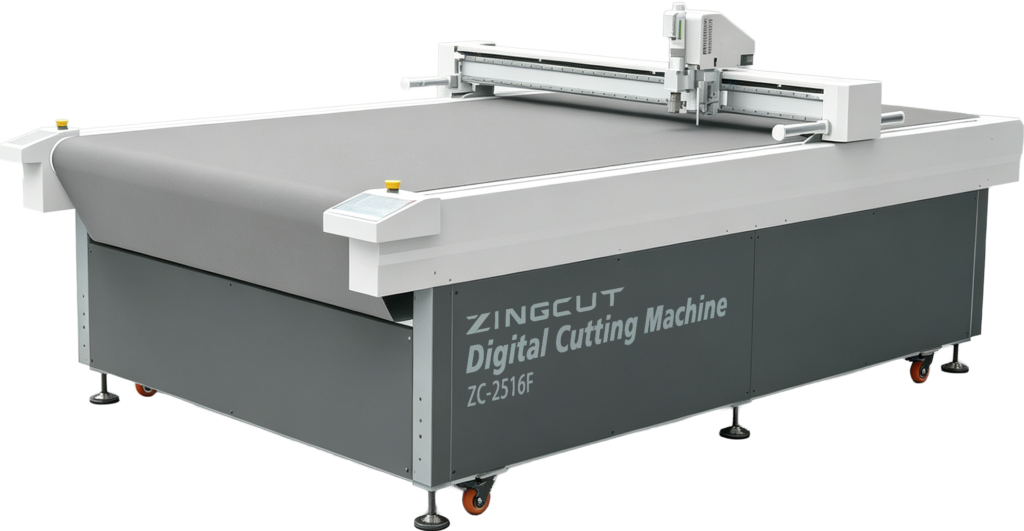

The conveyor table cutting machine supports continuous cutting for rolled materials. It is widely applied in apparel, footwear and furniture industries.
F/SCF Series
Conveyor Table
The S-F Series dual/triple-station cutting machine boosts productivity and cuts labor costs. It works well for rolled materials and leather for multiple industries.
S-F Series
Dual/Triple-Sation Machine
