Composites Solution
Samples | Small Batch | Mix production
Die-less Cutting, Accurate, Experience-independent & Cost-efficient
- Supports multi-layer cutting to increase your production throughput
- High-precision cutting maintains consistent dimensional accuracy
- Creates clean, burr-free cutting edges for high-quality composite parts
- Stable mechanical structure ensures long-time continuous operation

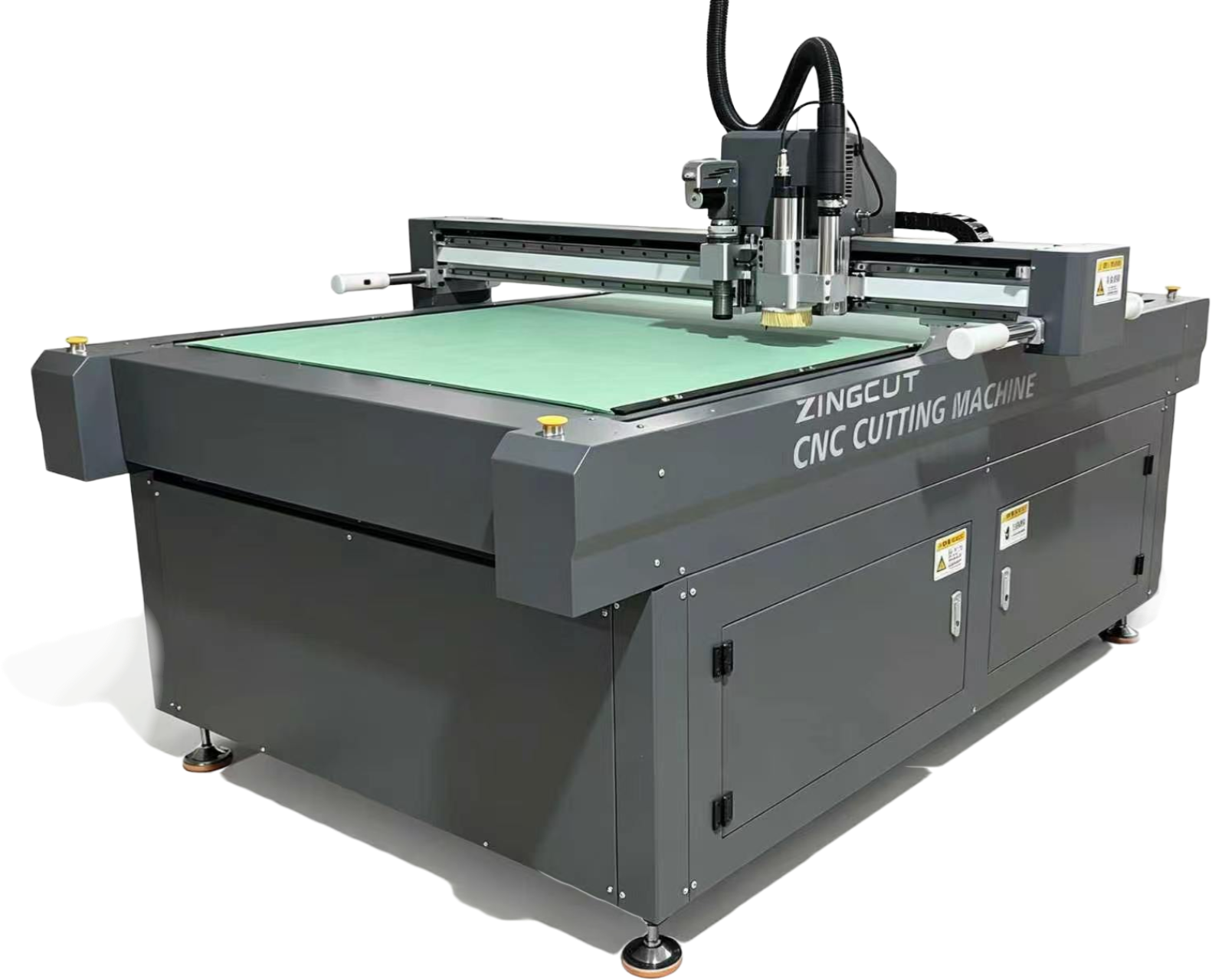

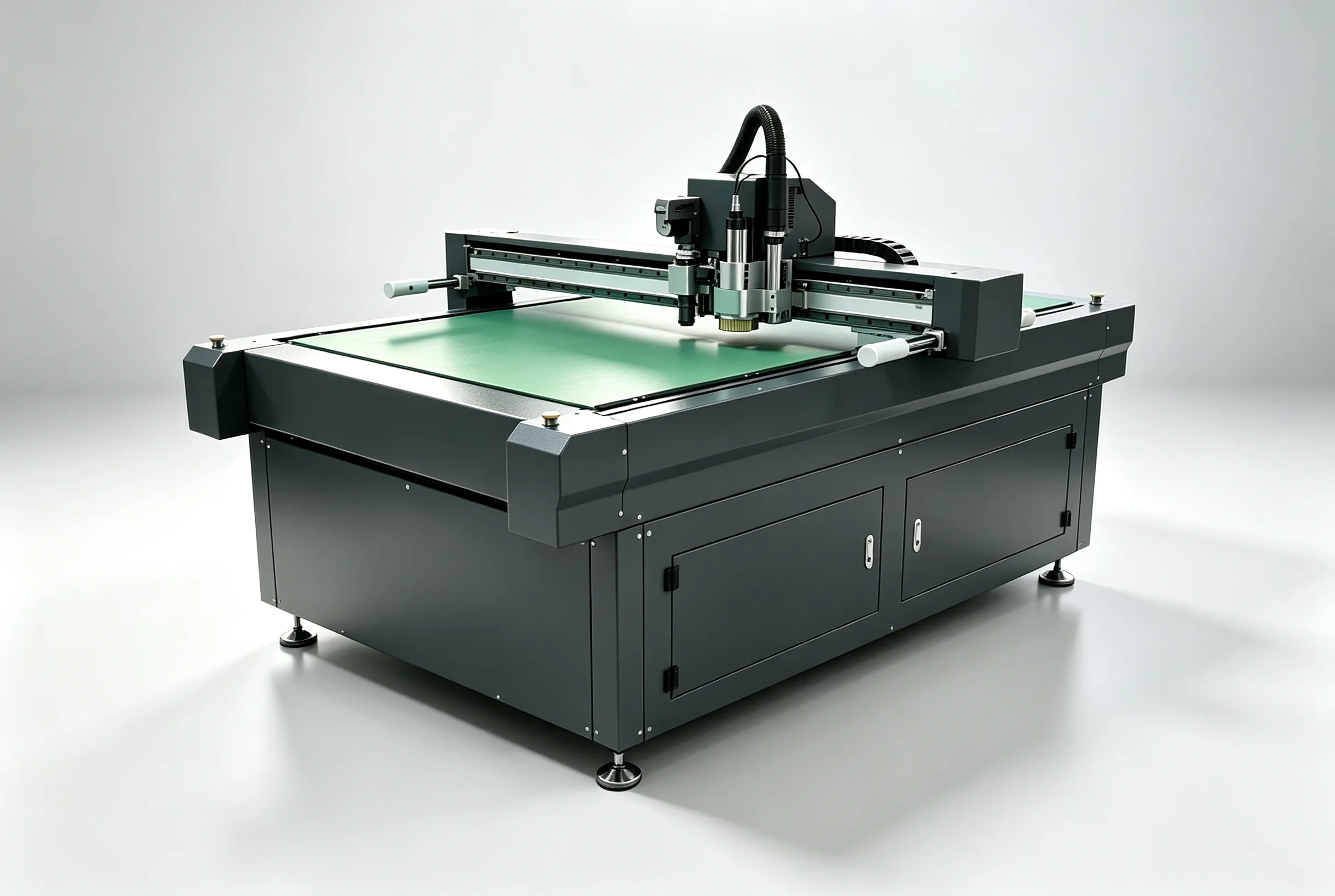

The ZINGCUT ZC-1510 digital cutting machine is optimized for composite material processing. Designed to handle carbon fiber, prepreg and other rigid flexible materials, this non-projection model offers dependable performance for composite sample making and small batch production.
Advantage
ZC-1510
Designed for composite‑sector workflows, the machine handles carbon fiber prepreg, composite fabrics and more. It optimizes material nesting utilization and helps composite factories boost overall production efficiency.
Our CNC cutting solution delivers precise, die‑free cutting for diverse composite materials. It eliminates traditional knife‑mold costs, supports quick pattern changes, and meets flexible production demands from sample prototyping to bulk‑volume manufacturing.
CNC Cutting Machine For Composite Industry
Solution
Multi‑function Combo Head
Match different tools freely to meet various processing demands.
Optional Tools
This solution supports interchangeable tools: Electric Oscillating Tool, Pneumatic Oscillating Tool, Driven Rotary Tool, V- Cutter, Electric Punching Tool and Router Module.
Cutting Technology
High-frequency oscillating knife (15,000–18,000r/m) , clean edges, No dust, no burrs, no heat damage
Fast Service
We deliver fast, 7/24‑hour efficient service. On‑site training is available if local technicians understand English.
- Mold‑Free Production: Eliminate costly dies, support frequent design revisions and small‑batch custom composite orders.
- High Precision Cutting: Stable cutting performance guarantees neat burr‑free edges for composite finished parts.
- Multi‑Function Processing: Complete cutting, marking and nesting on one machine to fulfill various composite manufacturing demands.
- Wide Material Compatibility: Works for carbon fiber prepreg, composite fabric, fiberglass and other composite‑grade materials.
Watch real‑world cutting demos to see how our digital cutter processes composite‑related materials. Observe the full workflow from material placement to finished parts for carbon‑fiber prepreg, composite fabrics and composite components.
How Does It Work
Cutting Video
The following samples showcase real processing results across common composite‑grade materials. You can explore how our digital cutting system adapts to varied textures and properties, alongside key technical strengths that support stable, high‑volume production for composite factories.
Modern composite manufacturing demands reliable processing solutions for diverse complex materials, where material characteristics directly define the quality and consistency of finished composite components. Different substrates require tailored cutting performance to unlock their full potential for prepregs, composite fabrics, laminates and functional composite parts.
Application
Sample Display

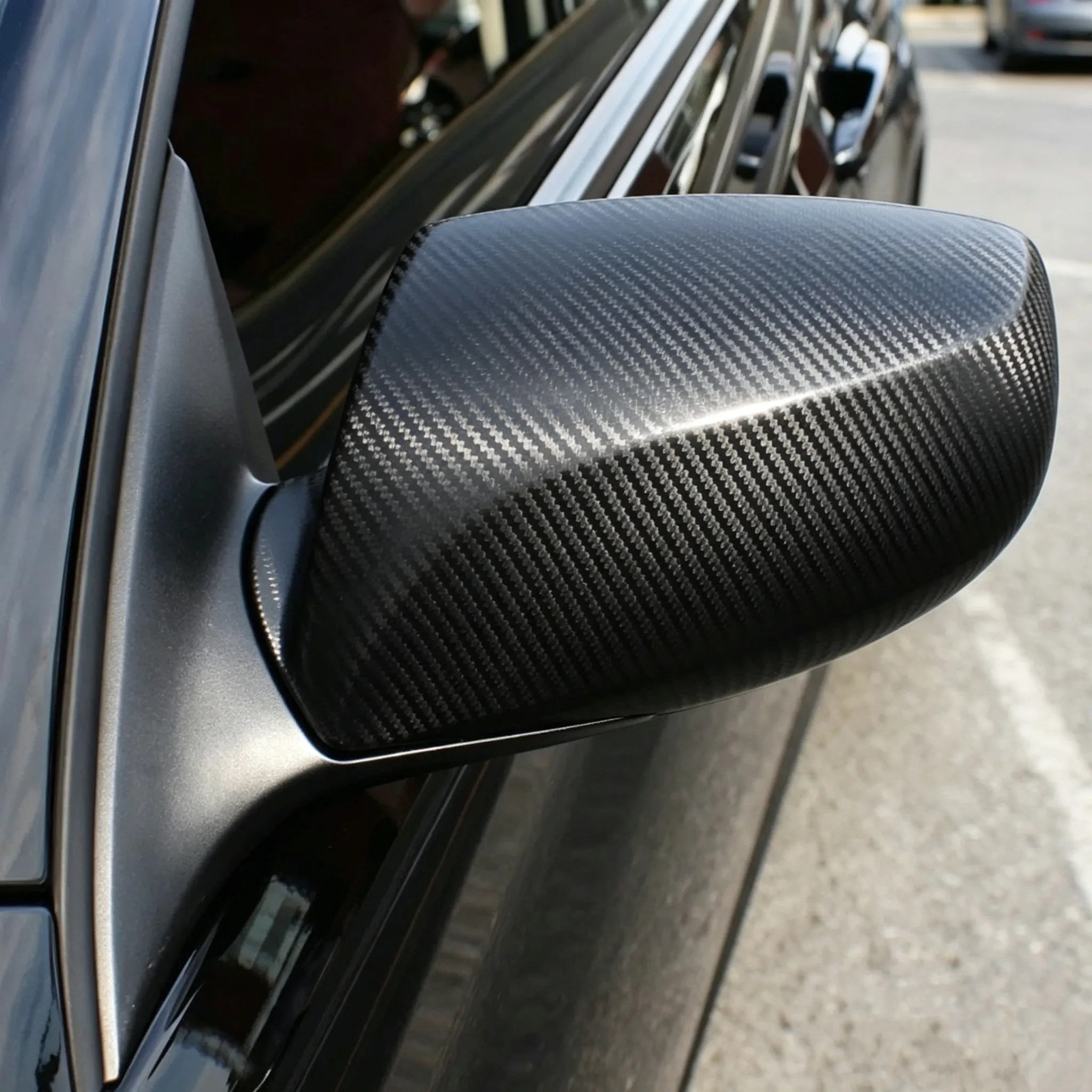

Car Wrap Vinyl
Provides precise cutting for carbon fiber vinyl wrap, delivers crisp clean edges and accurate custom contours for automotive wrapping parts.

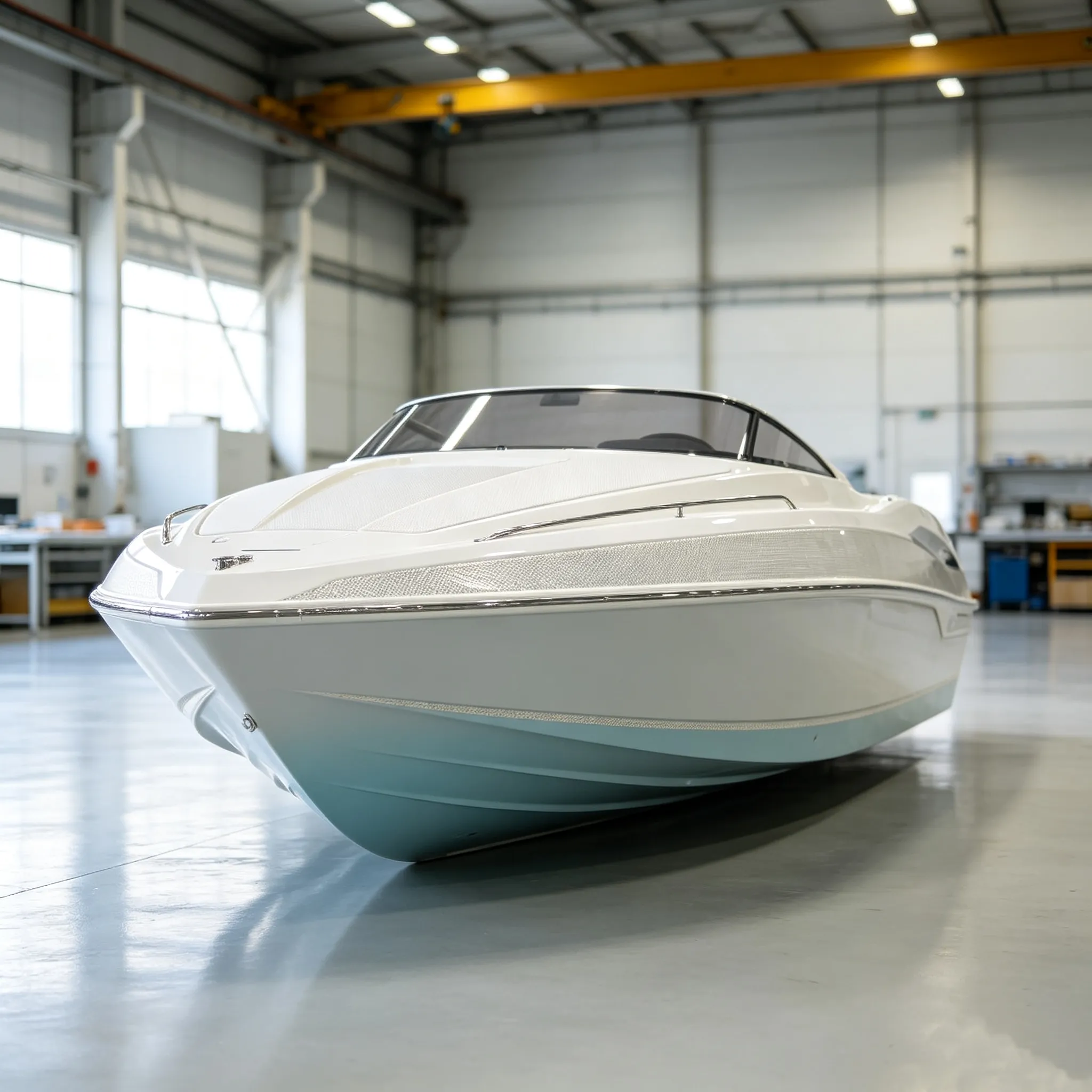

Boat Hull
Enables stable cutting for glass fiber materials, achieves dust-free clean edges and high-precision contours for boat hull composite components.

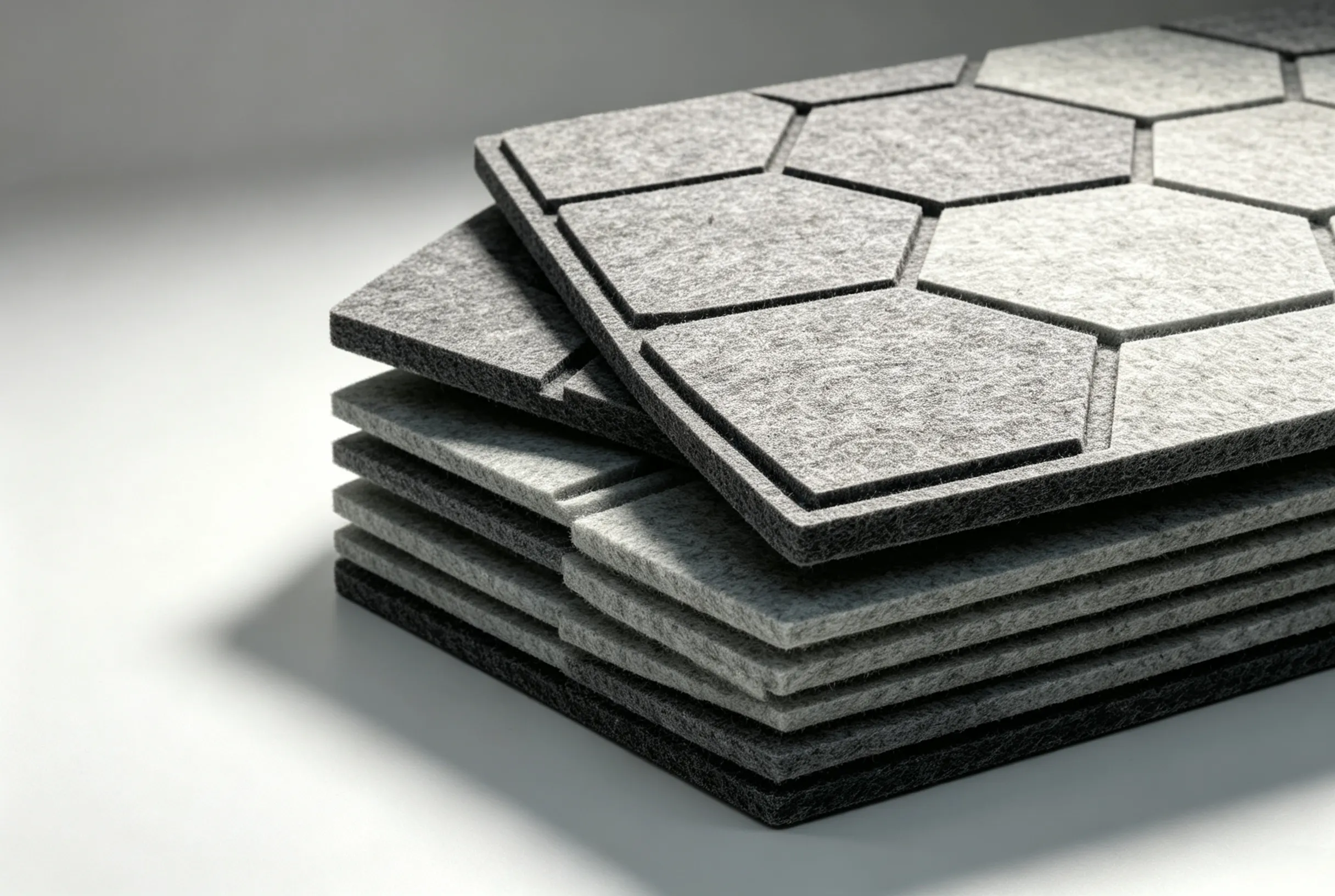

Sound-absorbing Panel
Provides stress-free cutting for sound-absorbing panels, delivers clean grooved profiles and dimension-stable finished shapes without material deformation.

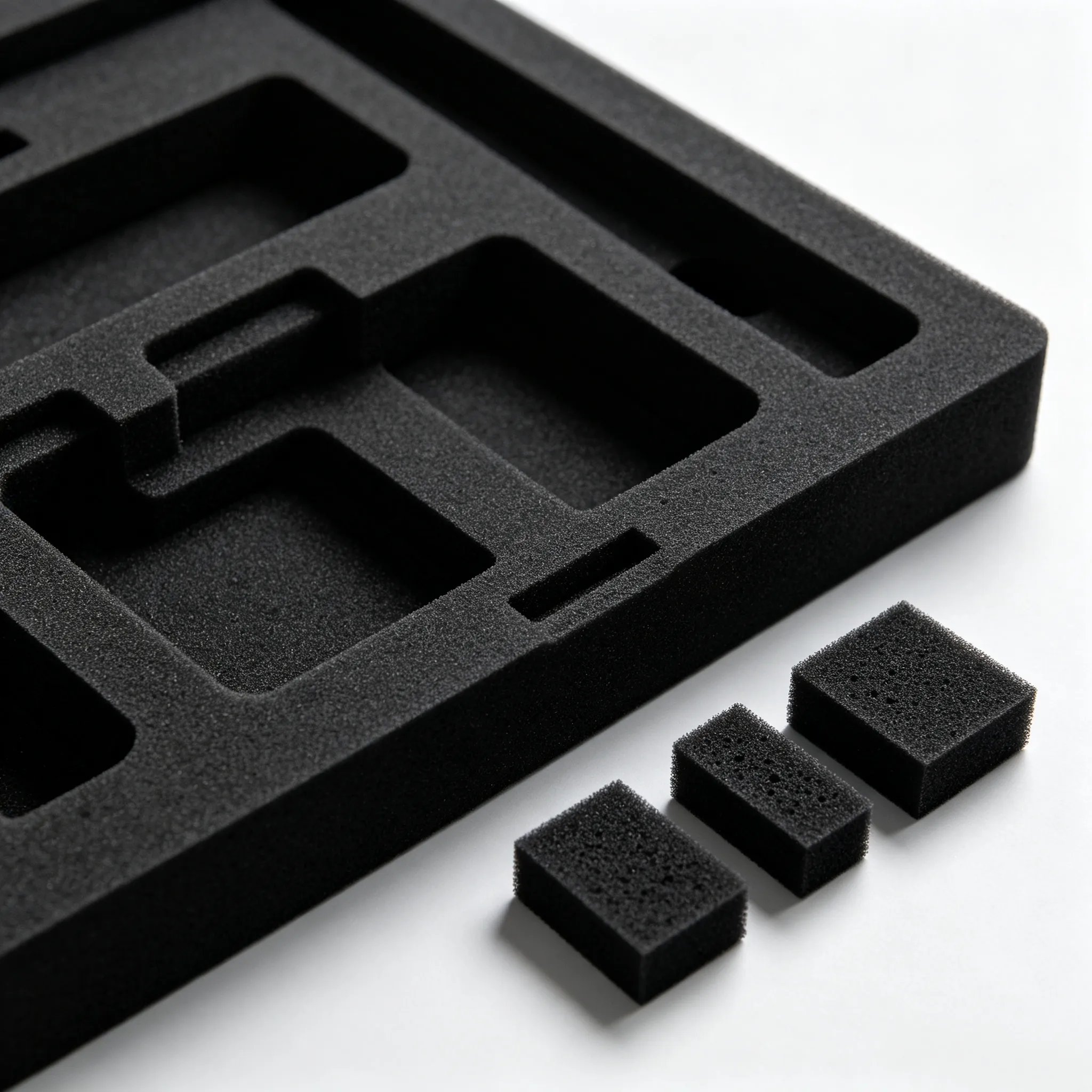

EVA Foam Nesting
Deliver cavity‑enabled multi‑depth cutting for EVA foam nesting with crush‑free smooth surfaces and precise consistent custom‑insert outlines.
Please click “Inquire” if you have any materials for testing.
Flexible functions enable custom sampling and short-run production. Suitable for automotive, aerospace and sports composite blanks, it turns designs into samples fast, cutting mold costs and shortening development cycles.
Our digital cutter precisely cuts carbon fiber, glass fiber prepreg, aramid fiber and foam composites. Real cutting samples on the right show intact edges, no burrs or damage. It supports multi-layer cutting for composite parts, molds and prototypes.
Materials
Cutting Effect
From flexible carbon fiber prepreg, fiberglass cloth to rigid EVA foam and PVC sheet, these compatible substrates cover mainstream composite‑processing scenarios.
Watch our digital cutter handle a wide range of composite materials for composite processing and component manufacturing. Each material brings unique properties to build structural parts, reinforcing layers and custom inserts for composite projects.
Stuff
Cuttable Materials

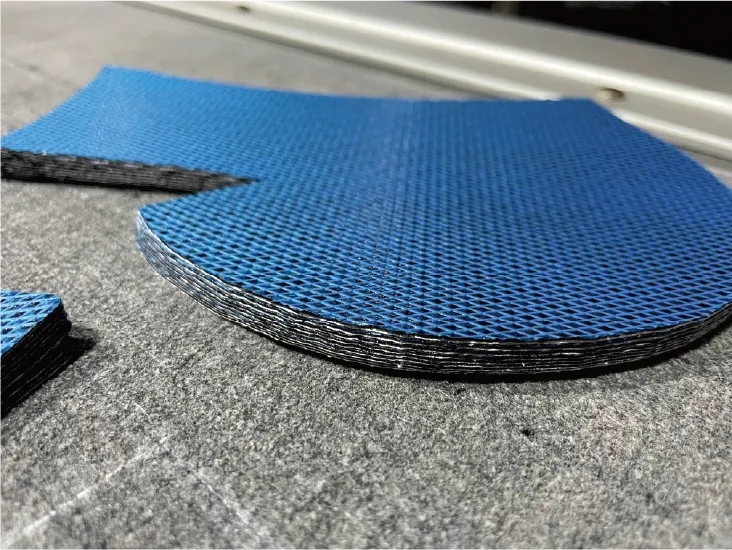

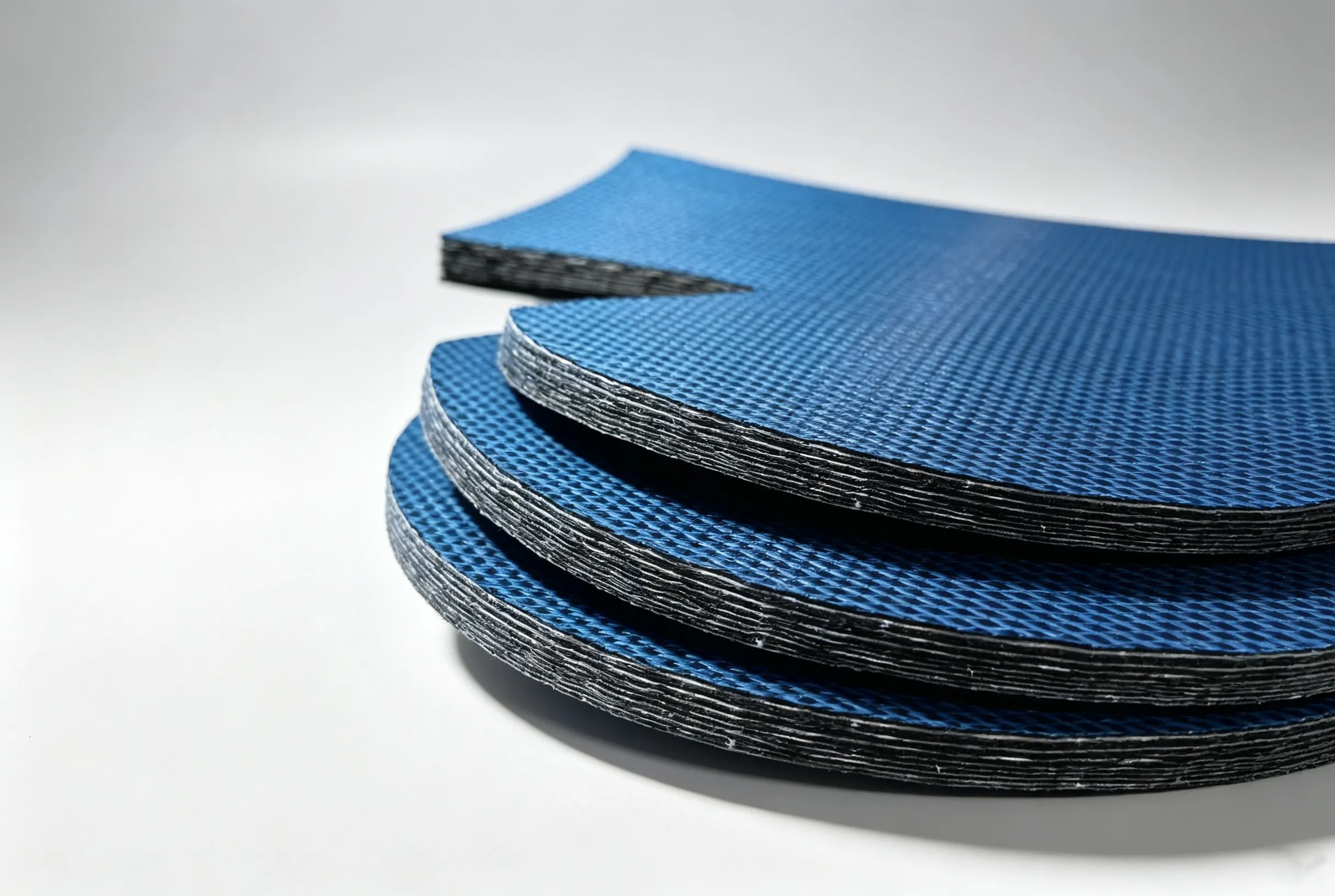

Carbon Fiber Prepreg
Provides outstanding rigidity and tensile strength for aerospace, UAV and industrial reinforcement parts.
Features high strength‑to‑weight ratio, ideal for manufacturing lightweight structural components.
Produces burr‑free clean edges to avoid fiber fraying and keep prepreg resin intact.
Delivers highly precise cutting contours to guarantee consistent fitting of composite lay‑up parts.

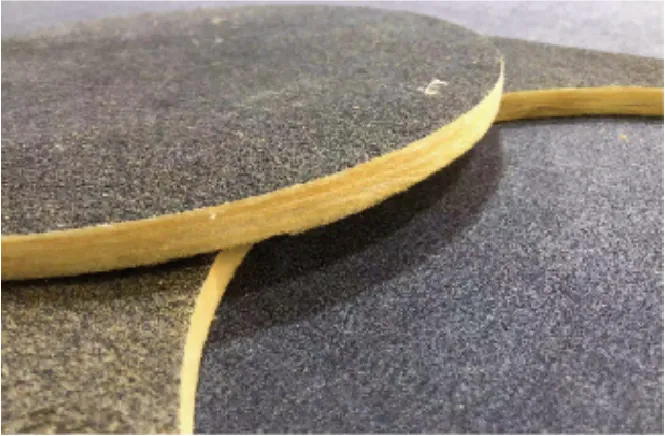

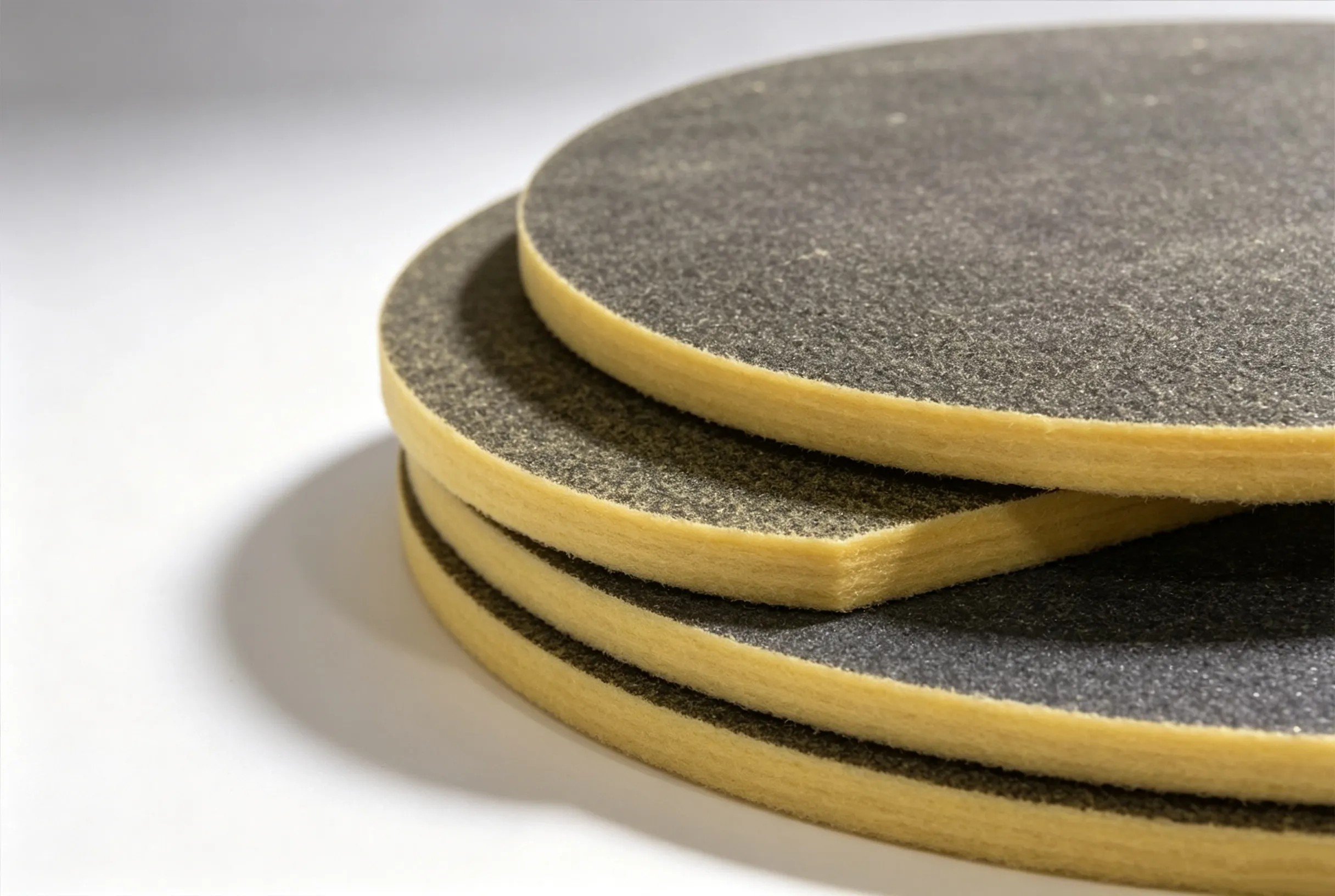

Fire-resistant Fiberglass
Maintains stable physical properties under high‑temperature conditions for safety‑critical garments.
Features good tear resistance, extending service life of fire‑proof apparel and protective accessories.
Enables multi‑layer cutting to raise mass‑production efficiency for protective clothing factories.
Achieves precise cutting, ensuring uniform part sizes for reliable protective garment assembly.

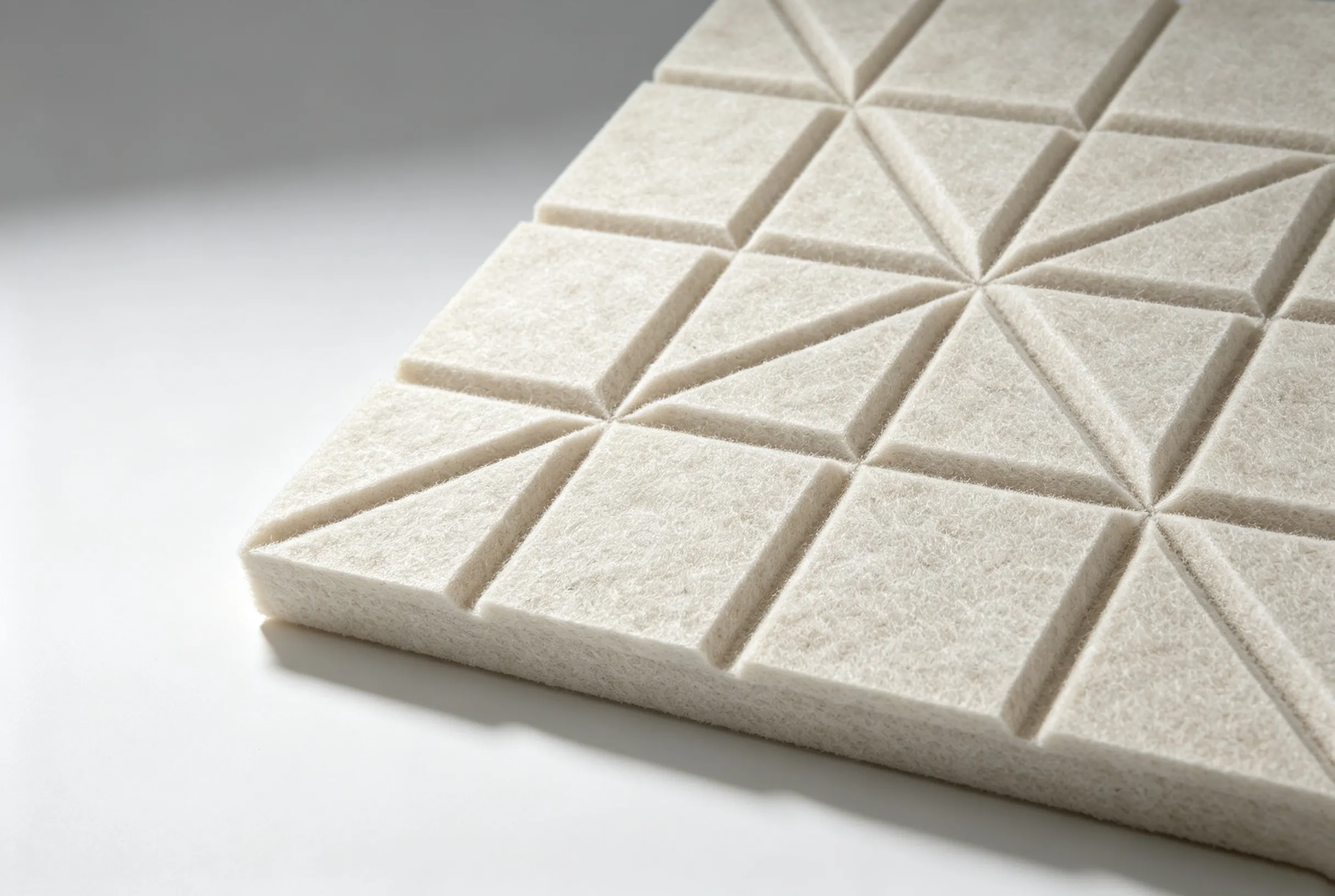

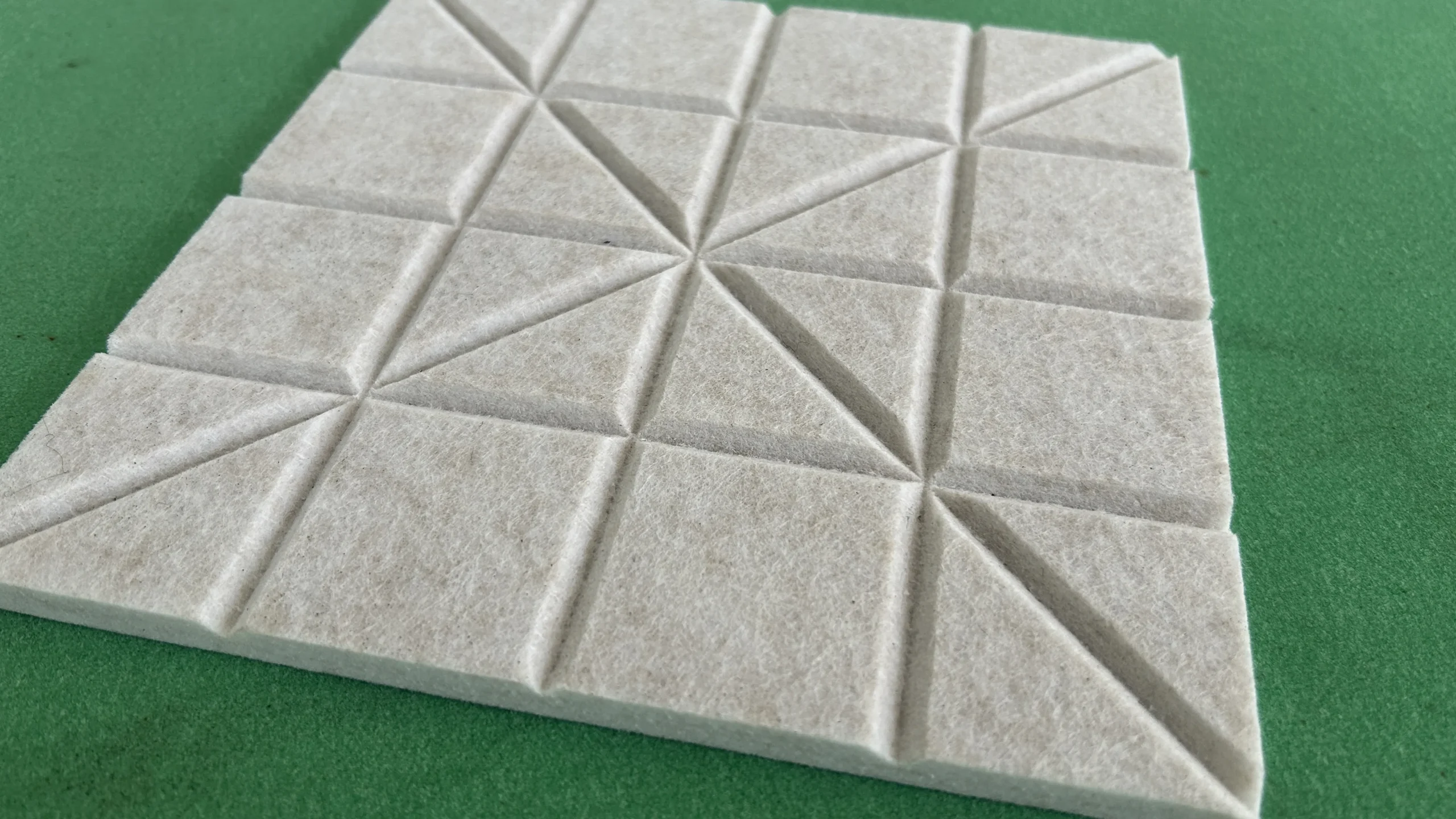

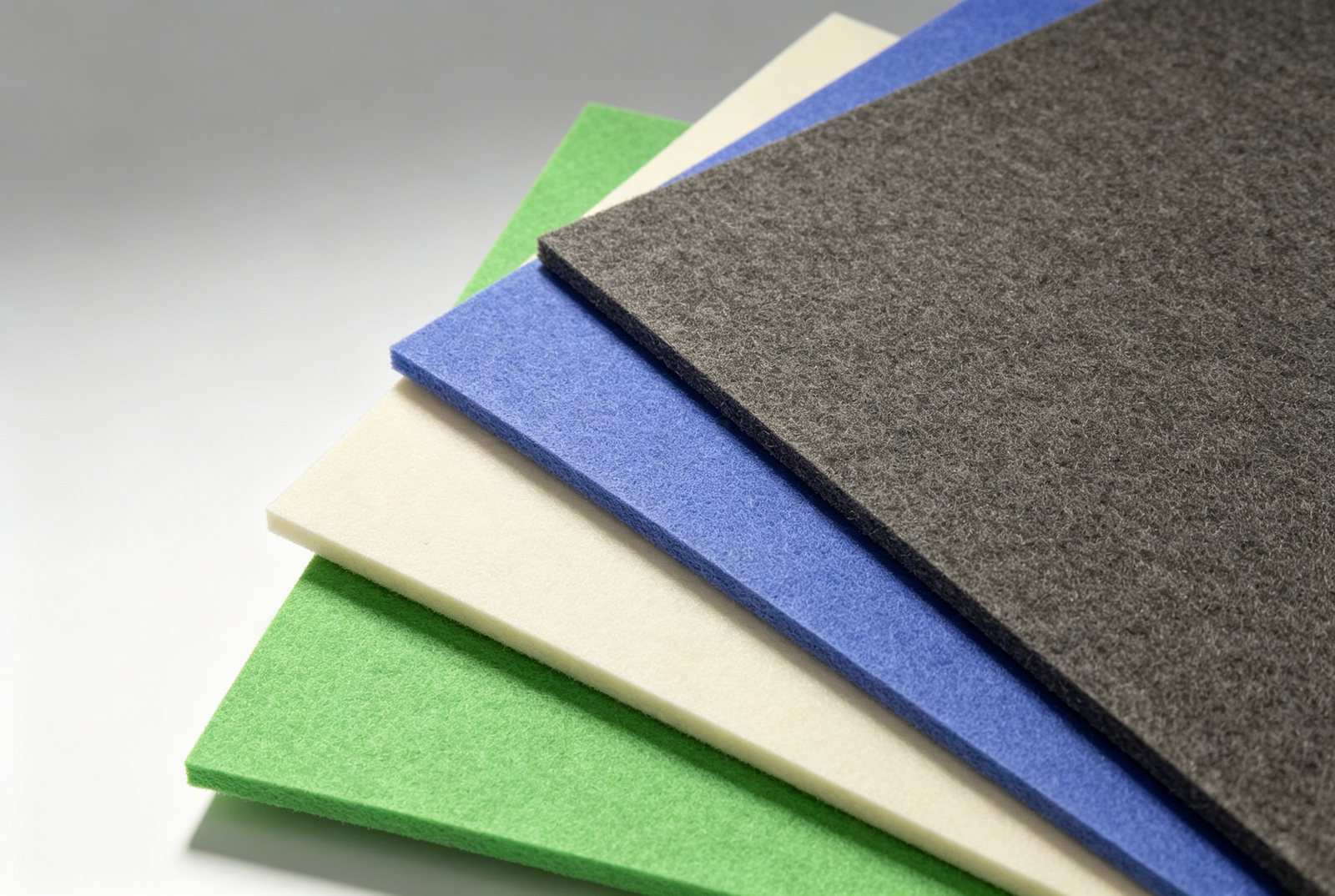

Sound-absorbing Panel
Lightweight porous structure, easy for installation and assembly of acoustic wall and ceiling components.
Excellent sound‑absorbing performance to reduce noise reflection for interior and industrial acoustic projects.
Generates burr‑free clean edges without material crumbling, keeping porous sound‑absorbing structure intact.
Delivers precise cutting contours, guarantees accurate sizing for seamless splicing of acoustic decoration parts.
Sound-absorbing Panel
Lightweight porous structure, easy for installation and assembly of acoustic wall and ceiling components.
Excellent sound‑absorbing performance to reduce noise reflection for interior and industrial acoustic projects.
Generates burr‑free clean edges without material crumbling, keeping porous sound‑absorbing structure intact.
Delivers precise cutting contours, guarantees accurate sizing for seamless splicing of acoustic decoration parts.

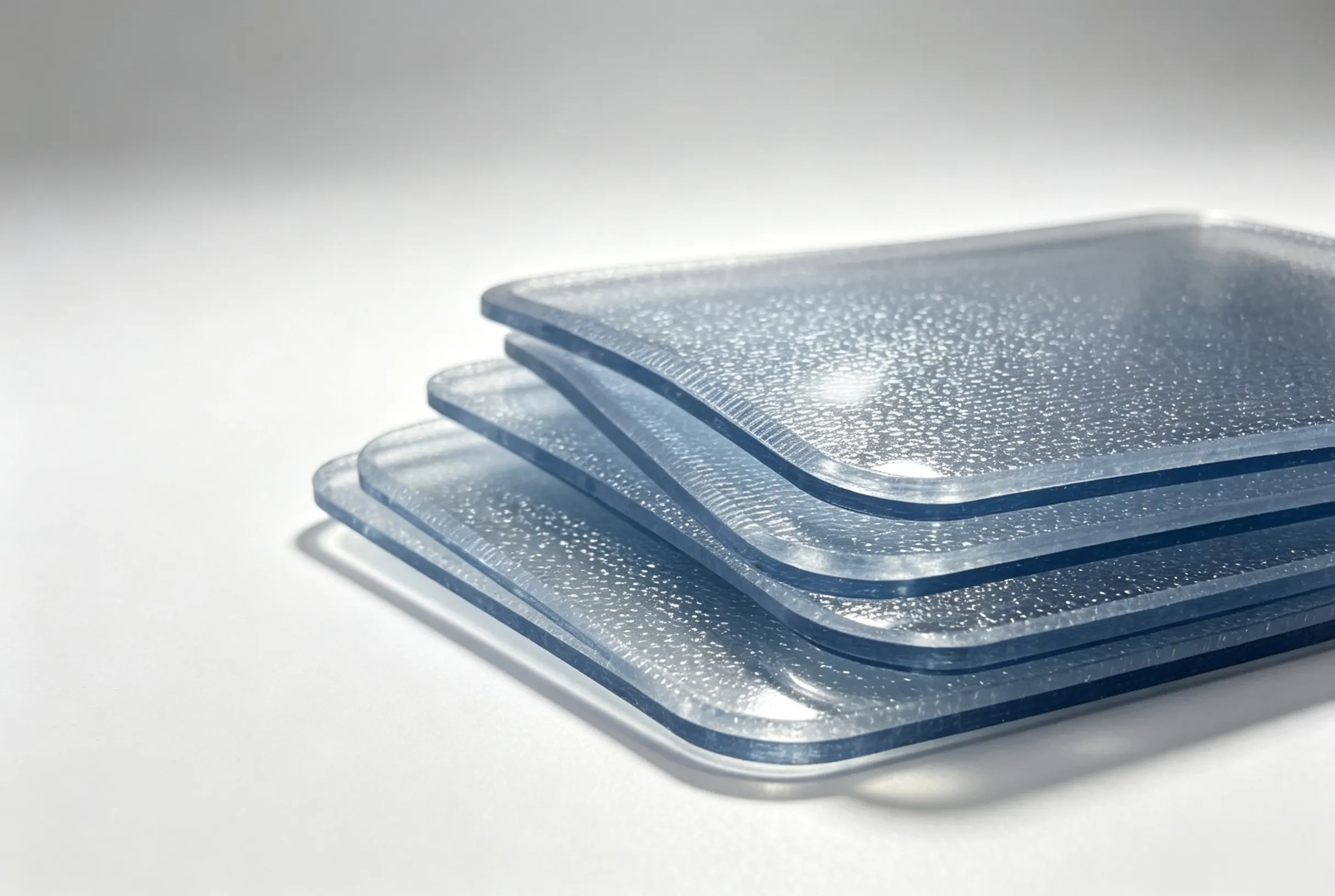

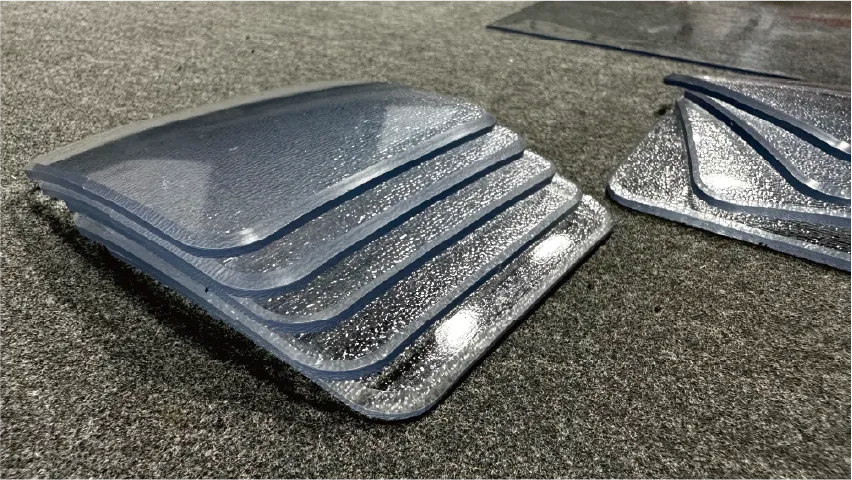

PVC Sheet
Good chemical‑resistant and moisture‑proof performance, widely used for composite enclosures and protective panels.
Rigid yet lightweight, suitable for composite assembly and structural backing parts.
Produces burr‑free clean edges without melting, keeping sheet surface quality intact.
Delivers highly precise cutting contours, ensuring perfect fitting for composite bonding and assembly.

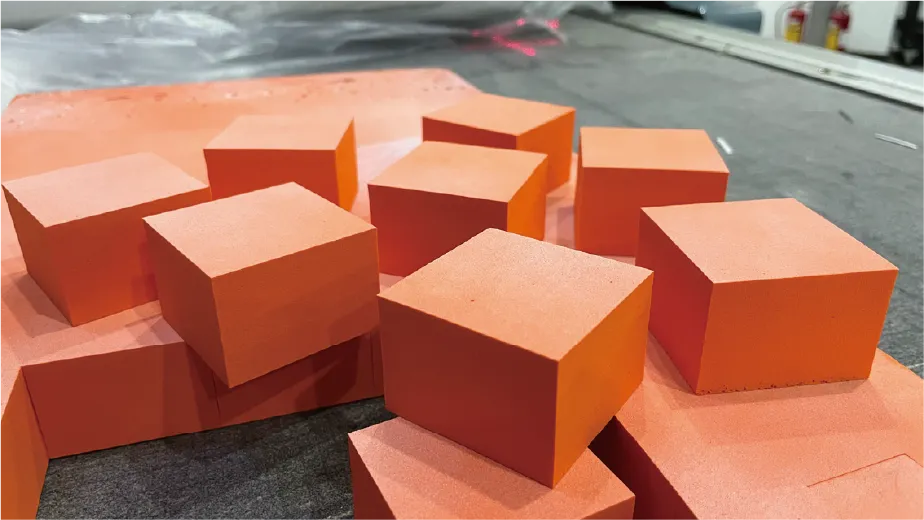

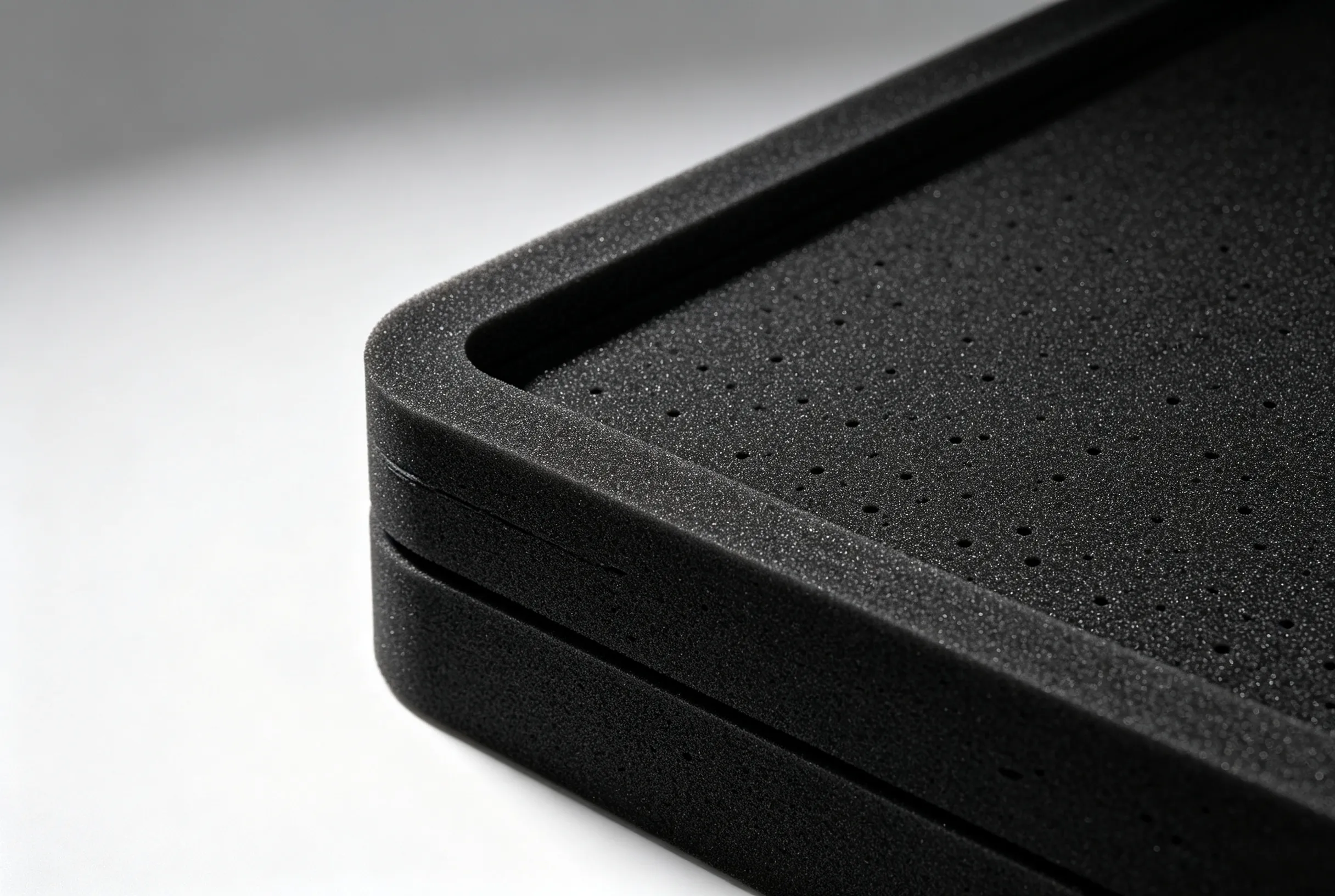

EVA Foam
Features excellent shock absorption, cushioning and anti-collision performance, widely used for composite protective lining and structural buffer parts.
Lightweight and flexible with good moldability, perfect for custom nested inserts and irregular composite packaging structures.
Delivers smooth, burr-free and crush-free cutting edges, maintaining the complete foam three-dimensional structure without deformation.
Achieves high-precision contour cutting with consistent size accuracy, ensuring perfect fitting and assembly of customized composite foam parts.

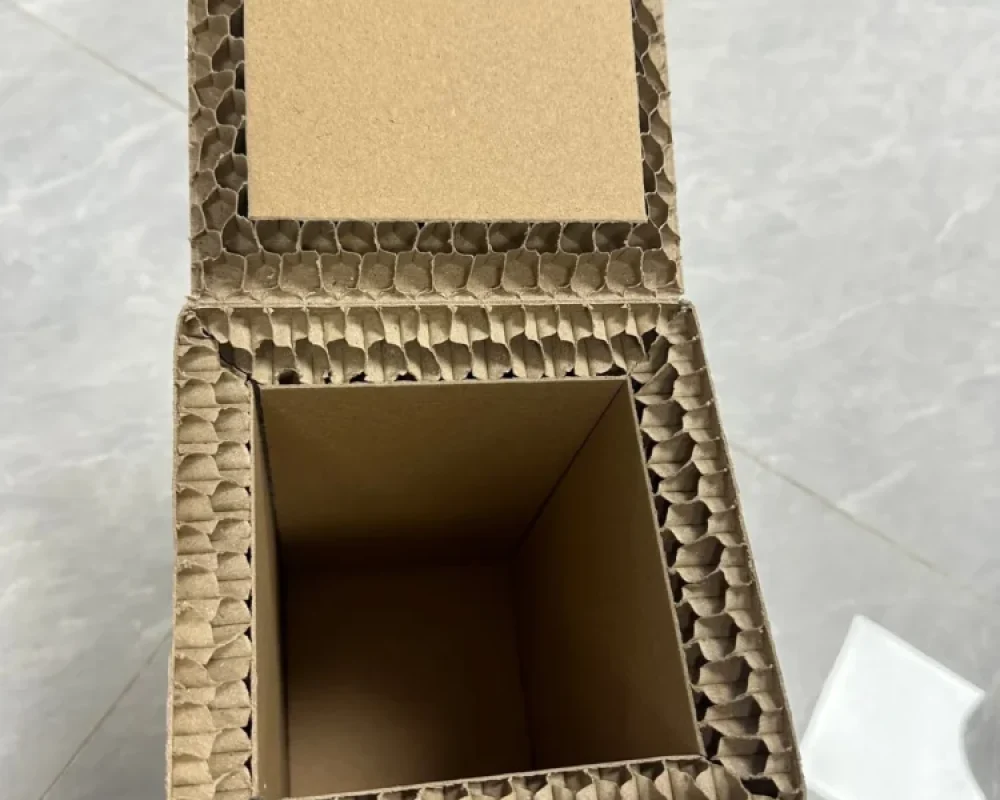

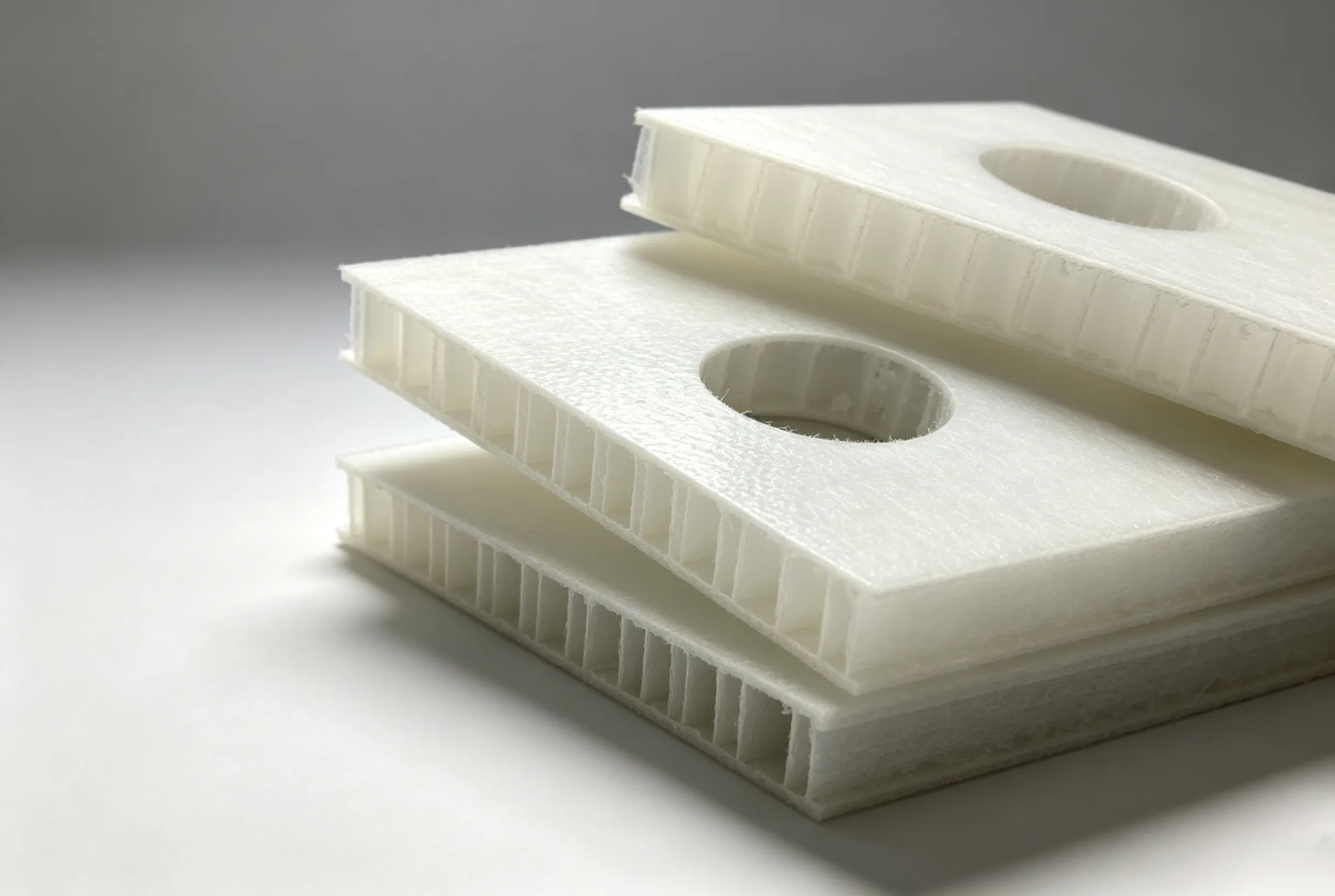

Honeycomb Panel
Provides flat stable substrate, ideal for bonding with skin layers to form strong lightweight composite panels.
Excellent shock‑absorbing and vibration‑damping performance for transportation and aerospace components.
Produces burr‑free clean edges without crushing honeycomb cells, preserving the core structural integrity.
Achieves highly precise cutting contours, ensuring perfect fit during composite panel lamination and assembly.

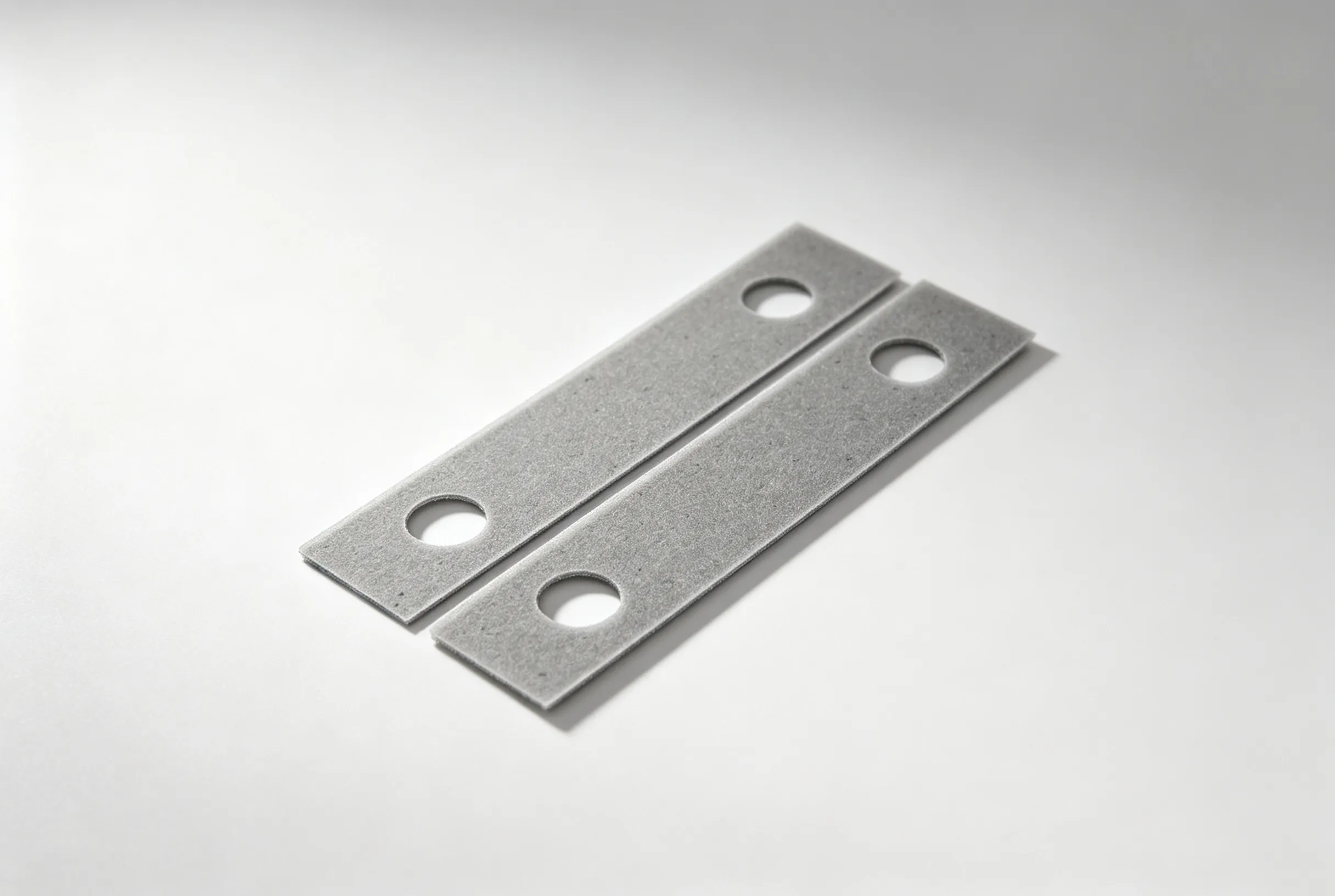

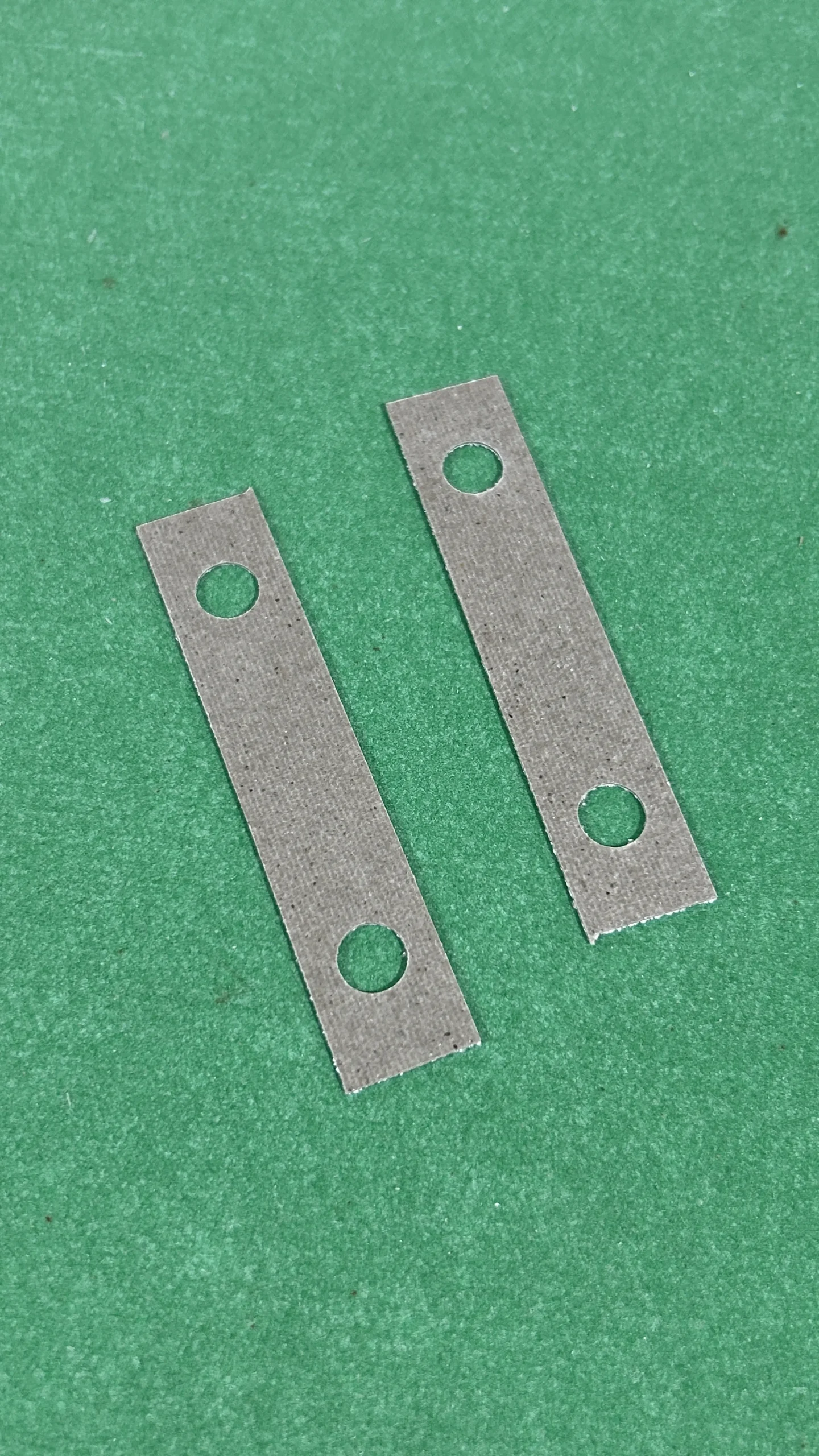

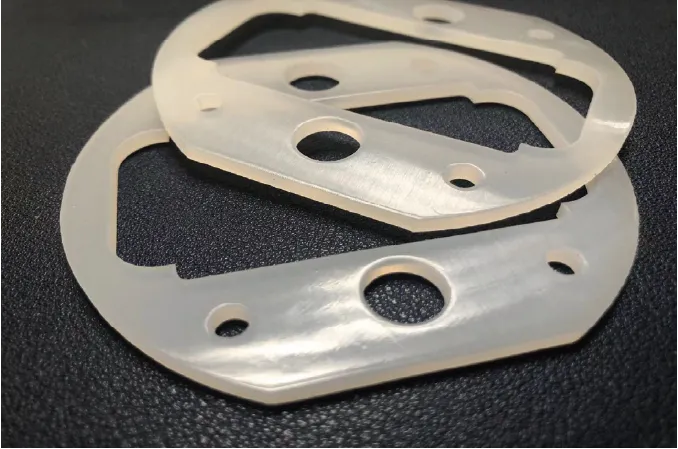

Silicone
Shows great chemical inertness, resisting oil and corrosive substances for industrial composite protective parts.
Possesses outstanding high‑temperature resistance and ageing resistance, ideal for composite sealing and heat‑resistant buffer components.
Delivers highly precise cutting contours, ensuring reliable fit for composite sealing and assembled parts.
Produces burr‑free clean edges without sticky pulling, keeping silicone elastic structure intact.
Built for long‑term heavy‑duty advertising production, our machine features a robust mechanical structure focused on stability, cutting accuracy and easy maintenance, with human‑centered layout to optimize workflow and support flexible tool configuration for various garment cutting tasks.
Machine Design
Feature
Integrated Body Design
Adopts an integrated one-piece frame structure, featuring high overall rigidity and stable operation. It effectively reduces vibration during cutting and ensures long-term processing accuracy.
Safety Induction Switch
Equipped with a safety induction switch for real-time monitoring and instant emergency stop, the machine features a hidden enclosed transmission structure to avoid dust buildup, prevent accidental contact, ensure operator safety and reduce maintenance costs.
Vacuum Suction System
Comes with an integrated vacuum suction function, which firmly and steadily fixes various materials during cutting. It prevents material shifting and ensures precise and consistent cutting results.
Optimized Vacuum Layout
Features a professional vacuum pipe routing design that greatly enhances fan working efficiency. It delivers stronger and more even suction force for stable material fixation.
A wide selection of optional tools are available to meet the common cutting requirements for packaging‑industry applications.
Option Tools
Electic Oscillating Tool
Hgih-speed oscillating toolfor cutting low and medium density composite materials
— Depending on application, available with 0.5mm, 1.5mm, 2.5mm
— high processing speed
— Suitable for carbon fiber prepreg, fiberglass, aramid fiber and composite foam
Driven Rotary Tool
The Driven Rotary Tool cuts all textiles reliably and cost-effectively. Its ten-segmented blade reduces drag, severs fibers cleanly, and delivers precise cuts even on loose woven fabrics.
—Outstanding production efficiency with a maximum cutting speed of 1000 mm per second.
—Consistently superior cutting finish and precision are maintained even on heavy composite fabrics, effectively avoiding fiber displacement and slippage.
—Fully compatible and adaptable to an extensive variety of textile materials.
Electric Punching Tool
An electric hole puncher is used to create holes in a variety of composite materials, such as fiber prepreg, composite fabric, composite rubber and composite sheets.
— Precise and efficient holes punching for composite parts
— Hole diameter: 0.5-10mm
Pneumatic Oscillating Tool
8 mm cutting amplitude, built for cutting tough high-density composite materials and thick composite laminates.
— High performance cutting tool with 8mm，amplitude
— powerful，low-maintenance pneumatic tool
—Suitable for carbon fiber prepreg, fiberglass sheet, aramid fiber and composite foam
V- Cutter
— Small V-Cutter: Precise 45° bevel cutting for composite part pre-forming. Supports slotting & cutting 5mm-thick composite panels and polymer composite materials.
— Big V-Cutter: Perfect for cutting thick composite materials such as composite foam boards and composite sandwich boards.
— Subtended V-Cutter: That can cut thin composite materials at 90 degree angle, such as composite paper board, composite cardboard, etc.
— Variable V-Cutter: 90° cutting for thin composite boards. Fits 3D shaping of composite cardboard, foam core, corrugated & honeycomb composite boards. Quick, precise angle adjustment.
Router Module
The centerpiece of router module is a high-frequency spindle, specially built for composite material machining. Depending on applications and requirements, versions from 600W to 2.2KW are available.
— Routing and engraving composite parts with one single module
— Capable of processing a wide range of composite substrates
— Active cooling for reliable heat dissipation. Efficient dust extraction for clean composite machining
Maximize your cutter’s full potential with purpose‑built accessories. Tungsten blades ensure sharp, clean cuts for diverse composite substrates, while the material feed rack enables stable continuous feeding for large‑format rolls. Combined, they reduce downtime, boost throughput and help composite manufacturers achieve reliable batch‑production results.
Accessories
Advantage
Every detail of your CNC cutting system determines overall production output. Our carefully‑selected machine accessories including tungsten steel blades and material feed racks are engineered to maximize the performance of your digital cutter. These well‑matched spare parts extend equipment service life and deliver consistent cutting quality when processing various composite materials.

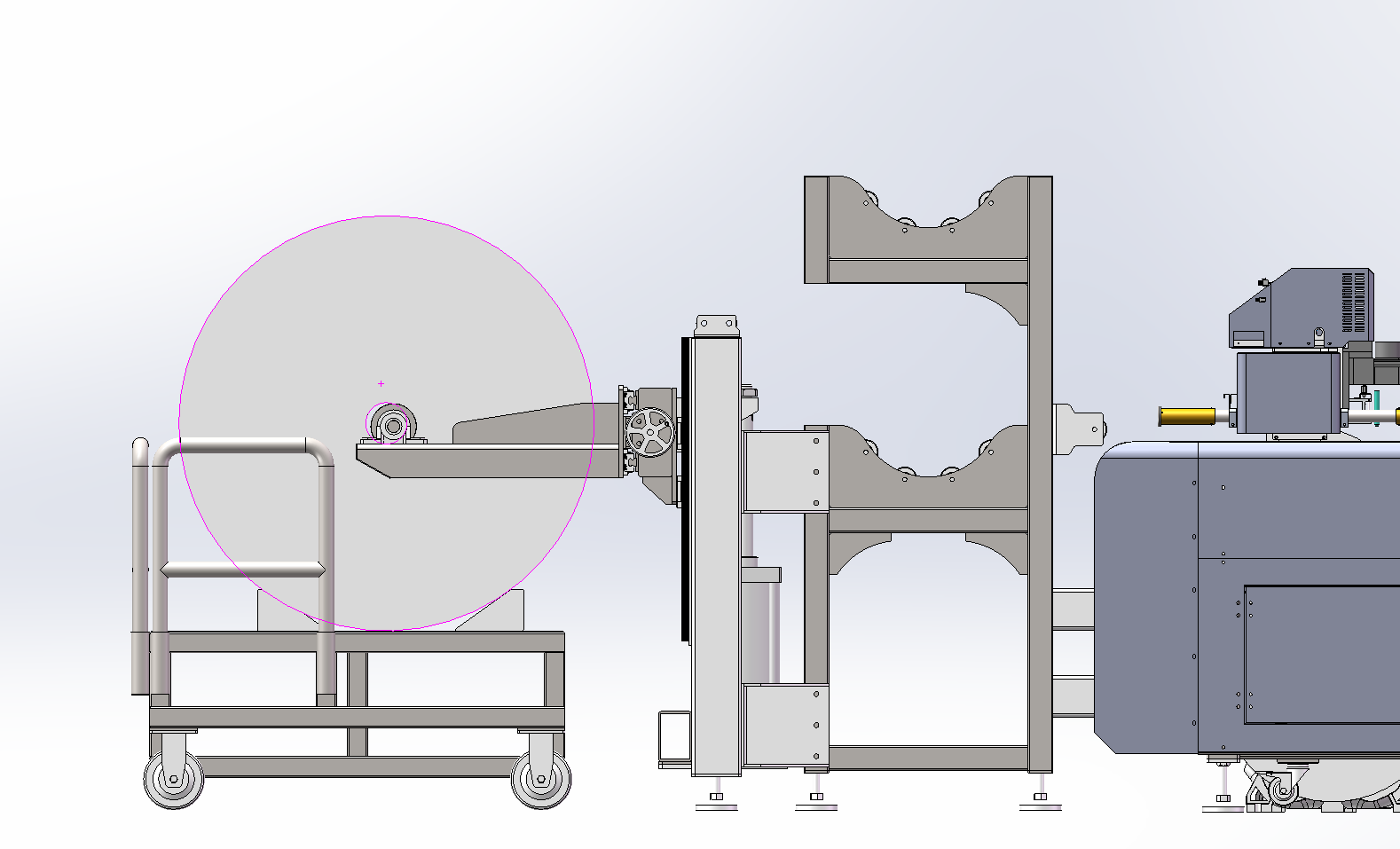

2D （Material Feeding System）
Integrated with lifting platform, feed rack and material trolley for seamless material handling.
Streamlines manual loading and unloading steps to save labor time.
Stable structure supports large rolls and sheets of raw materials.
Flexible combination adapts to different production workflows.
3D （Material Feeding System）
Equipped with lifting platform, feed rack and material trolley to realize smooth material transportation.
Simplifies manual material loading & unloading and cuts down labor costs.
Rigid framework can bear heavy rolls and sheet raw materials steadily.
Modular design enables flexible matching for various production lines.

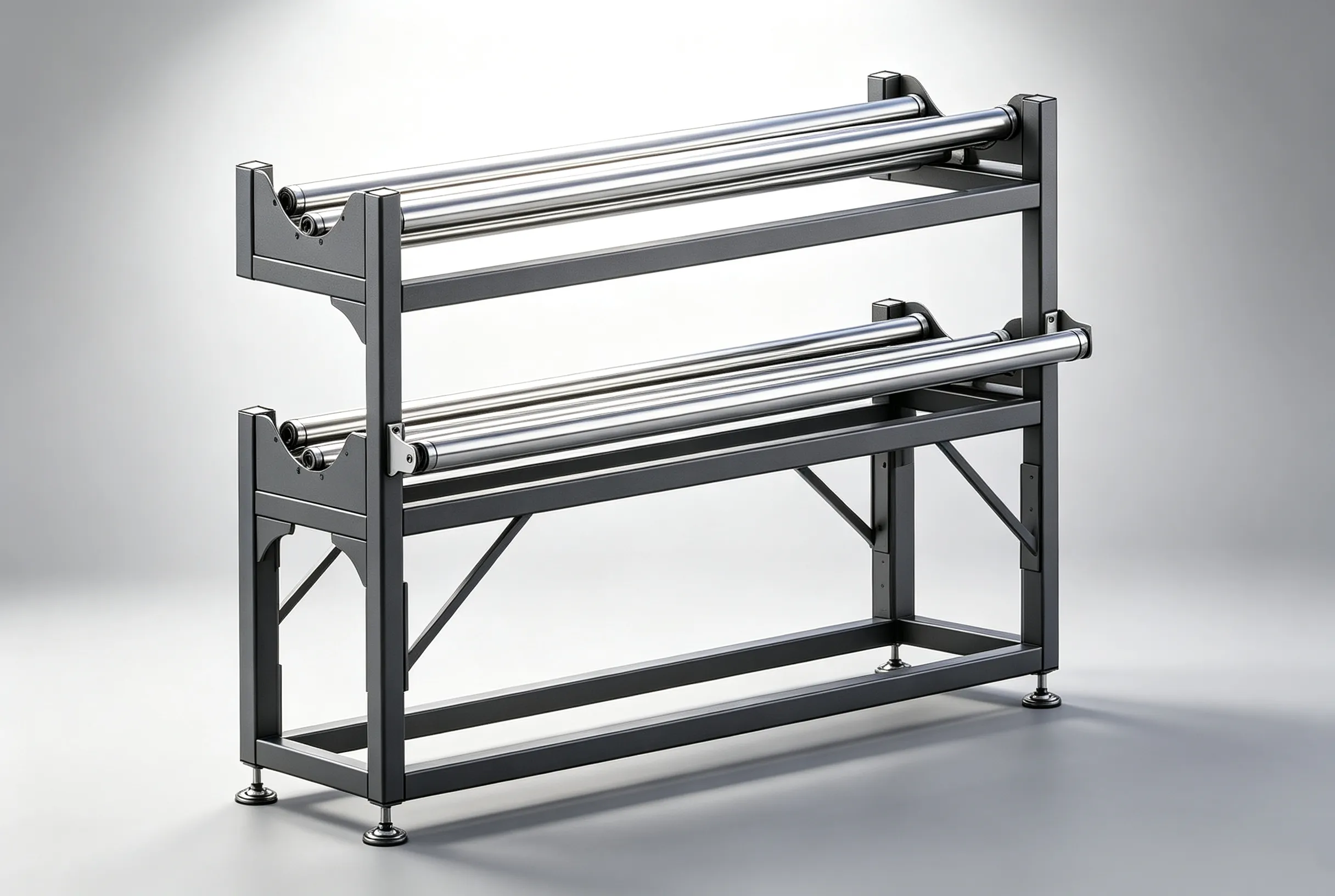

Double-Layer Feed Rack
Realizes automatic continuous feeding and improves overall processing efficiency.
Keeps materials flat and tension‑stable during feeding, avoids material offset to guarantee cutting accuracy.
Robust metal frame structure, 9 strong roller in ⌀60 mm ensuring smooth and stable feeding, fits heavy‑weight roll materials.
Reduces manual handling and improves workshop safety

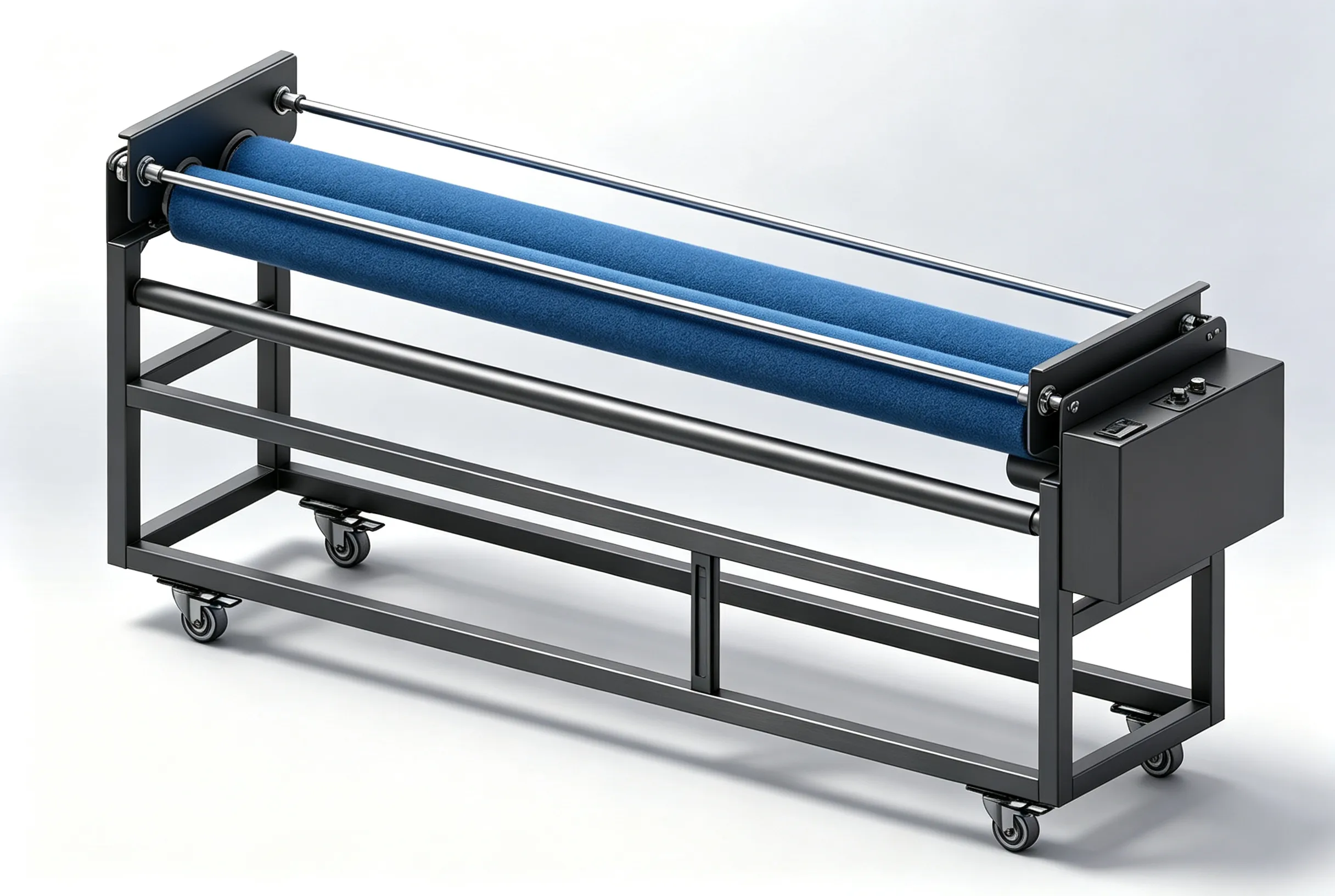

Single-layer power Feed Rack
Built-in motor provides power to deliver continuous material feeding.
Blue felt rollers grip flexible materials for smooth and steady conveyance.
Mobile caster design allows easy movement and position switching.
Perfectly cooperates with digital cutter for uninterrupted batch processing.

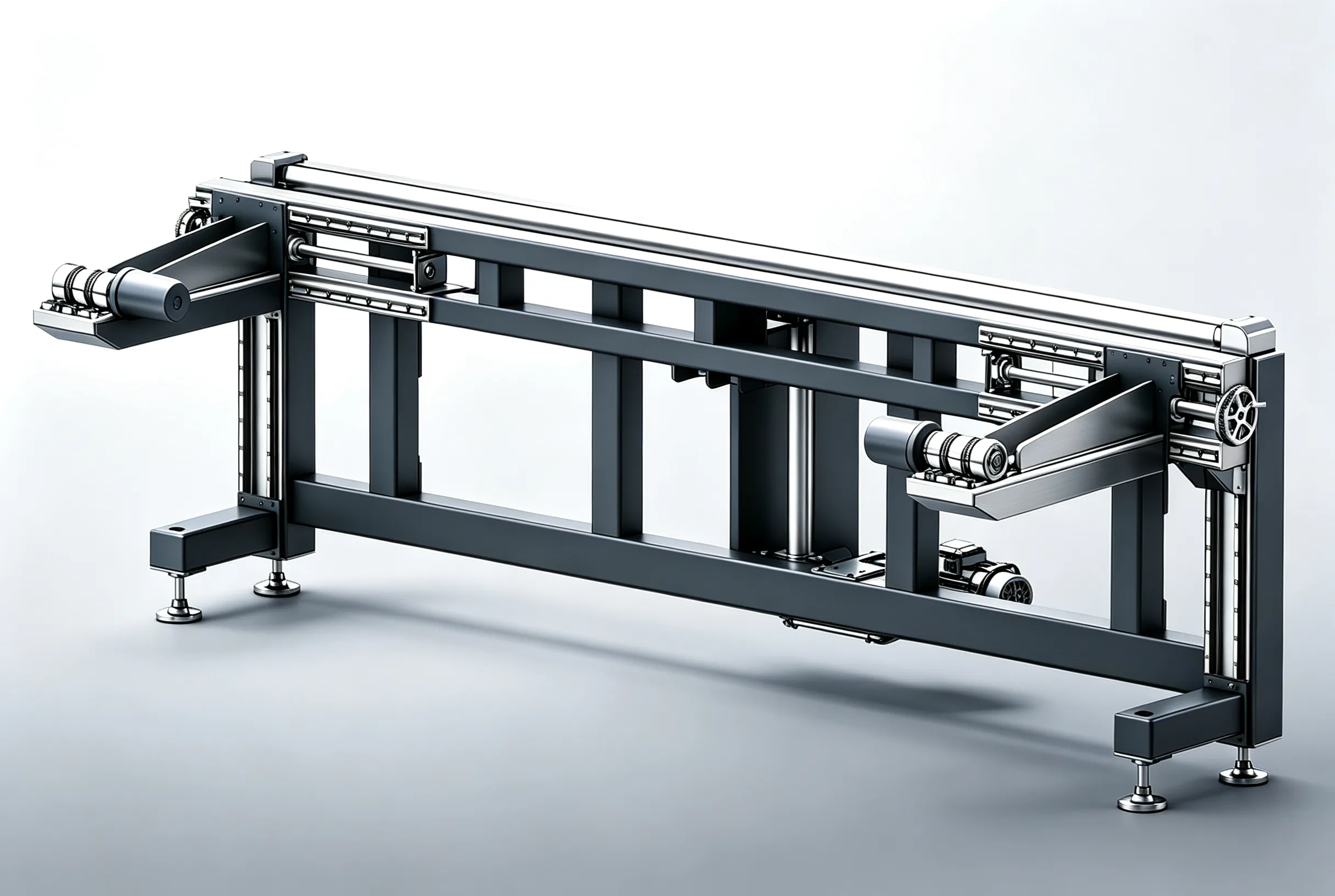

Material Lifting Device
Lifts heavy roll materials effortlessly for convenient loading.
Height adjustable to match different feed rack and cutter heights.
Stable bearing structure ensures safe material handling.
Simple operation helps reduce manual heavy lifting work.

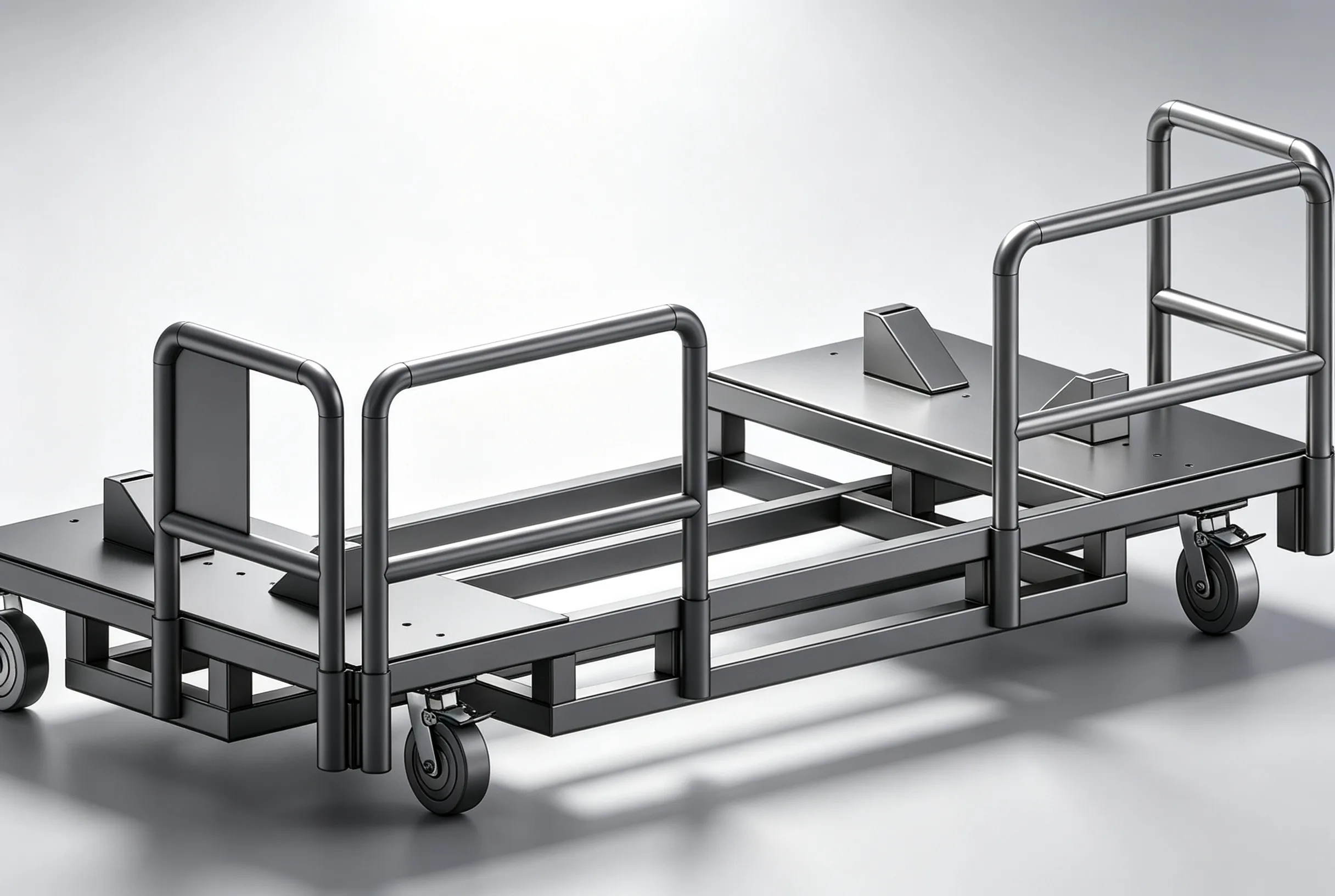

Material Trolley
Easily carry heavy sheet stacks and roll materials
Protect materials from scratches, creases and damage during transfer
Reduce manual carrying and avoid worker injury
Flexible movement, convenient for material temporary storage
Blade
Made of high‑hardness tungsten steel, delivers sharp cuts for various composite materials, producing burr‑free clean edges.
Excellent wear‑resistance, long service life, reduces frequent blade replacement and lowers production running‑cost.
Stable cutting performance, keeps consistent precision during long‑time batch cutting operations.
Multiple blade options available, adaptable to foam, silicone, honeycomb panel, leather and other flexible materials.
Mat
Soft felt texture cushions the cutting blade and prolongs blade lifespan.
Flat and uniform felt surface keeps materials flat to guarantee cutting precision.
Wear-resistant material endures long-time continuous cutting work.
Convenient to replace and maintain, lowering equipment downtime.
Select from multiple modular cutting heads to fit your production goals. Our interchangeable tool heads support different tool configurations, letting you handle cutting, creasing and engraving tasks on one machine for various flexible & rigid materials.
Tool Combination
Standard Cutting Head
Universal tool holder enables quick switching of electric/pneumatic oscillating knives and creasing wheels, fitting diverse materials and processing needs.
Two-Modular Head
The dual modular head allows two tools to be mounted at the same time. Fast tool switching realizes cutting and creasing in one pass, greatly improving working efficiency.
Router-Modular Head
His router modular head delivers high-speed precision carving and grooving. It perfectly fits rigid materials and ensures smooth cutting edges with stable performance.
Three-Modular Head
The three-modular head supports simultaneous mounting of three different tools. It enables automatic tool switching to complete cutting, creasing and engraving in one go, greatly enhancing production efficiency.
From design drafting, DXF/PLT file import, file transmission to the machine, to final precision cutting, this complete workflow covers mainstream composite manufacturing procedures.Our digital cutter transforms raw composite materials into high‑quality finished components with consistent cutting accuracy.
Follow our streamlined workflow for composite material processing, from digital pattern design to finished composite parts. Each step ensures stable output for carbon fiber prepreg, fiberglass cloth and other composite substrates.
Workflow

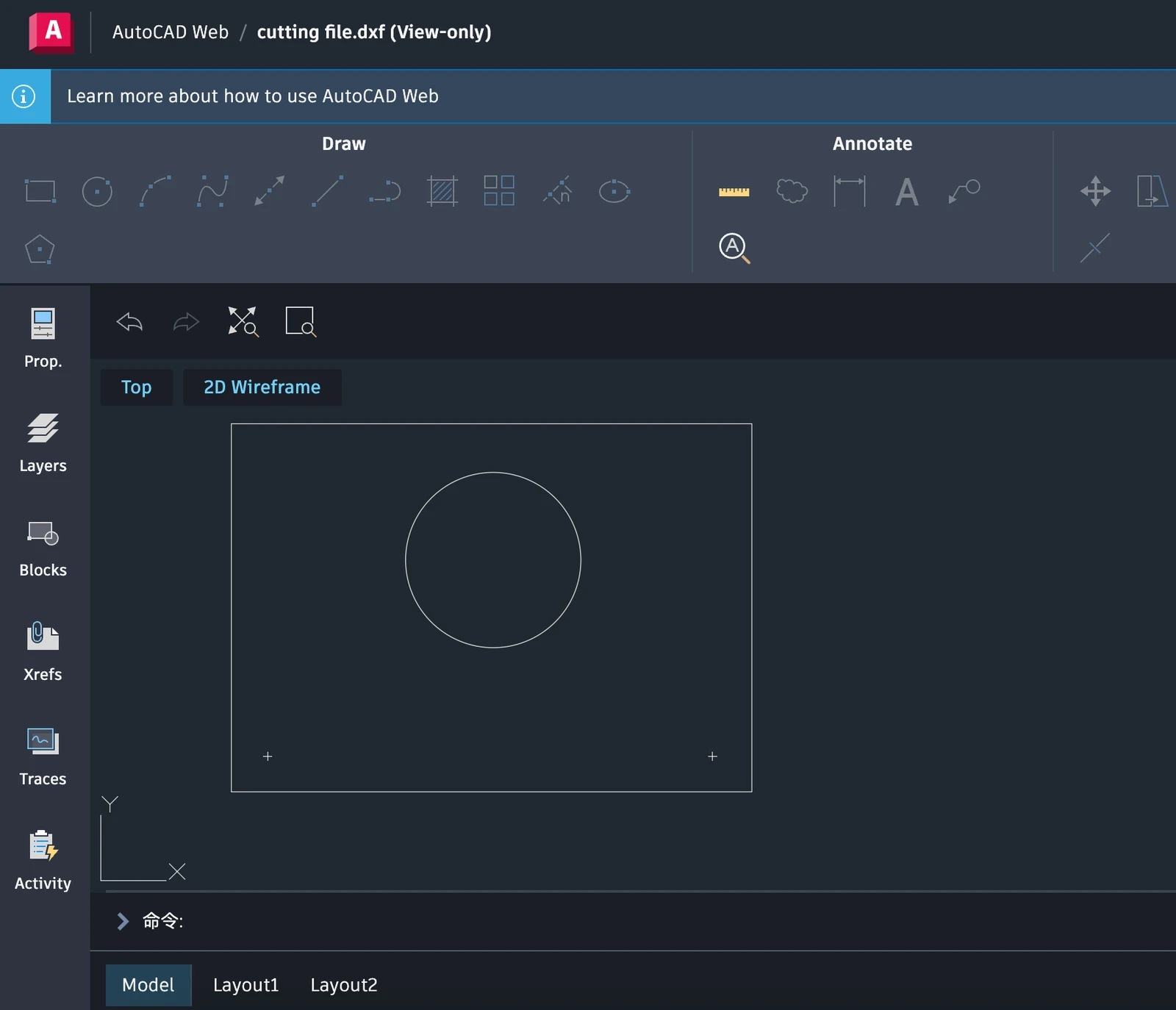

01. Dedign
02. Import DXF / PLT files

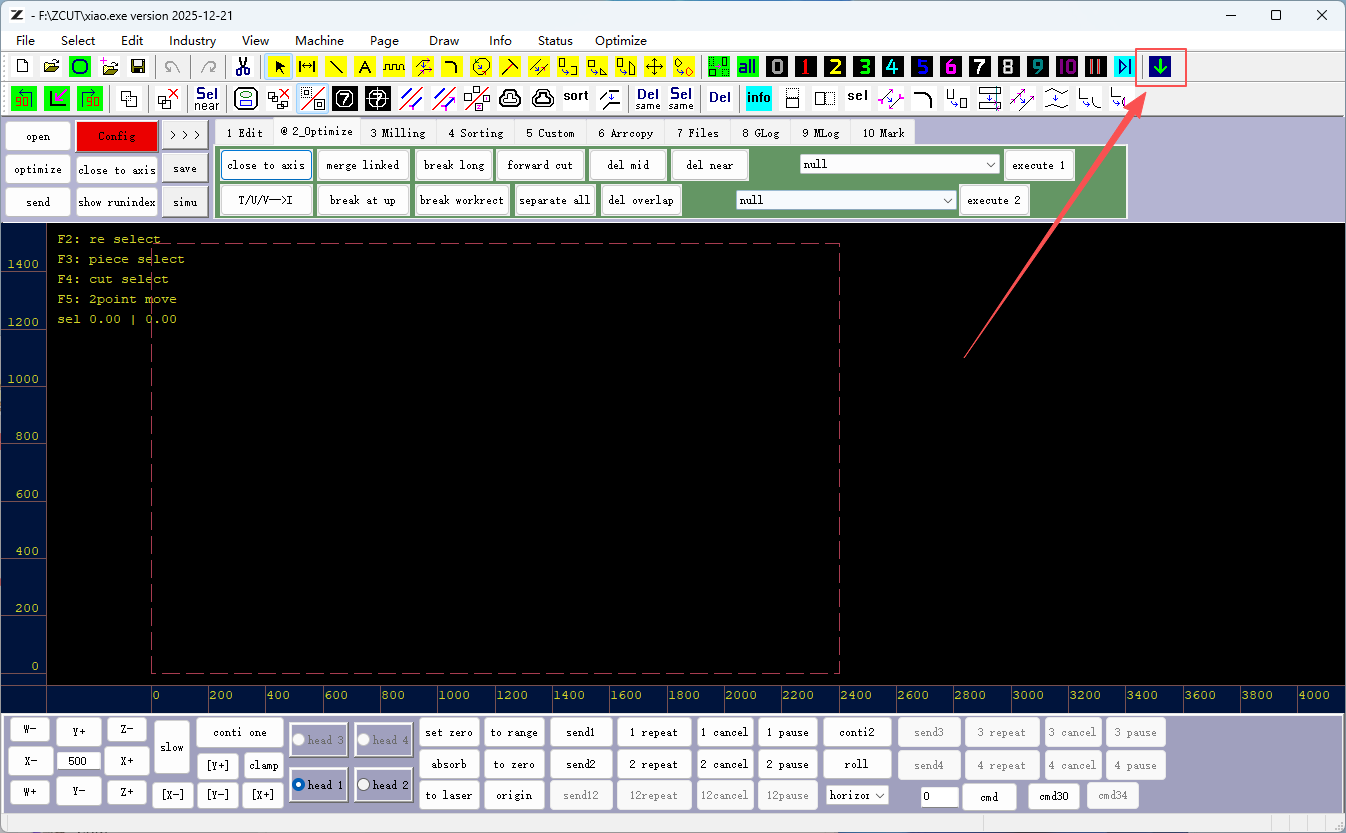

03. Send the file to the machine
04. Cutting
05. Collection
06. Repeat Step 1~5
Review the core‑specifications of ZINGCUT digital cutting machines. Multiple standard sizes are available, and custom configurations are supported to match your production‑area, tooling and platform requirements.
Technical Parameters
| Model | ZC-1510 | ZC-1813 | ZC-2516 | ZC-4016 | ACCEPTING CUSTOMIZATION |
|---|---|---|---|---|---|
| Effective Working Area | 1500*1000 mm | 1800*1300mm | 2500*1600mm | 4000*1600mm | |
| Air Pump Power | 5.5KW | 7.5KW | 9KW | 9KW | |
| Machine Power | 2KW | ||||
| Cutting Accuracy | ±0.2mm | ||||
| Repeat Accuracy | ≤0.1mm | ||||
| Type of Work Platform | Static Table，Conveyor Table，Dual Station，AR Syestem | ||||
| Multi-Head Optional | Double head optional efficiency doubled, double gantry optional, double head mutual shift optional, length can be customized | ||||
| Multi-Function Tool | Vibrating knife full cutting, high power active round knife, semi-cutting cutting, full cutting cutting, camera positioning cutting, edge finding cutting, acrylic milling cutter, cursor positioning, line marking, indentation knife, V-groove knife, etc. | ||||
| Safety Devices | Safety Proximity Sensor | ||||
| Cutting Speed | 0-1800mm/s | ||||
| Transmission Port | Network port | ||||
| File Formats | PDX/PLT | ||||
| Material Fixing Method | Vacuum partition adsorption | ||||
| Transmission Mechanism | Taiwan linear guide, synchronous belt drive | ||||
| Drive Motor | Panasonic digital servo motor | ||||
| Working Voltage/Frequency (Machine | AC220V±10%, 50Hz | ||||
| Working Voltage/Frequency (Air Pump | AC380V±10%, 50Hz | ||||
| Operation & Control | Multilingual LCD touch screen / Computer | ||||
| Operating Environment | Temperature: -10℃~50℃; Relative Humidity: 20%~80% | ||||
Choose from multiple standard working‑size options for ZINGCUT digital cutters. We also offer full customization to perfectly fit your workshop space and production requirements.
Optional Sizes
Size
| Model | Effective Working Area（A2 x B2） |
|---|---|
| ZC- 2516 | 2500*1600mm |
| ZC- 2518 | 2500*1800mm |
| ZC-3016 | 3000*1600mm |
| ZC-3018 | 3000*1800mm |
| ZC-4016 | 4000*1600mm |
| ZC-4018 | 4000*1800mm |
| ZC-6016 | 6000*1600mm |
| ZC-9016 | 9000*1600mm |
| Customized | Customized |
Click “Contact Us ” to learn more video.
Watch our official disassembly & packing video for ZINGCUT CNC cutting machines. We take strict standardized steps to pack every equipment for international overseas shipping.
- Safe & damage-resistant packaging: Export wooden case fixation prevents collision damage during long overseas transport.
- Fast standardized packing workflow: Professional team processes packaging efficiently to speed up order delivery.
- Neat & classified arrangement: All spare parts and tools are labeled and sorted clearly for easy inspection.
Disassembly & Packing Video
Packaging
Get Started Today!
Discover our innovative solutions and select the optimal option for your business.
Leverage ZINGCUT CNC knife cutting machines to maximize your business potential.
Engineered with meticulous precision and built upon uncompromising quality standards, our customized solutions effectively boost your overall production efficiency.
Choose no compromise. Connect with our team today to explore how we can accelerate your business growth.
Click “Inquire ” to start your journey toward sustainable profitability with ZINGCUT.
All your email information shall be highly confidential, and your private data will be securely protected by our dedicated business personnel.
Get Your Custom Quote
REPLY WITHIN 24 HOURS
