Sign&Graphic Solution
Samples | Small Batch | Mix production
Die-less Cutting, Accurate, Experience-independent & Cost-efficient
CNC Digital Cutting Machine for Sign&Graphic Industry
High Cutting Precision ：Accurately cut logos and sign outlines
Efficient Small-batch Production : Quickly process small-lot advertising materials
Superior Cutting Quality : Deliver smooth edges with no burrs
Wide Material Compatibility ： Suit multiple graphic plate materials
Flexible Custom Machining ： Realize various personalized pattern cutting
High Operational Efficiency : Greatly improve sign making productivity
Optional Tools
- Electric Oscllating Tool：for cutting low and medium densiy materials.
- V-Cutter：Make V-grooves.
- Router Module: A high-frequency spindle for milling.
- Universal Cutting Tool：5mm cut & high speed
- CCD Camera：Vision positioning & precise cutting
Multi-functional Combined Head
- Match different tools freely to meet various processing demands.

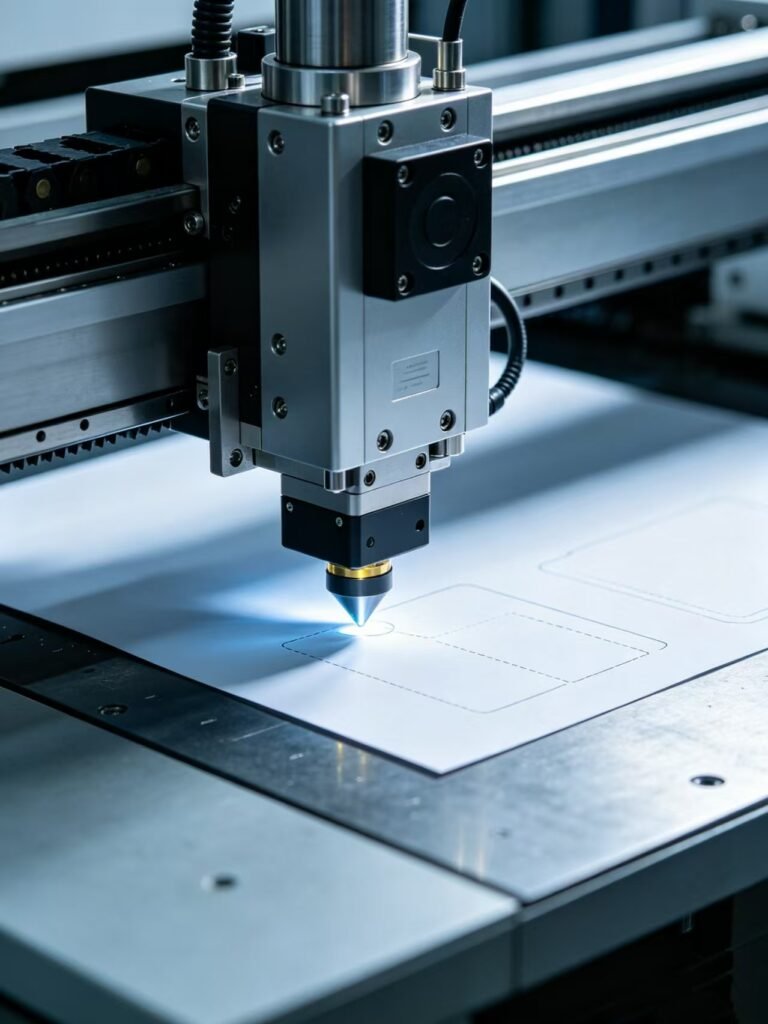

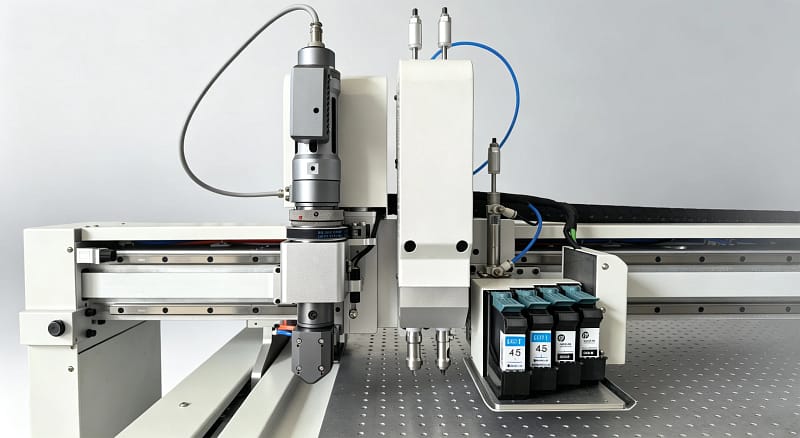

Cutting Technology
- High-frequency oscillating knife (15,000–18,000r/m) , clean edges, No dust, no burrs, no heat damage

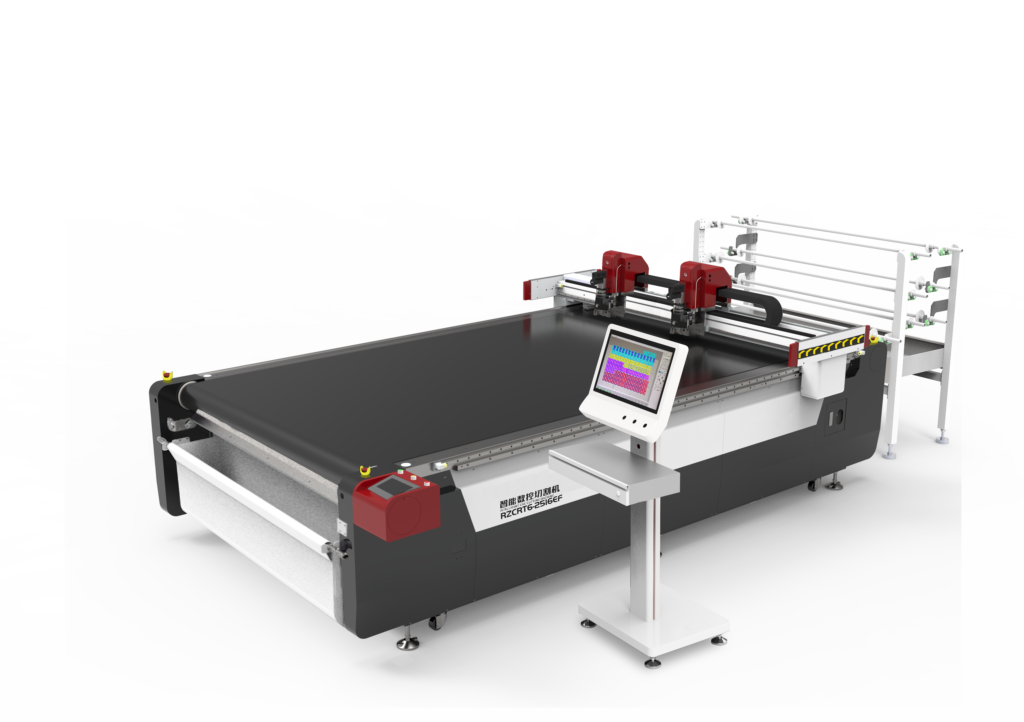

CNC Digital Cutting Machine for Sign&Graphic Industry
Professional for samples, small batch production, short runs, high mix and fast delivery demands.
application
Applicable Materials：PVC Foam Board, KT Board, Corrugated Board, Honeycomb Board, Self-adhesive Vinyl, Reflective Film, Heat Transfer Vinyl，Advertising Cloth, Canvas, Magnetic Sheet, Thin Acrylic Sheet, PET Sheet, PP Sheet.
- Signage and logo making
- Advertising display decoration
- Indoor and outdoor billboard
- Model and craft production
- Partition and decorative panel
- Advertising packaging
- Promotional display board
- Ad sample backing
- Event decorative lining
- Light sign substrate
- Sign letter production
- Window & glass graphics
- Vehicle wraps & decals
- Surface decorative film
- Stickers & label making
- Custom logo printing
- Garment decoration
- Promotional pattern
- Canvas banners
- Poster printing
- Art display
- Event backdrop
- Custom signage
- Acrylic sign boards
- Light box panels
- Display stands
- Decorative partitions
- Logo crafts
- Exhibition display setup
- Poster and photo mounting
- Temporary sign production
- Handcraft and model making
- Event background board
- Lightweight sign panel
- Outdoor advertising board
- Decorative wall cladding
- Exhibition backdrop
- Transportation signage
- Ad sign reflection
- Night billboard enhancement
- Luminous logo making
- Outdoor ad decoration
- Promotional reflective stickers
- Outdoor billboards
- Event backdrops
- Banner production
- Stage decoration
- Promotional displays
- Magnetic display board
- Removable ad posters
- Flexible signage
- Partition decoration
- Info display panel
- PP sign panels
- Printed ad boards
- Display backdrops
- Promotional stands
- Lightweight signage

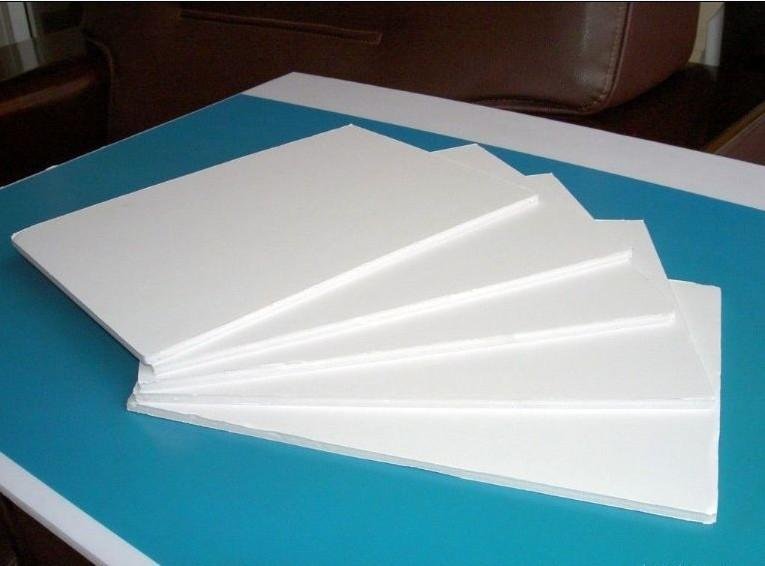

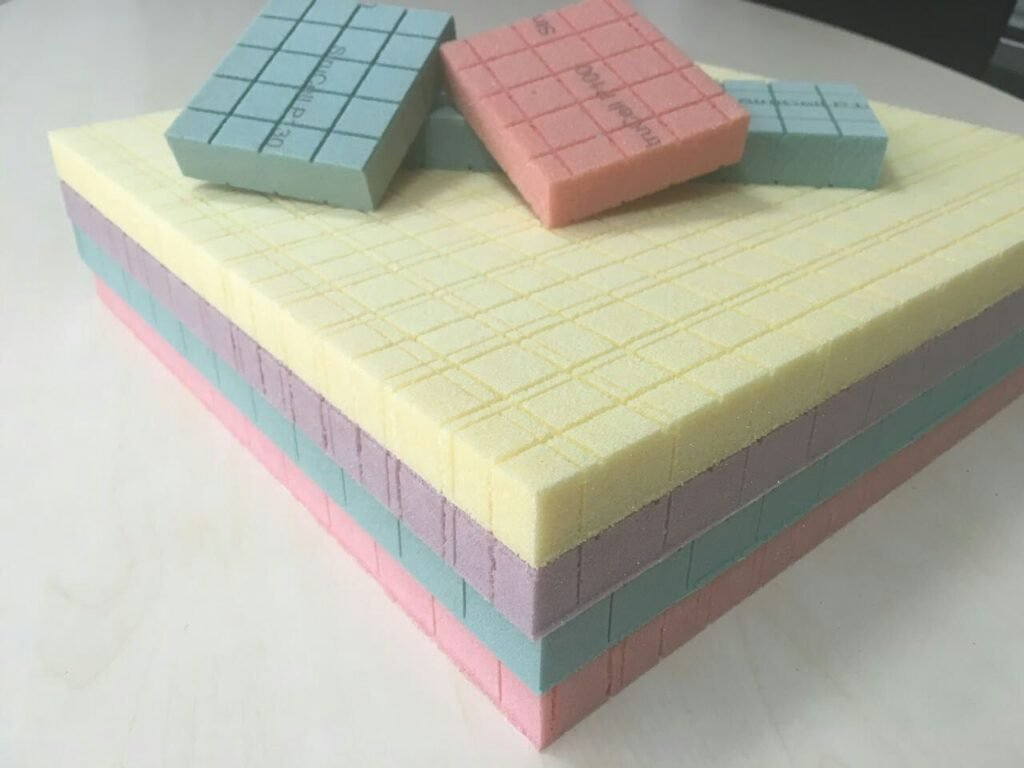

PVC Foam Board

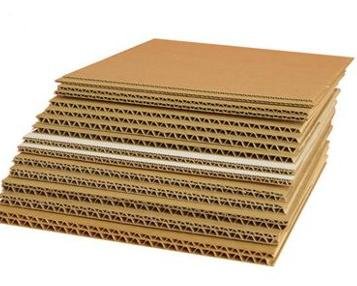

Corrugated Board

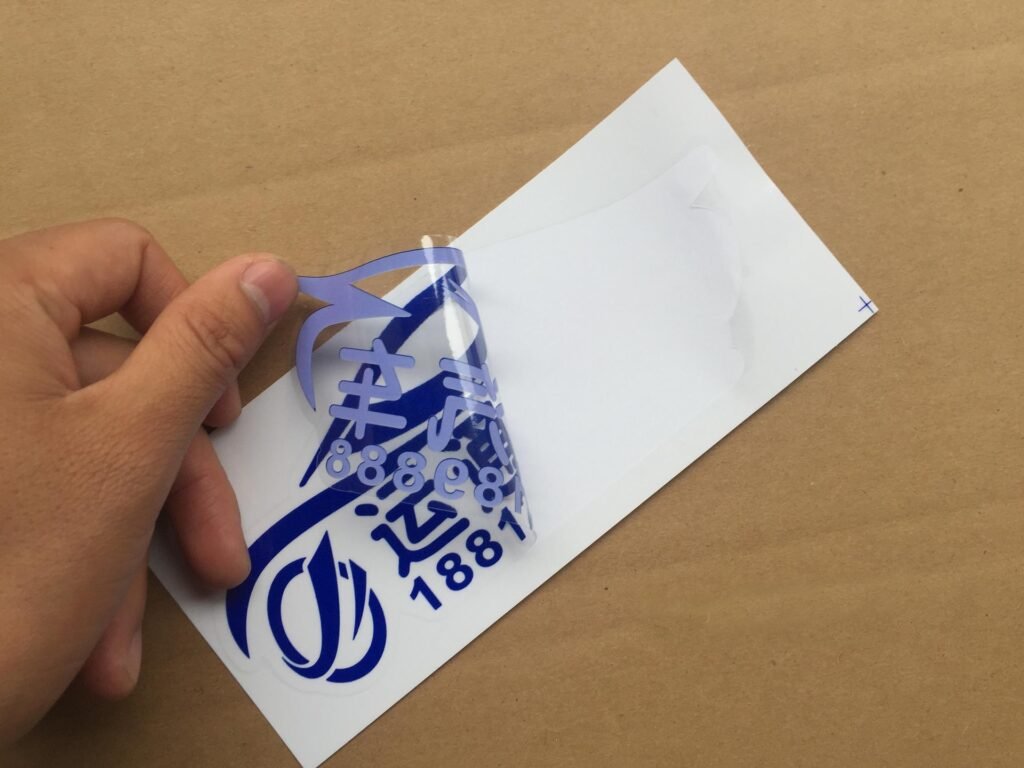

Sticker

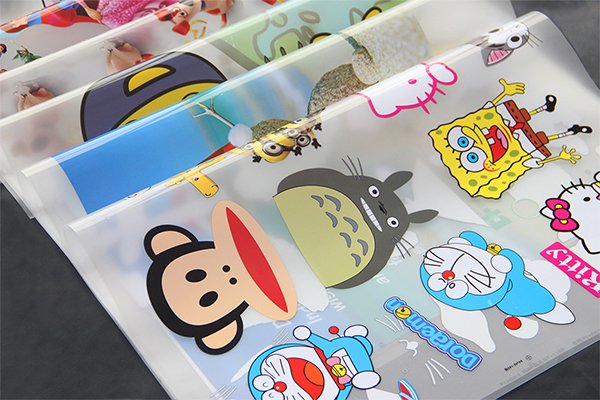

Heat Transfer Vinyl
Canvas

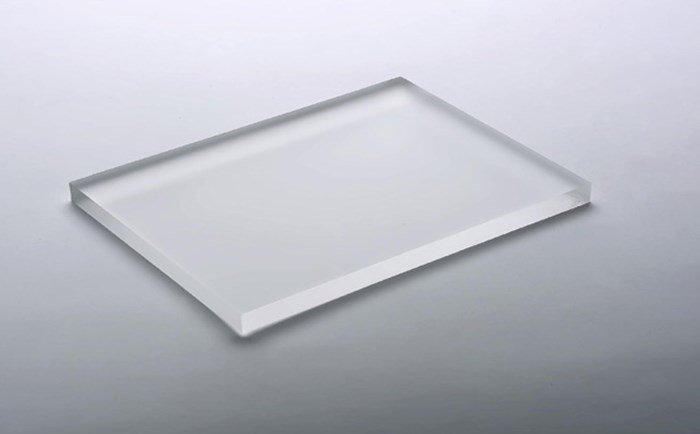

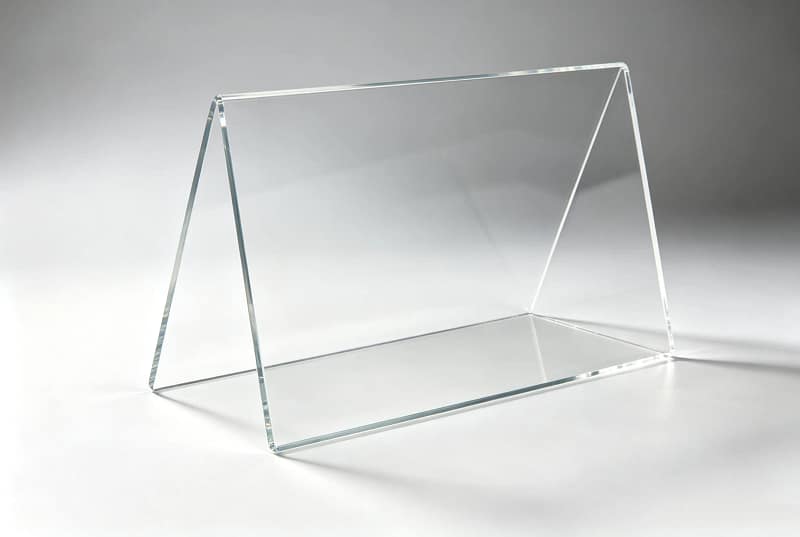

Acrylic Sheet
KT Board

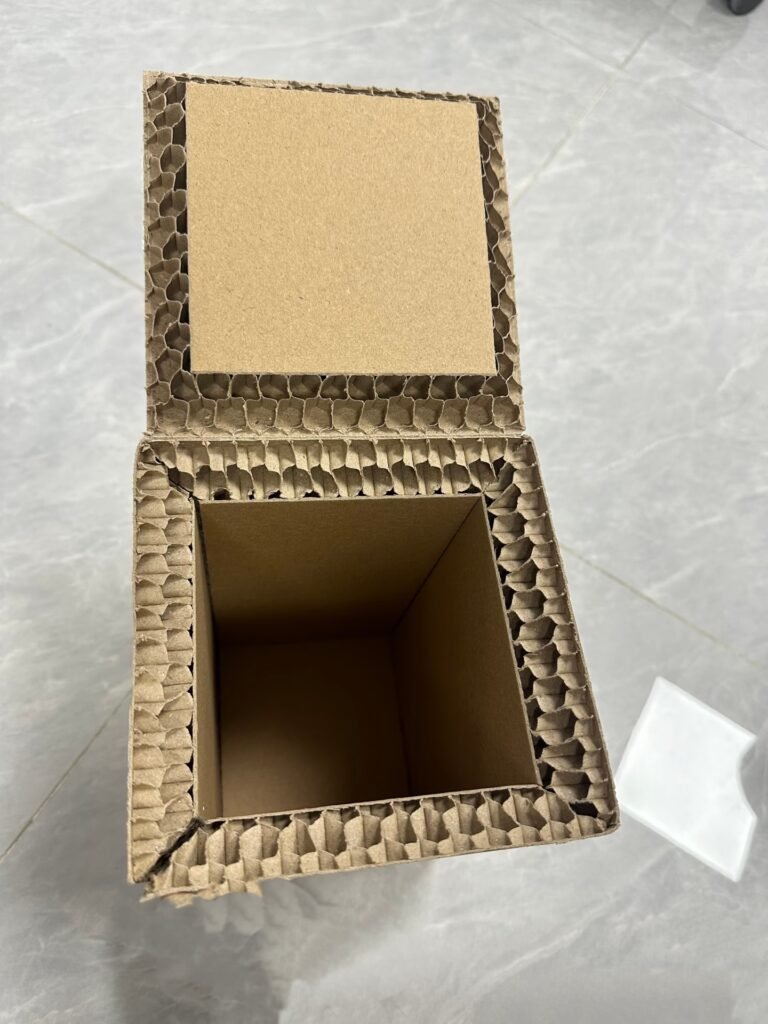

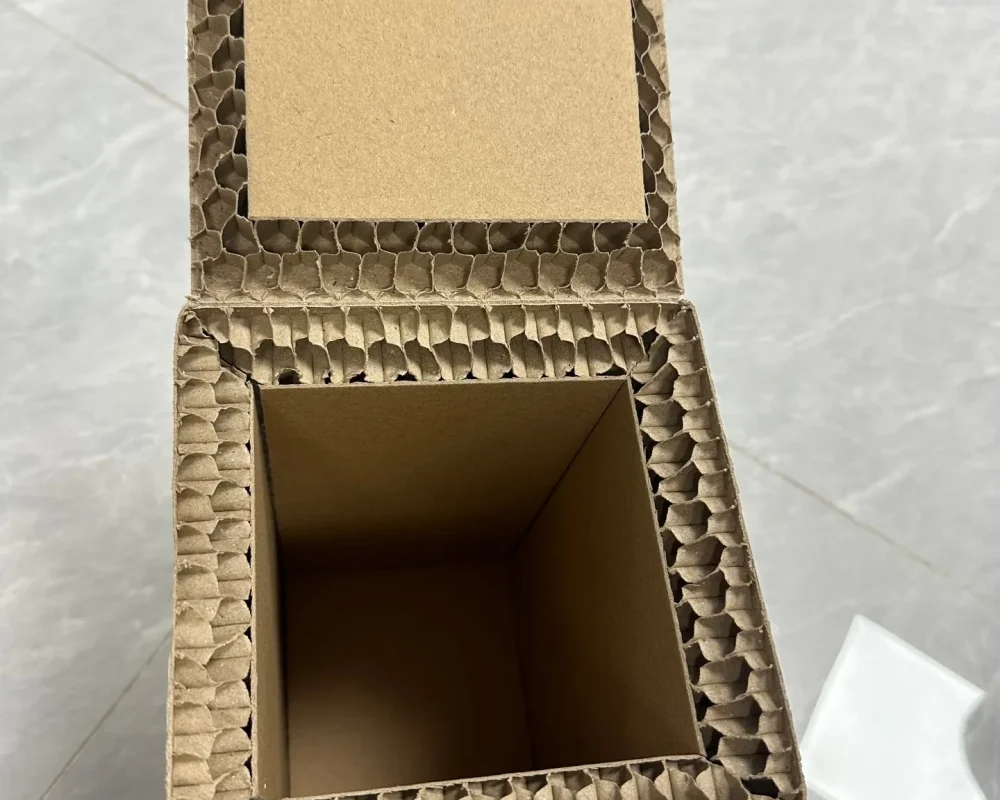

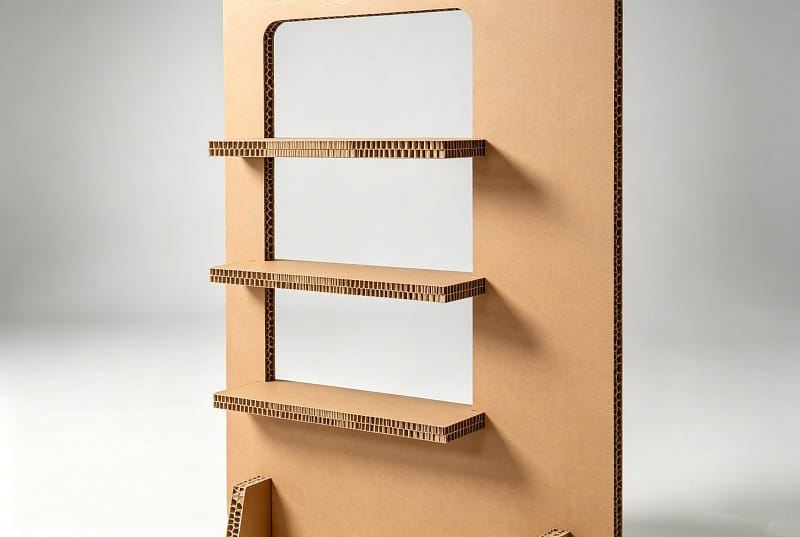

Honeycomb Board

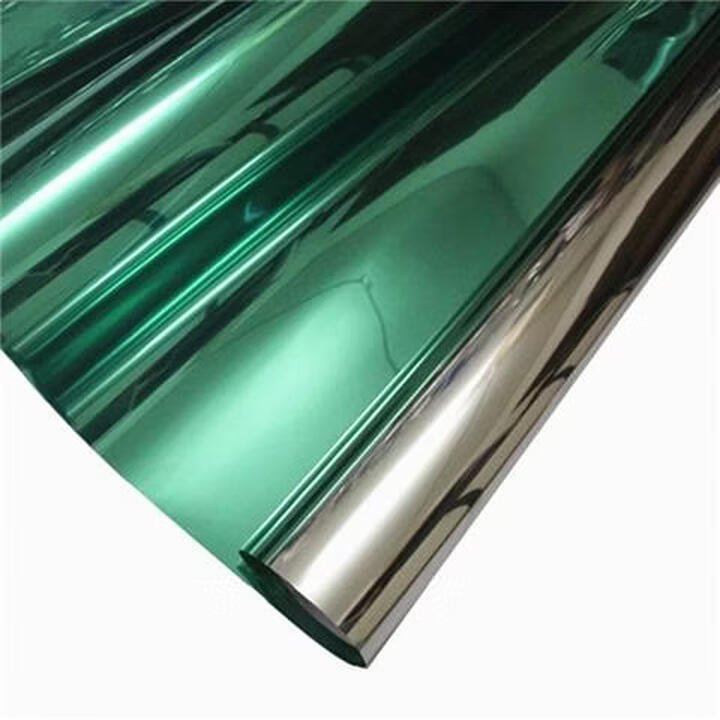

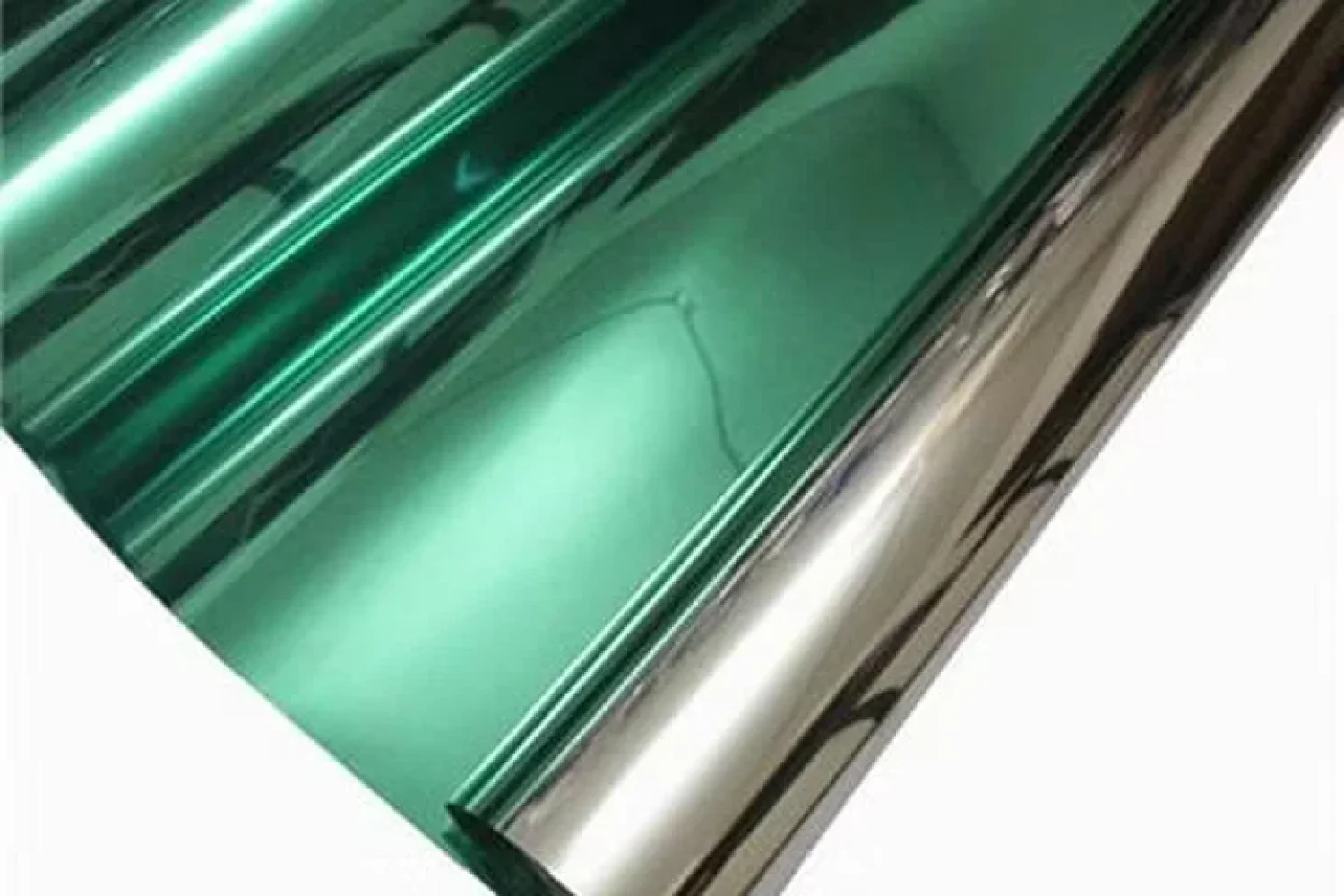

Reflective Film
Advertising Cloth

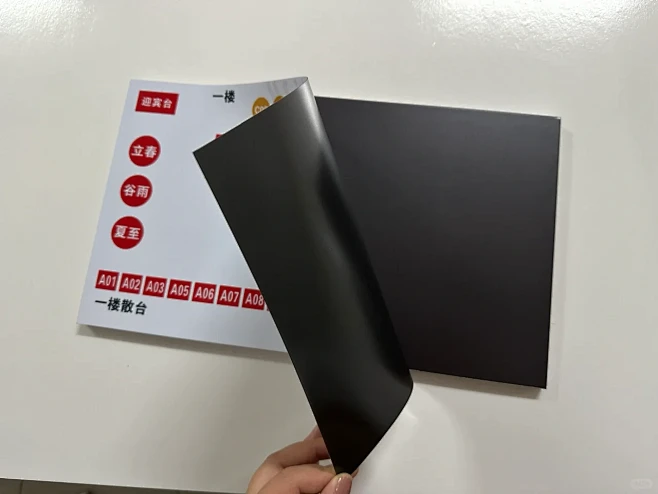

Magnetic Sheet
PP Sheet
feature

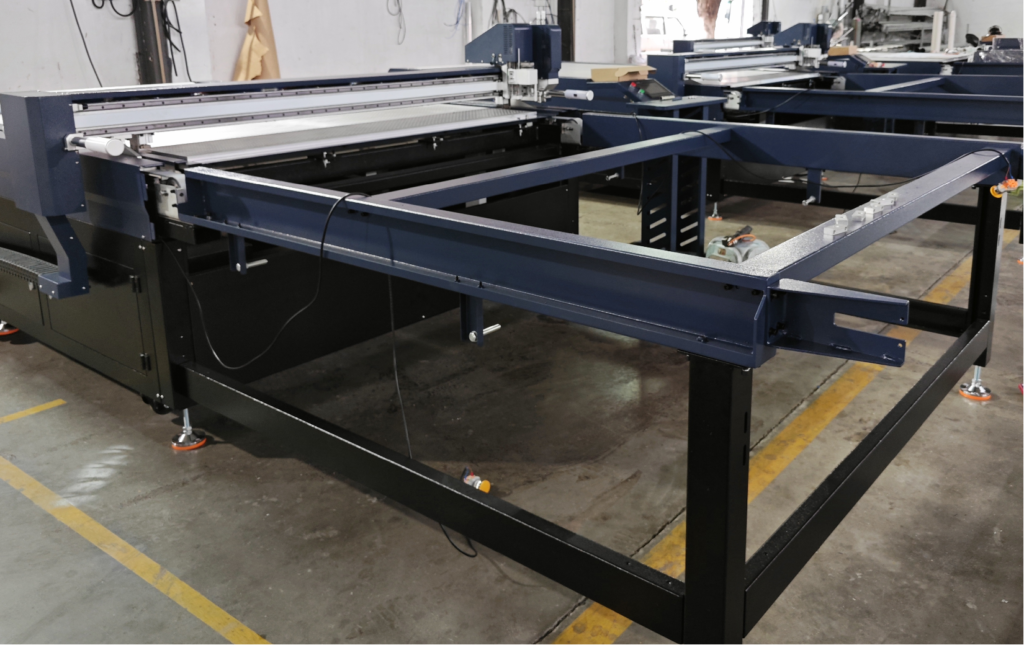

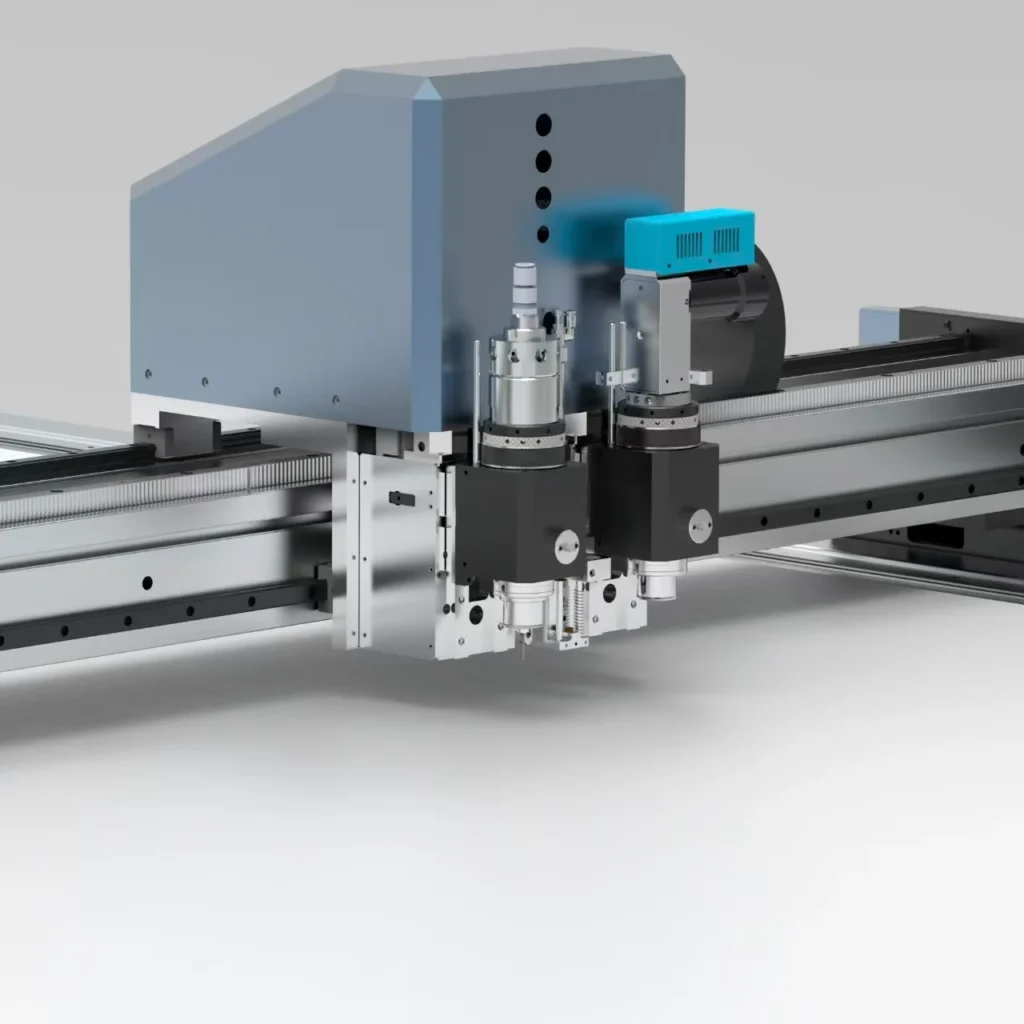

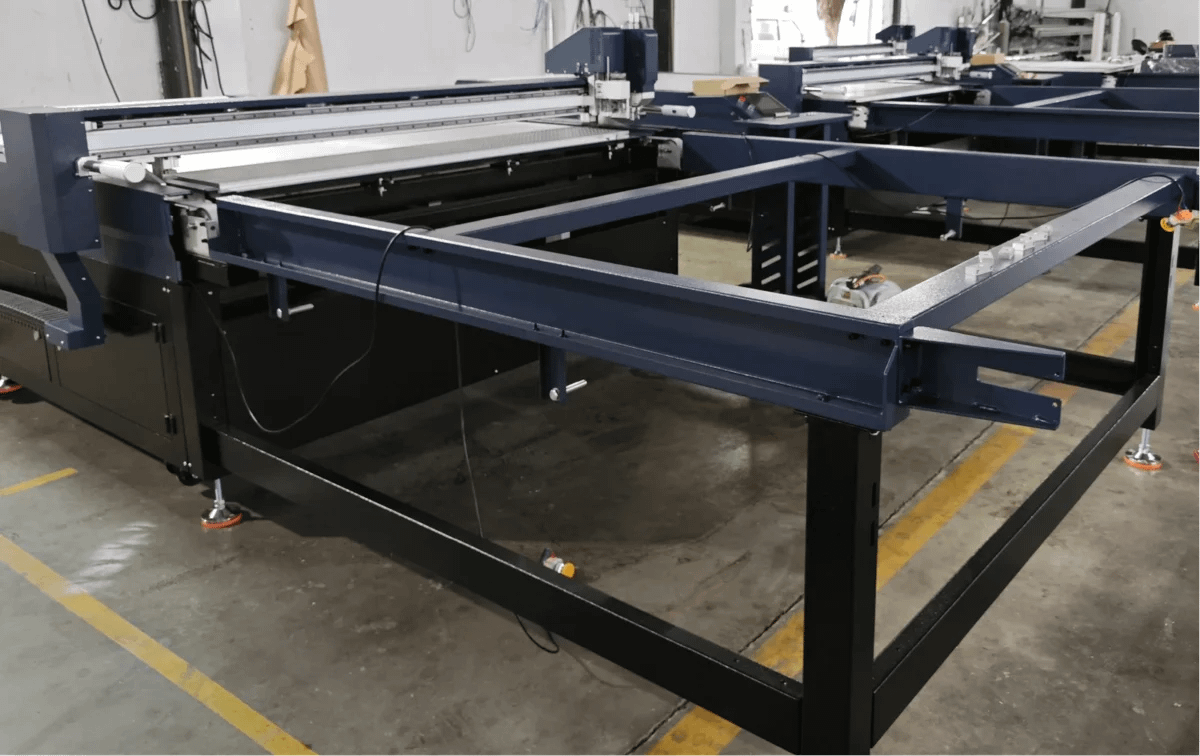

Integrated Body Design
Adopts an integrated one-piece frame structure, featuring high overall rigidity and stable operation. It effectively reduces vibration during cutting and ensures long-term processing accuracy.
Safety Induction Switch

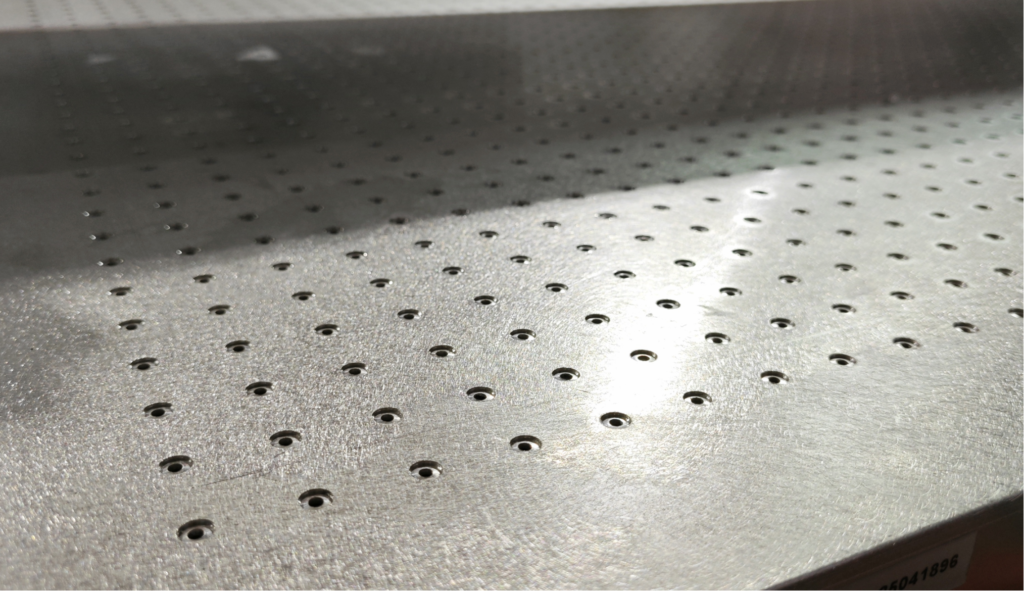

Vacuum Suction System
Comes with an integrated vacuum suction function, which firmly and steadily fixes various materials during cutting. It prevents material shifting and ensures precise and consistent cutting results.

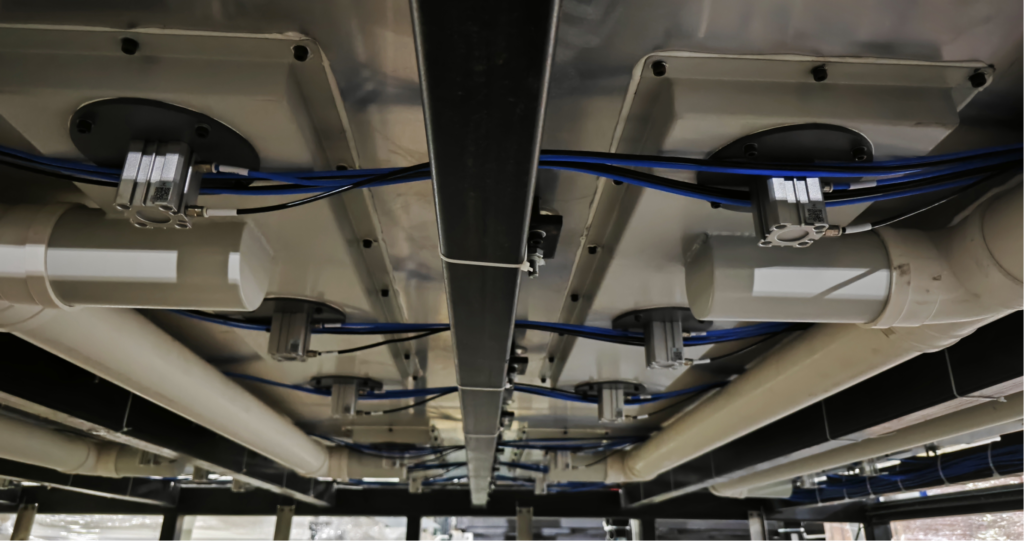

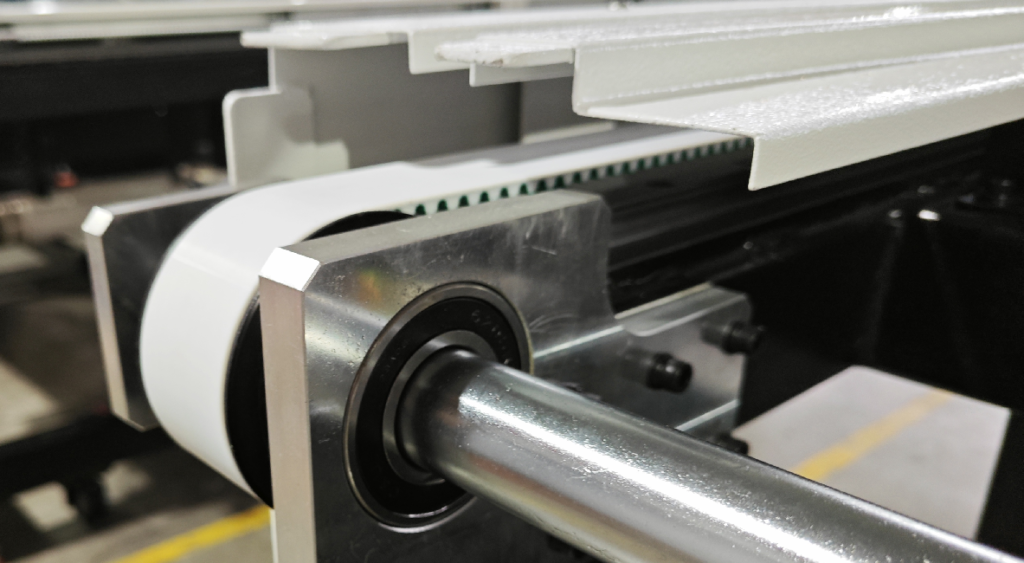

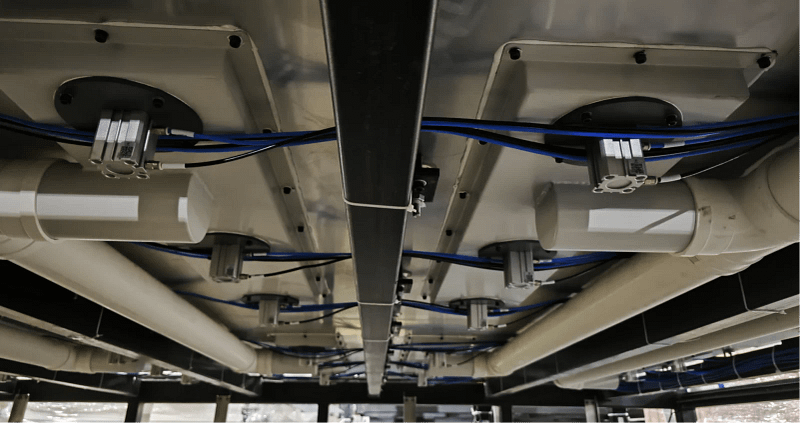

Optimized Vacuum Pipe Layout
Features a professional vacuum pipe routing design that greatly enhances fan working efficiency. It delivers stronger and more even suction force for stable material fixation.
tool combination

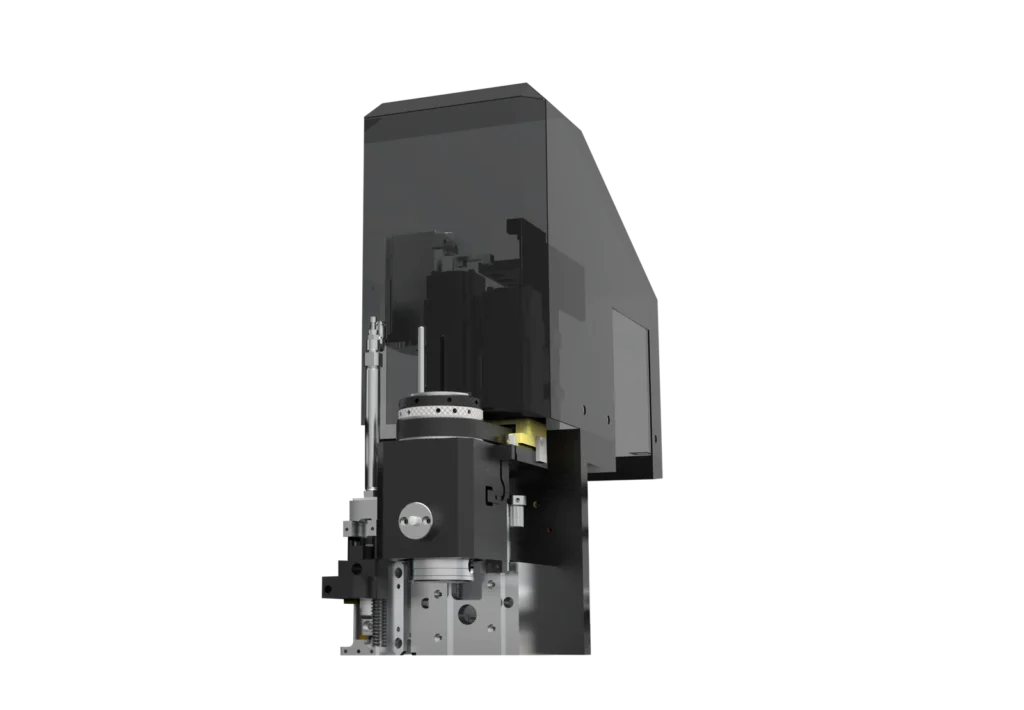

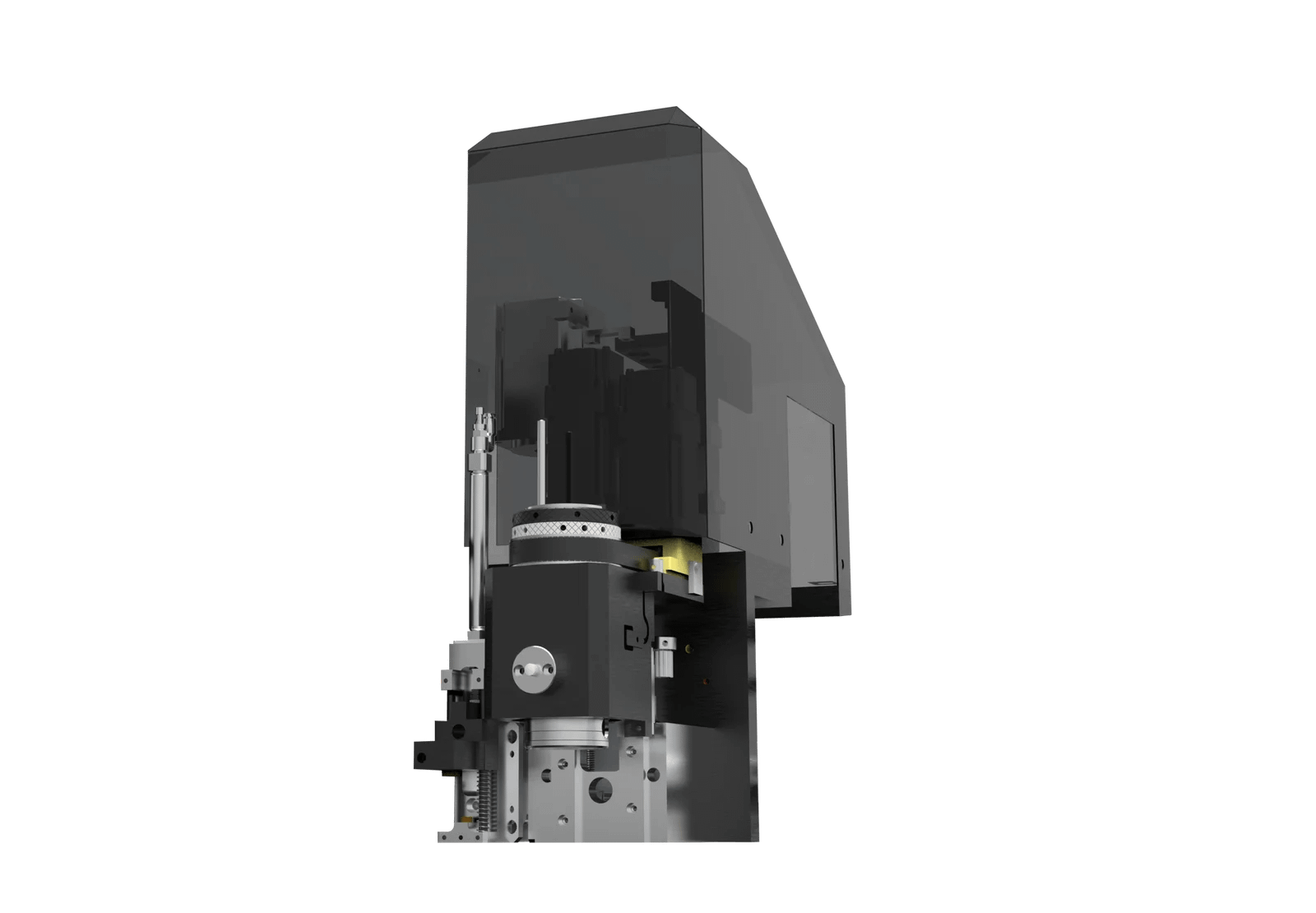

Standard Cutting Head
Universal tool holder enables quick switching of electric/pneumatic oscillating knives and creasing wheels, fitting diverse materials and processing needs.

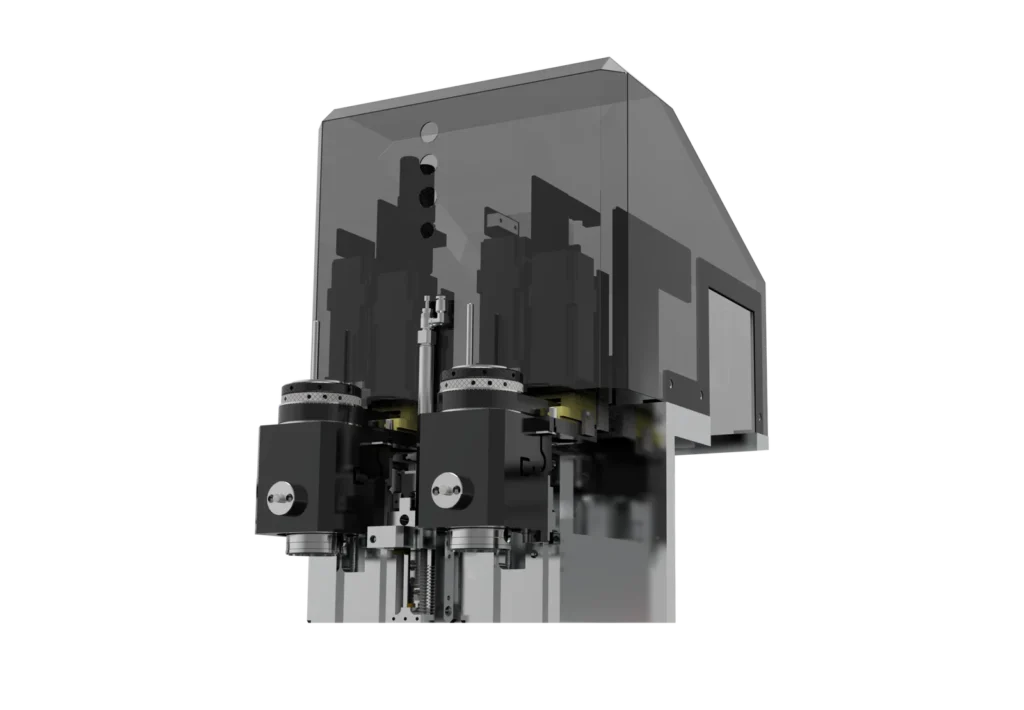

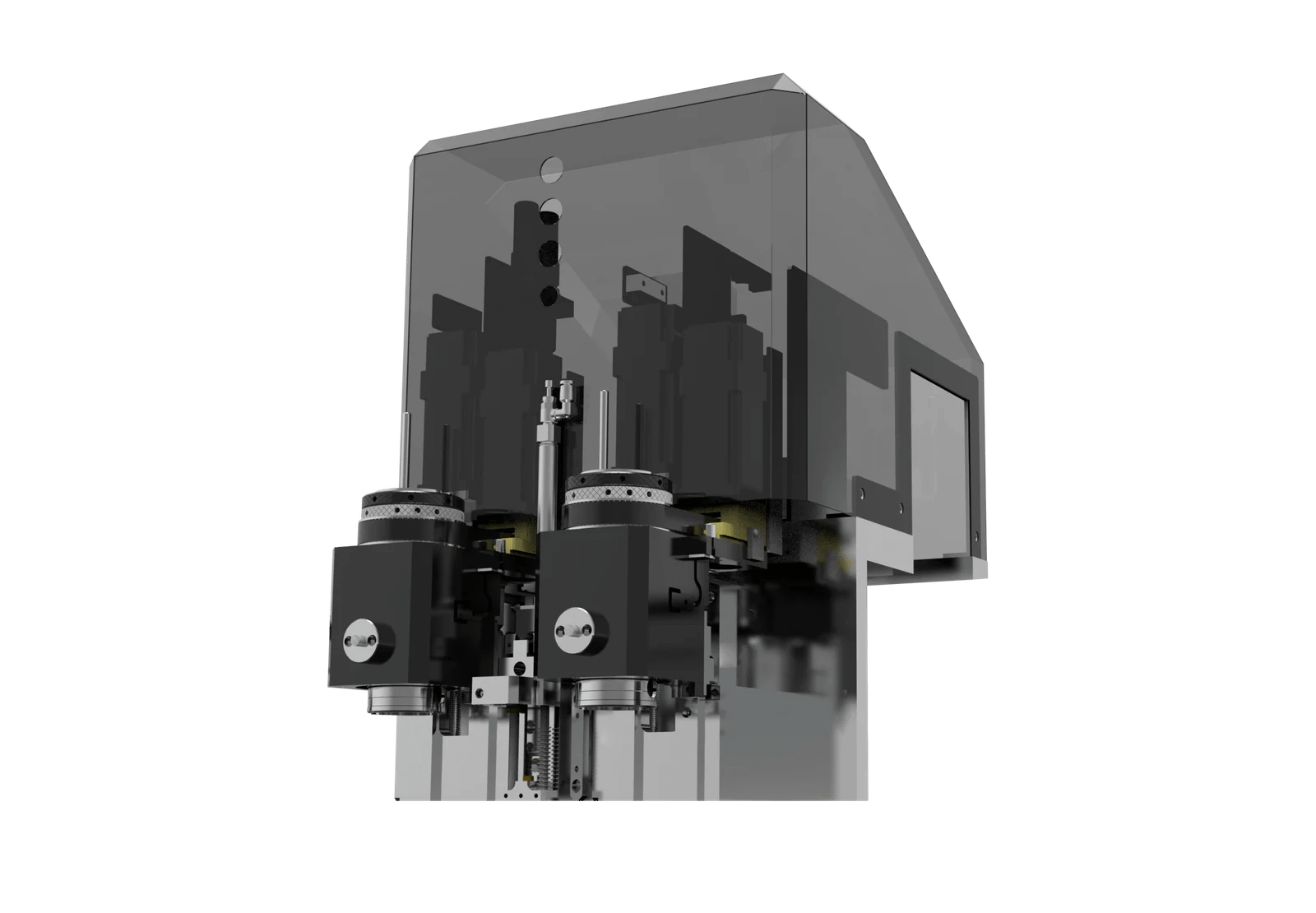

Two-Modular Head
The dual modular head allows two tools to be mounted at the same time. Fast tool switching realizes cutting and creasing in one pass, greatly improving working efficiency.

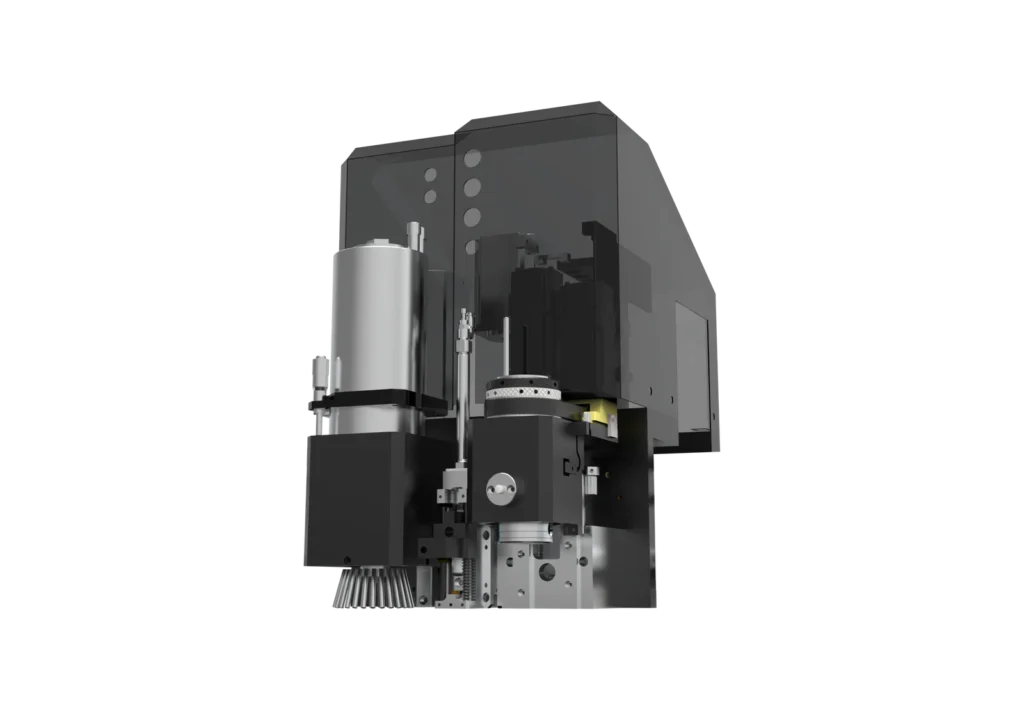

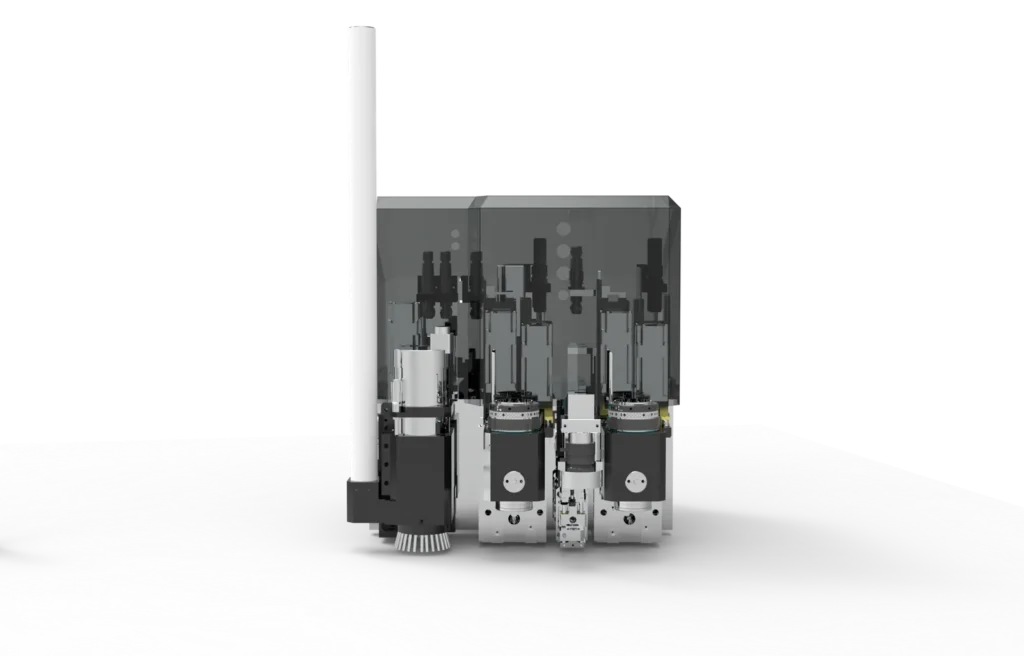

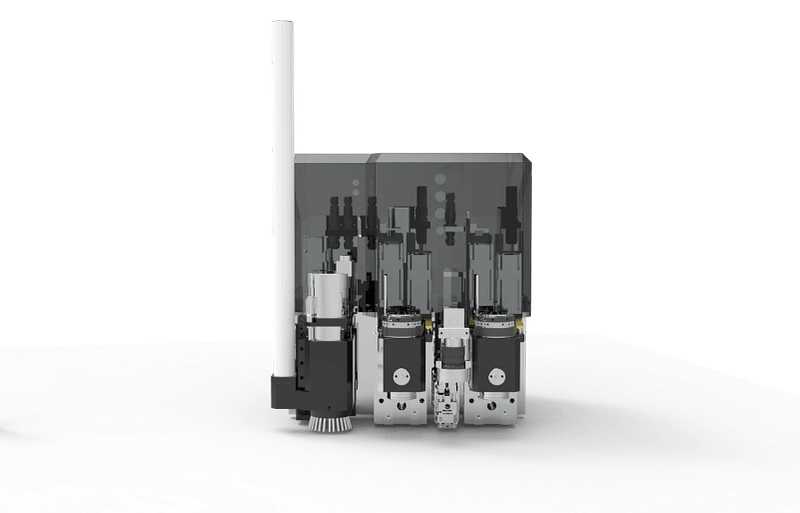

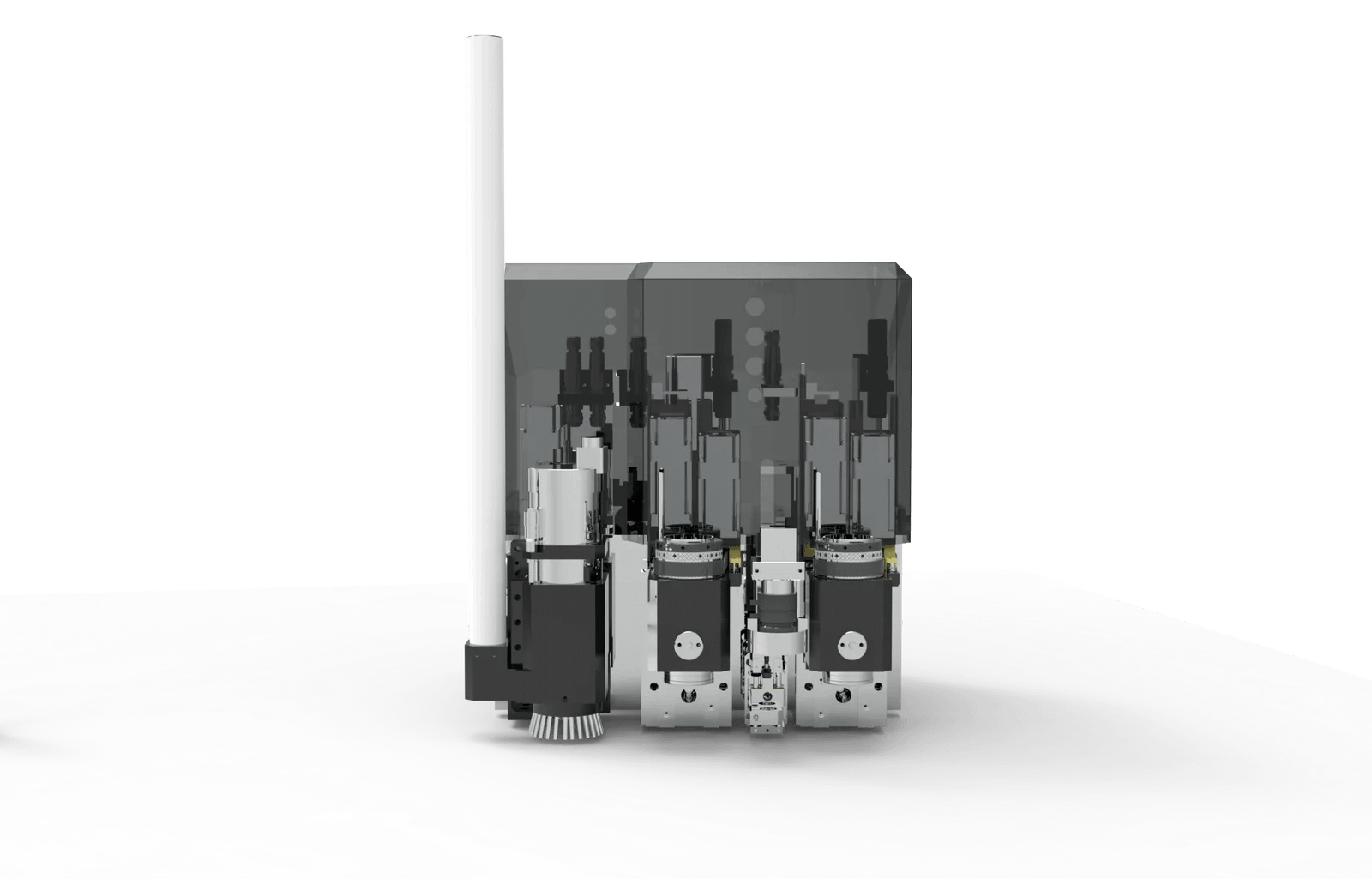

Router-Modular Head
his router modular head delivers high-speed precision carving and grooving. It perfectly fits rigid materials and ensures smooth cutting edges with stable performance.

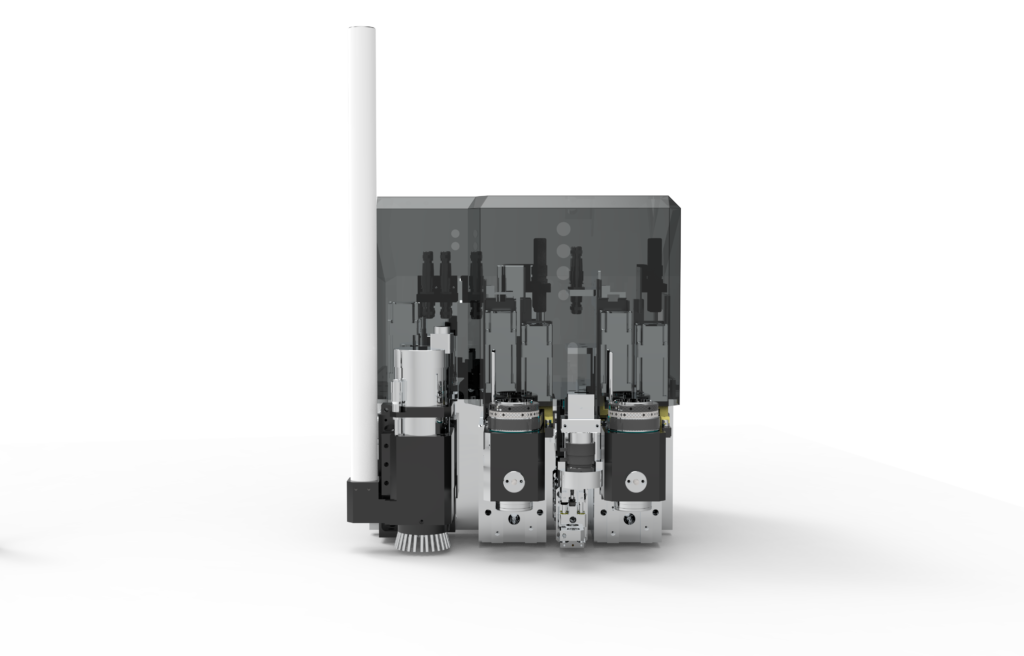

Three-Modular Head
The three-modular head supports simultaneous mounting of three different tools. It enables automatic tool switching to complete cutting, creasing and engraving in one go, greatly enhancing production efficiency.

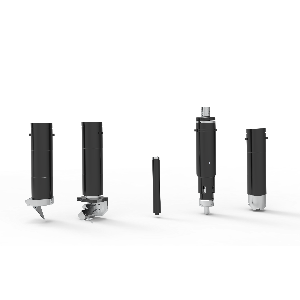

Optional Tools

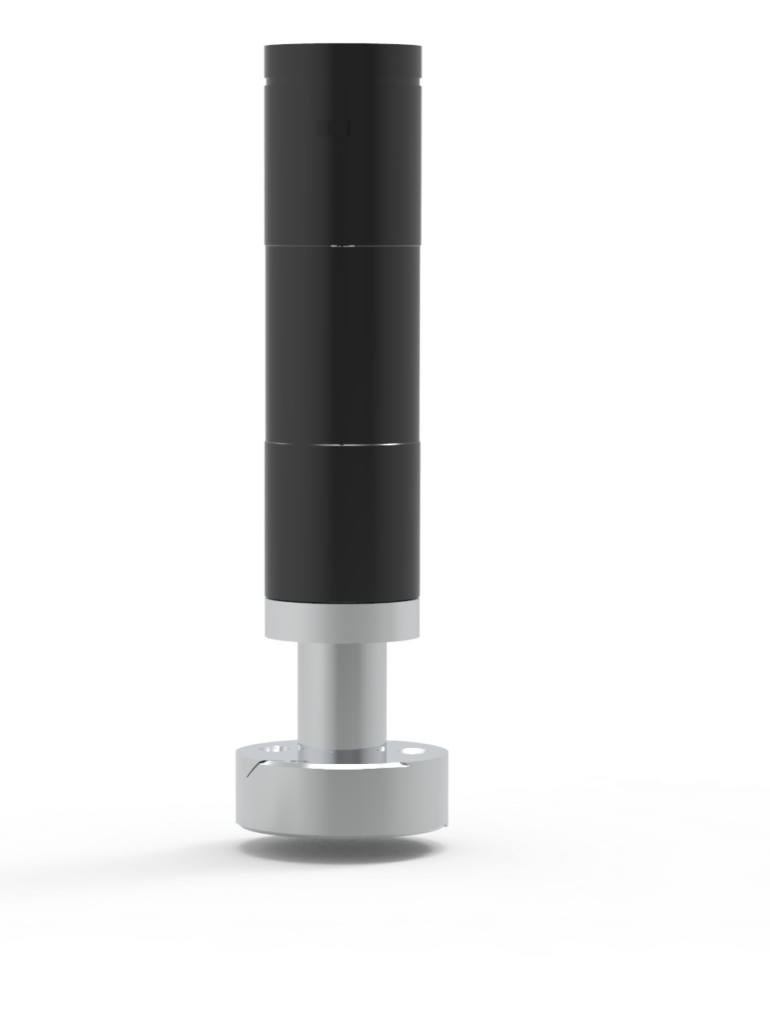

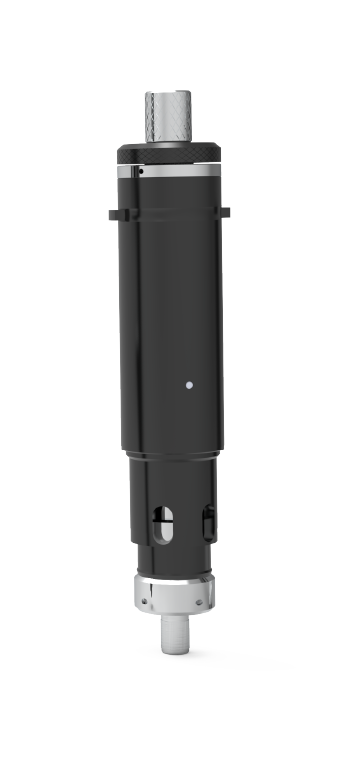

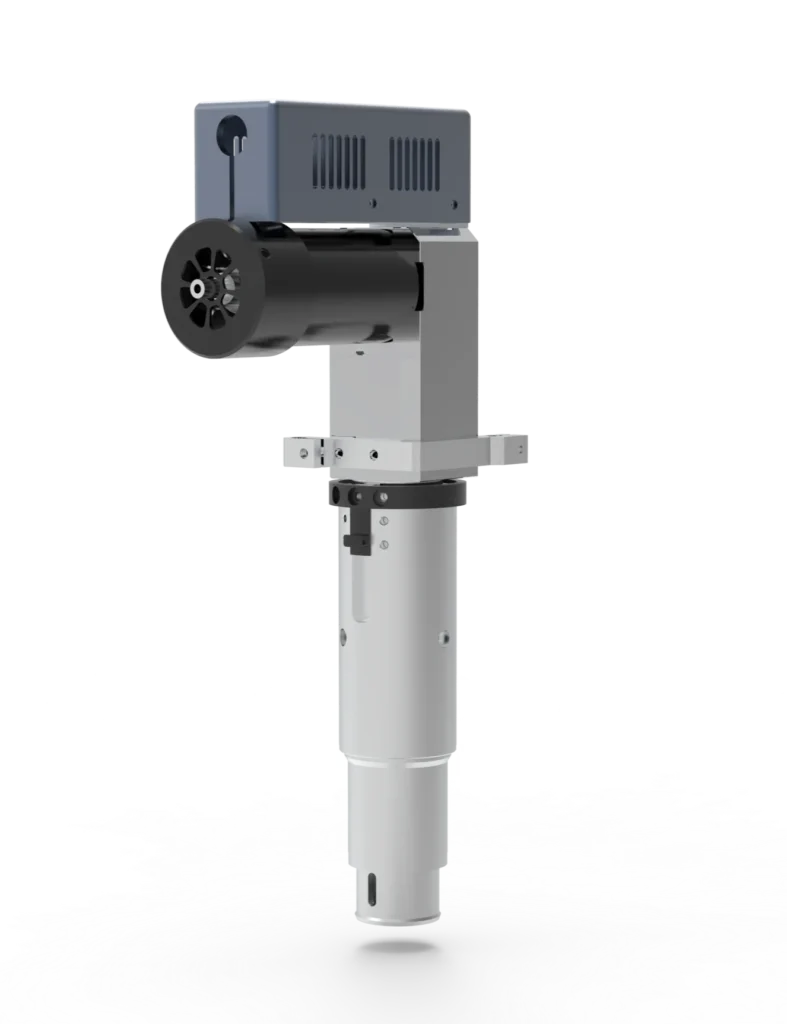

Electic Oscillating Tool
Hgih-speed oscillating toolfor cutting low and medium desity materials
— Depending on application， available with 0.5mm， 1.5mm，2.5mm
— high processing speed
— Suitable for leather, corrugated cardboard, felt and foam industry

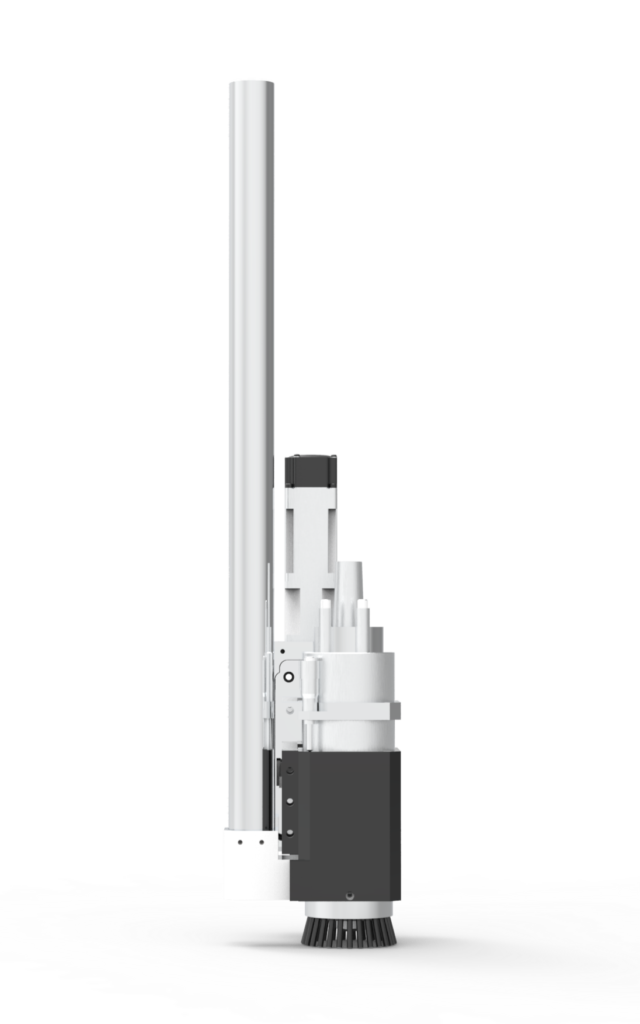

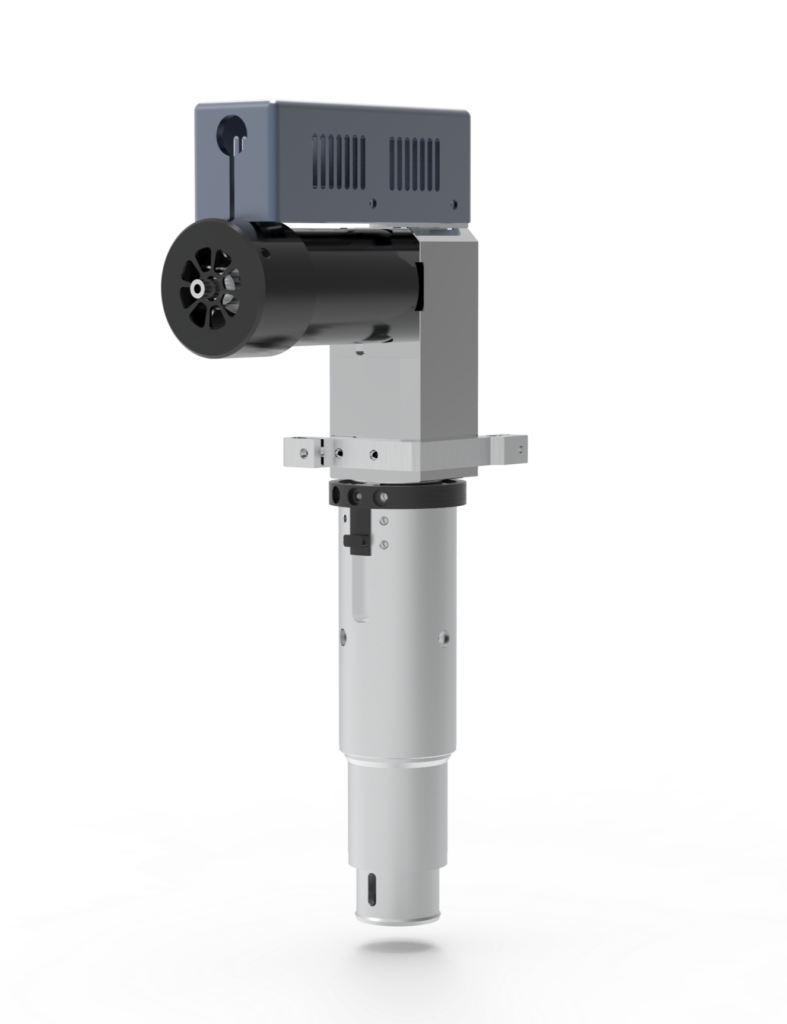

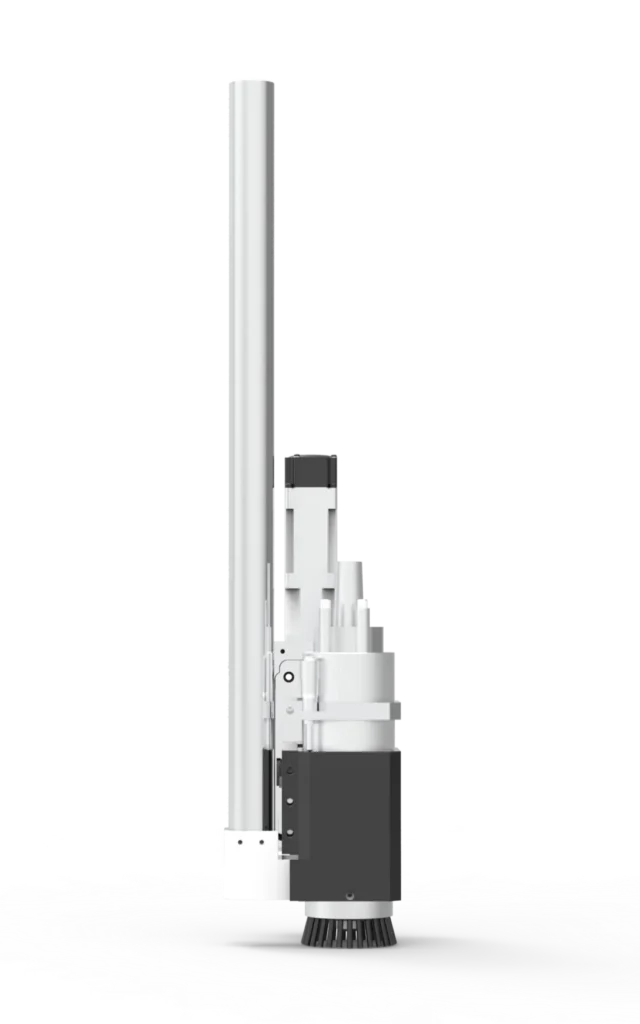

Router Module
The centerpiece of rouder moduels is a high-frequency spindle. Depending on applicatitions and requirements, versioon from 600W to 2.2KW are available
— Routing.engraving with one and the same module
— Capable of processing a wide range of materials
— Active coolng for relable heat dissipation Efficient dust extraction for clean operation

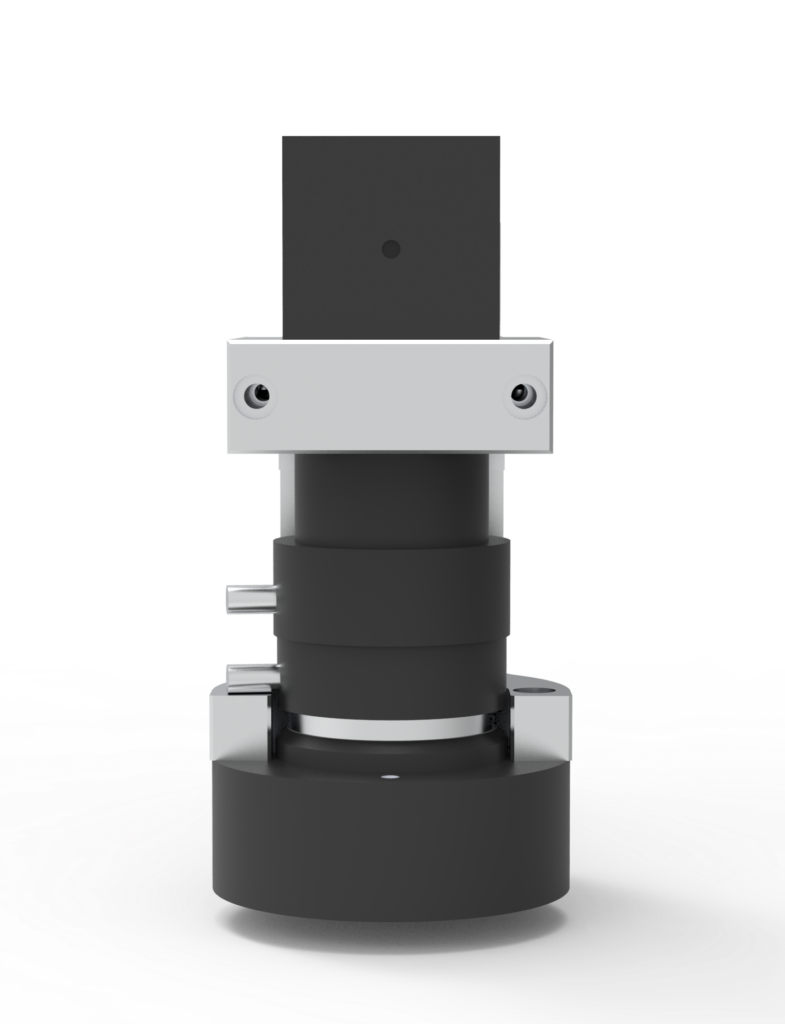

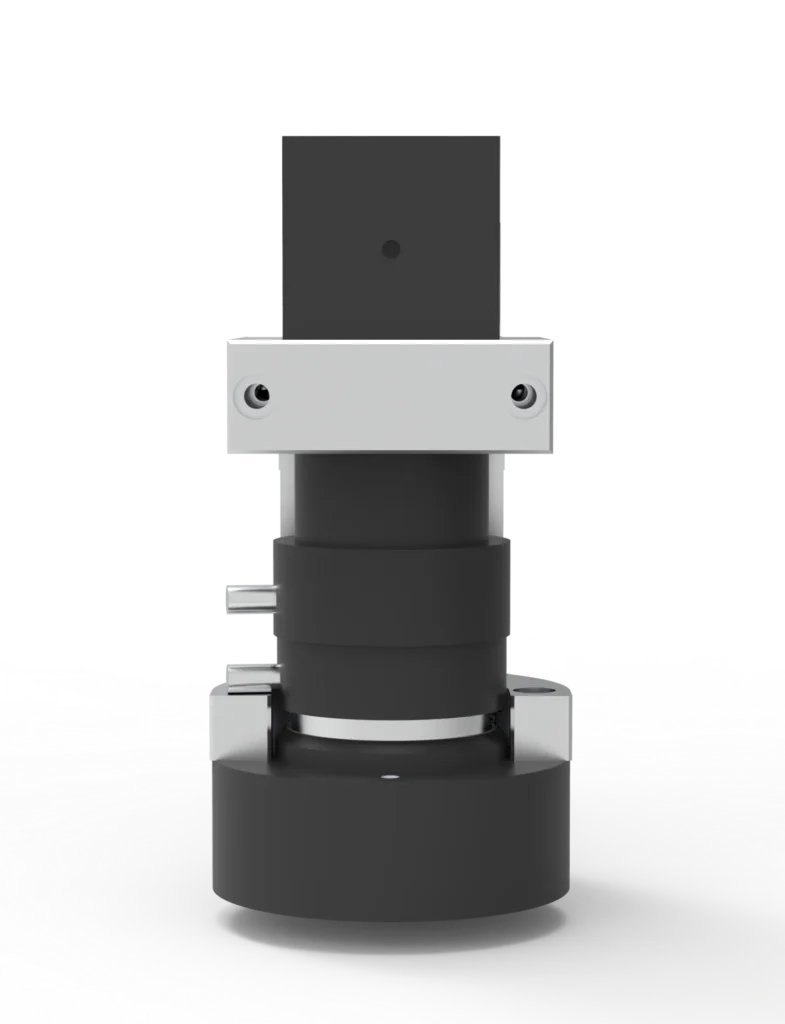

CCD Camera
By imitation of the human eye vision recognition positioning system, it is for accurately contour cutting
— Industriel camera facilitates fast posirioning on printed graphics ard increase cutting accuracy

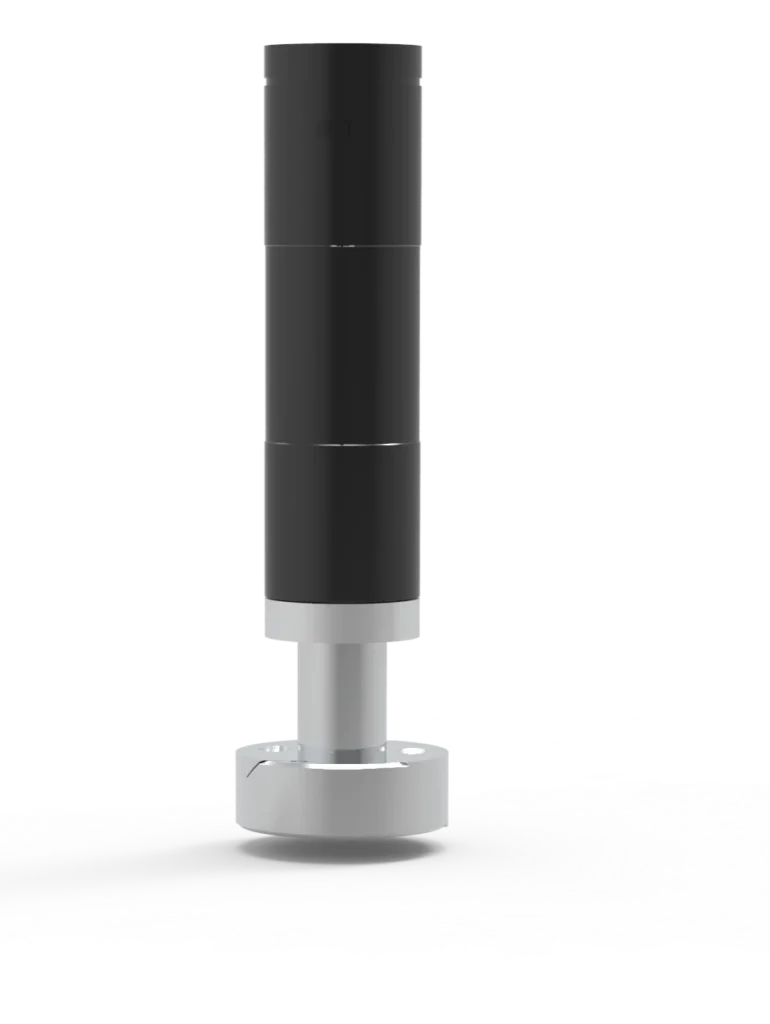

V- Cutter
— Small V-Cutter：Precise 45° bevel cutting for table mats, photo frames. Supports slotting & cutting 5mm-thick cardboard and polymer materials.
— Big V-Cutter：Perfect for cutting thick materials such as foam boards and sandwich boards.
— Subtended V-Cutter：That can cut thin materials at 90 degree angle, such as paper board, cardboard, etc.
— Variable V-Cutter：90° cutting for thin boards. Fits 3D work of cardboard, foam core, corrugated & honeycomb boards. Quick, precise angle adjustment.

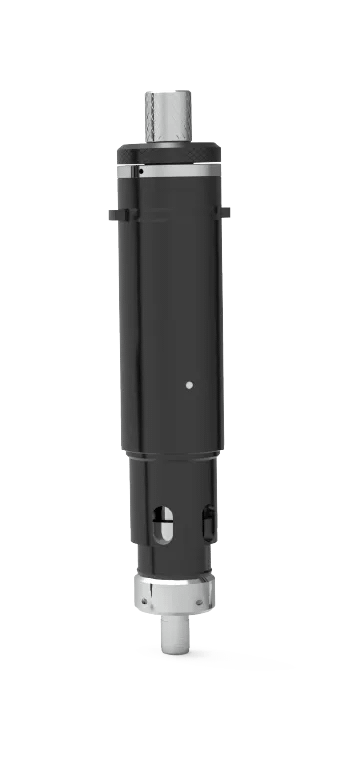

Universal Cutting Tool
The Universal Cutting Tool is perfect for through-cutting various materials up to 5 mm thickThe use of drag knives allows for very high processing speeds.
— Wide assortment of Ruizhou cutting blades available
— Very high processing speeds
workflow

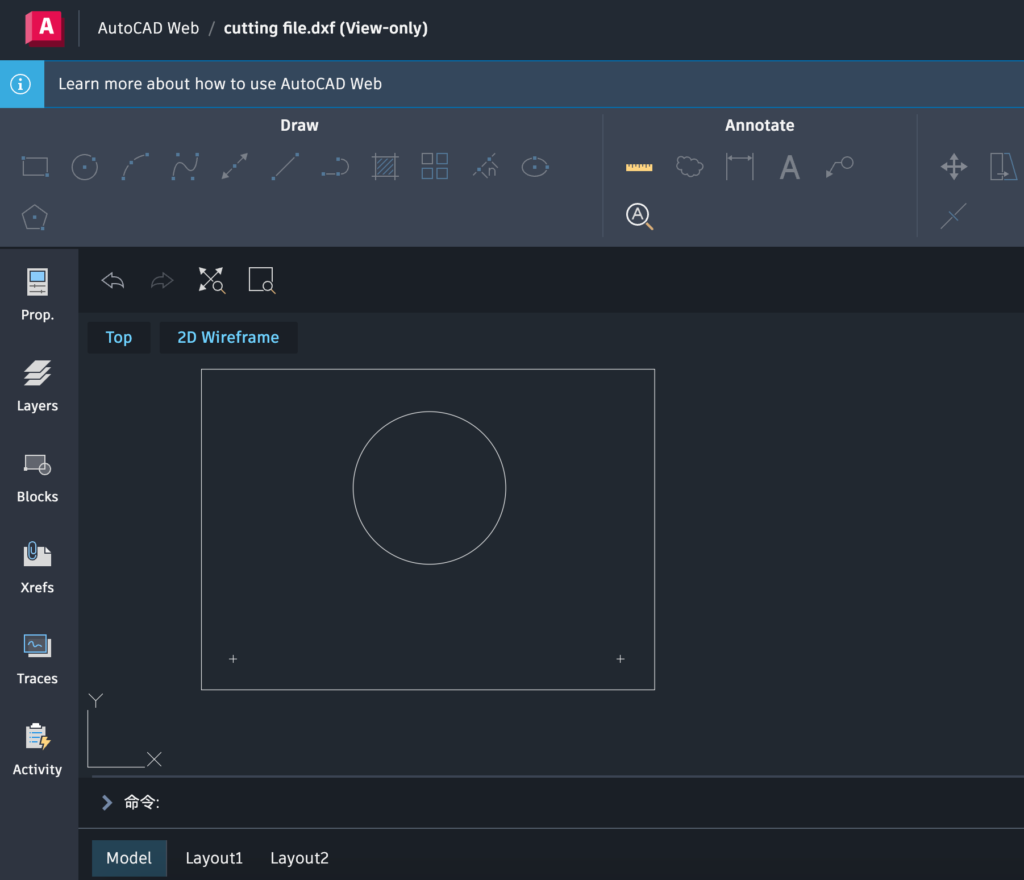

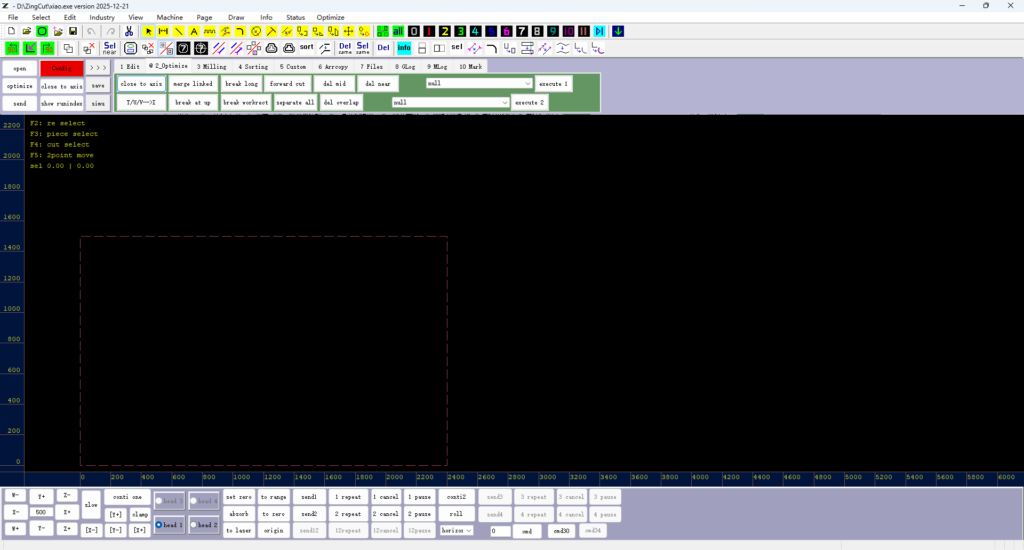

01. Design

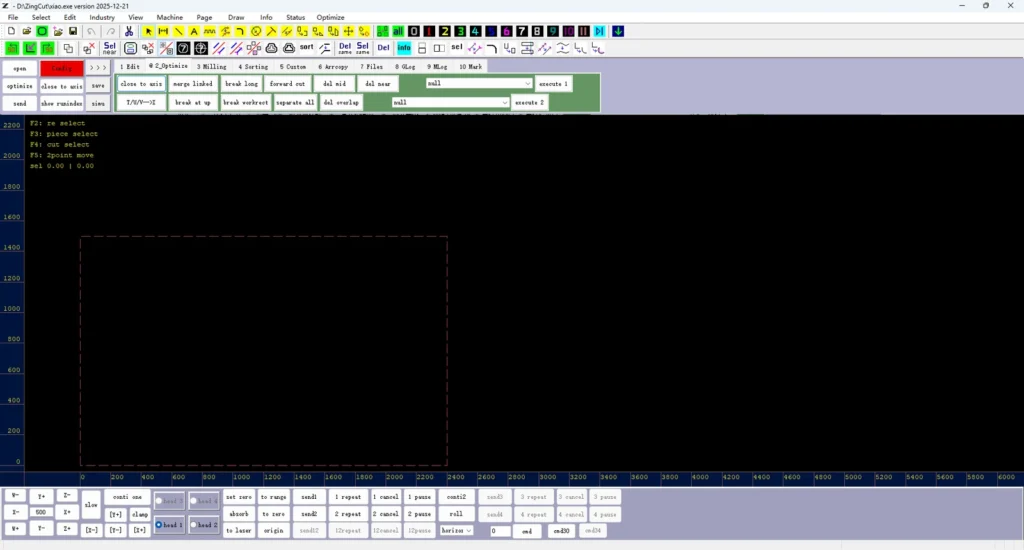

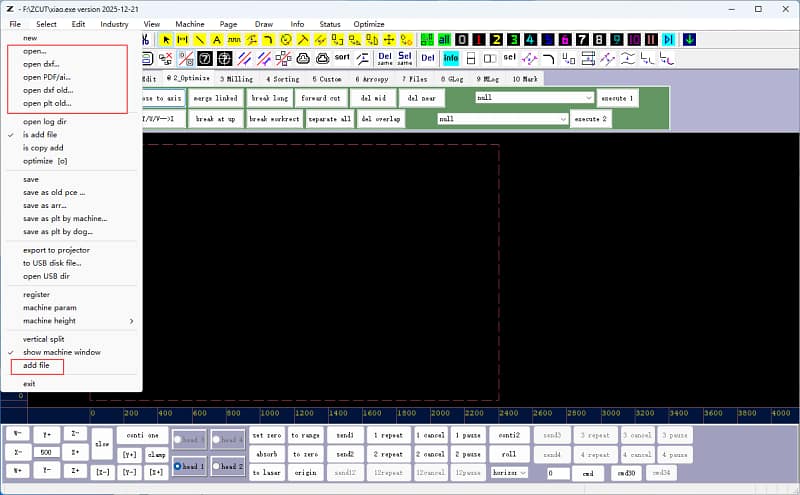

02. Import DXF / PLT files

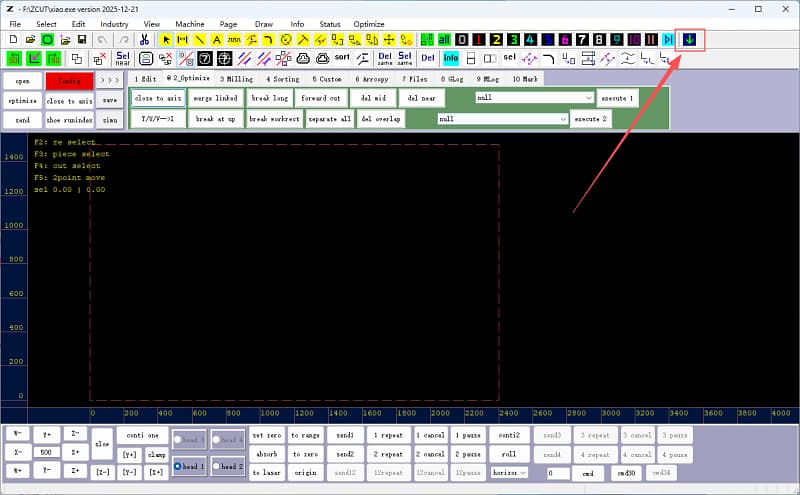

03. Send the file to the machine
04. Cutting
05. Collection
06. Repeat Step 1~5
Technical Parameters
| Model | ZC-1007 | ZC-2516 | ZC-3016 | ACCEPTING CUSTOMIZATION |
|---|---|---|---|---|
| Effective Working Area | 1000*700mm | 2500*1600 mm | 3000*1600mm | |
| Air Pump Power | 5.5KW | 9KW | 9KW | |
| Machine Power | 2KW | |||
| Cutting Accuracy | ±0.2mm | |||
| Repeat Accuracy | ≤0.1mm | |||

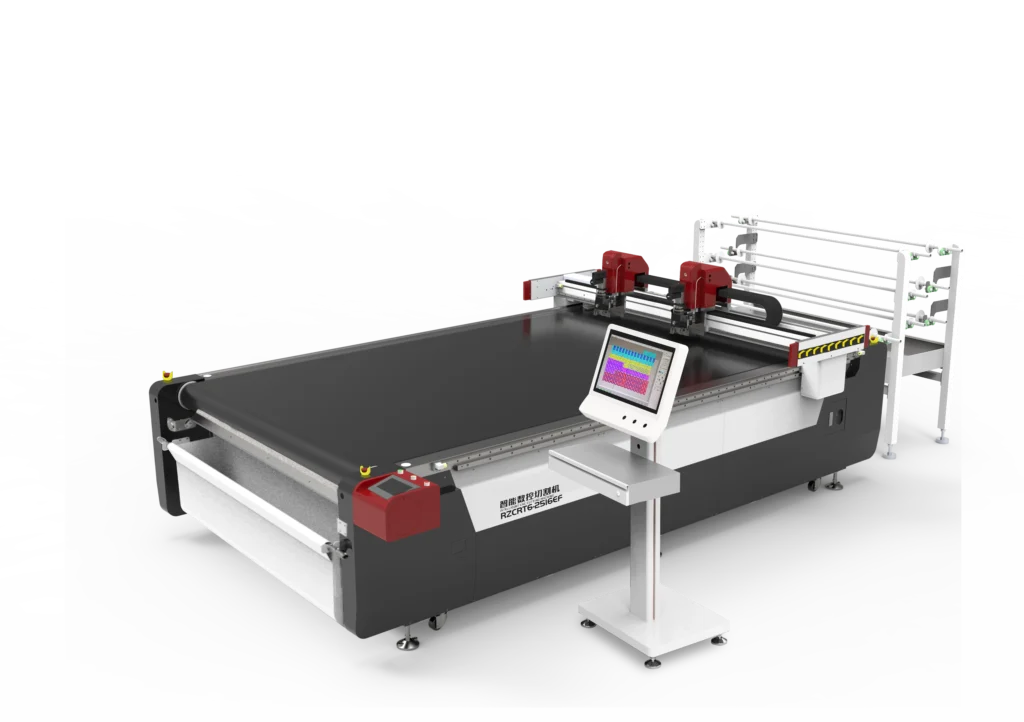

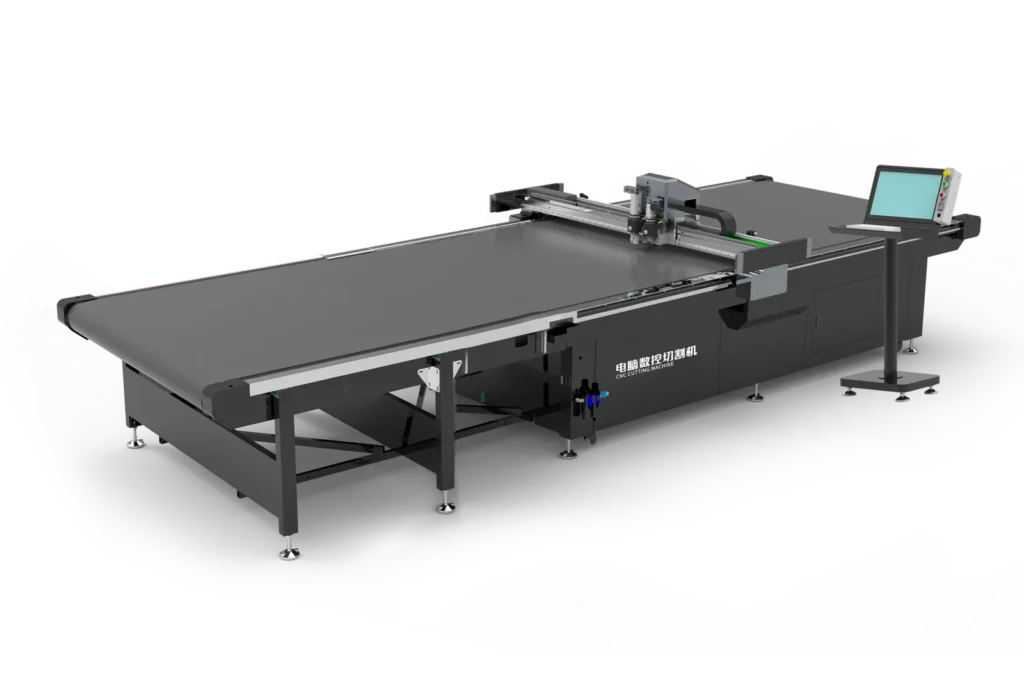

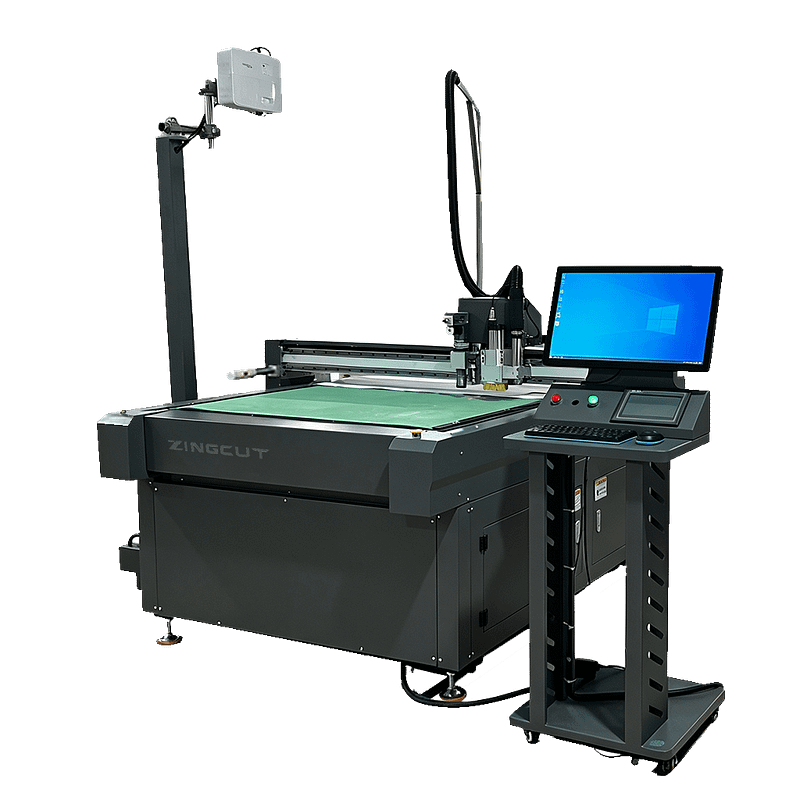

| Type of Work Platform | Static Table，Conveyor Table，Dual Station，AR Syestem | |||
| Multi-Head Optional | Double head optional efficiency doubled, double gantry optional, double head mutual shift optional, length can be customized |
|||
| Multi-Function Tool | Vibrating knife full cutting, high power active round knife, semi-cutting cutting, full cutting cutting, camera positioning cutting, edge finding cutting, acrylic milling cutter, cursor positioning, line marking, indentation knife, V-groove knife, etc. |
|||
| Safety Devices | Safety Proximity Sensor | |||
| Cutting Speed | 0-1800mm/s | |||
| Transmission Port | Network port | |||
| File Formats | PDX/PLT | |||
| Material Fixing Method | Vacuum partition adsorption | |||
| Transmission Mechanism | Taiwan linear guide, synchronous belt drive | |||
| Drive Motor | Panasonic digital servo motor | |||
| Working Voltage/Frequency (Machine | AC220V±10%, 50Hz | |||
| Working Voltage/Frequency (Air Pump | AC380V±10%, 50Hz | |||

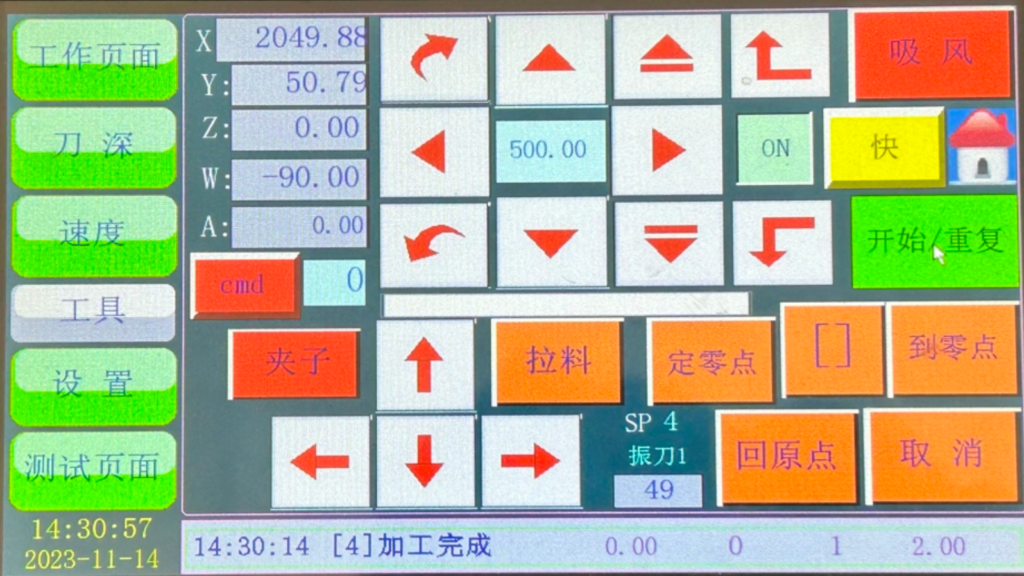

| Operation & Control | Multilingual LCD touch screen / Computer | |||
| Operating Environment | Temperature: -10℃~50℃; Relative Humidity: 20%~80% | |||

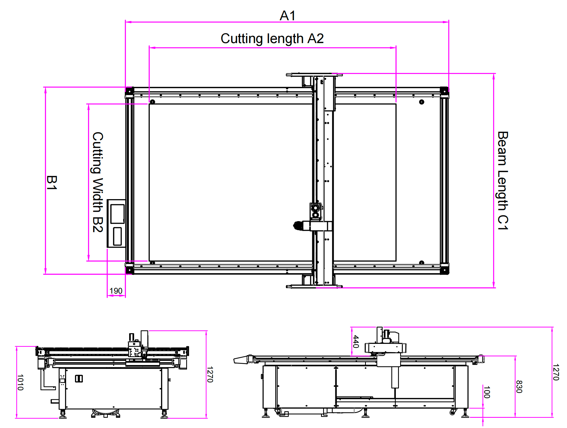

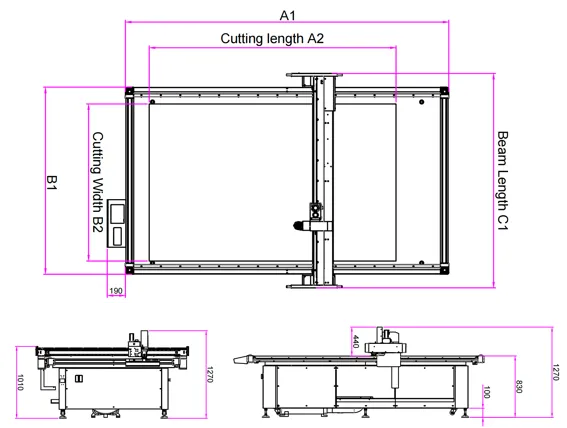

| Model | Effective Working Area（A2 x B2） |
|---|---|
| ZC- 1310 | 1300*1000mm |
| ZC- 1810 | 1800*1000mm |
| ZC-2520F | 2500*2000mm |
| ZC-3018 | 3000*1800mm |
| ZC-3020 | 3000*2000mm |
| Customization | Customization |
There is always a model to meet your demands.
Optional Sizes
