CNC Knife Cutting Machine Manufacturer
AR System Type
ZINGCUT Static Table CNC cutters are suitable for all kinds of sheet-shaped non-metallic materials.
CNC Cutting Machine

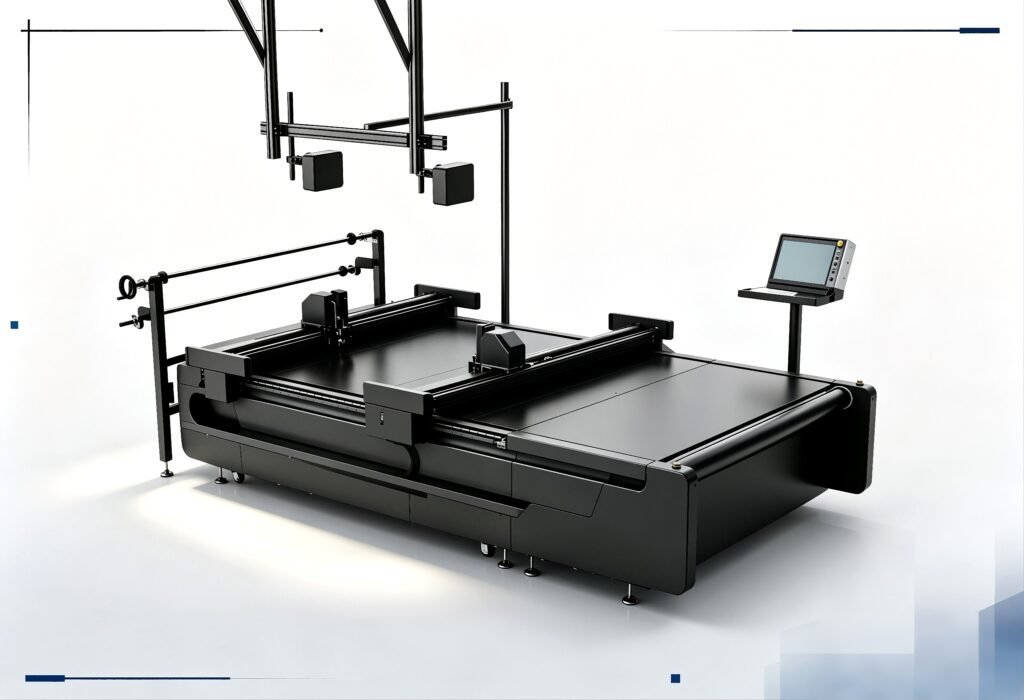

AR System Table
Looking for a CNC cutter equipped with intelligent visual positioning? Our AR System Table CNC Cutting Machine brings visual recognition technology to digital cutting, upgrading your cutting accuracy and efficiency.
- Auto visual positioning, no manual marking needed
- Minimize measuring errors for improved cutting accuracy
- Fast camera calibration to shorten setup time
- Intuitive visual operation with low learning cost
Intelligent Systems
ZINGCUT is equipped with a full set of independent intelligent software systems that run the whole digital cutting workflow from file import to finished cutting. These professional modules are specially developed for flexible material processing, bringing automation and intelligence to your production line.
From visual positioning and automatic nesting to precise toolpath calculation, our intelligent systems reduce manual operation errors, save raw material costs and greatly improve overall cutting efficiency for small-batch sampling and mass manufacturing alike.
Vision Recognition System
- Fast automatic positioning
- High cutting accuracy
- Easy edge tracing for irregular materials

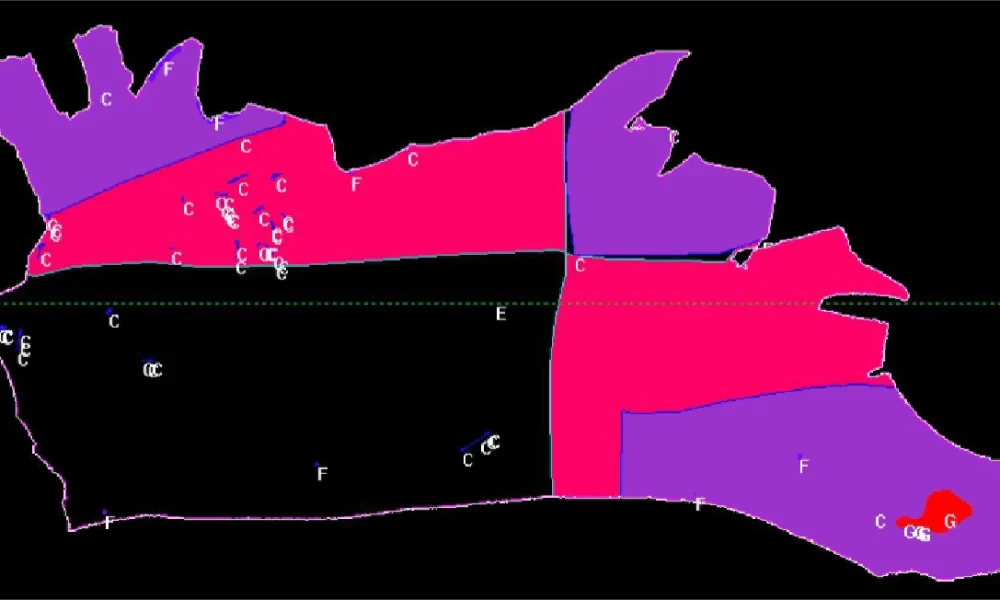

Projection Positioning System
- Real-time projection preview, intuitive and visual operation
- High-precision overall positioning for large materials Effectively avoid material waste and improve utilization
- Suitable for various irregular and flexible materials

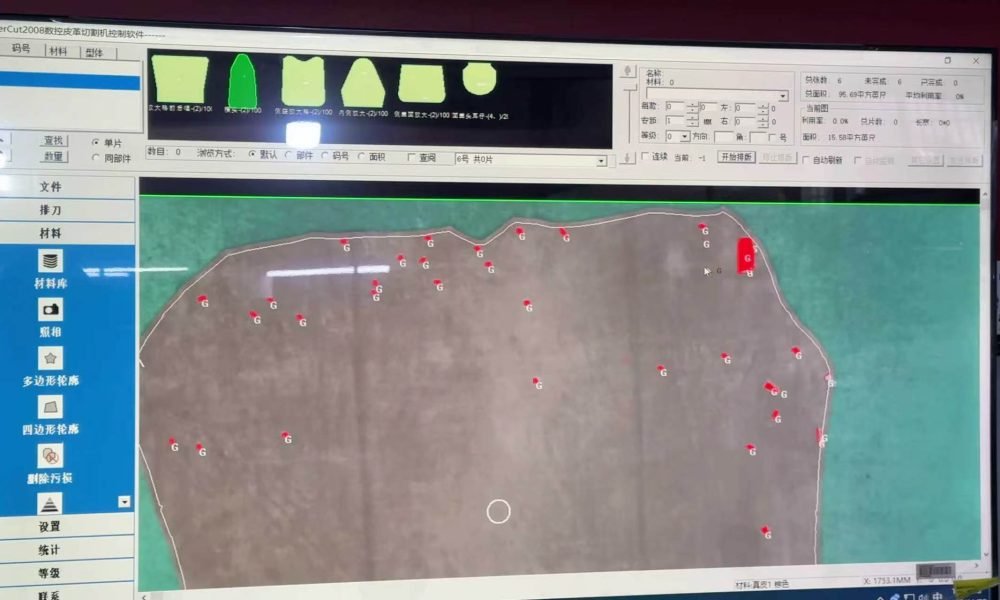

CCD Recognition System
- Precise automatic contour positioning
- High cutting repeat accuracy
- Auto identify irregular raw materials
Upgradable Configuration Options

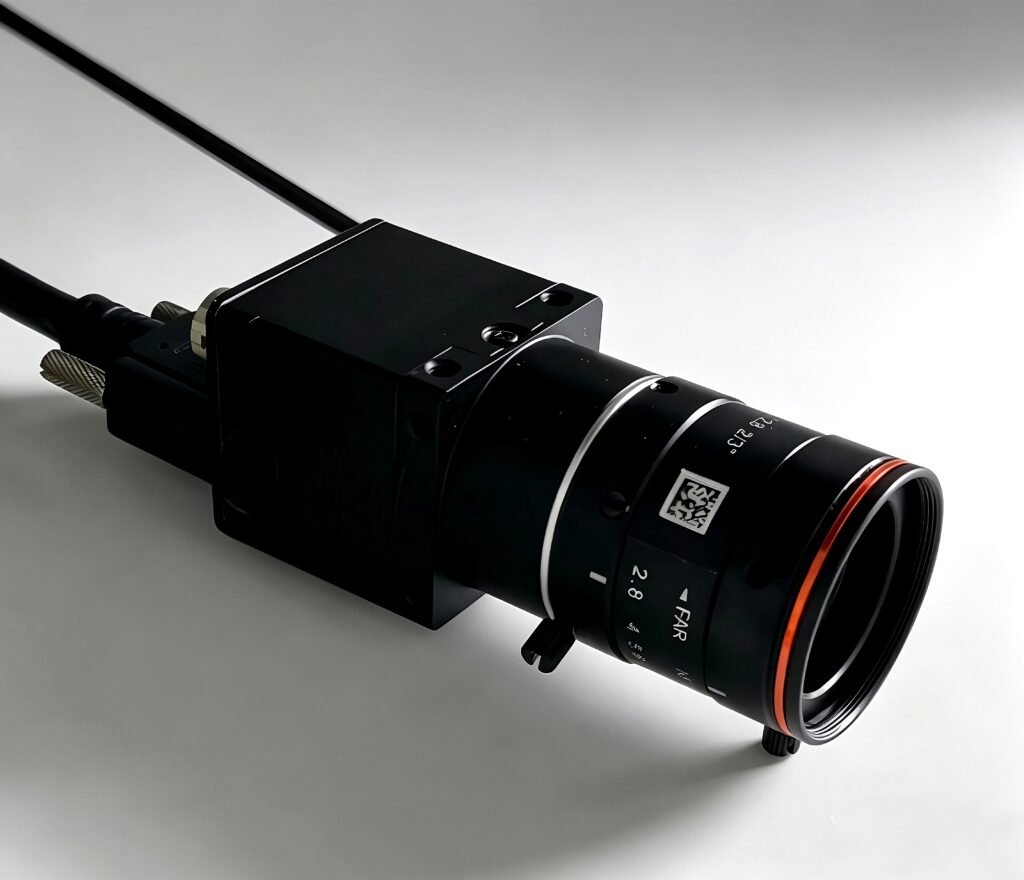

CCD Visual Mark Point Alignment
- High-precision mark point detection for printed graphics
- Automatic position correction without manual calibration
- Fast image recognition to shorten setup time before cutting
- Effectively eliminates errors caused by manual measurement
Our CCD visual camera acts as the visual positioning core of ZINGCUT CNC cutters, realizing automatic mark point detection to replace manual alignment and work with cutting software for higher accuracy and smoother workflow.

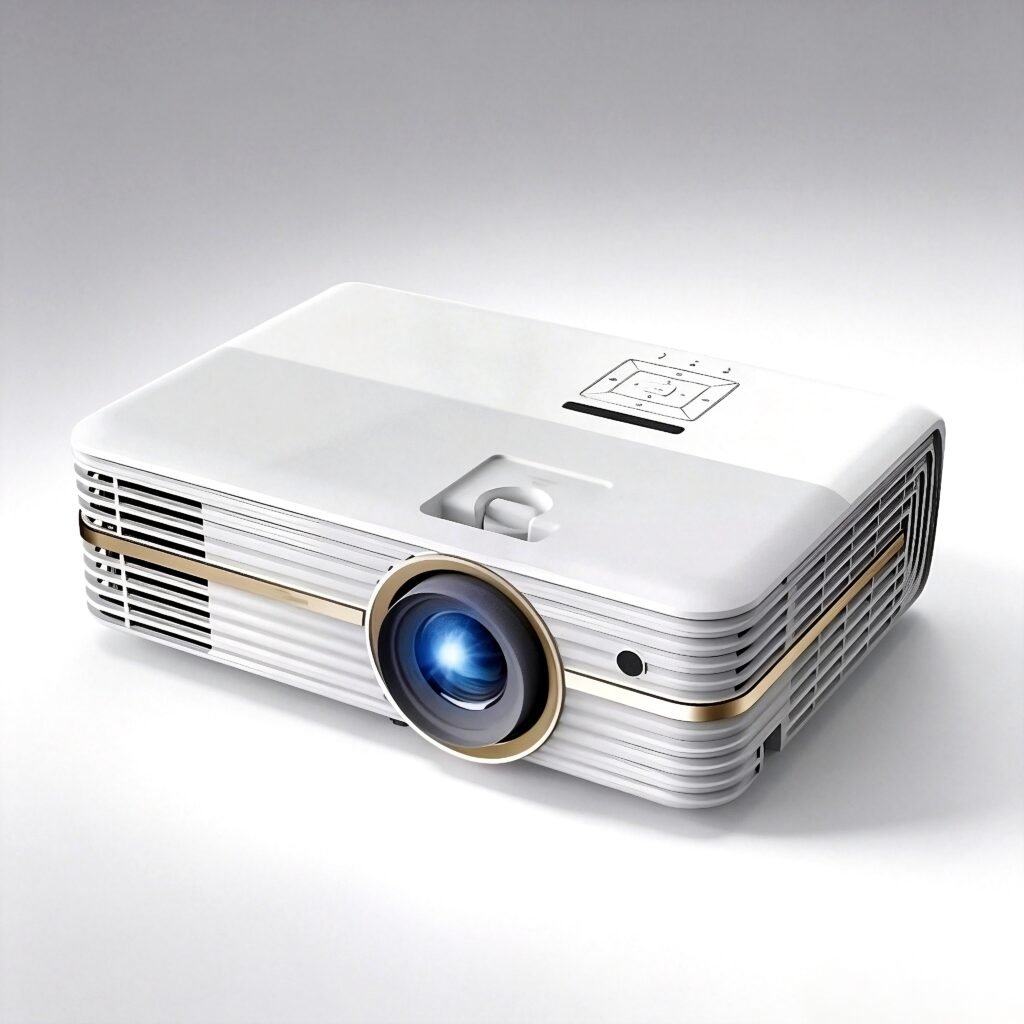

Projection Positioning
The projection positioning system uses a high-precision projector to locate mark points for our CNC cutting machines, enabling fast visual alignment without manual tracing.
- Fast large-area projection scanning for quick mark detection
- Clear projected outlines for easy material layout reference
- Reduces manual marking work and improves positioning efficiency
- Perfectly coordinated with cutting software for accurate cutting
- Captures high-resolution pictures of printed patterns and mark points
- Supports irregular graphic recognition for custom cutting tasks
- Avoids manual input of coordinates to save preparation time
- Delivers stable imaging even in factory workshop environments

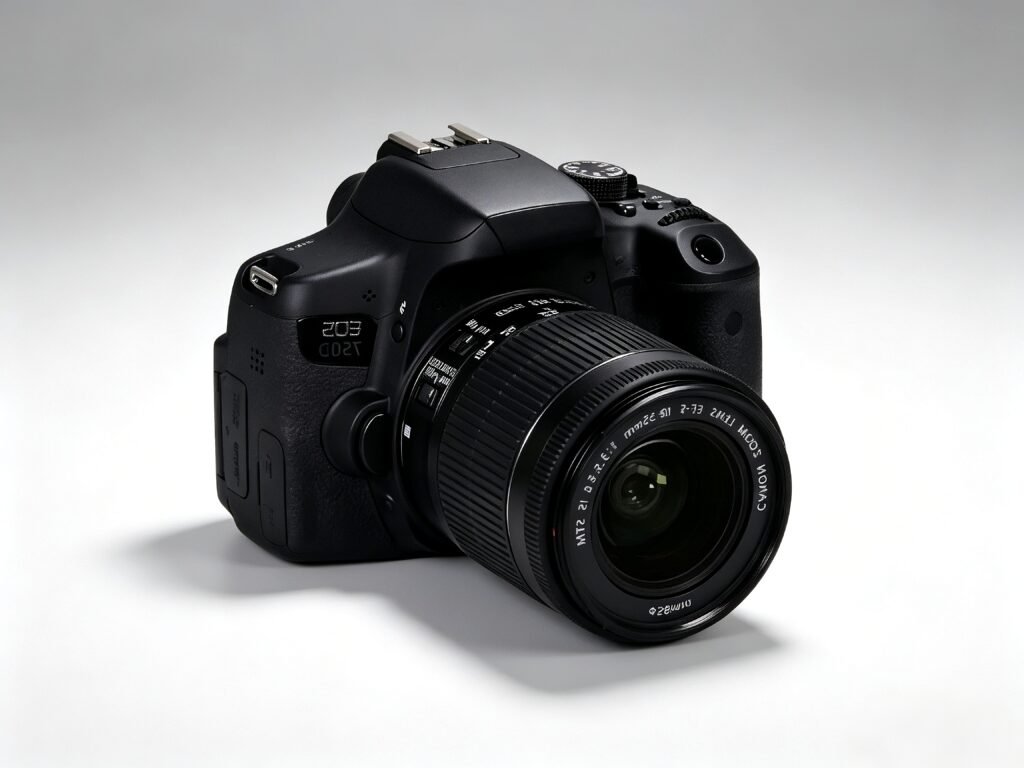

Image Recognition
This industrial DSLR camera serves as the image capture core for our CNC cutting machine’s image recognition system, capturing material graphics and marks to realize automatic visual identification.
Sample Display
Application
ZINGCUT CNC cutting machine is your ideal choice. If you have any questions, feel free to contact us anytime.
Our CNC cutting machine delivers fast cutting speed and exceptional precision. All finished samples feature complete, sharp and smooth cuts with neat edges, no burrs, no cracks or material deformation, presenting perfect cutting effect.

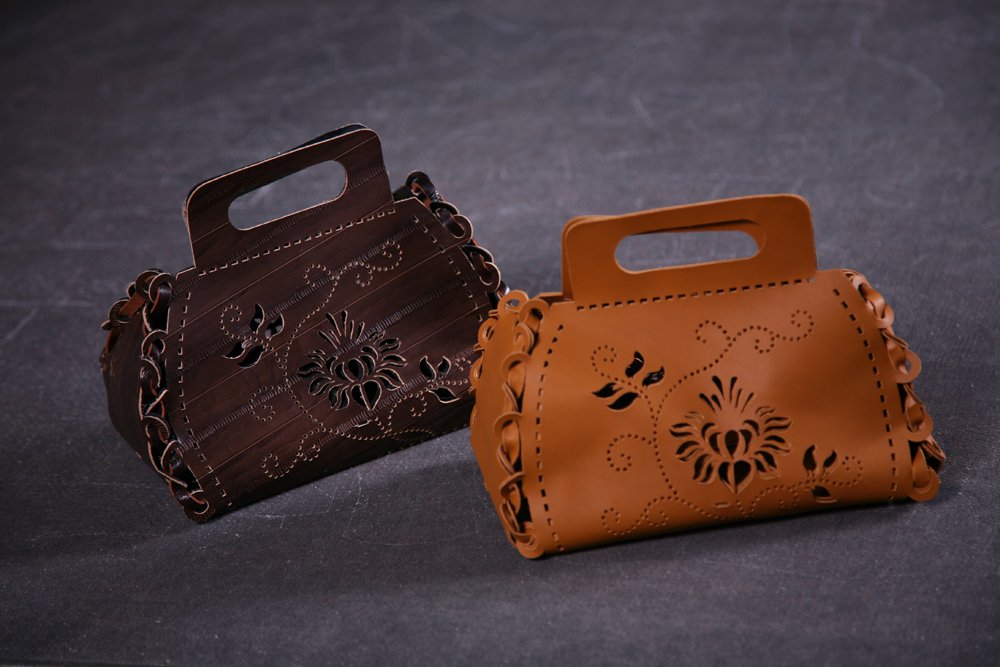

Leather
- Soft texture for comfortable touch
- Good toughness against tearing
- Premium visual appearance
Carbon Fiber Prepreg
- Binds carbon fiber strands into an integral sheet to avoid separation
- Controls resin content accurately for stable strength after curing
- Produces lightweight, high-rigidity parts with corrosion resistance
Acrylic
- Excellent light transmission, nearly as clear as glass but much lighter.
- High impact resistance, not easy to crack or break compared with glass.
- Weather-proof and UV-resistant, suitable for outdoor long-term use
How does it work
Cutting Video
- Projects cutting paths visually for workers to place materials easily
- Eliminates manual drawing lines to save pre-cut preparation time
- Works well together with CCD visual recognition for higher accuracy
- Reduces material waste caused by wrong manual positioning
Cooperating with image recognition cameras and control software, the AR system solves the positioning difficulty of extra-large sheets and irregular printed patterns, greatly optimizing the whole cutting workflow.
Our AR projection positioning system is an optional intelligent upgrade for ZINGCUT CNC cutting machines. It projects cutting outlines directly onto raw materials to replace manual marking and positioning.
Feature
Integrated Body Design
Adopts an integrated one-piece frame structure, featuring high overall rigidity and stable operation. It effectively reduces vibration during cutting and ensures long-term processing accuracy.
Safety Induction Switch
Equipped with a safety induction switch for real-time monitoring and instant emergency stop, the machine features a hidden enclosed transmission structure to avoid dust buildup, prevent accidental contact, ensure operator safety and reduce maintenance costs.
Vacuum Suction System
Comes with an integrated vacuum suction function, which firmly and steadily fixes various materials during cutting. It prevents material shifting and ensures precise and consistent cutting results.
Optimized Vacuum Layout
Features a professional vacuum pipe routing design that greatly enhances fan working efficiency. It delivers stronger and more even suction force for stable material fixation.
Tool
Electic Oscillating Tool
Hgih-speed oscillating toolfor cutting low and medium desity materials
— Depending on application， available with 0.5mm， 1.5mm，2.5mm
— high processing speed
— Suitable for leather, corrugated cardboard, felt and foam industry
Universal Drawing Tool
A pen tool for easy marking on material， it can be used for drawing，markling，writing，letters，numbers，etc
— Sophisticated resolution
— Recording of simple drawings，mark，characters，etc
Driven Rotary Tool
The Driven Rotary Tool cuts all textiles reliably and cost-effectively. Its ten-segmented blade reduces drag, severs fibers cleanly, and delivers precise cuts even on loose woven fabrics.
—Outstanding production efficiency with a maximum cutting speed of 1000 mm per second.
—Consistently superior cutting finish and precision are maintained even on heavy coarse-woven fabrics, effectively avoiding fiber displacement and slippage.
—Fully compatible and adaptable to an extensive variety of textile materials.
V- Cutter
— Small V-Cutter：Precise 45° bevel cutting for table mats, photo frames. Supports slotting & cutting 5mm-thick cardboard and polymer materials.
— Big V-Cutter：Perfect for cutting thick materials such as foam boards and sandwich boards.
— Subtended V-Cutter：That can cut thin materials at 90 degree angle, such as paper board, cardboard, etc.
— Variable V-Cutter：90° cutting for thin boards. Fits 3D work of cardboard, foam core, corrugated & honeycomb boards. Quick, precise angle adjustment.
Electric Punching Tool
An electric hole puncher is used to create holes in variety of materials, such as leathercloth,plastic, rubber paper sheets and etc.
— Precise and efficient holes punching
— Hole diameter: 0.5-10rm
CCD Camera
By imitation of the human eye vision recognition positioning system, it is for accurately contour cutting
— Industriel camera facilitates fast posirioning on printed graphics ard increase cutting accuracy
Pneumatic Oscillating Tool
8 mm cutting amplitude， enabling it to cut hard， high-density flexible materials， as well assoft and thick materials
— High performance cutting tool with 8mm，amplitude
— powerful，low-maintenance pneumatic tool
— Suitable for thick hollow board, rubber and foam industries.
Creasing Wheel Tool
The tool producees high-qua’lity creases both with and against the corrugation without tearing or cracking the top sheeet
— Clean creases without tearing
— Directional pressure adjustments
— Suitable for thick hollow board, rubber sheet and corrugated cardboard industries.
Router Module
The centerpiece of rouder moduels is a high-frequency spindle. Depending on applicatitions and requirements, versioon from 600W to 2.2KW are available
— Routing.engraving with one and the same module
— Capable of processing a wide range of materials
— Active coolng for relable heat dissipation Efficient dust extraction for clean operation
Universal Cutting Tool
The Universal Cutting Tool is perfect for through-cutting various materials up to 5 mm thickThe use of drag knives allows for very high processing speeds.
— Wide assortment of Ruizhou cutting blades available
— Very high processing speeds
Perforating Tool
Can create perforated lires very efficiertly on corrugated cardboard, folding carton,andPP (polypropylene), vinyl.
— Highi-quality perforations
— High processing speeds
— Wide range ot pertorating blades avai able trom ZINGCUT
Technical Parameters
| Model | ZC-1007 | ZC-2516 | ZC-3016 | ACCEPTING CUSTOMIZATION |
|---|---|---|---|---|
| Effective Working Area | 1000*700mm | 2500*1600 mm | 3000*1600mm | |
| Air Pump Power | 5.5KW | 9KW | 9KW | |
| Machine Power | 2KW | |||
| Cutting Accuracy | ±0.2mm | |||
| Repeat Accuracy | ≤0.1mm | |||
| Type of Work Platform | Static Table，Conveyor Table，Dual Station，AR Syestem | |||
| Multi-Head Optional | Double head optional efficiency doubled, double gantry optional, double head mutual shift optional, length can be customized |
|||
| Multi-Function Tool | Vibrating knife full cutting, high power active round knife, semi-cutting cutting, full cutting cutting, camera positioning cutting, edge finding cutting, acrylic milling cutter, cursor positioning, line marking, indentation knife, V-groove knife, etc. |
|||
| Safety Devices | Safety Proximity Sensor | |||
| Cutting Speed | 0-1800mm/s | |||
| Transmission Port | Network port | |||
| File Formats | PDX/PLT | |||
| Material Fixing Method | Vacuum partition adsorption | |||
| Transmission Mechanism | Taiwan linear guide, synchronous belt drive | |||
| Drive Motor | Panasonic digital servo motor | |||
| Working Voltage/Frequency (Machine | AC220V±10%, 50Hz | |||
| Working Voltage/Frequency (Air Pump | AC380V±10%, 50Hz | |||
| Operation & Control | Multilingual LCD touch screen / Computer | |||
| Operating Environment | Temperature: -10℃~50℃; Relative Humidity: 20%~80% | |||
