Footwear Solution
Samples | Small Batch | Mix production
Die-less Cutting, Accurate, Experience-independent & Cost-efficient
CNC Digital Cutting Solution for Footwear Industry
- No Tooling Required：No expensive molds needed, perfect for frequent design changes and small-batch production.
- Fine Cutting Performance：Guarantee accurate sizing and clean edges for shoe components.
- Integrated Machining：Complete cutting, creasing and shaping in one pass for diverse production demands.
- Multi-Material Adaptability：Works well with leather, foam, fabric, rubber and other footwear materials.
- Profit Maximization：Cut material waste, speed up production and improve overall economic benefits.
- Reliable & Green Running：Deliver consistent quality with dust-free and low-noise working environment.
Optional Tools
- Electric Oscillating Tool : Material cutting & edge finishing
- Pneumatic Oscillating Tool ：8mm stroke cuts various materials
- Driven Rotary Tool ：Sharp Rotary Textile Cutter
- Electric Punching Tool : Precise and efficient holes punching
Multi-functional Combined Head
- Match different tools freely to meet various processing demands.
Cutting Technology
- High-frequency oscillating knife (15,000–18,000r/m) , clean edges, No dust, no burrs, no heat damage

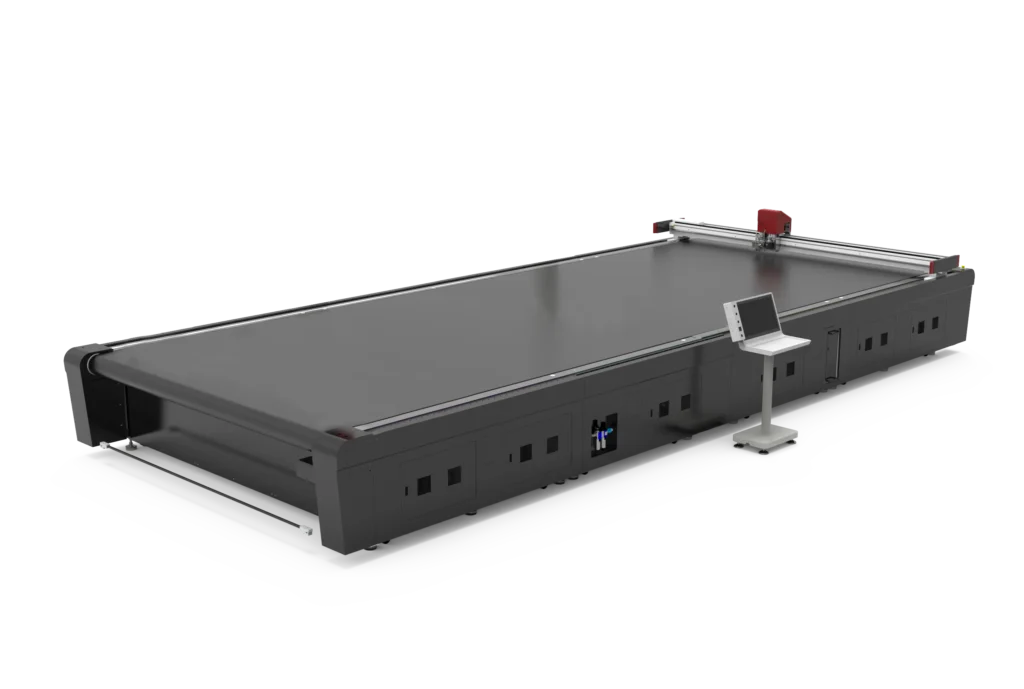

CNC Digital Cutting Machine for Footwear Industry
Professional for samples, small batch production, short runs, high mix and fast delivery demands.
Application
Applicable Materials: leather, fabric, EVA, rubber, TPU
- Cut fabric, mesh and synthetics with clean edges.
- Process large materials at high speed.
- Deliver precise sizes for consistent mass production.
- Combine cutting and punching for breathable structures.
- Suit diverse styles, samples and bulk orders.
- Cut thin materials and straps with smooth edges.
- Deliver precise cuts for delicate sandal structures.
- Perform efficient punching for hollow-out designs.
- Reduce material loss via smart nesting.
- Fit diverse sandal styles, samples and bulk orders.
- Cut foam and soft materials evenly.
- Ensure uniform size for perfect fitting.
- Support fast batch production.
- Minimize waste with optimized layout.
- Handle various insole materials easily.
Sports shoes
sandals
Footbed
Leather Shoes
Boots
- Deliver burr-free and tidy edges on genuine and synthetic leather.
- Accurately cut complex curved contours for leather shoe uppers.
- Create neat creases for easy folding and forming.
- Intelligent layout effectively reduces leather consumption.
- Efficiently support custom styles, samples and batch orders.
- Cut thick leather and multi-layer materials neatly.
- Accurately shape complex curved boot contours.
- Make clear creases for easy folding and assembly.
- Optimize layout to lower material waste.
- Adapt to various boot styles, samples and mass production.
Feature
Integrated Body Design
Adopts an integrated one-piece frame structure, featuring high overall rigidity and stable operation. It effectively reduces vibration during cutting and ensures long-term processing accuracy.
Safety Induction Switch
Vacuum Suction System
Comes with an integrated vacuum suction function, which firmly and steadily fixes various materials during cutting. It prevents material shifting and ensures precise and consistent cutting results.
Optimized Vacuum Pipe Layout
Features a professional vacuum pipe routing design that greatly enhances fan working efficiency. It delivers stronger and more even suction force for stable material fixation.
tool combination
Standard Cutting Head
Universal tool holder enables quick switching of electric/pneumatic oscillating knives and creasing wheels, fitting diverse materials and processing needs.
Two-Modular Head
The dual modular head allows two tools to be mounted at the same time. Fast tool switching realizes cutting and creasing in one pass, greatly improving working efficiency.
Router-Modular Head
his router modular head delivers high-speed precision carving and grooving. It perfectly fits rigid materials and ensures smooth cutting edges with stable performance.
Three-Modular Head
The three-modular head supports simultaneous mounting of three different tools. It enables automatic tool switching to complete cutting, creasing and engraving in one go, greatly enhancing production efficiency.
Optional Tools
All the following tools are fully compatible with the equipment and support flexible replacement and combined configuration.
Driven Rotary Tool
The Driven Rotary Tool cuts all textiles reliably and cost-effectively. Its ten-segmented blade reduces drag, severs fibers cleanly, and delivers precise cuts even on loose woven fabrics.
—Outstanding production efficiency with a maximum cutting speed of 1000 mm per second.
—Consistently superior cutting finish and precision are maintained even on heavy coarse-woven fabrics, effectively avoiding fiber displacement and slippage.
—Fully compatible and adaptable to an extensive variety of textile materials.

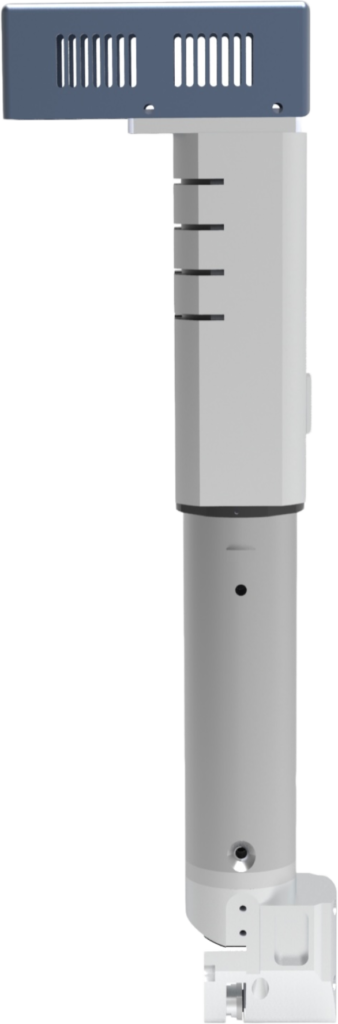

Pneumatic Oscillating Tool
8 mm cutting amplitude， enabling it to cut hard， high-density flexible materials， as well assoft and thick materials
— High performance cutting tool with 8mm，amplitude
— powerful，low-maintenance pneumatic tool
— Suitable for thick hollow board, rubber and foam industries.
Electic Oscillating Tool
Hgih-speed oscillating toolfor cutting low and medium desity materials
— Depending on application， available with 0.5mm， 1.5mm，2.5mm
— high processing speed
— Suitable for leather, corrugated cardboard, felt and foam industry
Electric Punching Tool
An electric hole puncher is used to create holes in variety of materials, such as leathercloth,plastic, rubber paper sheets and etc.
— Precise and efficient holes punching
— Hole diameter: 0.5-10rm
workflow
Genuine Leather
Manual leather inspection
Leather defects scanning
Leather defects capturing
Labeling leather information tab
ZC-3016
ZC-3016
ZC-3616
Genuine leather auto nesting
Grade Settting
Nesting
ZC-1510
ZC-1016
Pattern cutting
Support Formats
PLT
DXF
CGM
Grading Software
Regular materials such as artificial leather and TPU
Scanner
Paper board
Sample Room
Technical Parameters
| Model | ZC-1007 | ZC-2516 | ZC-3016 | ACCEPTING CUSTOMIZATION |
|---|---|---|---|---|
| Effective Working Area | 1000*700mm | 2500*1600 mm | 3000*1600mm | |
| Air Pump Power | 5.5KW | 9KW | 9KW | |
| Machine Power | 2KW | |||
| Cutting Accuracy | ±0.2mm | |||
| Repeat Accuracy | ≤0.1mm | |||
| Type of Work Platform | Static Table，Conveyor Table，Dual Station，AR Syestem | |||
| Multi-Head Optional | Double head optional efficiency doubled, double gantry optional, double head mutual shift optional, length can be customized |
|||
| Multi-Function Tool | Vibrating knife full cutting, high power active round knife, semi-cutting cutting, full cutting cutting, camera positioning cutting, edge finding cutting, acrylic milling cutter, cursor positioning, line marking, indentation knife, V-groove knife, etc. |
|||
| Safety Devices | Safety Proximity Sensor | |||
| Cutting Speed | 0-1800mm/s | |||
| Transmission Port | Network port | |||
| File Formats | PDX/PLT | |||
| Material Fixing Method | Vacuum partition adsorption | |||
| Transmission Mechanism | Taiwan linear guide, synchronous belt drive | |||
| Drive Motor | Panasonic digital servo motor | |||
| Working Voltage/Frequency (Machine | AC220V±10%, 50Hz | |||
| Working Voltage/Frequency (Air Pump | AC380V±10%, 50Hz | |||
| Operation & Control | Multilingual LCD touch screen / Computer | |||
| Operating Environment | Temperature: -10℃~50℃; Relative Humidity: 20%~80% | |||
| Model | Effective Working Area（A2 x B2） |
|---|---|
| ZC- 1310 | 1300*1000mm |
| ZC- 1810 | 1800*1000mm |
| ZC-2520F | 2500*2000mm |
| ZC-3018 | 3000*1800mm |
| ZC-3020 | 3000*2000mm |
| Customization | Customization |
There is always a model to meet your demands.
Optional Sizes
Assembly Instruction Video
YOU WILL KNOW
Components:
- Fan
- Vibrating Cutting Head
- Blades
- Touch Screen
- Tool Box
