CNC Digital Cutting Machine for Packaging Industry
- Mold-Free Production: No need for expensive cutting dies, supporting frequent design changes and small-batch customized orders.
- High Precision Cutting: CCD visual positioning ensures accurate contour cutting for printed packaging without position deviation.
- Multi-Function Processing: Realize cutting, creasing and perforating in one machine to meet diverse packaging making requirements.
- Wide Material Compatibility: Suitable for paper, cardboard, corrugated board, foam, EVA liner and sheet packaging materials.
- Cost & Time Saving: Reduce material waste and shorten sample development cycle to improve overall production efficiency.
Optional Tools
- Creasing Wheel ：for packaging box folding shaping.
- V-Cutter ：Make V-grooves.
- Drawing Tool ： For marking and creasing.
- Router Module: A high-frequency spindle for milling.
Multi-functional Combined Head
- Match different tools freely to meet various processing demands.
Cutting Technology
- High-frequency oscillating knife (15,000–18,000r/m) , clean edges, No dust, no burrs, no heat damage
CNC Digital Cutting Machine for Packaging Industry
Professional for samples, small batch production, short runs, high mix and fast delivery demands.
- deal material for color boxes, paper boxes and gift packaging
- Fine texture, easy cutting and creasing for perfect folding
- Widely used for packaging surface printing and decorative outer layer

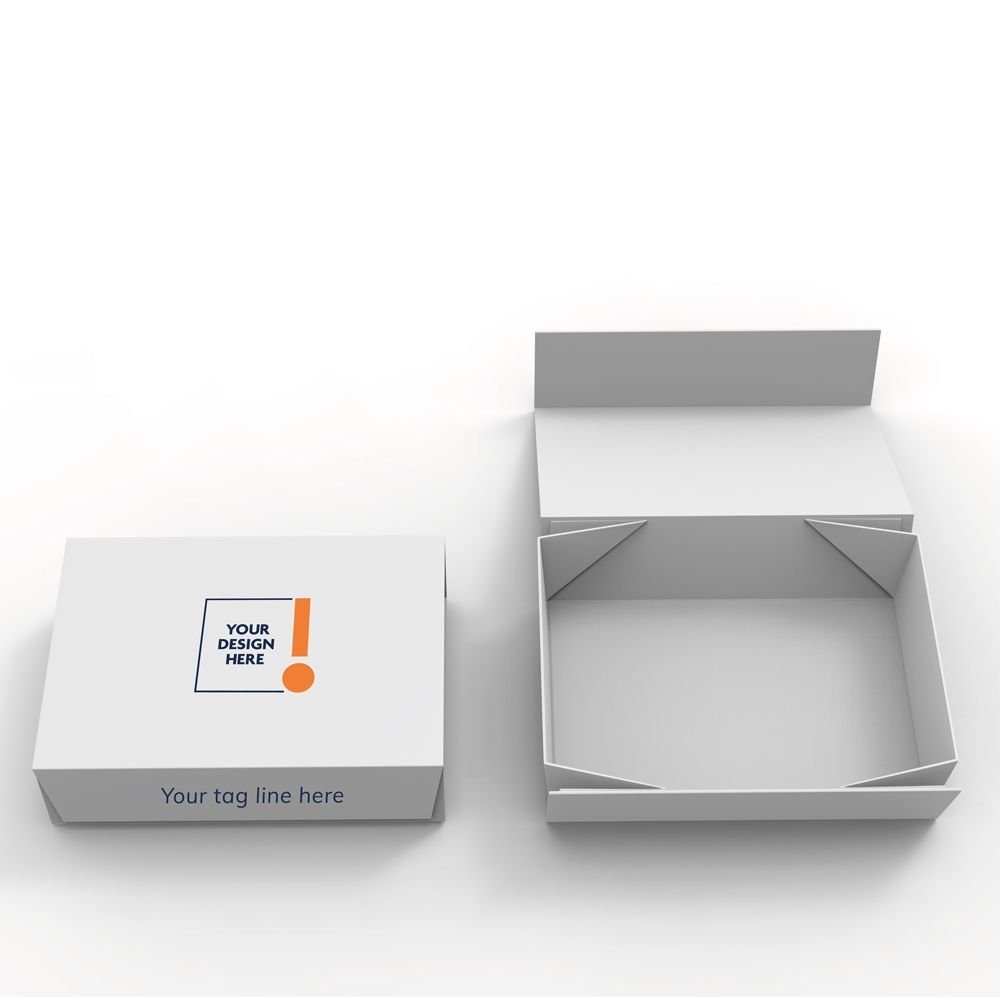

rigid board
- Main base material for rigid gift boxes, cartons and packaging boxes
- Good hardness and flatness, support box shaping and shaping
- Easy to crease and cut, widely used in packaging outer shell and inner frame
Applicable Materials：Printed paper, coated paper, kraft paper, corrugated board, rigid cardboard, packaging foam, EVA liner, adhesive vinyl, PET/PP film and decorative sheet packaging materials.
Cardboard
- Lightweight high-strength packaging buffer material
- Good shockproof and pressure-resistant, protect products from damage
- Used for outer packaging, inner support and product tray lining
Honeycomb

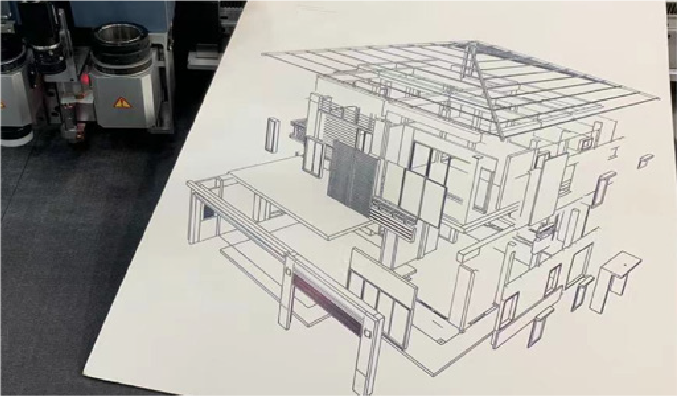

Draw Pitcure
- Draw patterns, logos and texts on packaging materials
- Mark positioning lines and cutting outlines
- Convenient sample design and visual proofing
paster
- Used for brand logo labeling, product decoration and packaging surface printing.
- Ideal for commodity marking, barcode stickers and serial number labels.
- Waterproof and self-adhesive design fits box surfaces, gift packaging and outer packaging.
- Support custom patterns, sizes and shapes for personalized packaging design.

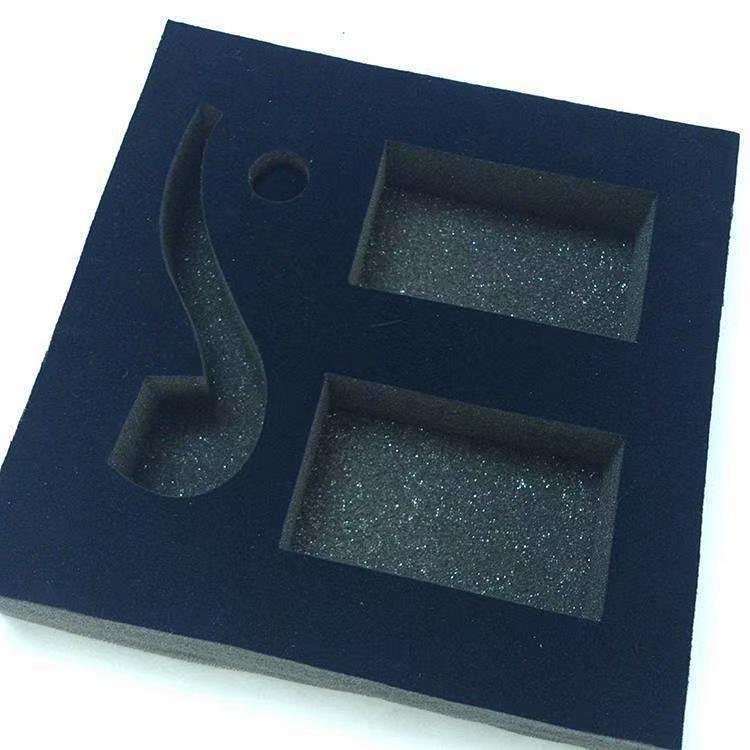

Foam Groove
- Custom groove design fits products perfectly for anti-collision and shockproof protection.
- Fix items firmly in place to avoid shaking, scratching and damage during transit.
- Good for inner lining packaging of gifts, electronics and fragile goods.
- Neat layout makes product arrangement tidy, improving unboxing experience.

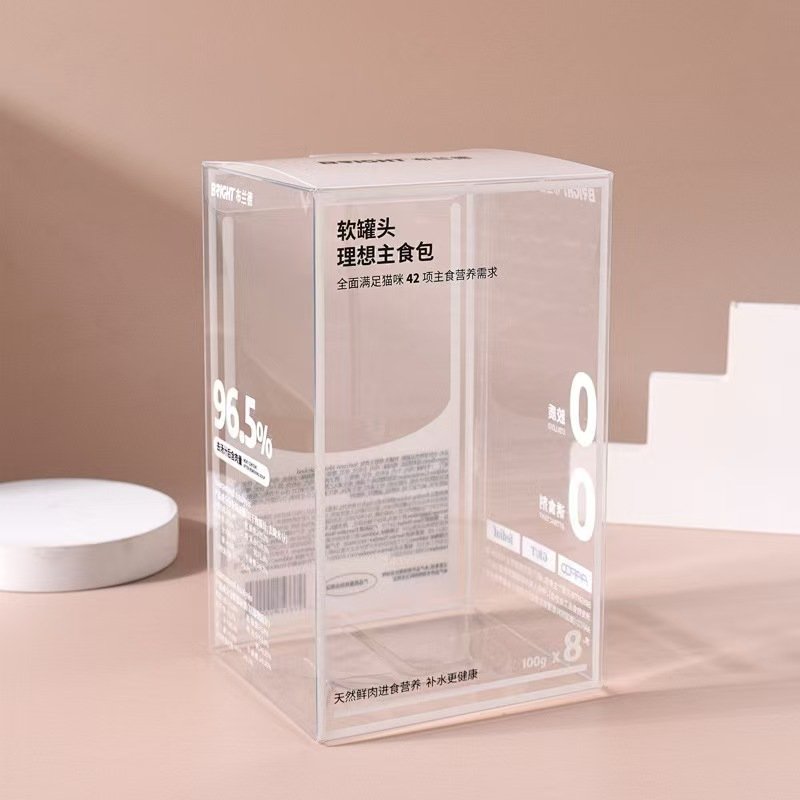

PVC Box
- Transparent appearance for product display and retail shelf presentation.
- Widely used for cosmetics, gifts, electronics and daily necessities packaging.
- Good hardness and durability for product protection and dustproof storage.
- Support customized size, printing and folding design for brand packaging.
Corrugated Carton
- Widely used for product outer packaging, logistics and express transportation.
- Ideal for commodity storage, protection and buffer packaging.
- Suitable for gift boxes, industrial packaging, food and daily necessities packaging.
- Support customized printing, branding and personalized packaging design.
application
Feature
Integrated Body Design
Adopts an integrated one-piece frame structure, featuring high overall rigidity and stable operation. It effectively reduces vibration during cutting and ensures long-term processing accuracy.
Safety Induction Switch
Vacuum Suction System
Comes with an integrated vacuum suction function, which firmly and steadily fixes various materials during cutting. It prevents material shifting and ensures precise and consistent cutting results.
Optimized Vacuum Pipe Layout
Features a professional vacuum pipe routing design that greatly enhances fan working efficiency. It delivers stronger and more even suction force for stable material fixation.
Optional Tools
All the following tools are fully compatible with the equipment and support flexible replacement and combined configuration.
Electic Oscillating Tool
Hgih-speed oscillating toolfor cutting low and medium desity materials
— Depending on application， available with 0.5mm， 1.5mm，2.5mm
— high processing speed
— Suitable for leather, corrugated cardboard, felt and foam industry
Universal Drawing Tool
A pen tool for easy marking on material， it can be used for drawing，markling，writing，letters，numbers，etc
— Sophisticated resolution
— Recording of simple drawings，mark，characters，etc

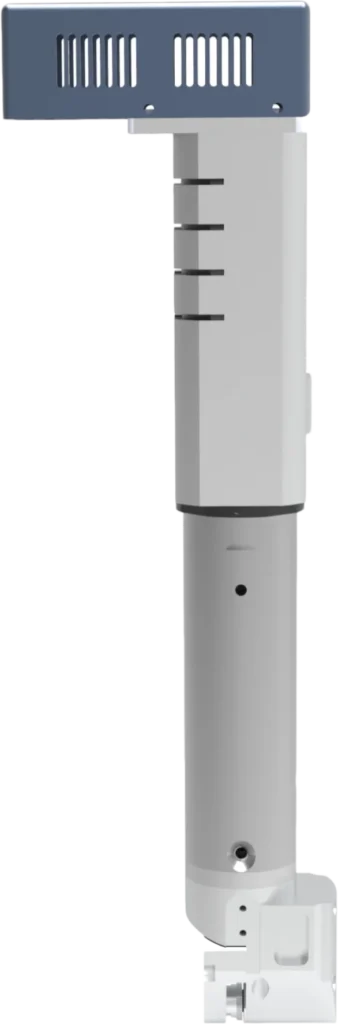

Driven Rotary Tool
The Driven Rotary Tool cuts all textiles reliably and cost-effectively. Its ten-segmented blade reduces drag, severs fibers cleanly, and delivers precise cuts even on loose woven fabrics.
—Outstanding production efficiency with a maximum cutting speed of 1000 mm per second.
—Consistently superior cutting finish and precision are maintained even on heavy coarse-woven fabrics, effectively avoiding fiber displacement and slippage.
—Fully compatible and adaptable to an extensive variety of textile materials.
V- Cutter
— Small V-Cutter：Precise 45° bevel cutting for table mats, photo frames. Supports slotting & cutting 5mm-thick cardboard and polymer materials.
— Big V-Cutter：Perfect for cutting thick materials such as foam boards and sandwich boards.
— Subtended V-Cutter：That can cut thin materials at 90 degree angle, such as paper board, cardboard, etc.
— Variable V-Cutter：90° cutting for thin boards. Fits 3D work of cardboard, foam core, corrugated & honeycomb boards. Quick, precise angle adjustment.

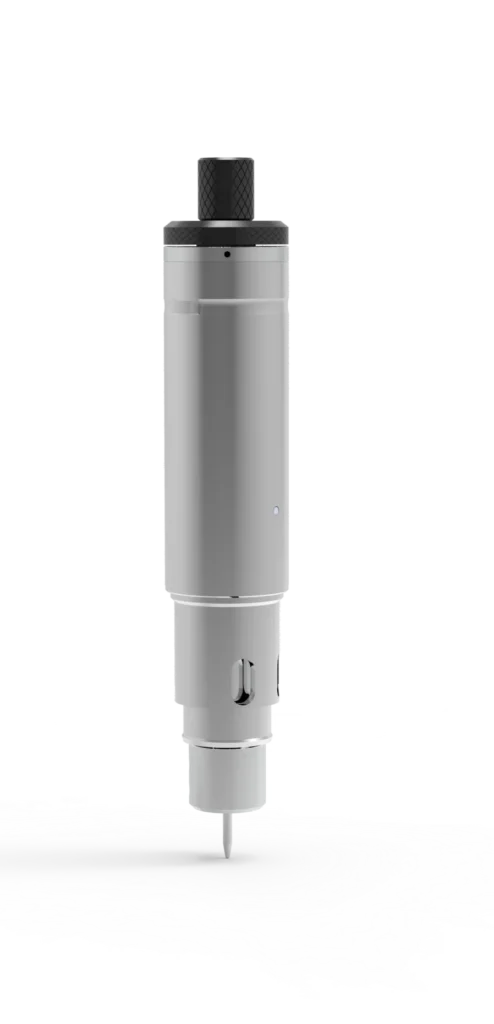

Electric Punching Tool
An electric hole puncher is used to create holes in variety of materials, such as leathercloth,plastic, rubber paper sheets and etc.
— Precise and efficient holes punching
— Hole diameter: 0.5-10rm
CCD Camera
By imitation of the human eye vision recognition positioning system, it is for accurately contour cutting
— Industriel camera facilitates fast posirioning on printed graphics ard increase cutting accuracy

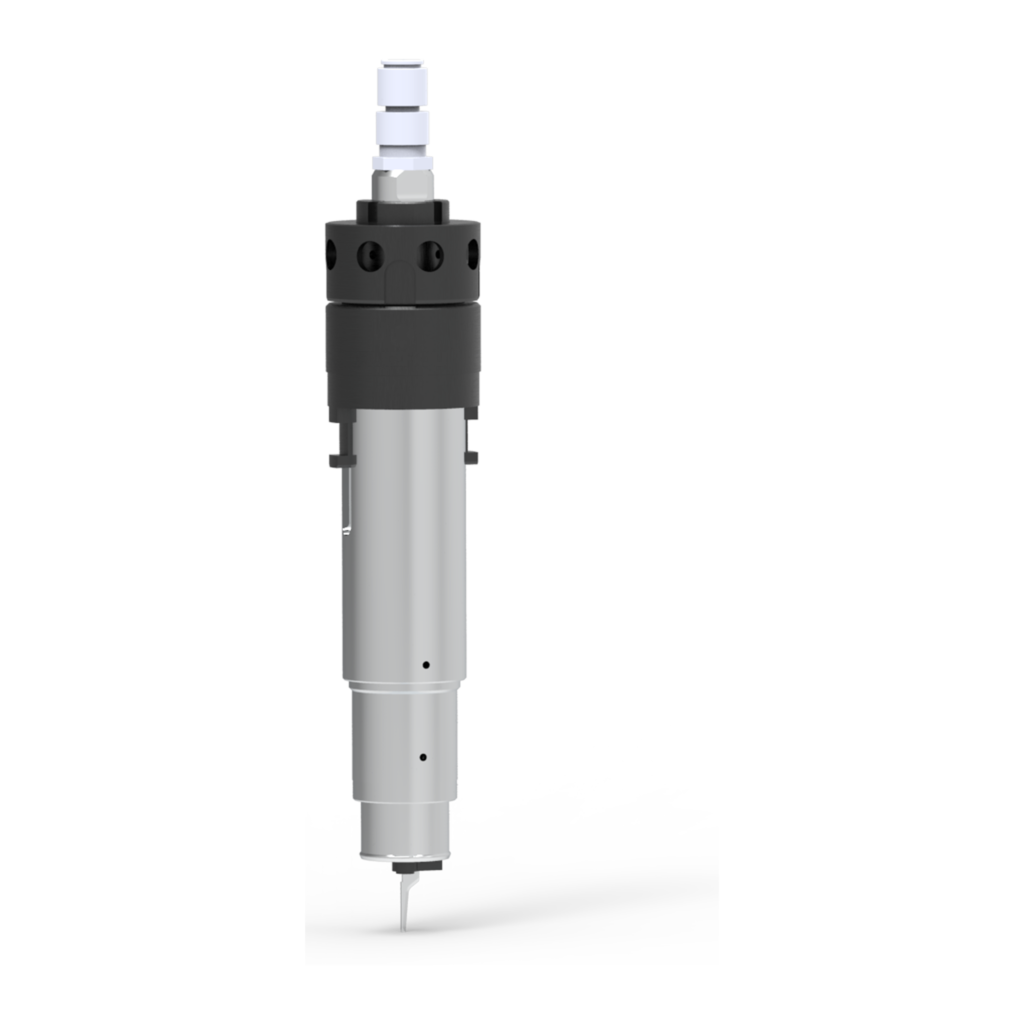

Pneumatic Oscillating Tool
8 mm cutting amplitude， enabling it to cut hard， high-density flexible materials， as well assoft and thick materials
— High performance cutting tool with 8mm，amplitude
— powerful，low-maintenance pneumatic tool
— Suitable for thick hollow board, rubber and foam industries.

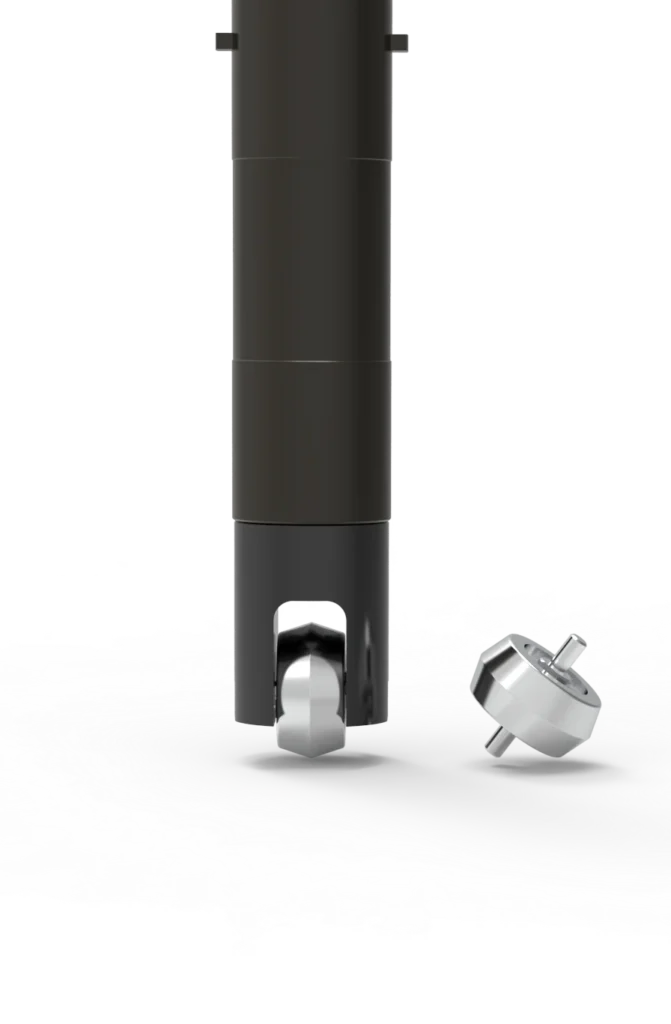

Creasing Wheel Tool
The tool producees high-qua’lity creases both with and against the corrugation without tearing or cracking the top sheeet
— Clean creases without tearing
— Directional pressure adjustments
— Suitable for thick hollow board, rubber sheet and corrugated cardboard industries.

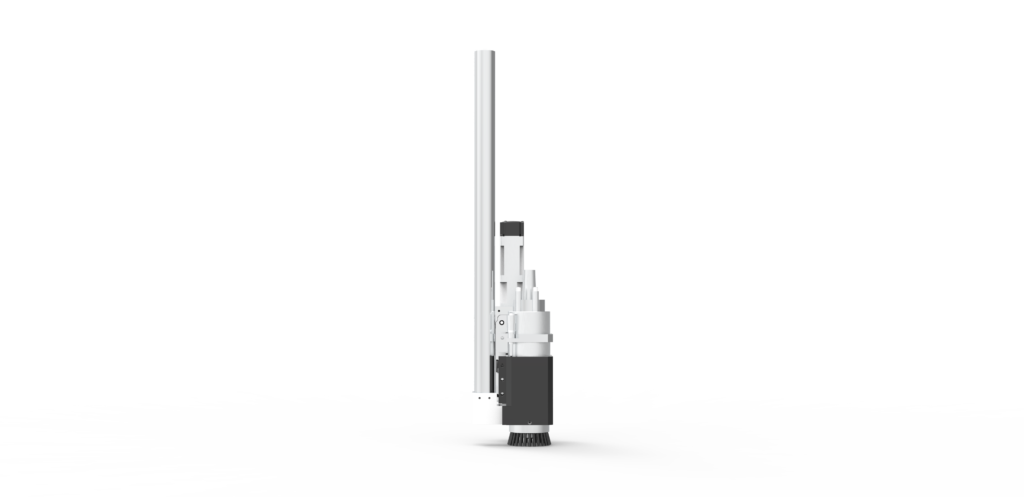

Router Module
The centerpiece of rouder moduels is a high-frequency spindle. Depending on applicatitions and requirements, versioon from 600W to 2.2KW are available
— Routing.engraving with one and the same module
— Capable of processing a wide range of materials
— Active coolng for relable heat dissipation Efficient dust extraction for clean operation
Universal Cutting Tool
The Universal Cutting Tool is perfect for through-cutting various materials up to 5 mm thickThe use of drag knives allows for very high processing speeds.
— Wide assortment of Ruizhou cutting blades available
— Very high processing speeds

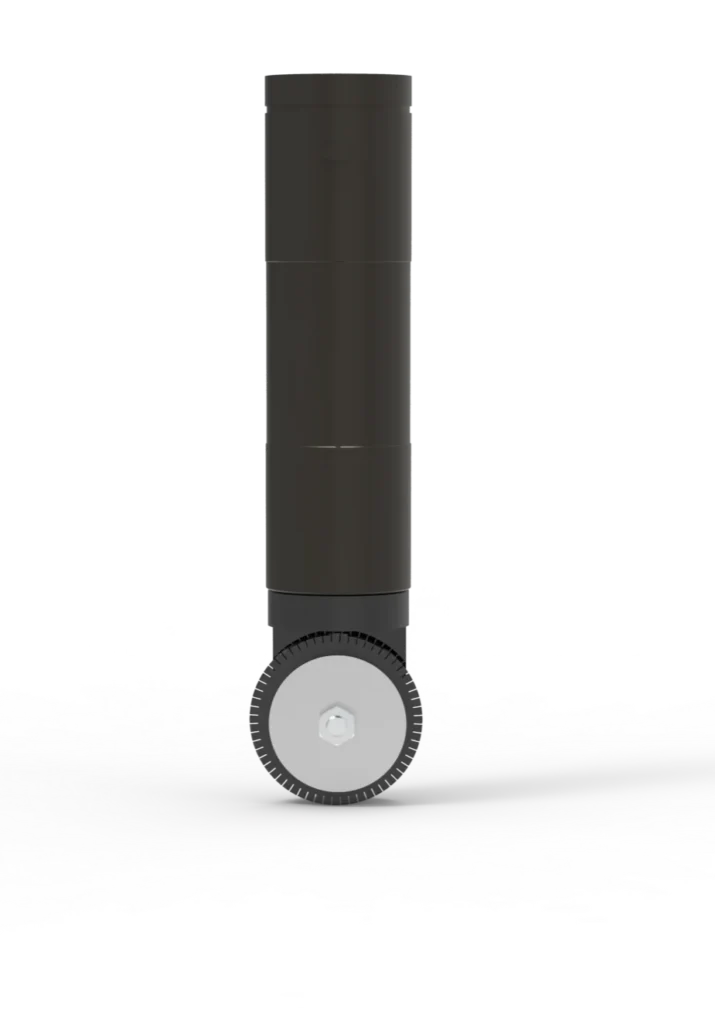

Perforating Tool
Can create perforated lires very efficiertly on corrugated cardboard, folding carton,andPP (polypropylene), vinyl.
— Highi-quality perforations
— High processing speeds
— Wide range ot pertorating blades avai able trom ZINGCUT
tool combination
Standard Cutting Head
Universal tool holder enables quick switching of electric/pneumatic oscillating knives and creasing wheels, fitting diverse materials and processing needs.
Two-Modular Head
The dual modular head allows two tools to be mounted at the same time. Fast tool switching realizes cutting and creasing in one pass, greatly improving working efficiency.
Router-Modular Head
his router modular head delivers high-speed precision carving and grooving. It perfectly fits rigid materials and ensures smooth cutting edges with stable performance.
Three-Modular Head
The three-modular head supports simultaneous mounting of three different tools. It enables automatic tool switching to complete cutting, creasing and engraving in one go, greatly enhancing production efficiency.
workflow

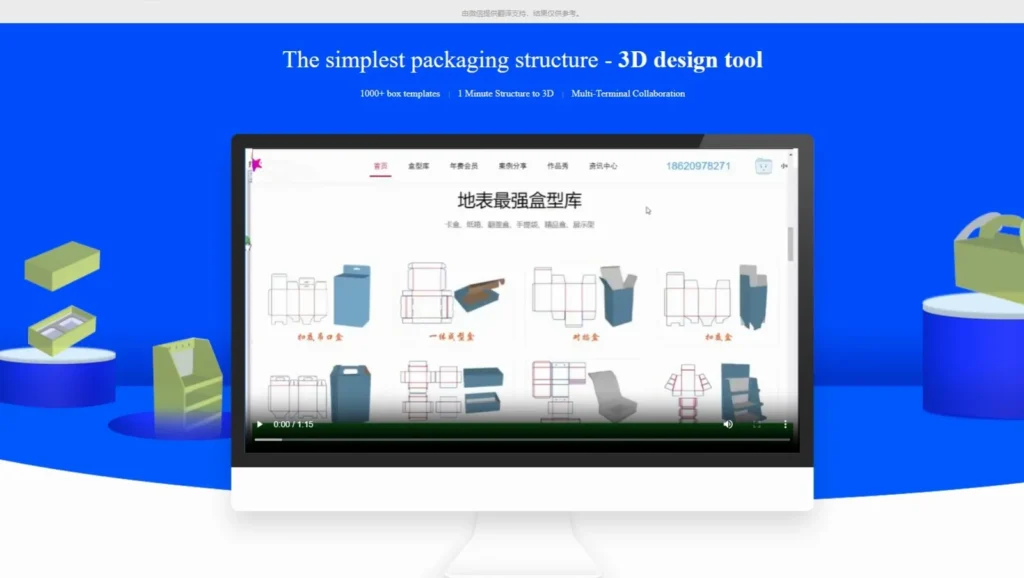

01. Open Software
06. 3D Box Display
07. Export Print & Cut Files

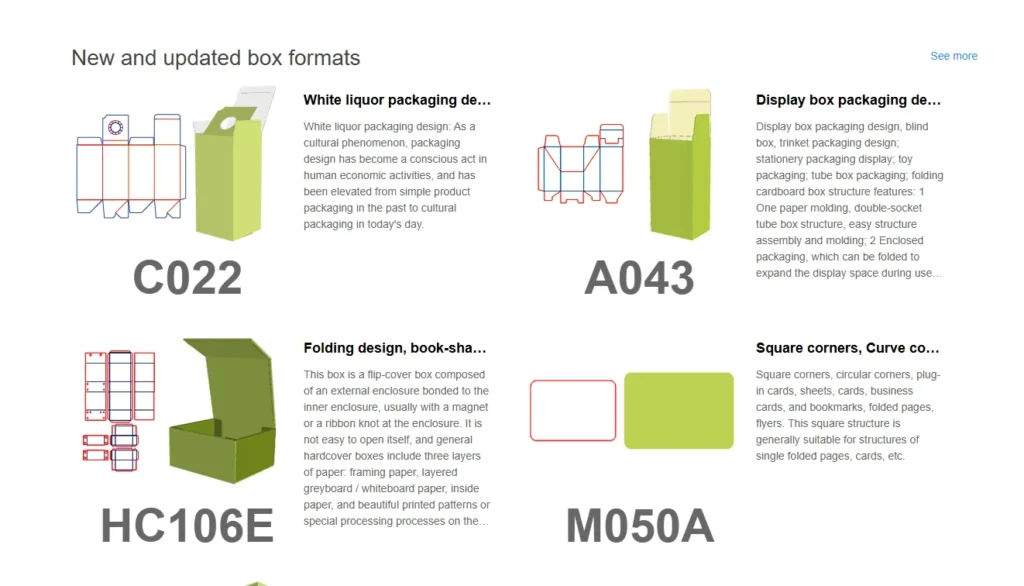

02. Select Box Type
05. Adjust Pattern Size
08. Cutting

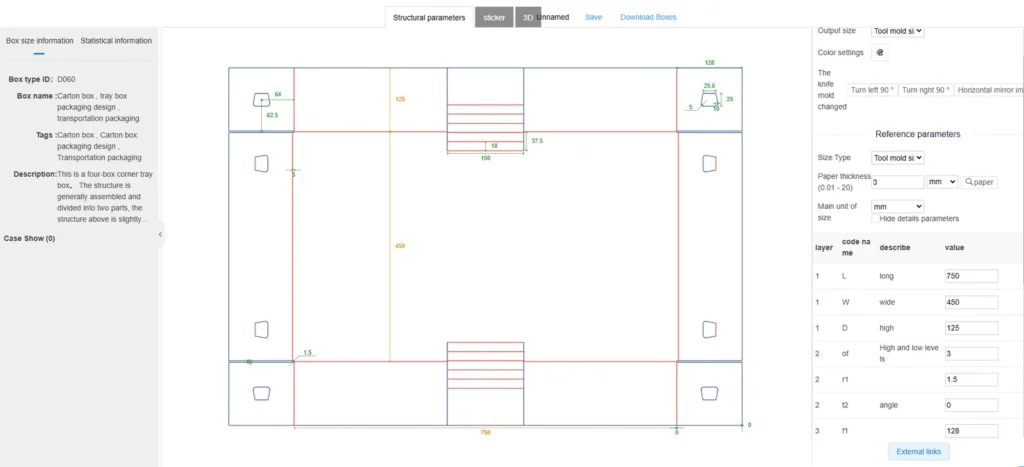

03. Adjust Sizes
04. Import Patterns
09. Collection

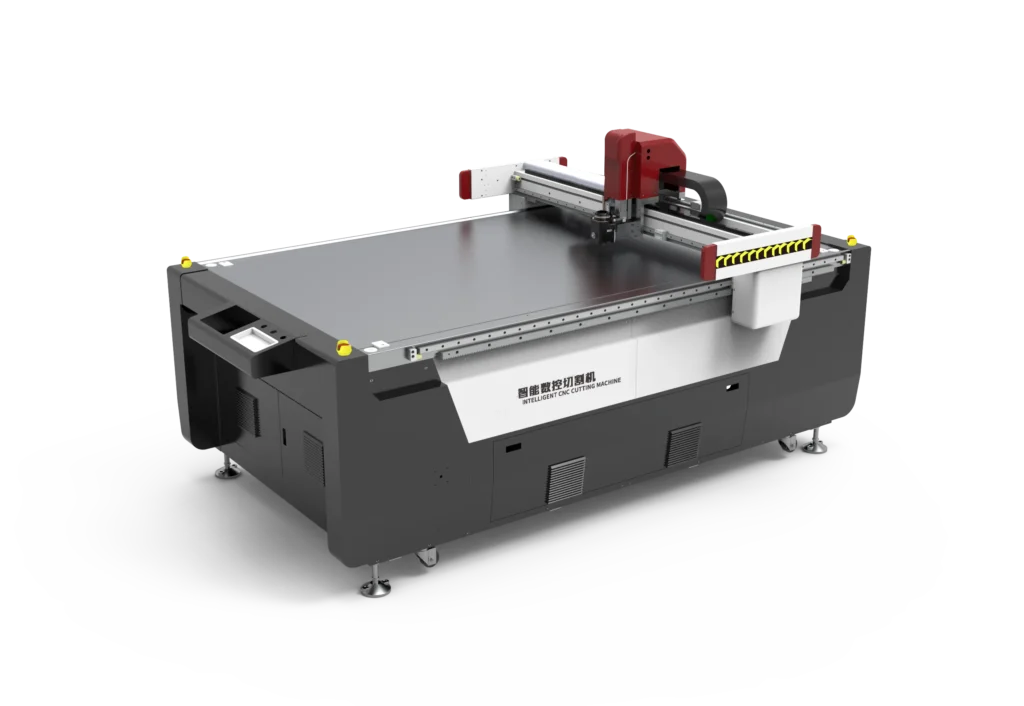

Technical Parameters
| Model | ZC-1007 | ZC-2516 | ZC-3016 | ACCEPTING CUSTOMIZATION |
|---|---|---|---|---|
| Effective Working Area | 1000*700mm | 2500*1600 mm | 3000*1600mm | |
| Air Pump Power | 5.5KW | 9KW | 9KW | |
| Machine Power | 2KW | |||
| Cutting Accuracy | ±0.2mm | |||
| Repeat Accuracy | ≤0.1mm | |||
| Type of Work Platform | Static Table，Conveyor Table，Dual Station，AR Syestem | |||
| Multi-Head Optional | Double head optional efficiency doubled, double gantry optional, double head mutual shift optional, length can be customized |
|||
| Multi-Function Tool | Vibrating knife full cutting, high power active round knife, semi-cutting cutting, full cutting cutting, camera positioning cutting, edge finding cutting, acrylic milling cutter, cursor positioning, line marking, indentation knife, V-groove knife, etc. |
|||
| Safety Devices | Safety Proximity Sensor | |||
| Cutting Speed | 0-1800mm/s | |||
| Transmission Port | Network port | |||
| File Formats | PDX/PLT | |||
| Material Fixing Method | Vacuum partition adsorption | |||
| Transmission Mechanism | Taiwan linear guide, synchronous belt drive | |||
| Drive Motor | Panasonic digital servo motor | |||
| Working Voltage/Frequency (Machine | AC220V±10%, 50Hz | |||
| Working Voltage/Frequency (Air Pump | AC380V±10%, 50Hz | |||
| Operation & Control | Multilingual LCD touch screen / Computer | |||
| Operating Environment | Temperature: -10℃~50℃; Relative Humidity: 20%~80% | |||
There is always a model to meet your demands.
Optional Sizes
| Model | Effective Working Area（A2 x B2） |
|---|---|
| ZC- 1310 | 1300*1000mm |
| ZC- 1810 | 1800*1000mm |
| ZC-2520F | 2500*2000mm |
| ZC-3018 | 3000*1800mm |
| ZC-3020 | 3000*2000mm |
| Customization | Customization |
Assembly Instruction Video
YOU WILL KNOW
Components:
- Fan
- Vibrating Cutting Head
- Blades
- Touch Screen
- Tool Box
Click CONTACT US for detailed videos
