Furniture Industry Solution
Die-free precision cutting for furniture soft materials & cork.
- Die-Free Processing: Eliminate mould making costs, support frequent style changes and flexible production.
- Smooth Cutting Effect: Clean and flat incision without burr, improving furniture appearance.
- High Precision Machining: Stable cutting size to ensure consistent furniture accessories.
- Intelligent Nesting: Automatic typesetting optimizes layout, greatly reducing material waste.
- Multi-Functional Process: Complete cutting, punching and marking in one machine to meet diverse processing needs.
- Specialized for Furniture Shapes: Perfectly cut irregular and curved pieces, ideal for sofa arc upholstery and contoured furniture parts.
CNC Digital Cutting Solution for Furniture Industry
Optional Tools
- Pneumatic Oscillating Tool ：Powerful cutting for thick hard boards.
- V-Cutter ：Make V-grooves.
- Electric Punching Tool ：Precise and efficient holes punching
- Scoring Cutting ：Precise depth of cut control
Multi-functional Combined Head
- Match different tools freely to meet various processing demands.
Cold Cutting Technology
- High-frequency oscillating knife (15,000–18,000r/m) , clean edges, No dust, no burrs, no heat damage
CNC Digital Cutting Machine for Furniture Industry
Professional for samples, small batch production, short runs, high mix and fast delivery demands.
SAMPLE
- Eco-friendly material for furniture decoration and interior trimming
- Light, elastic and sound-insulating, perfect for home furnishings
- Moisture-proof and wear-resistant, widely used for furniture surface decoration
- Easy to cut and shape for various furniture craft designs
Cork
Genuine Leather
- Premium raw material for making high-grade handbags, wallets and leather accessories.
- Soft texture, durable and wear-resistant, enhance product grade and comfort.
- Fine surface texture, easy for embossing, printing and personalized styling.
- Good toughness, not easy to deform, suitable for long-term use products.
- Used for furniture anti-slip pads, shock absorption and noise reduction
- Wear-resistant and thick, protect floor and furniture surface
- Ideal for interior decoration and furniture lining materials
- Easy to cut into various shapes for home accessories
Felt
Sponge
- Main filling material for sofas, mattresses and soft furniture
- Soft and elastic, improve sitting and lying comfort
- Good shock absorption and pressure resistance
- Easy cutting, fit all kinds of furniture inner padding
Feature
Integrated Body Design
Adopts an integrated one-piece frame structure, featuring high overall rigidity and stable operation. It effectively reduces vibration during cutting and ensures long-term processing accuracy.
Safety Induction Switch
Vacuum Suction System
Comes with an integrated vacuum suction function, which firmly and steadily fixes various materials during cutting. It prevents material shifting and ensures precise and consistent cutting results.
Optimized Vacuum Pipe Layout
Features a professional vacuum pipe routing design that greatly enhances fan working efficiency. It delivers stronger and more even suction force for stable material fixation.
Optional Tools
All the following tools are fully compatible with the equipment and support flexible replacement and combined configuration.
Pneumatic Oscillating Tool
8 mm cutting amplitude，enabling it to cut hard， high-density flexible materials， as well assoft and thick materials
— High performance cutting tool with 8mm，amplitude
— powerful，low-maintenance pneumatic tool
— Suitable for thick hollow board, rubber and foam industries.
Electric Punching Tool
An electric hole puncher is used to create holes in variety of materials, such as leathercloth,plastic, rubber paper sheets and etc.
— Precise and efficient holes punching
— Hole diameter: 0.5-10rm

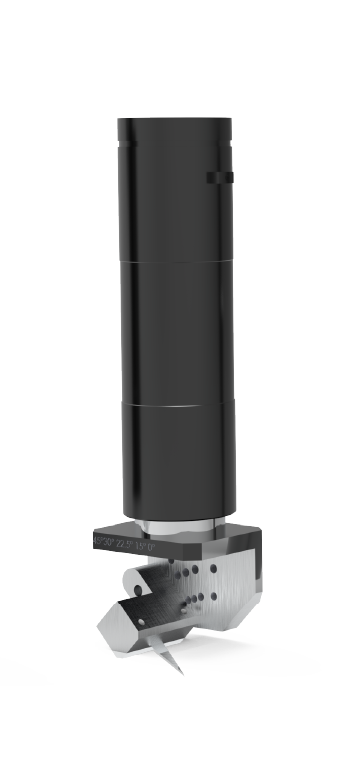

Variable V-Cutter
It is suitable for complex 3D structure products made of cardboard , foam core material ,corrugated/hpneycomb cardboard , etc .
—Easy , precise angle adjustments
—Cut up to 15mm and set 5 angles (0 ; 15 ; 22.5 ; 30 ; 45 )
Scoring Cutting Tool
Full penetration and semi penetration cutting of materials with thickness less than 3mm
— Precise depth of cut control
— Up to 3mm cut and two cutting methods（full cut + half cut）
tool combination
Standard Cutting Head
Universal tool holder enables quick switching of electric/pneumatic oscillating knives and creasing wheels, fitting diverse materials and processing needs.
Two-Modular Head
The dual modular head allows two tools to be mounted at the same time. Fast tool switching realizes cutting and creasing in one pass, greatly improving working efficiency.
Router-Modular Head
his router modular head delivers high-speed precision carving and grooving. It perfectly fits rigid materials and ensures smooth cutting edges with stable performance.
Three-Modular Head
The three-modular head supports simultaneous mounting of three different tools. It enables automatic tool switching to complete cutting, creasing and engraving in one go, greatly enhancing production efficiency.
Workflow

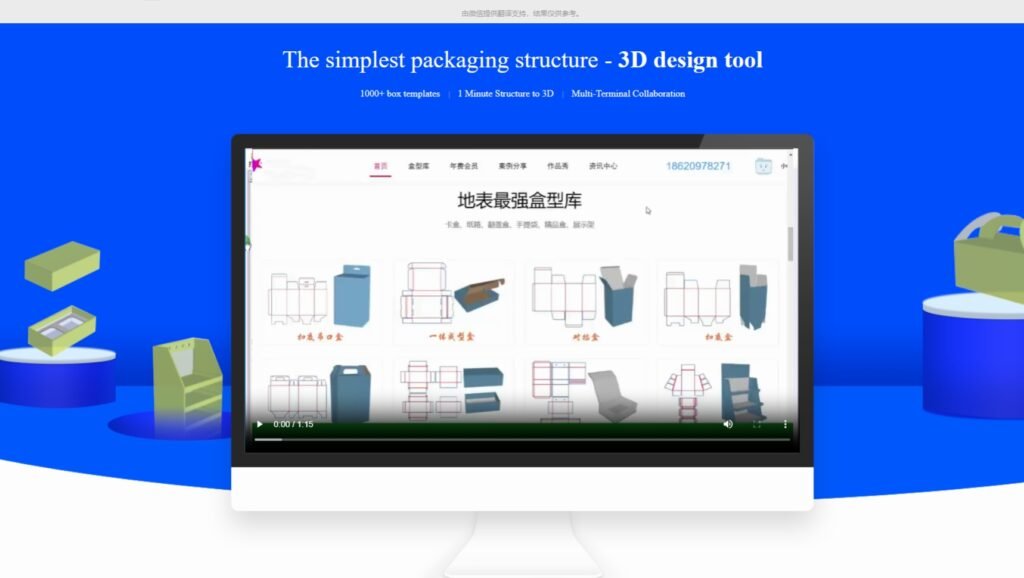

01. Open Software
06. 3D Box Display
07. Export Print & Cut Files

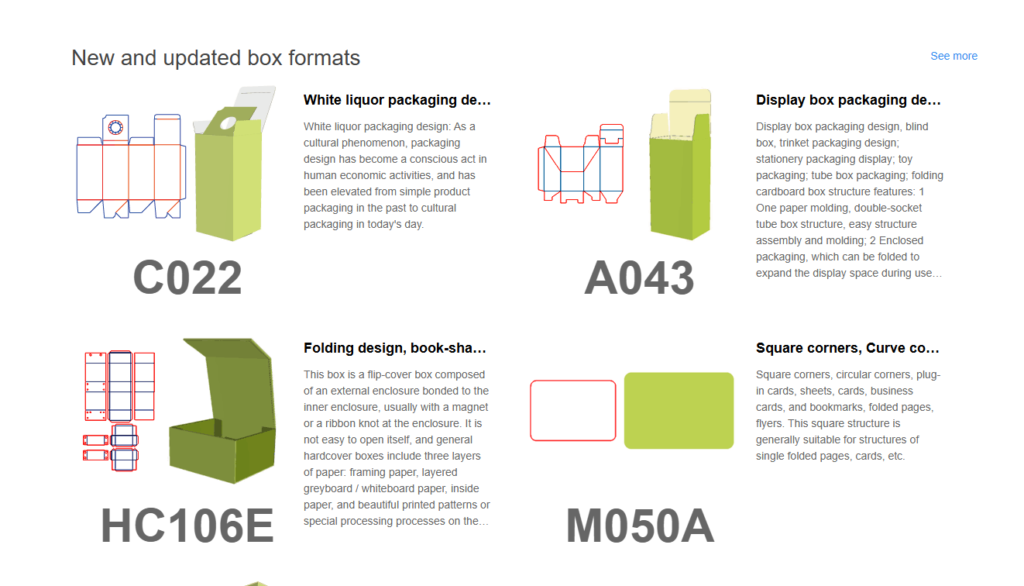

02. Select Box Type

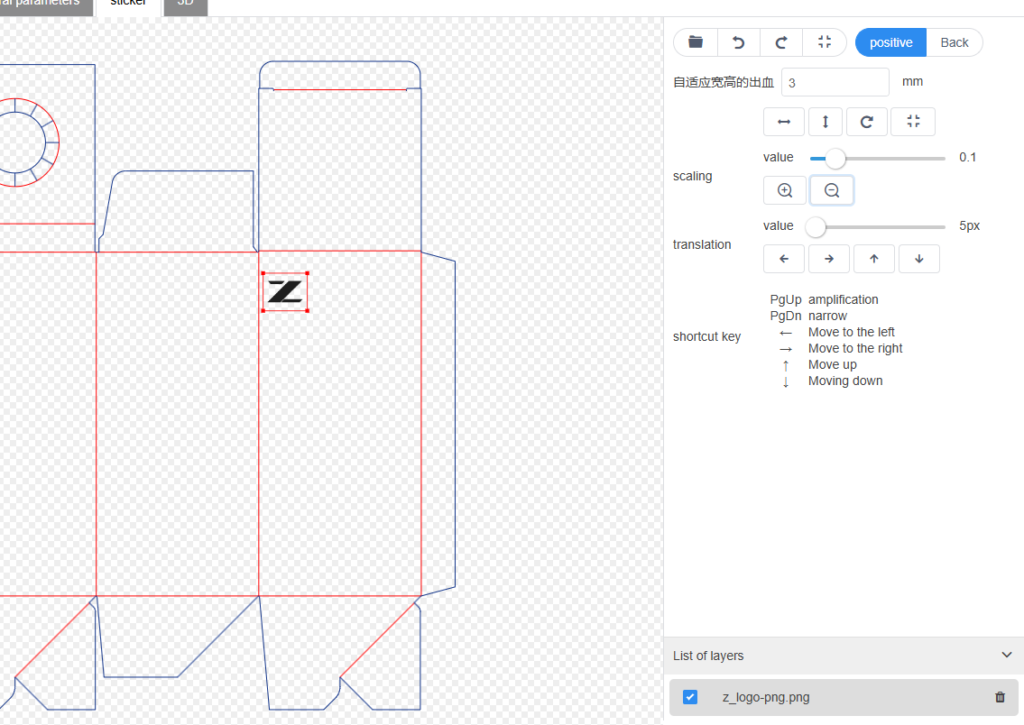

05. Adjust Pattern Size
08. Cutting

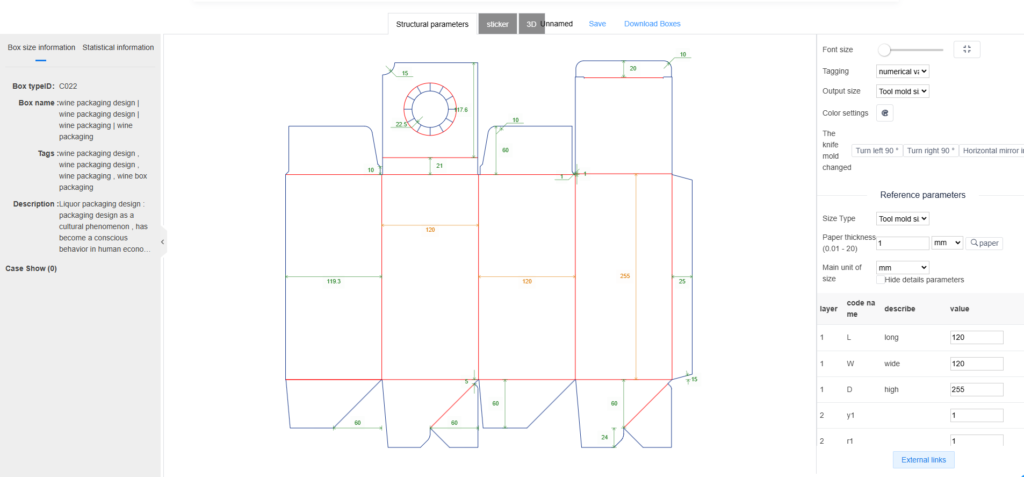

03. Adjust Sizes

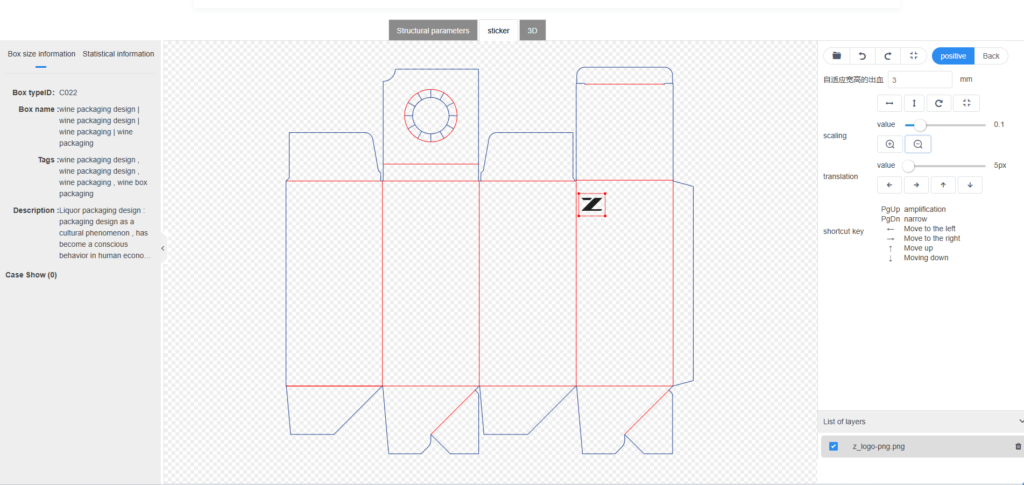

04. Import Patterns
09. Collection
Technical Parameters
| Model | ZC-1007 | ZC-2516 | ZC-3016 | ACCEPTING CUSTOMIZATION |
|---|---|---|---|---|
| Effective Working Area | 1000*700mm | 2500*1600 mm | 3000*1600mm | |
| Air Pump Power | 5.5KW | 9KW | 9KW | |
| Machine Power | 2KW | |||
| Cutting Accuracy | ±0.2mm | |||
| Repeat Accuracy | ≤0.1mm | |||
| Type of Work Platform | Static Table，Conveyor Table，Dual Station，AR Syestem | |||
| Multi-Head Optional | Double head optional efficiency doubled, double gantry optional, double head mutual shift optional, length can be customized |
|||
| Multi-Function Tool | Vibrating knife full cutting, high power active round knife, semi-cutting cutting, full cutting cutting, camera positioning cutting, edge finding cutting, acrylic milling cutter, cursor positioning, line marking, indentation knife, V-groove knife, etc. |
|||
| Safety Devices | Safety Proximity Sensor | |||
| Cutting Speed | 0-1800mm/s | |||
| Transmission Port | Network port | |||
| File Formats | PDX/PLT | |||
| Material Fixing Method | Vacuum partition adsorption | |||
| Transmission Mechanism | Taiwan linear guide, synchronous belt drive | |||
| Drive Motor | Panasonic digital servo motor | |||
| Working Voltage/Frequency (Machine | AC220V±10%, 50Hz | |||
| Working Voltage/Frequency (Air Pump | AC380V±10%, 50Hz | |||
| Operation & Control | Multilingual LCD touch screen / Computer | |||
| Operating Environment | Temperature: -10℃~50℃; Relative Humidity: 20%~80% | |||
| Model | Effective Working Area（A2 x B2） |
|---|---|
| ZC- 1310 | 1300*1000mm |
| ZC- 1810 | 1800*1000mm |
| ZC-2520F | 2500*2000mm |
| ZC-3018 | 3000*1800mm |
| ZC-3020 | 3000*2000mm |
| Customization | Customization |
Optional Sizes
There is always a model to meet your demands.
