Composites Solution
Samples | Small Batch | Mix production
Die-less Cutting, Accurate, Experience-independent & Cost-efficient
CNC Digital Cutting Solution for Composites Industry
Mold-Free Production：No costly molds required, ideal for frequent design updates and small-batch composite customization.
High Precision Cutting：Ensure precise shaping and smooth edges, maintain stable size accuracy for composite parts.
All-in-One Processing：Finish cutting, layering and trimming in one process to meet various composite fabrication needs.
Excellent Material Compatibility：Fit carbon fiber, glass fiber, prepreg and all kinds of composite panel materials.
Cost & Efficiency Upgrade：Reduce composite material waste, shorten trial cycle and lift overall production benefit.
Optional Tools
- Electric Oscillating Tool : Material cutting & edge finishing
- Pneumatic Oscillating Tool ：8mm stroke cuts various materials
- V-Cutter ：Make V-grooves.
- Drawing Tool ： For marking and creasing.
- Router Module: A high-frequency spindle for milling.
Multi-functional Combined Head
- Match different tools freely to meet various processing demands.
Cutting Technology
- High-frequency oscillating knife (15,000–18,000r/m) , clean edges, No dust, no burrs, no heat damage
CNC Digital Cutting Machine for Packaging Industry
Professional for samples, small batch production, short runs, high mix and fast delivery demands.
application
- High-strength structural component manufacturing
- Lightweight industrial part fabrication
- Aerospace & automotive accessory production
- Sports equipment and mold making
- Insulation and heat protection
- Vibration & noise reduction
- Sealing and buffer filling
- Industrial fireproof shielding

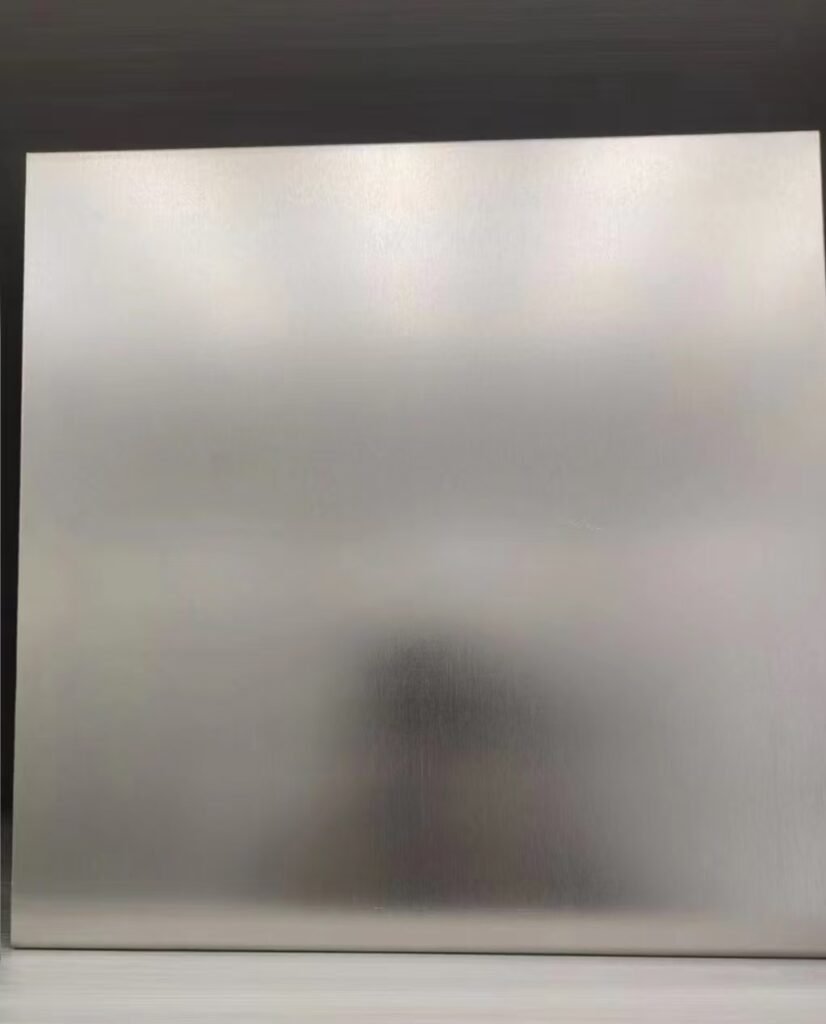

Pressure-bearing Aluminum Plate
- Offer strong load-bearing capacity and stable structural support.
- Feature high hardness, wear resistance and long service life.
- Used for equipment base plates and pressure-resistant supporting parts.
- Widely applied in industrial machinery and heavy-duty assembly fields.

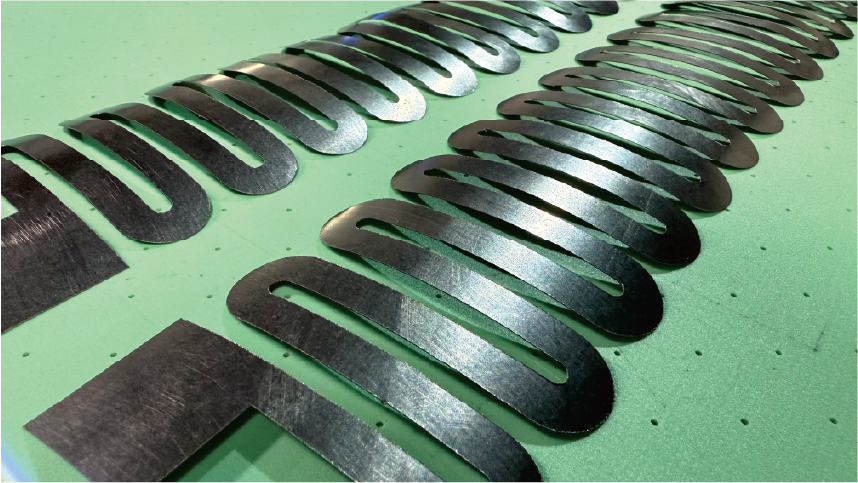

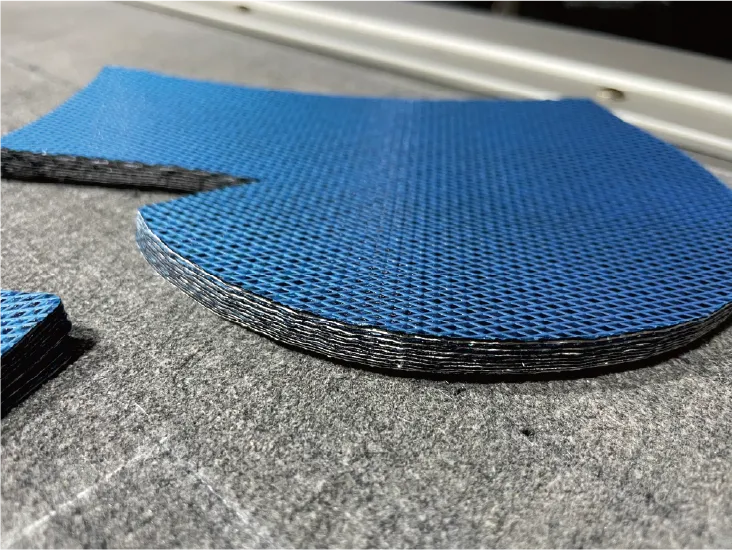

Carbon Fiber Prepreg

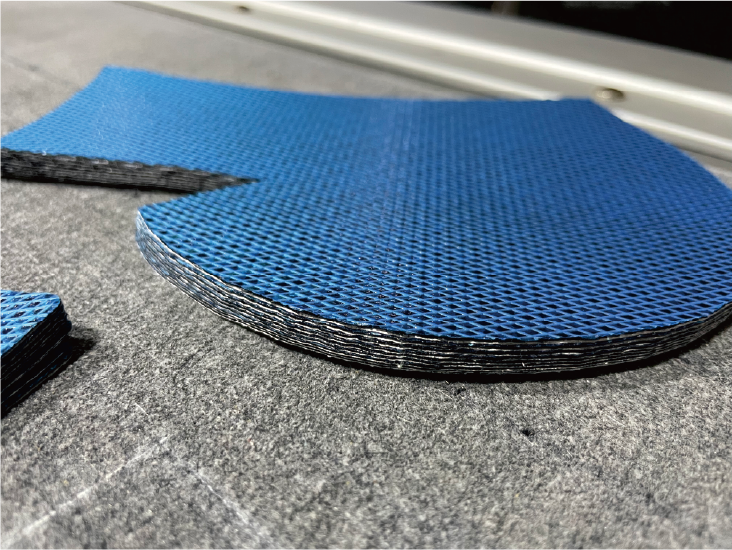

Fiberglass Celloidin

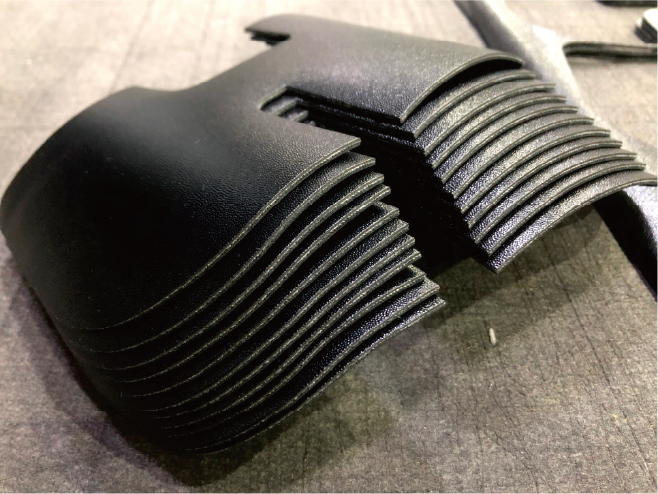

PU Material
- Possess soft texture and outstanding shockproof buffer performance.
- Good elasticity and compression resistance, not easy to deform.
- Ideal for inner protection lining and shockproof packaging.
- Widely used in industrial damping and product protective padding.
Honeycomb
- Lightweight high-strength packaging buffer material
- Good shockproof and pressure-resistant, protect products from damage
- Used for outer packaging, inner support and product tray lining

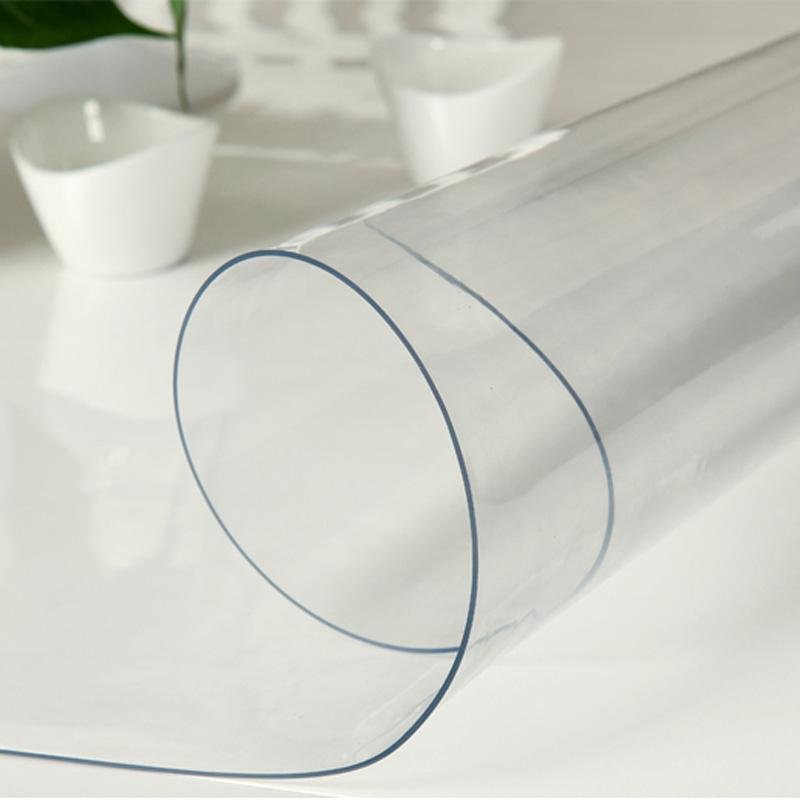

PVC Sheet
- Possess good waterproof, fireproof and anti-corrosion properties.
- Used for isolation partition and protective shielding in industry.
- Ideal for decoration lining and light-duty structural board making.
- Widely adopted in industrial protection, packaging and construction fields.
Sound Absorbing Cotton
- Mainly used for noise reduction and sound absorption in enclosed spaces.
- Effectively isolate sound transmission and reduce echo interference.
- Ideal for interior sound insulation and acoustic environment optimization.
- Widely applied in equipment silencing, construction and vehicle soundproofing.

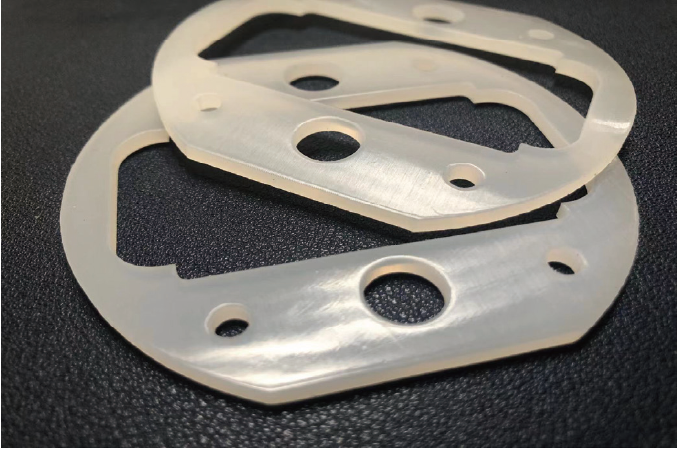

Precision Gasket
- Used for gap adjustment and assembly positioning precision calibration.
- Effectively reduce friction and buffer mechanical vibration.
- Ensure stable sealing and uniform pressure distribution.
- Fit machinery, equipment, instruments and industrial assembly use.
- Widely used for shock absorption, buffering and anti-collision protection.
- Ideal for product inner lining and fixed positioning packaging.
- Suitable for electronics, hardware, gifts and equipment protection.
- Own excellent sound insulation and thermal insulation performance.

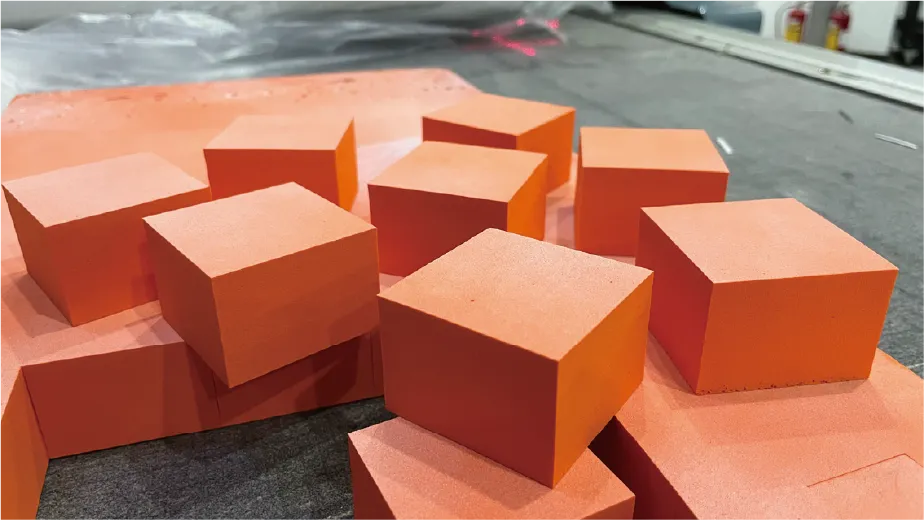

EVA Foam

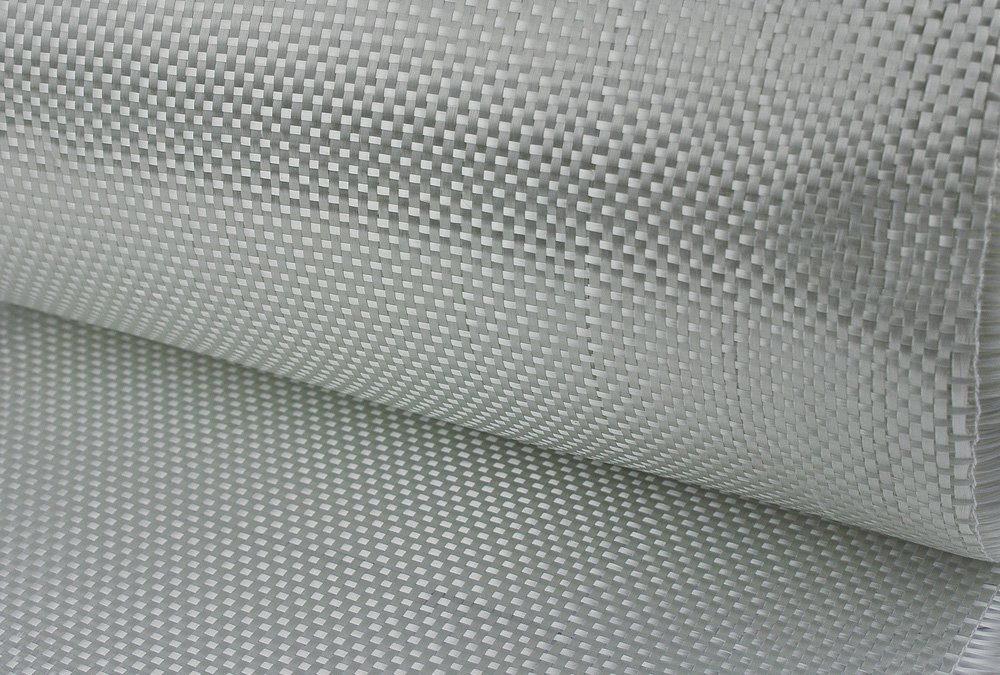

Glass Fiber Application
- Perfect for producing corrosion-resistant and durable industrial composite components.
- Ideal for manufacturing insulation, shockproof and reinforced composite boards.
- Serve as core reinforcing material for various molded composite products.
- Meet the processing demand of irregular shaped composite finished products.
- Waterproof sealing
- Shock absorption
- Anti-slip cushioning
- Pressure isolation
- Thermal conduction
- Electrical conduction
- Wear resistance
- Anti-corrosion protection
- Lightweight structure
- Sound insulation
- Pressure resistance
- Decorative cladding
- Power transmission
- Convey material
- Speed regulation
- Mechanical linkage
- Shock absorption
- Sound insulation
- Gap filling
- Anti-slip protection
Rubber Gasket

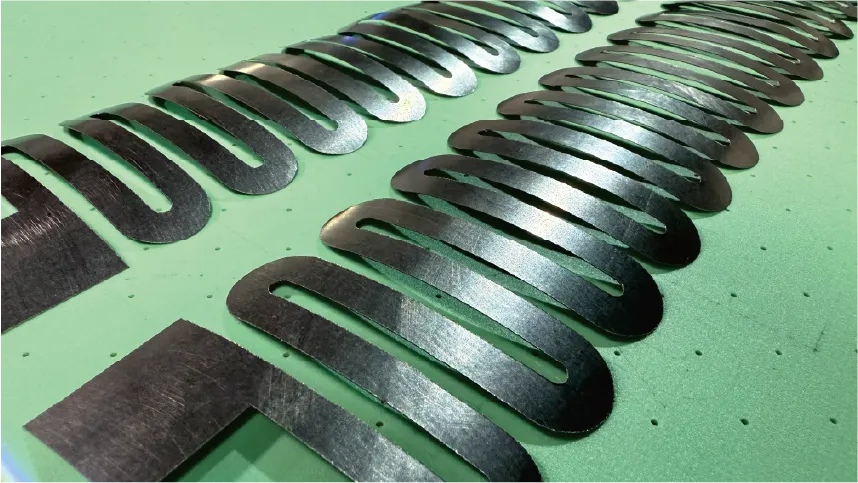

Graphene Products

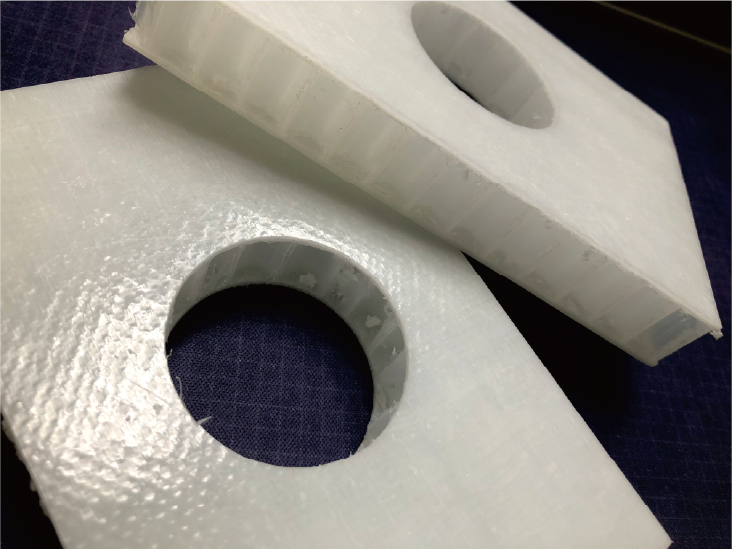

Fiberglass Honeycomb Panel

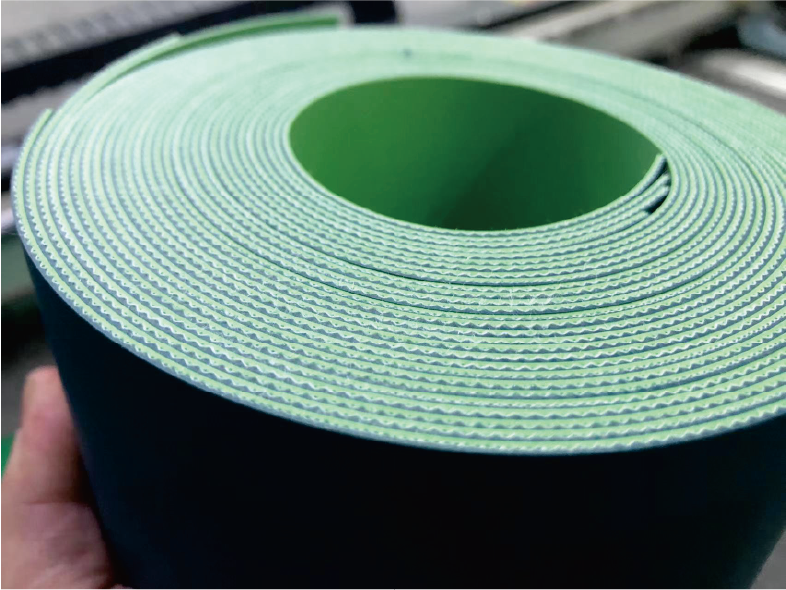

Industrial Belt

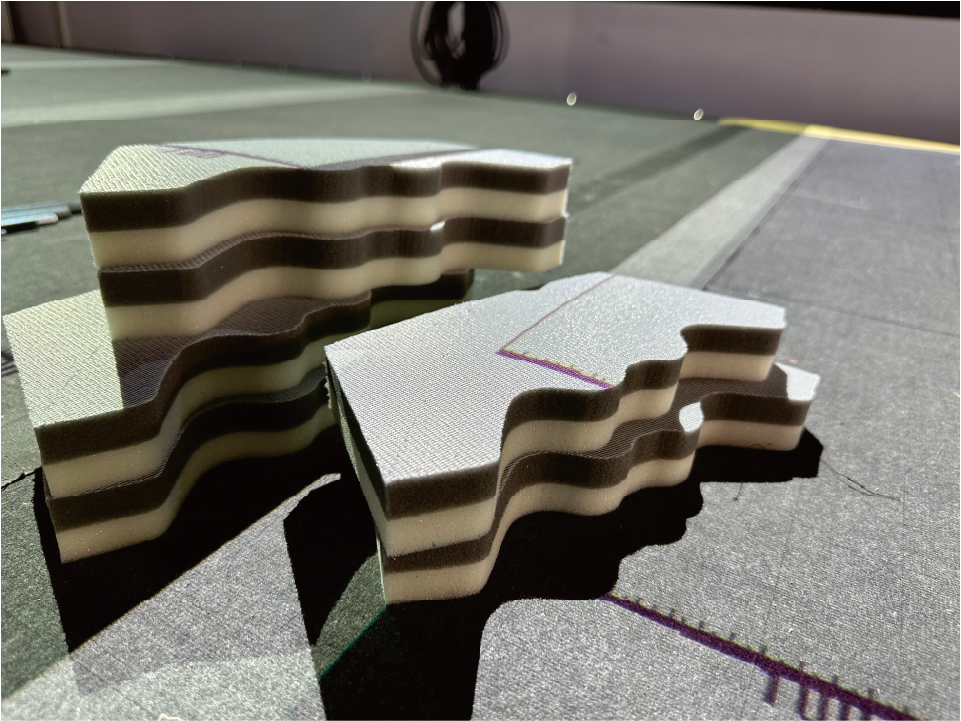

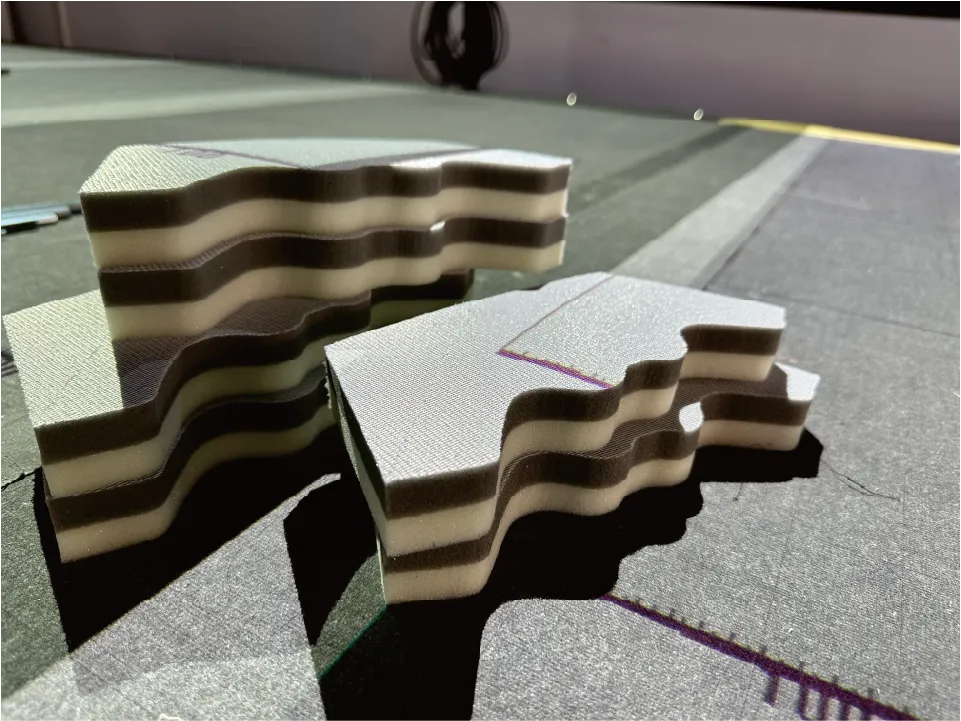

Foam Sponge
Feature

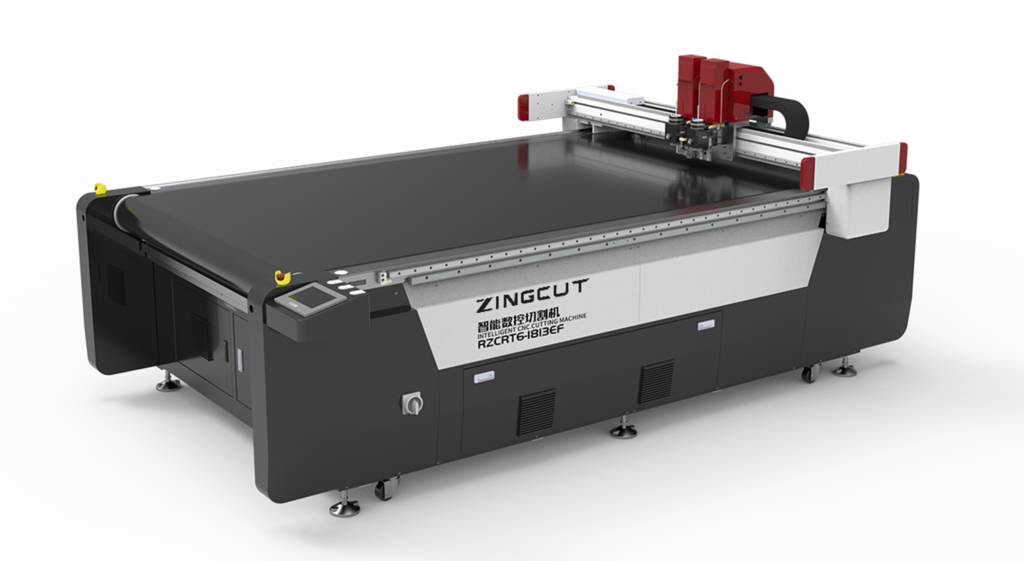

Integrated Body Design
Adopts an integrated one-piece frame structure, featuring high overall rigidity and stable operation. It effectively reduces vibration during cutting and ensures long-term processing accuracy.
Safety Induction Switch
Vacuum Suction System
Comes with an integrated vacuum suction function, which firmly and steadily fixes various materials during cutting. It prevents material shifting and ensures precise and consistent cutting results.
Optimized Vacuum Pipe Layout
Features a professional vacuum pipe routing design that greatly enhances fan working efficiency. It delivers stronger and more even suction force for stable material fixation.
tool combination
Standard Cutting Head
Universal tool holder enables quick switching of electric/pneumatic oscillating knives and creasing wheels, fitting diverse materials and processing needs.
Two-Modular Head
The dual modular head allows two tools to be mounted at the same time. Fast tool switching realizes cutting and creasing in one pass, greatly improving working efficiency.
Router-Modular Head
his router modular head delivers high-speed precision carving and grooving. It perfectly fits rigid materials and ensures smooth cutting edges with stable performance.
Three-Modular Head
The three-modular head supports simultaneous mounting of three different tools. It enables automatic tool switching to complete cutting, creasing and engraving in one go, greatly enhancing production efficiency.
Optional Tools
All the following tools are fully compatible with the equipment and support flexible replacement and combined configuration.
Electic Oscillating Tool
Hgih-speed oscillating toolfor cutting low and medium desity materials
— Depending on application， available with 0.5mm， 1.5mm，2.5mm
— high processing speed
— Suitable for leather, corrugated cardboard, felt and foam industry
Driven Rotary Tool
The Driven Rotary Tool cuts all textiles reliably and cost-effectively. Its ten-segmented blade reduces drag, severs fibers cleanly, and delivers precise cuts even on loose woven fabrics.
—Outstanding production efficiency with a maximum cutting speed of 1000 mm per second.
—Consistently superior cutting finish and precision are maintained even on heavy coarse-woven fabrics, effectively avoiding fiber displacement and slippage.
—Fully compatible and adaptable to an extensive variety of textile materials.
Electric Punching Tool
An electric hole puncher is used to create holes in variety of materials, such as leathercloth,plastic, rubber paper sheets and etc.
— Precise and efficient holes punching
— Hole diameter: 0.5-10rm
Pneumatic Oscillating Tool
8 mm cutting amplitude， enabling it to cut hard， high-density flexible materials， as well assoft and thick materials
— High performance cutting tool with 8mm，amplitude
— powerful，low-maintenance pneumatic tool
— Suitable for thick hollow board, rubber and foam industries.
V- Cutter
— Small V-Cutter：Precise 45° bevel cutting for table mats, photo frames. Supports slotting & cutting 5mm-thick cardboard and polymer materials.
— Big V-Cutter：Perfect for cutting thick materials such as foam boards and sandwich boards.
— Subtended V-Cutter：That can cut thin materials at 90 degree angle, such as paper board, cardboard, etc.
— Variable V-Cutter：90° cutting for thin boards. Fits 3D work of cardboard, foam core, corrugated & honeycomb boards. Quick, precise angle adjustment.

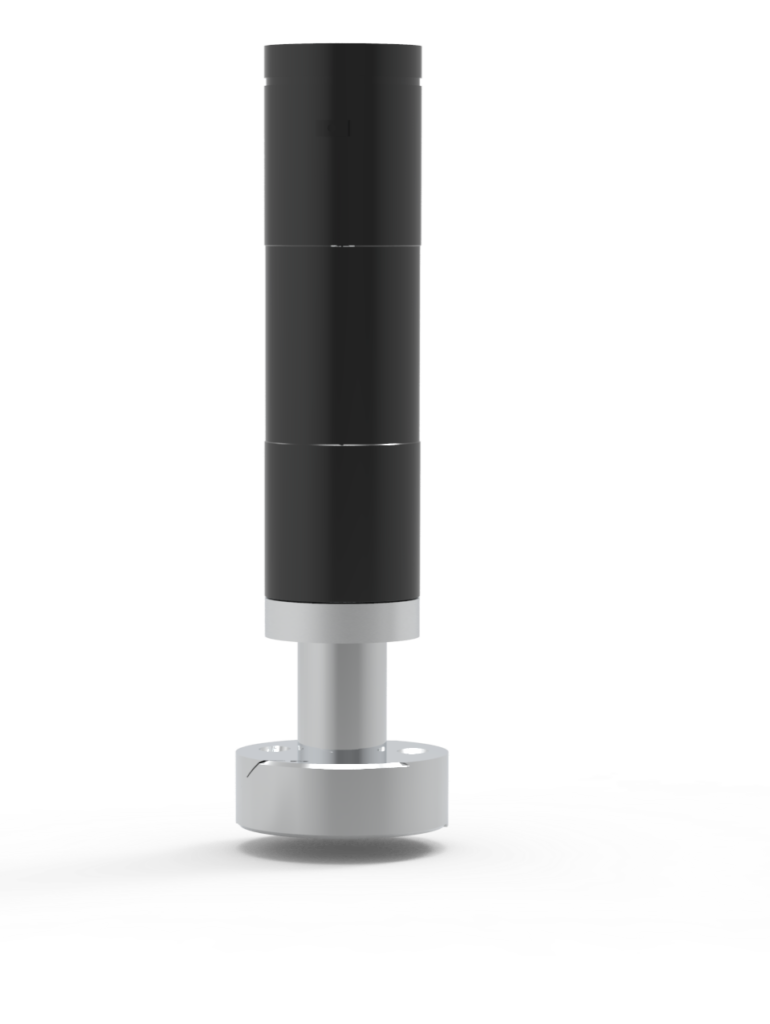

Router Module
The centerpiece of rouder moduels is a high-frequency spindle. Depending on applicatitions and requirements, versioon from 600W to 2.2KW are available
— Routing.engraving with one and the same module
— Capable of processing a wide range of materials
— Active coolng for relable heat dissipation Efficient dust extraction for clean operation
accessories
Advantages of CNC Cutter with Material Feeding Rack
- Higher processing efficiency
- Stable material feeding
- Improved cutting precision
- Suitable for large composite materials

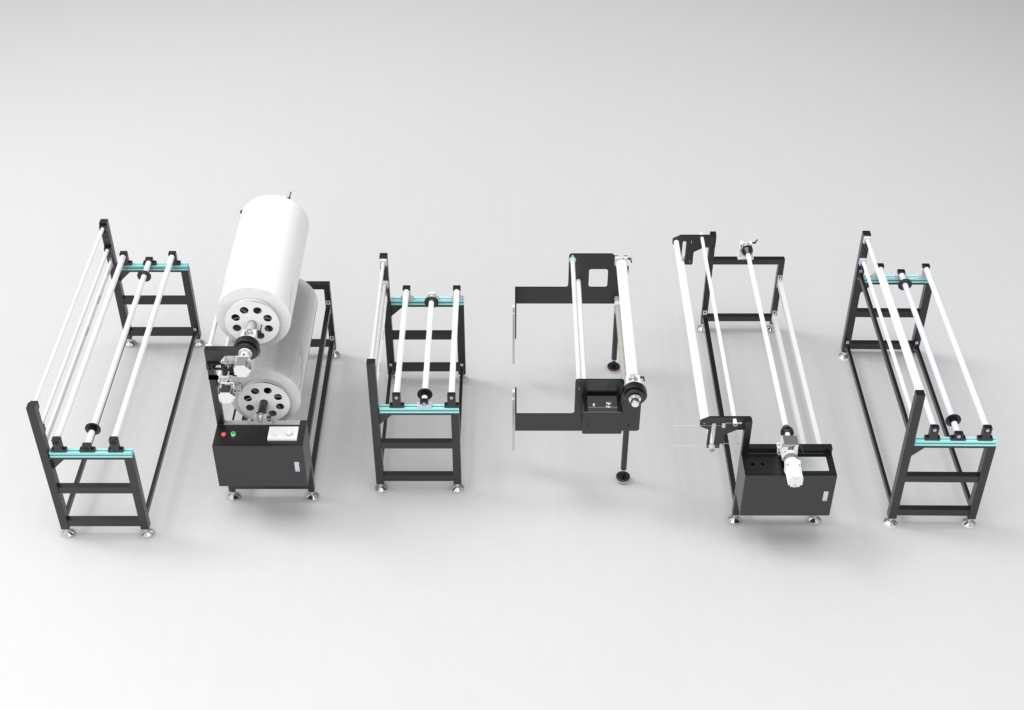

Feed rack

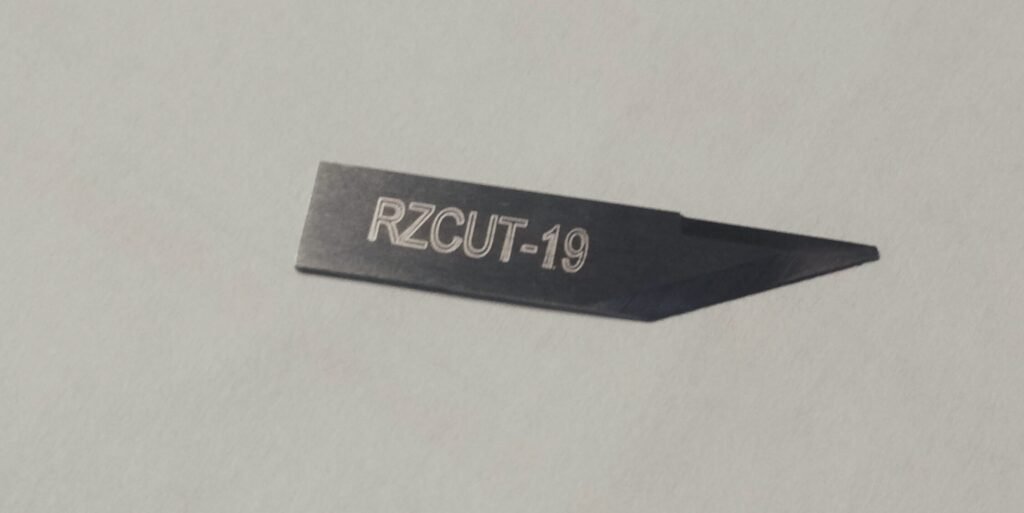

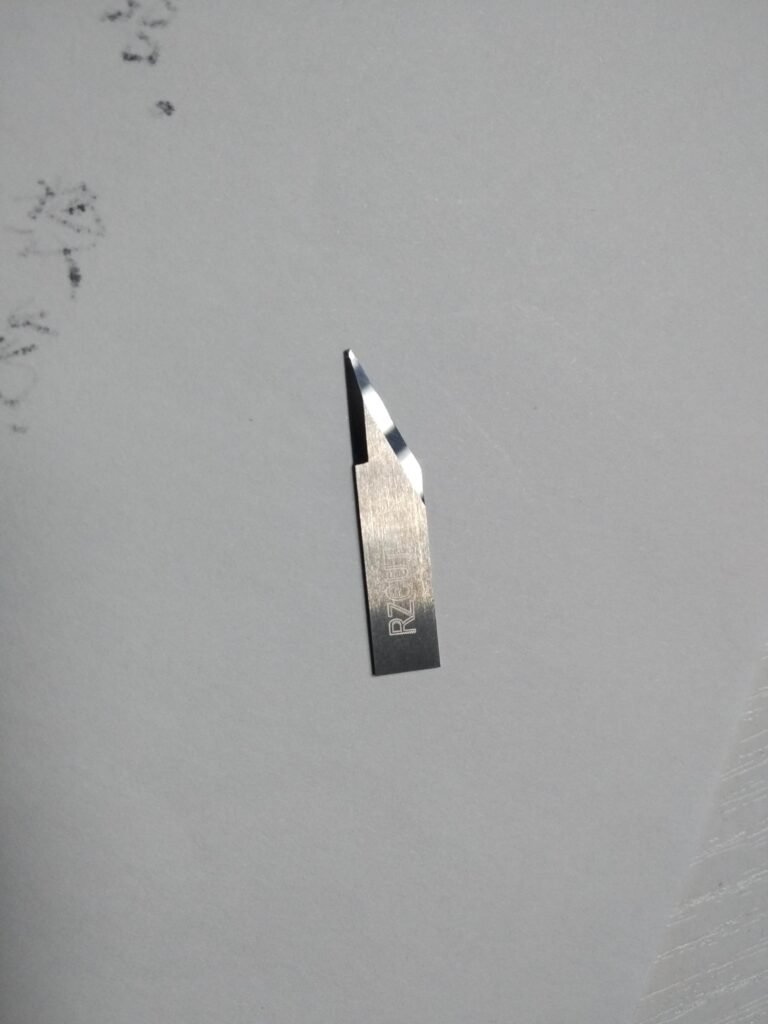

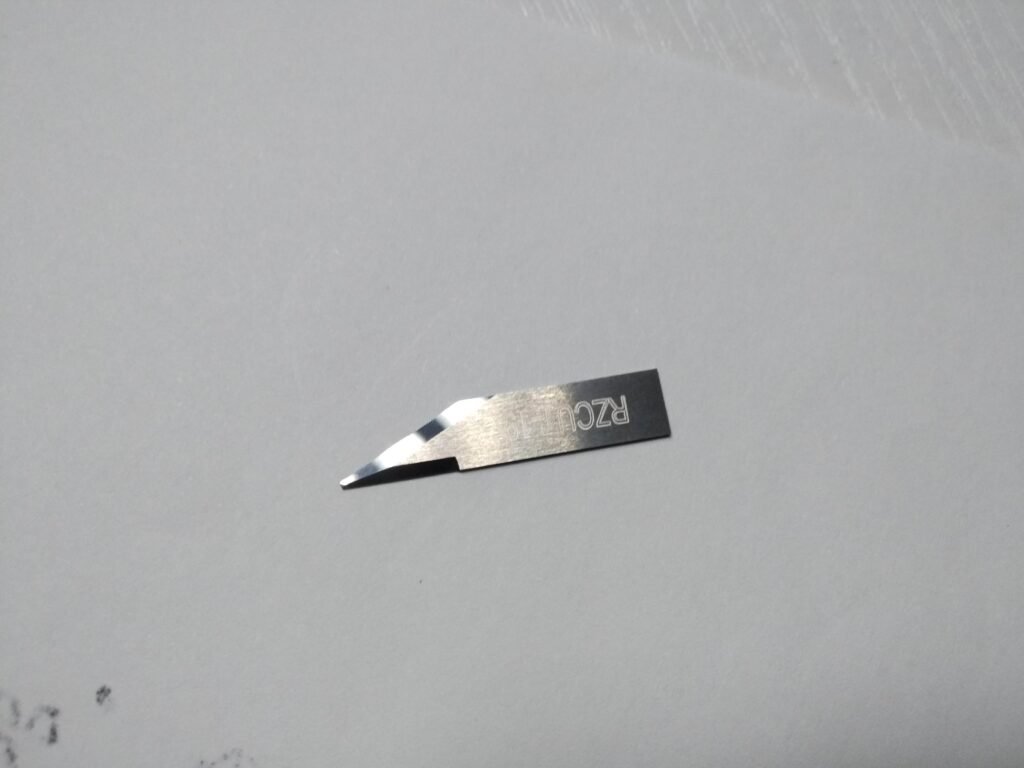

Tungsten steel blades enhance cutting performance and durability of CNC cutters.
Blade
workflow
01. Design
02. Import DXF / PLT files
03. Send the file to the machine
04. Cutting
05. Collection
06. Repeat Step 1~5
Technical Parameters
| Model | ZC-1007 | ZC-2516 | ZC-3016 | ACCEPTING CUSTOMIZATION |
|---|---|---|---|---|
| Effective Working Area | 1000*700mm | 2500*1600 mm | 3000*1600mm | |
| Air Pump Power | 5.5KW | 9KW | 9KW | |
| Machine Power | 2KW | |||
| Cutting Accuracy | ±0.2mm | |||
| Repeat Accuracy | ≤0.1mm | |||
| Type of Work Platform | Static Table，Conveyor Table，Dual Station，AR Syestem | |||
| Multi-Head Optional | Double head optional efficiency doubled, double gantry optional, double head mutual shift optional, length can be customized |
|||
| Multi-Function Tool | Vibrating knife full cutting, high power active round knife, semi-cutting cutting, full cutting cutting, camera positioning cutting, edge finding cutting, acrylic milling cutter, cursor positioning, line marking, indentation knife, V-groove knife, etc. |
|||
| Safety Devices | Safety Proximity Sensor | |||
| Cutting Speed | 0-1800mm/s | |||
| Transmission Port | Network port | |||
| File Formats | PDX/PLT | |||
| Material Fixing Method | Vacuum partition adsorption | |||
| Transmission Mechanism | Taiwan linear guide, synchronous belt drive | |||
| Drive Motor | Panasonic digital servo motor | |||
| Working Voltage/Frequency (Machine | AC220V±10%, 50Hz | |||
| Working Voltage/Frequency (Air Pump | AC380V±10%, 50Hz | |||
| Operation & Control | Multilingual LCD touch screen / Computer | |||
| Operating Environment | Temperature: -10℃~50℃; Relative Humidity: 20%~80% | |||
| Model | Effective Working Area（A2 x B2） |
|---|---|
| ZC- 1310 | 1300*1000mm |
| ZC- 1810 | 1800*1000mm |
| ZC-2520F | 2500*2000mm |
| ZC-3018 | 3000*1800mm |
| ZC-3020 | 3000*2000mm |
| Customization | Customization |
There is always a model to meet your demands.
Optional Sizes
Assembly Instruction Video
YOU WILL KNOW
Components:
- Fan
- Vibrating Cutting Head
- Blades
- Touch Screen
- Tool Box
