CNC Knife Cutting Machine Manufacturer
Static Table Type
ZINGCUT Static Table CNC cutters are suitable for all kinds of sheet-shaped non-metallic materials.
Static Table Cutting Machine
- High overall rigidity, stable structure and long service life.
- Simple structure, low failure rate and easy daily maintenance.
- Perfect for rigid sheets and irregular material cutting.
How does it work？
application

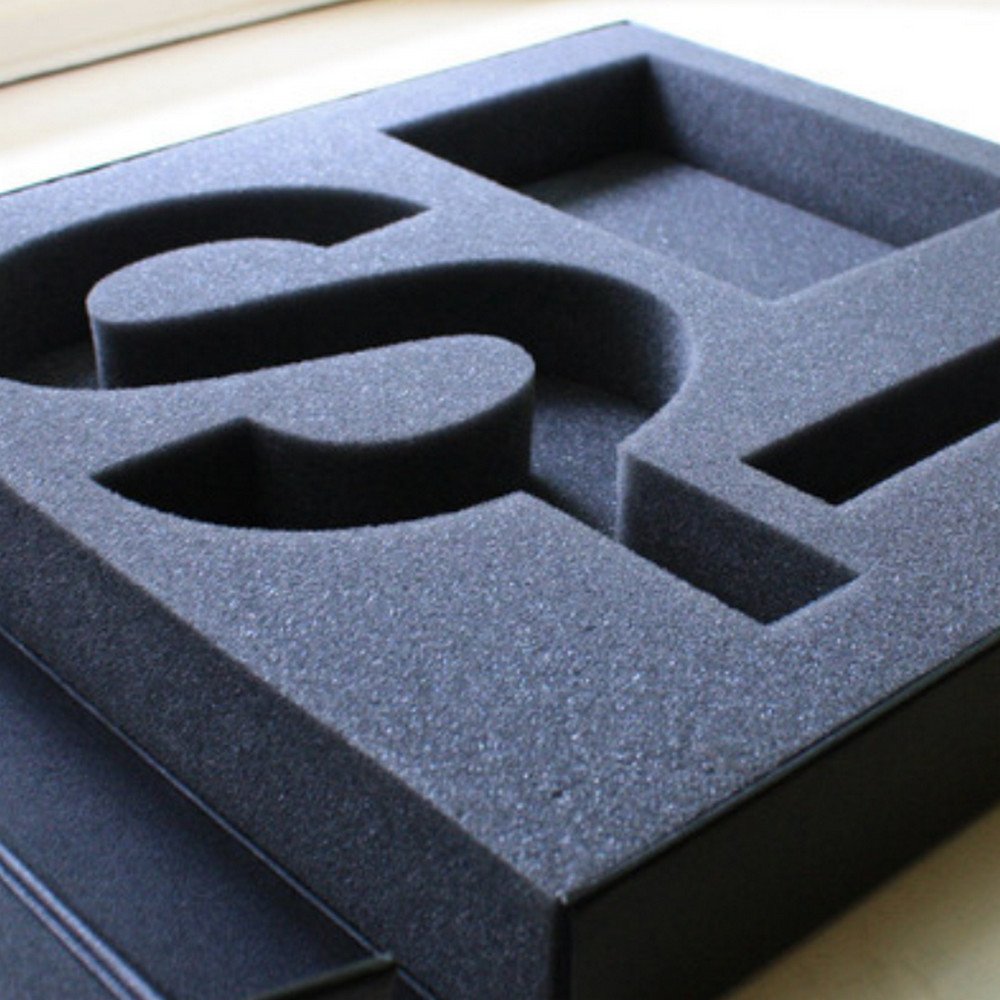

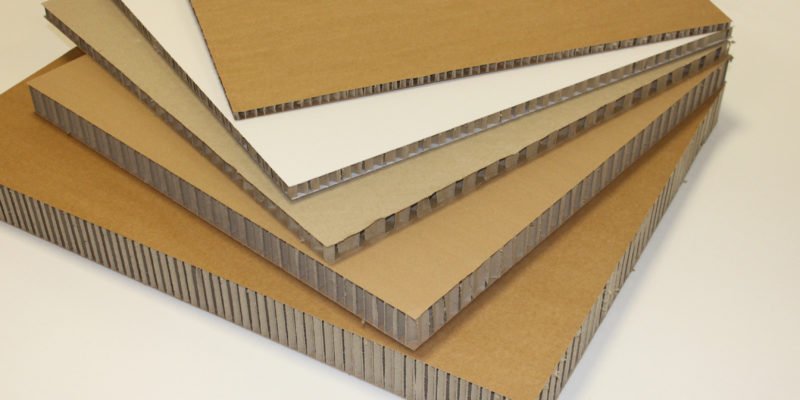

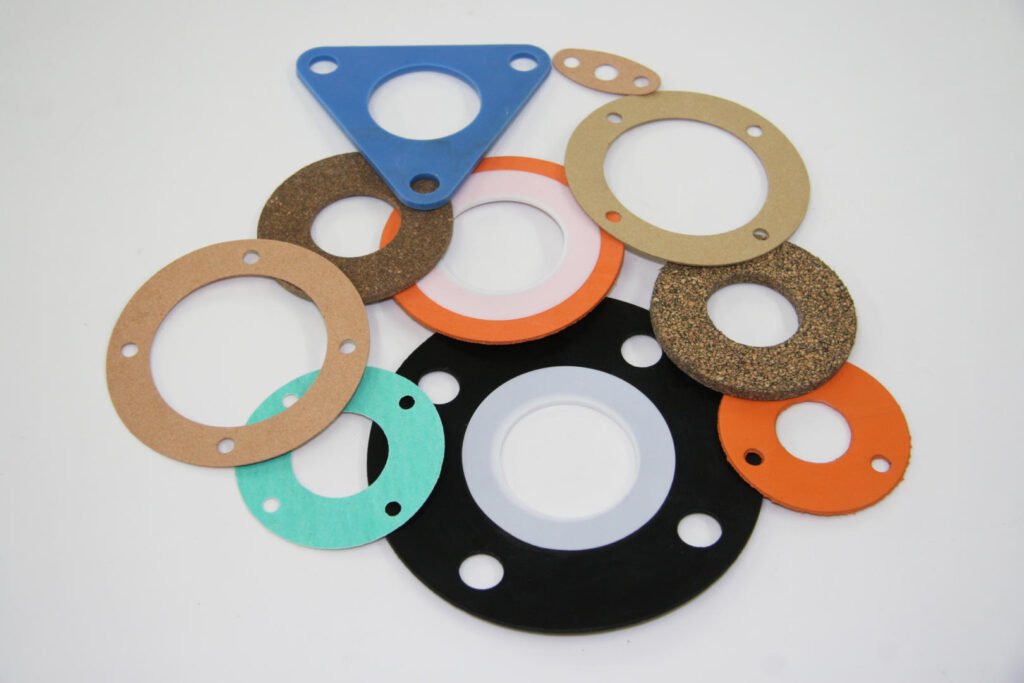

Sample Display
Our CNC cutting machine delivers fast cutting speed and exceptional precision. All finished samples feature complete, sharp and smooth cuts with neat edges, no burrs, no cracks or material deformation, presenting perfect cutting effect.
ZINGCUT CNC cutting machine is your ideal choice. If you have any questions, feel free to contact us anytime.
Feature
Integrated Body Design
Adopts an integrated one-piece frame structure, featuring high overall rigidity and stable operation. It effectively reduces vibration during cutting and ensures long-term processing accuracy.
Safety Induction Switch
Vacuum Suction System
Comes with an integrated vacuum suction function, which firmly and steadily fixes various materials during cutting. It prevents material shifting and ensures precise and consistent cutting results.
Optimized Vacuum Pipe Layout
Features a professional vacuum pipe routing design that greatly enhances fan working efficiency. It delivers stronger and more even suction force for stable material fixation.
TOOL
Electic Oscillating Tool
Hgih-speed oscillating toolfor cutting low and medium desity materials
— Depending on application， available with 0.5mm， 1.5mm，2.5mm
— high processing speed
— Suitable for leather, corrugated cardboard, felt and foam industry
Universal Drawing Tool
A pen tool for easy marking on material， it can be used for drawing，markling，writing，letters，numbers，etc
— Sophisticated resolution
— Recording of simple drawings，mark，characters，etc
Driven Rotary Tool
The Driven Rotary Tool cuts all textiles reliably and cost-effectively. Its ten-segmented blade reduces drag, severs fibers cleanly, and delivers precise cuts even on loose woven fabrics.
—Outstanding production efficiency with a maximum cutting speed of 1000 mm per second.
—Consistently superior cutting finish and precision are maintained even on heavy coarse-woven fabrics, effectively avoiding fiber displacement and slippage.
—Fully compatible and adaptable to an extensive variety of textile materials.
V- Cutter
— Small V-Cutter：Precise 45° bevel cutting for table mats, photo frames. Supports slotting & cutting 5mm-thick cardboard and polymer materials.
— Big V-Cutter：Perfect for cutting thick materials such as foam boards and sandwich boards.
— Subtended V-Cutter：That can cut thin materials at 90 degree angle, such as paper board, cardboard, etc.
— Variable V-Cutter：90° cutting for thin boards. Fits 3D work of cardboard, foam core, corrugated & honeycomb boards. Quick, precise angle adjustment.
Electric Punching Tool
An electric hole puncher is used to create holes in variety of materials, such as leathercloth,plastic, rubber paper sheets and etc.
— Precise and efficient holes punching
— Hole diameter: 0.5-10rm
CCD Camera
By imitation of the human eye vision recognition positioning system, it is for accurately contour cutting
— Industriel camera facilitates fast posirioning on printed graphics ard increase cutting accuracy
Pneumatic Oscillating Tool
8 mm cutting amplitude， enabling it to cut hard， high-density flexible materials， as well assoft and thick materials
— High performance cutting tool with 8mm，amplitude
— powerful，low-maintenance pneumatic tool
— Suitable for thick hollow board, rubber and foam industries.
Creasing Wheel Tool
The tool producees high-qua’lity creases both with and against the corrugation without tearing or cracking the top sheeet
— Clean creases without tearing
— Directional pressure adjustments
— Suitable for thick hollow board, rubber sheet and corrugated cardboard industries.
Router Module
The centerpiece of rouder moduels is a high-frequency spindle. Depending on applicatitions and requirements, versioon from 600W to 2.2KW are available
— Routing.engraving with one and the same module
— Capable of processing a wide range of materials
— Active coolng for relable heat dissipation Efficient dust extraction for clean operation
Universal Cutting Tool
The Universal Cutting Tool is perfect for through-cutting various materials up to 5 mm thickThe use of drag knives allows for very high processing speeds.
— Wide assortment of Ruizhou cutting blades available
— Very high processing speeds
Perforating Tool
Can create perforated lires very efficiertly on corrugated cardboard, folding carton,andPP (polypropylene), vinyl.
— Highi-quality perforations
— High processing speeds
— Wide range ot pertorating blades avai able trom ZINGCUT
Technical Parameters
| Model | ZC-1007 | ZC-2516 | ZC-3016 | ACCEPTING CUSTOMIZATION |
|---|---|---|---|---|
| Effective Working Area | 1000*700mm | 2500*1600 mm | 3000*1600mm | |
| Air Pump Power | 5.5KW | 9KW | 9KW | |
| Machine Power | 2KW | |||
| Cutting Accuracy | ±0.2mm | |||
| Repeat Accuracy | ≤0.1mm | |||
| Type of Work Platform | Static Table，Conveyor Table，Dual Station，AR Syestem | |||
| Multi-Head Optional | Double head optional efficiency doubled, double gantry optional, double head mutual shift optional, length can be customized |
|||
| Multi-Function Tool | Vibrating knife full cutting, high power active round knife, semi-cutting cutting, full cutting cutting, camera positioning cutting, edge finding cutting, acrylic milling cutter, cursor positioning, line marking, indentation knife, V-groove knife, etc. |
|||
| Safety Devices | Safety Proximity Sensor | |||
| Cutting Speed | 0-1800mm/s | |||
| Transmission Port | Network port | |||
| File Formats | PDX/PLT | |||
| Material Fixing Method | Vacuum partition adsorption | |||
| Transmission Mechanism | Taiwan linear guide, synchronous belt drive | |||
| Drive Motor | Panasonic digital servo motor | |||
| Working Voltage/Frequency (Machine | AC220V±10%, 50Hz | |||
| Working Voltage/Frequency (Air Pump | AC380V±10%, 50Hz | |||
| Operation & Control | Multilingual LCD touch screen / Computer | |||
| Operating Environment | Temperature: -10℃~50℃; Relative Humidity: 20%~80% | |||
Assembly Instruction Video
YOU WILL KNOW
Components:
- Fan
- Vibrating Cutting Head
- Blades
- Touch Screen
- Tool Box
Click CONTACT US for detailed videos
FAQ&
You may still have some questions after learning about the Static Table CNC Cutting Machine. Feel free to reach out, and we are here to answer all your inquiries.
Sure, our CNC cutting machine supports rich tool combination options. It allows mounting several independent tools separately, or arranging multiple tools to share one single tool holder.
Absolutely. It can be equipped with assorted tools to accommodate the processing requirements of different materials. Besides cutting tools, it can also be fitted with grooving, creasing, punching and marking tools.
Its maximum cutting speed reaches 1800mm/s. The actual working speed needs to be adjusted according to the material thickness, density and the type of cutting tool used.
Certainly. We offer detailed installation and operation tutorial videos, and our professional engineers are available online to provide real-time guidance.
Yes, the main consumables are the blade and felt platform.
Certainly. Routine machine maintenance can effectively prolong its service life. Users need to perform regular lubrication and upkeep on components such as guide rails, racks and cutting tools. We will provide you with detailed maintenance instructions.
If you still have any unanswered questions, please click Contact Us at any time. We will respond to your inquiries promptly.
