AR SYSTEM
advantage
AR Visual Auto Positioning
Smart camera & AR system realize automatic edge finding and contour recognition, no manual alignment needed.
High Cutting Precision
Accurately identify irregular and printed materials, ensure perfect cutting effect without deviation.
Easy Operation & Low Training Cost
AR real-time visual guidance simplifies operation, new workers can get started quickly.
Save Material & Reduce Rework
Precise positioning avoids cutting errors, effectively reduces material waste and defective products.
Wide Material Compatibility
Perfect for logo, label, printed fabric, leather and various irregular workpiece cutting.
Intelligent System
Built with multiple intelligent systems, the CNC cutting machine is effortless to operate and greatly reduces training costs.

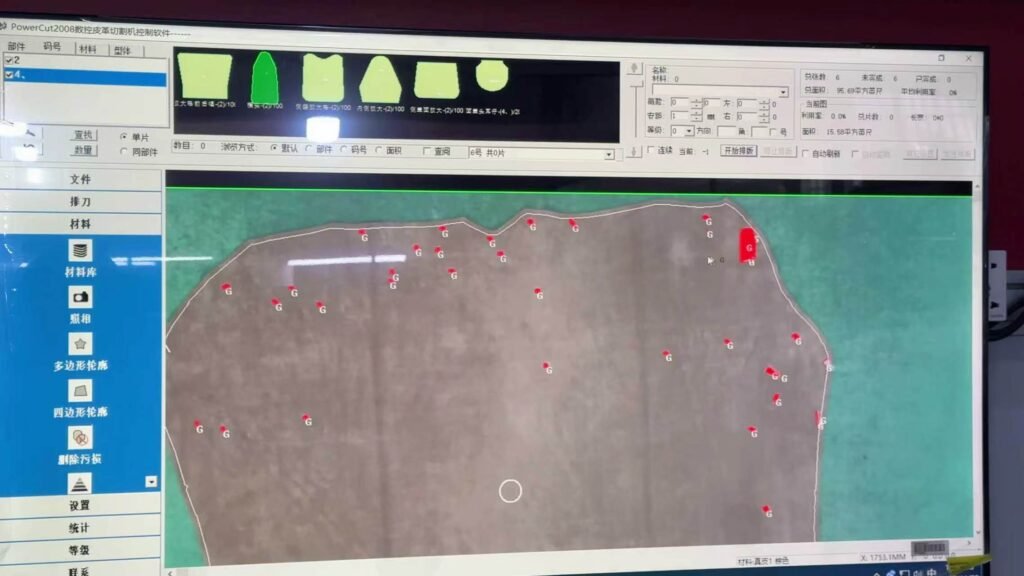

Vision Recognition System
- Fast automatic positioning
- High cutting accuracy
- Easy edge tracing for irregular materials

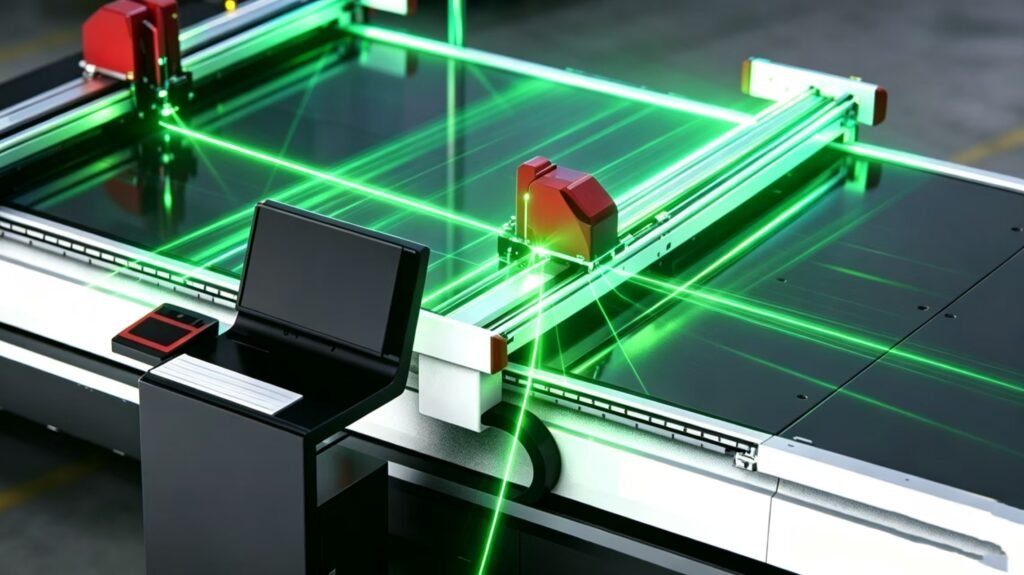

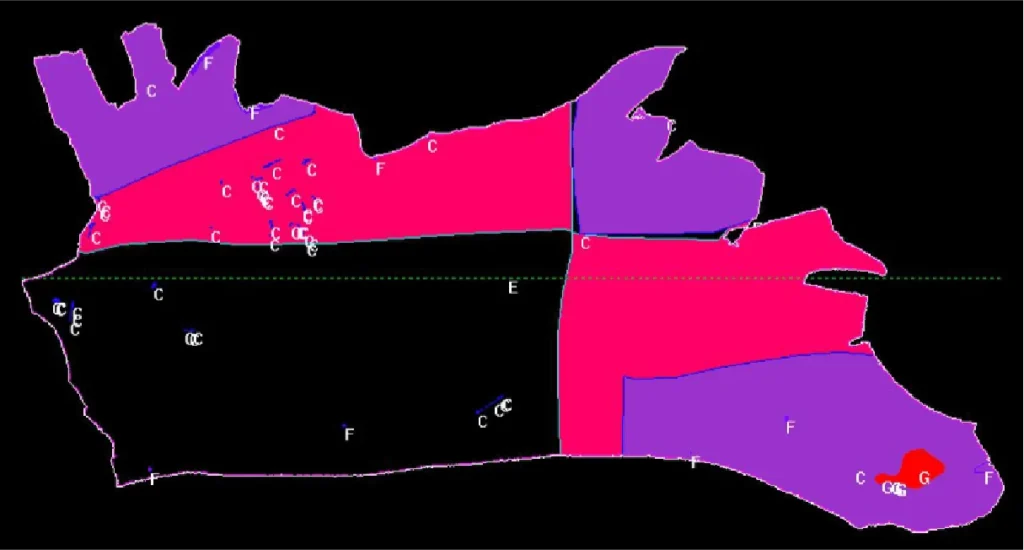

Projection Positioning System
- Real-time projection preview, intuitive and visual operation
- High-precision overall positioning for large materials
- Effectively avoid material waste and improve utilization
- Suitable for various irregular and flexible materials

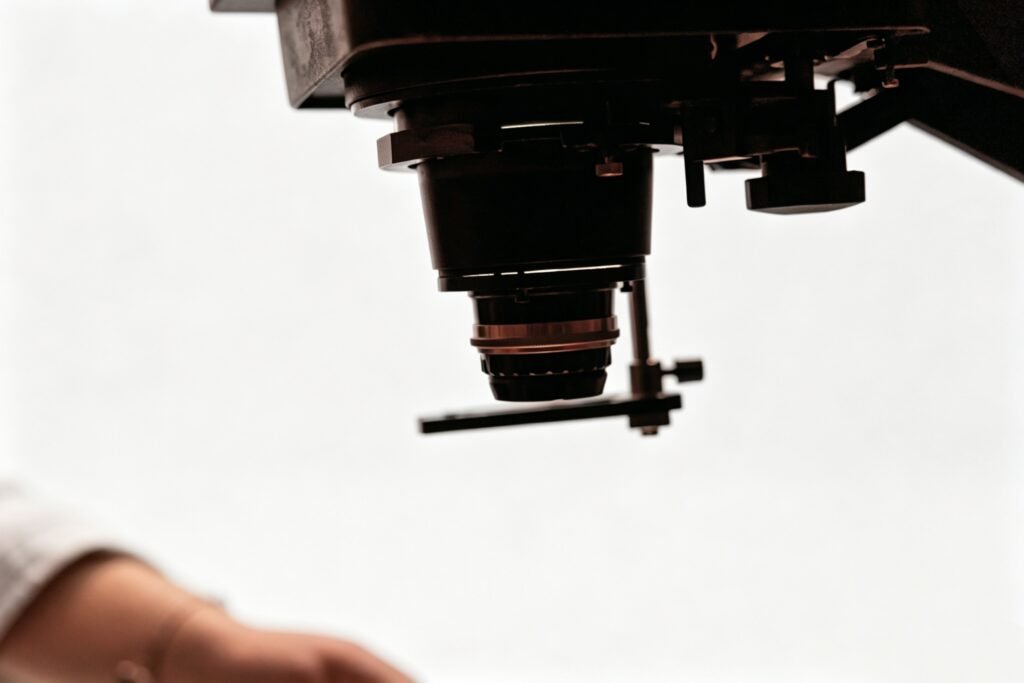

CCD Recognition System
- Precise automatic contour positioning
- High cutting repeat accuracy
- Auto identify irregular raw materials
Upgradable Configuration Options

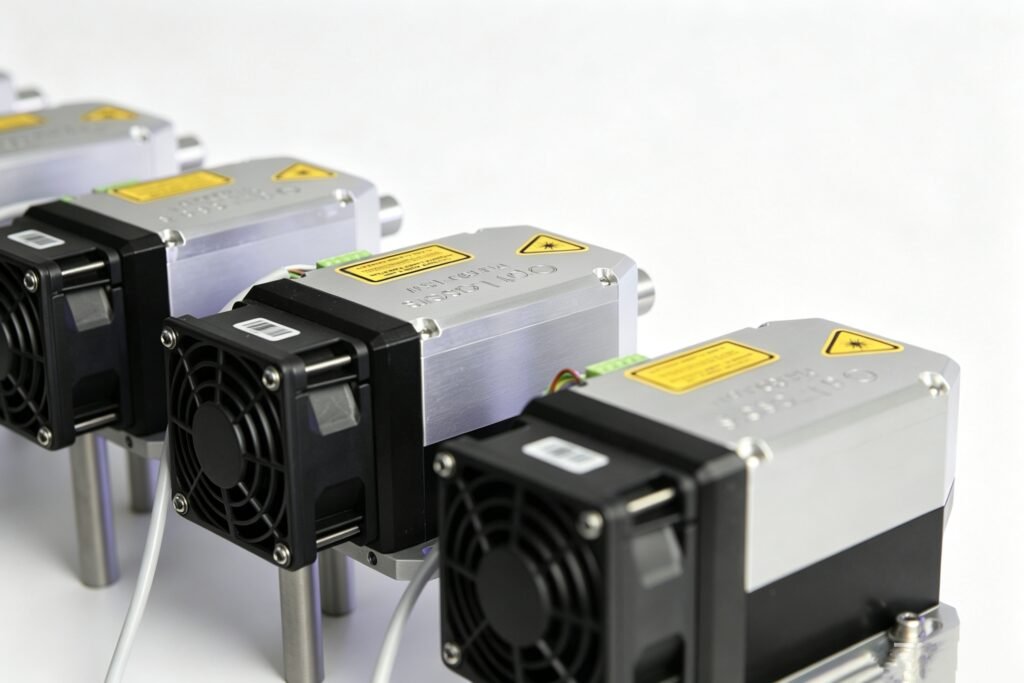

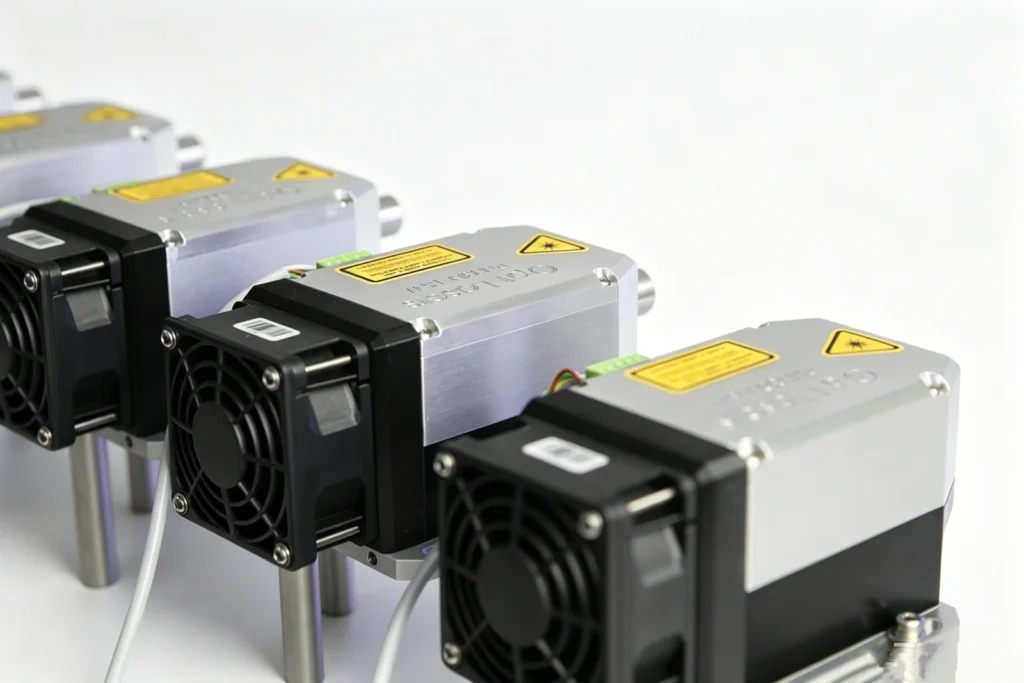

CCD Visual Mark Point Alignment
CCD Visual Mark Point Alignment recognizes material marks accurately to boost cutting precision, reduce errors and enhance product quality.
Projection Positioning
Projection positioning projects cutting paths directly onto materials for clear visual guidance, ensuring better alignment and higher cutting accuracy.

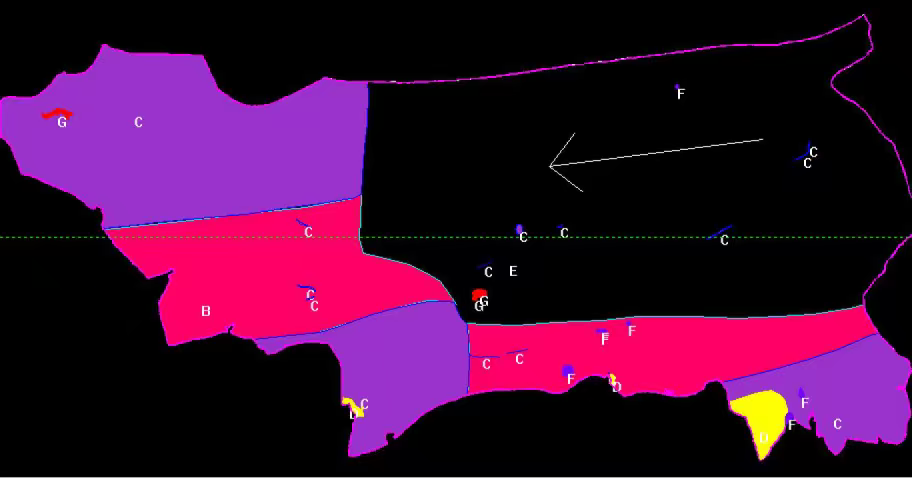

Image Recognition
Image Recognition enables the machine to detect material outlines for precise, well-aligned cutting on printed fabrics, genuine leather and more.
TOOL
Electic Oscillating Tool
Hgih-speed oscillating toolfor cutting low and medium desity materials
— Depending on application， available with 0.5mm， 1.5mm，2.5mm
— high processing speed
— Suitable for leather, corrugated cardboard, felt and foam industry
Universal Drawing Tool
A pen tool for easy marking on material， it can be used for drawing，markling，writing，letters，numbers，etc
— Sophisticated resolution
— Recording of simple drawings，mark，characters，etc
Driven Rotary Tool
The Driven Rotary Tool cuts all textiles reliably and cost-effectively. Its ten-segmented blade reduces drag, severs fibers cleanly, and delivers precise cuts even on loose woven fabrics.
—Outstanding production efficiency with a maximum cutting speed of 1000 mm per second.
—Consistently superior cutting finish and precision are maintained even on heavy coarse-woven fabrics, effectively avoiding fiber displacement and slippage.
—Fully compatible and adaptable to an extensive variety of textile materials.
V- Cutter
— Small V-Cutter：Precise 45° bevel cutting for table mats, photo frames. Supports slotting & cutting 5mm-thick cardboard and polymer materials.
— Big V-Cutter：Perfect for cutting thick materials such as foam boards and sandwich boards.
— Subtended V-Cutter：That can cut thin materials at 90 degree angle, such as paper board, cardboard, etc.
— Variable V-Cutter：90° cutting for thin boards. Fits 3D work of cardboard, foam core, corrugated & honeycomb boards. Quick, precise angle adjustment.
Electric Punching Tool
An electric hole puncher is used to create holes in variety of materials, such as leathercloth,plastic, rubber paper sheets and etc.
— Precise and efficient holes punching
— Hole diameter: 0.5-10rm
CCD Camera
By imitation of the human eye vision recognition positioning system, it is for accurately contour cutting
— Industriel camera facilitates fast posirioning on printed graphics ard increase cutting accuracy
Pneumatic Oscillating Tool
8 mm cutting amplitude， enabling it to cut hard， high-density flexible materials， as well assoft and thick materials
— High performance cutting tool with 8mm，amplitude
— powerful，low-maintenance pneumatic tool
— Suitable for thick hollow board, rubber and foam industries.
Creasing Wheel Tool
The tool producees high-qua’lity creases both with and against the corrugation without tearing or cracking the top sheeet
— Clean creases without tearing
— Directional pressure adjustments
— Suitable for thick hollow board, rubber sheet and corrugated cardboard industries.
Router Module
The centerpiece of rouder moduels is a high-frequency spindle. Depending on applicatitions and requirements, versioon from 600W to 2.2KW are available
— Routing.engraving with one and the same module
— Capable of processing a wide range of materials
— Active coolng for relable heat dissipation Efficient dust extraction for clean operation
Universal Cutting Tool
The Universal Cutting Tool is perfect for through-cutting various materials up to 5 mm thickThe use of drag knives allows for very high processing speeds.
— Wide assortment of Ruizhou cutting blades available
— Very high processing speeds
Perforating Tool
Can create perforated lires very efficiertly on corrugated cardboard, folding carton,andPP (polypropylene), vinyl.
— Highi-quality perforations
— High processing speeds
— Wide range ot pertorating blades avai able trom ZINGCUT
Technical Parameters
| Model | ZC-1007 | ZC-2516 | ZC-3016 | ACCEPTING CUSTOMIZATION |
|---|---|---|---|---|
| Effective Working Area | 1000*700mm | 2500*1600 mm | 3000*1600mm | |
| Air Pump Power | 5.5KW | 9KW | 9KW | |
| Machine Power | 2KW | |||
| Cutting Accuracy | ±0.2mm | |||
| Repeat Accuracy | ≤0.1mm | |||
| Type of Work Platform | Static Table，Conveyor Table，Dual Station，AR Syestem | |||
| Multi-Head Optional | Double head optional efficiency doubled, double gantry optional, double head mutual shift optional, length can be customized |
|||
| Multi-Function Tool | Vibrating knife full cutting, high power active round knife, semi-cutting cutting, full cutting cutting, camera positioning cutting, edge finding cutting, acrylic milling cutter, cursor positioning, line marking, indentation knife, V-groove knife, etc. |
|||
| Safety Devices | Safety Proximity Sensor | |||
| Cutting Speed | 0-1800mm/s | |||
| Transmission Port | Network port | |||
| File Formats | PDX/PLT | |||
| Material Fixing Method | Vacuum partition adsorption | |||
| Transmission Mechanism | Taiwan linear guide, synchronous belt drive | |||
| Drive Motor | Panasonic digital servo motor | |||
| Working Voltage/Frequency (Machine | AC220V±10%, 50Hz | |||
| Working Voltage/Frequency (Air Pump | AC380V±10%, 50Hz | |||
| Operation & Control | Multilingual LCD touch screen / Computer | |||
| Operating Environment | Temperature: -10℃~50℃; Relative Humidity: 20%~80% | |||
